KM20RV-JRBEQ (1981)
Toyota Liteace
(7910-8210)RHD..V4D..ARL,EUR ; (8210- )KM20..VSP..4H..02S ; (8210- )CM20,YM21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

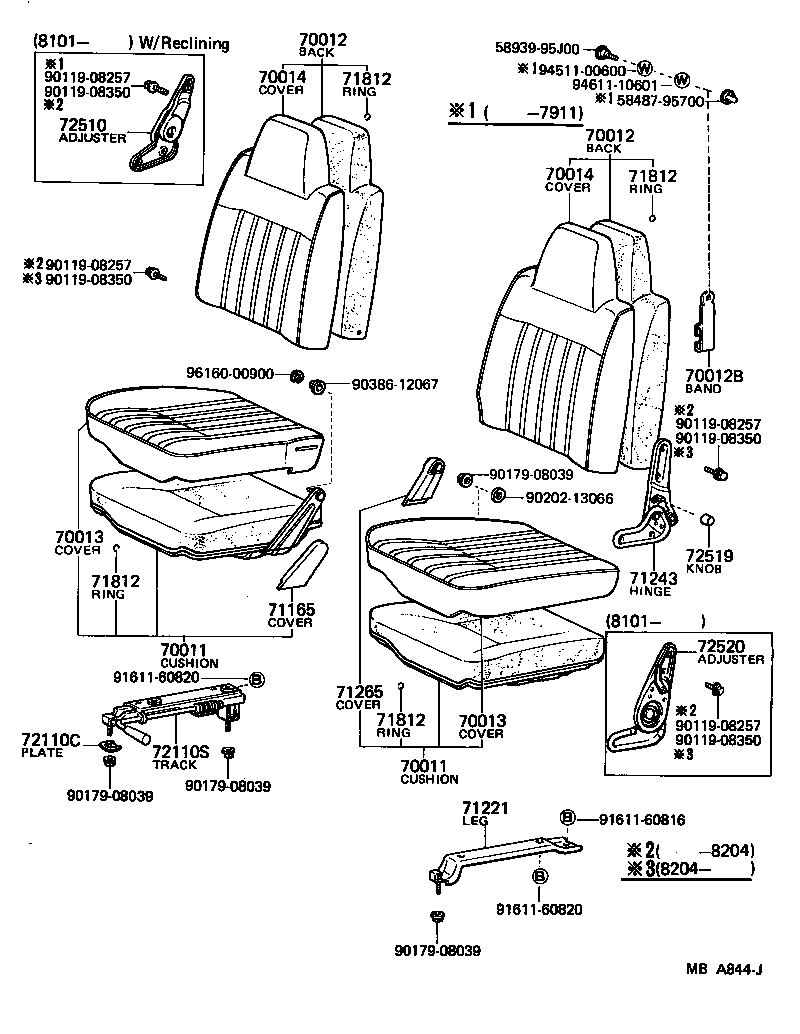

| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71210-95708 |
KM20..RHD..V4D..(ARL,EUR) LH,VL,T=1.5 |
1 | ||
| 71110-95707 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71110-95709 |
KM20..07S;KM20..02S..ARL RH,FB |
1 | ||
| 71210-95711 |
KM20..07S;KM20..02S..ARL LH,FB |
1 | ||
| 71110-95737 |
CM20,KM20,YM21..02S..ARL RH,VL |
1 | ||
| 71210-95747 |
KM20..02S..ARL LH,VL |
1 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71210-95708 |
KM20..RHD..V4D..(ARL,EUR) LH,VL,T=1.5 |
1 | ||
| 71110-95707 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71110-95709 |
KM20..07S;KM20..02S..ARL RH,FB |
1 | ||
| 71210-95711 |
KM20..07S;KM20..02S..ARL LH,FB |
1 | ||
| 71110-95737 |
CM20,KM20,YM21..02S..ARL RH,VL |
1 | ||
| 71210-95747 |
KM20..02S..ARL LH,VL |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71150-95711 |
KM20..07S;KM20..02S..ARL RH,FB |
1 | ||
| 71250-95715 |
KM20..07S;KM20..02S..ARL LH,FB |
1 | ||
| 71250-95712 |
KM20..RHD..V4D..(ARL,EUR) LH,VL,T=1.5 |
1 | ||
| 71150-95707 |
KM20..02S..ARL;KM20..RHD..(HRF,SRF)..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 71150-95740 |
CM20,KM20,YM21..02S..ARL RH,VL |
1 | ||
| 71250-95749 |
CM20,KM20,YM21..02S..ARL LH,VL |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71150-95711 |
KM20..07S;KM20..02S..ARL RH,FB |
1 | ||
| 71250-95715 |
KM20..07S;KM20..02S..ARL LH,FB |
1 | ||
| 71250-95712 |
KM20..RHD..V4D..(ARL,EUR) LH,VL,T=1.5 |
1 | ||
| 71150-95707 |
KM20..02S..ARL;KM20..RHD..(HRF,SRF)..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 71150-95740 |
CM20,KM20,YM21..02S..ARL RH,VL |
1 | ||
| 71250-95749 |
CM20,KM20,YM21..02S..ARL LH,VL |
1 | ||
| 70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-9570306 |
KM20..RHD..(ARL,EUR) BROWN,BROWN |
1 | ||
| 58936-9570305 |
CM20,KM20,YM21..RHD..(ARL,EUR) BEIGE,BEIGE |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71208-95714 |
KM20..07S;KM20..02S..ARL LH,FB |
1 | ||
| 71108-95708 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71108-95710 |
KM20..07S;KM20..02S..ARL RH,FB |
1 | ||
| 71208-95711 |
KM20..RHD..V4D..(ARL,EUR) LH,VL,T=1.5 |
1 | ||
| 71108-95738 |
CM20,KM20,YM21..02S..ARL RH,VL |
1 | ||
| 71208-95750 |
KM20..02S..ARL LH,VL |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71208-95714 |
KM20..07S;KM20..02S..ARL LH,FB |
1 | ||
| 71108-95708 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71108-95710 |
KM20..07S;KM20..02S..ARL RH,FB |
1 | ||
| 71208-95711 |
KM20..RHD..V4D..(ARL,EUR) LH,VL,T=1.5 |
1 | ||
| 71108-95738 |
CM20,KM20,YM21..02S..ARL RH,VL |
1 | ||
| 71208-95750 |
KM20..02S..ARL LH,VL |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71209-95711 |
KM20..07S;KM20..02S..ARL LH,FB |
1 | ||
| 71109-95707 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71109-95710 |
KM20..07S;KM20..02S..ARL RH,FB |
1 | ||
| 71209-95708 |
KM20..RHD..EUR;KM20..02S..ARL LH,VL,T=1.5 |
1 | ||
| 71109-95739 |
CM20,KM20,YM21..02S..ARL RH,VL |
1 | ||
| 71209-95742 |
CM20,KM20,YM21..02S..ARL LH,VL |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71209-95711 |
KM20..07S;KM20..02S..ARL LH,FB |
1 | ||
| 71109-95707 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71109-95710 |
KM20..07S;KM20..02S..ARL RH,FB |
1 | ||
| 71209-95708 |
KM20..RHD..EUR;KM20..02S..ARL LH,VL,T=1.5 |
1 | ||
| 71109-95739 |
CM20,KM20,YM21..02S..ARL RH,VL |
1 | ||
| 71209-95742 |
CM20,KM20,YM21..02S..ARL LH,VL |
1 | ||
| 71165 - COVER, FRONT RH SEAT HINGE | ||||
| 71165-9570006 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S BROWN,BROWN |
1 | ||
| 71165-9570005 |
CM20,KM20,YM2# BEIGE,BEIGE |
1 | ||
| 71221 - LEG, FRONT SEAT | ||||
| 71221-95703 |
KM20..RHD..(ARL,EUR) |
1 | ||
| 71243 - HINGE, PASSENGER SEAT BACK, LH | ||||
| 71290-95700 |
KM20..RHD..05S..EUR;KM20..RHD..(02S,03S)..(ARL,EUR) |
1 | ||
| 71290-95702 |
KM20..02S..ARL |
1 | ||
| 71265 - COVER, FRONT LH SEAT HINGE | ||||
| 71265-9570105 |
KM20..RHD..(ARL,EUR) BEIGE,BEIGE |
1 | ||
| 71265-95701 |
KM20..RHD..(ARL,EUR) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 90468-18071 |
CM20,KM20,YM2# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 90468-18071 |
CM20,KM20,YM2# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 90468-18071 |
CM20,KM20,YM2# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 90468-18071 |
CM20,KM20,YM2# |
1 | ||
| 72110C - PLATE, SEAT TRACK SET | ||||
| 58597-95700 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S) |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72710-95705 |
CM20,KM20,YM2#..RHD |
1 | ||
| 72710-95700 |
KM20..RHD..(HRF,SRF) |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-95706 |
CM20,KM20,YM2#..RHD..(BUS,V)..(ARL,GEN) |
1 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 71245-95701 |
KM20..RHD..05S..EUR;KM20..RHD..(02S,03S)..(ARL,EUR) |
1 | ||
| 71245-95701 |
CM20,KM20,YM21..02S..ARL |
1 | ||
| Common parts | ||||
| 58487-95700 | ||||
| 58939-95J00 | ||||
| 90119-08257 | ||||
| 90119-08350 | ||||
| 90179-08039 | ||||
| 90202-13066 | ||||
| 90386-12067 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 94511-00600 | ||||
| 94611-10601 | ||||
| 96160-00900 | ||||
