KM20R-JR3 (1979)

Toyota Liteace

Production Oct 1979 - Oct 1982
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)TR

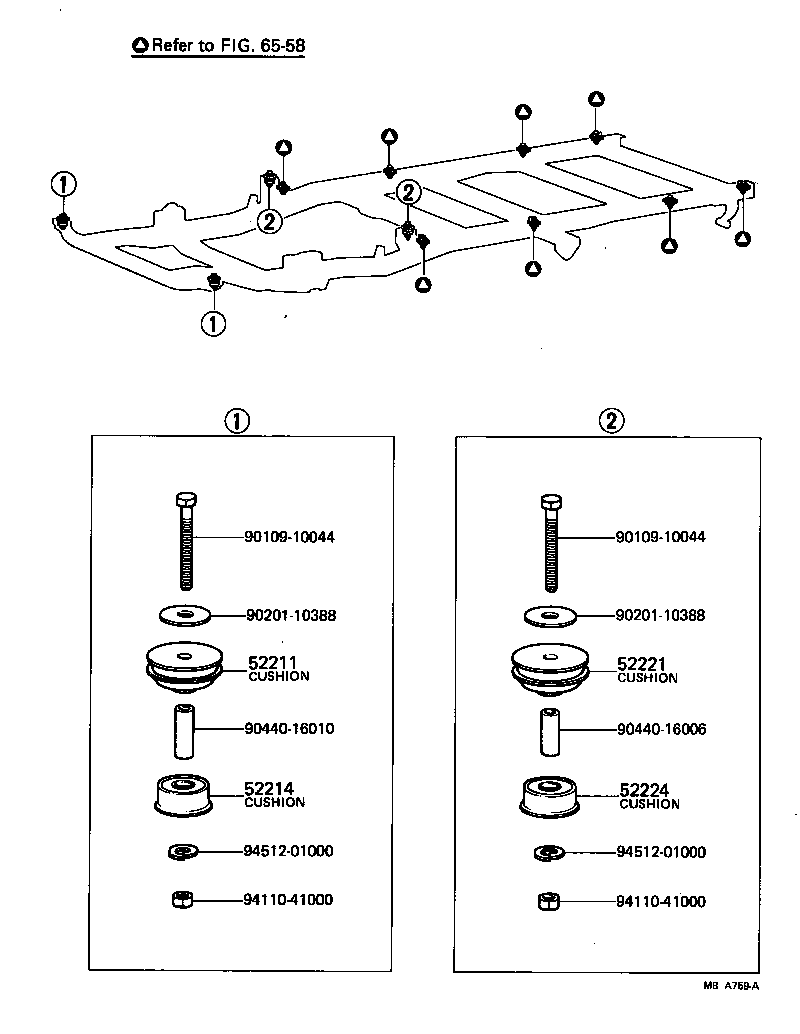

Click highlighted areas on diagram

diagram 52211 52214 52221 52224 9010910044 9010910044 9020110388 9020110388 9044016006 9044016010 9411041000 9411041000 9451201000 9451201000
Part # Description Qty Price
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52201-28011

KM20..TR

 2
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52204-28011

KM20..TR

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52201-28011

KM20..TR

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52204-28011

KM20..TR

 2
Common parts
90109-10044
90201-10388
90440-16006
90440-16010
94110-41000
94512-01000
