KM20LV-JRFW (1979)
Toyota Liteace
(7910- )LHD..V

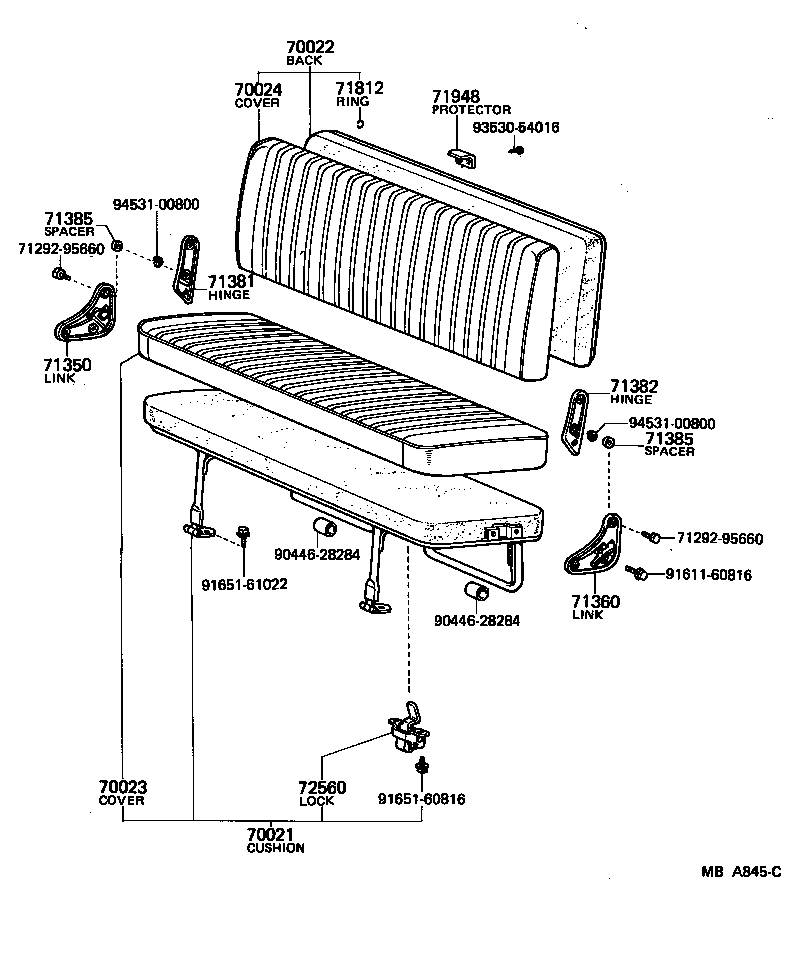

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71410-95722 |
KM20..LHD..(05S,06S) |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 71450-95702 |
KM20..LHD..(05S,06S) |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71408-95702 |
KM20..(05S,06S)..(EUR,GEN) |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71409-95701 |
KM20..(05S,06S)..(EUR,GEN) |
1 | ||
| 71350 - LINK ASSY, REAR SEAT BACK CUSHION, RH | ||||
| 71570-95A01 |
KM20..LHD..(05S,06S) |
1 | ||
| 71360 - LINK ASSY, REAR SEAT BACK CUSHION, LH | ||||
| 71560-95A01 |
KM20..LHD..(05S,06S) |
1 | ||
| 71381 - HINGE, REAR SEAT BACK STOP, NO.1 | ||||
| 71557-95A01 |
KM20..LHD..(05S,06S) |
1 | ||
| 71382 - HINGE, REAR SEAT BACK STOP, NO.2 | ||||
| 71556-95A01 |
KM20..LHD..(05S,06S) |
1 | ||
| 71385 - SPACER, REAR SEAT HINGE | ||||
| 71291-95660 |
CM20,KM20..LHD..VSG |
2 | ||
| 71385 - SPACER, REAR SEAT HINGE | ||||
| 71291-95660 |
CM20,KM20..LHD..VSG |
2 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 71948 - PROTECTOR, PASSENGER SEAT BACK | ||||
| 71498-9570006 |
KM20..(05S,06S,07S,08S,09S)..STD..(EUR,GEN) BROWN,BROWN |
2 | ||
| 72560 - LOCK ASSY, REAR SEAT | ||||
| 72630-95700 |
KM20..LHD..(05S,06S) |
1 | ||
| Common parts | ||||
| 71292-95660 | ||||
| 90446-28284 | ||||
| 91611-60816 | ||||
| 91651-60816 | ||||
| 91651-61022 | ||||
| 93530-54016 | ||||
| 94531-00800 | ||||

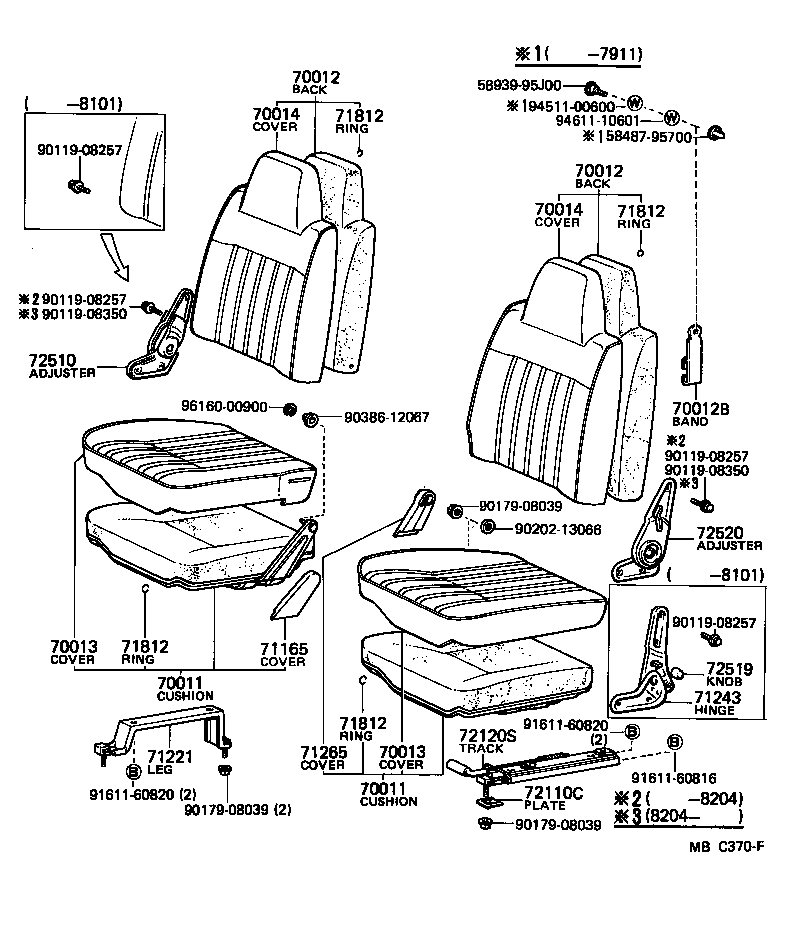

(7910-8101)LHD..V,WG ; (8101- )LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71110-95707 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71210-95708 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) LH,VL,T=1.5 |
1 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71110-95707 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71210-95708 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) LH,VL,T=1.5 |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71150-95709 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71250-95712 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) LH,VL,T=1.5 |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71150-95709 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71250-95712 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) LH,VL,T=1.5 |
1 | ||
| 70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-9570306 |
KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) BROWN,BROWN |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71108-95708 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71208-95711 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) LH,VL,T=1.5 |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71108-95708 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71208-95711 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) LH,VL,T=1.5 |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71109-95707 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71209-95708 |
KM20..V..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,09S) LH,VL,T=1.5 |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71109-95707 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) RH,VL,T=1.5 |
1 | ||
| 71209-95708 |
KM20..V..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,09S) LH,VL,T=1.5 |
1 | ||
| 71165 - COVER, FRONT RH SEAT HINGE | ||||
| 71165-9570006 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S BROWN,BROWN |
1 | ||
| 71221 - LEG, FRONT SEAT | ||||
| 71121-95700 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 71243 - HINGE, PASSENGER SEAT BACK, LH | ||||
| 71290-95700 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 71265 - COVER, FRONT LH SEAT HINGE | ||||
| 71265-95701 |
KM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18056 |
KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S) |
1 | ||
| 72110C - PLATE, SEAT TRACK SET | ||||
| 58597-95700 |
KM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S) |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72720-95700 |
CM20,KM20..LHD |
1 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 71245-95701 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| Common parts | ||||
| 58487-95700 | ||||
| 58939-95J00 | ||||
| 90119-08257 | ||||
| 90119-08350 | ||||
| 90179-08039 | ||||
| 90202-13066 | ||||
| 90386-12067 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 94511-00600 | ||||
| 94611-10601 | ||||
| 96160-00900 | ||||
