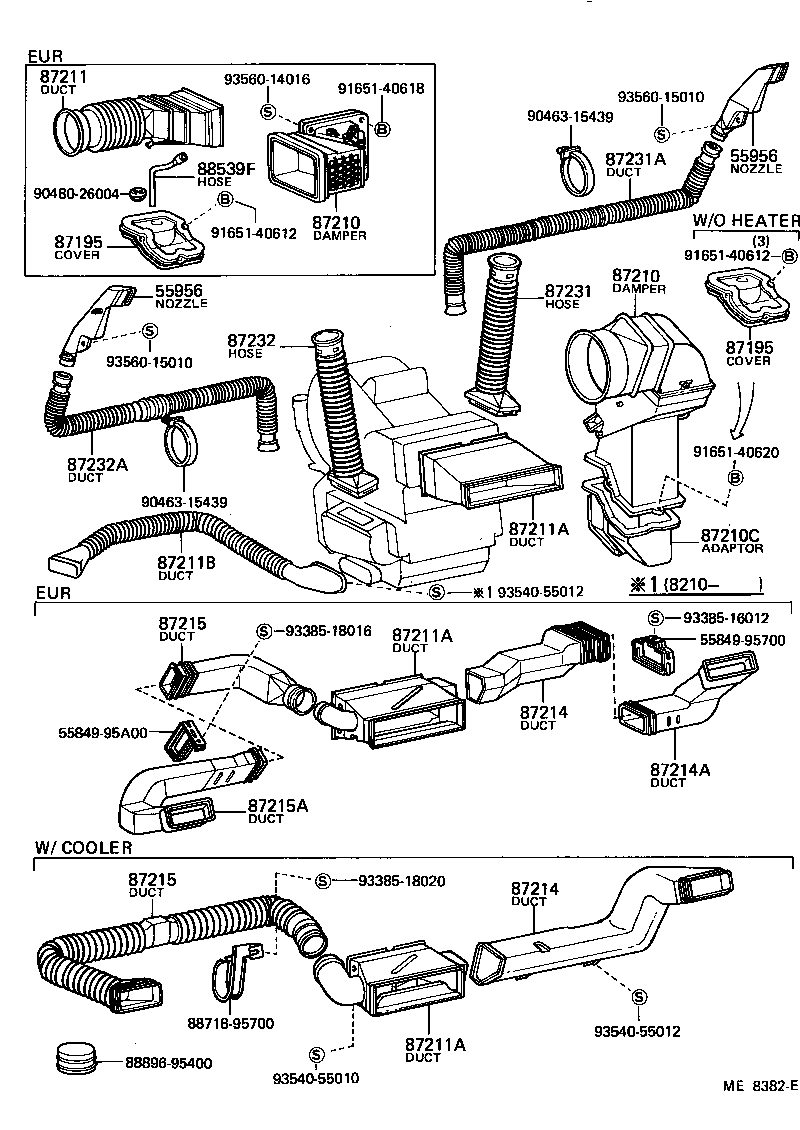

KM20LV-JRBFE (1979)
Toyota Liteace
(7910- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87195 - COVER, HOLE | ||||
| 87195-95701 |
KM20..GEN W/O HEATER |
1 | ||
| 87195 - COVER, HOLE | ||||
| 87195-95701 |
KM20..GEN W/O HEATER |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-95701 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 87210-95701 |
CM20,KM20..LHD..GEN |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-95701 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 87210-95701 |
CM20,KM20..LHD..GEN |
1 | ||
| 87210C - ADAPTER, HEATER AIR DAMPER | ||||
| 87203-95701 |
CM20,KM20..LHD..GEN |
1 | ||
| 87203-95701 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-95701 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 87201-95701 |
CM20,KM20..LHD..GEN |
1 | ||
| 87201-95702 |
KM20..LHD..GEN W/COOLER |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-95701 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 87201-95701 |
CM20,KM20..LHD..GEN |
1 | ||
| 87201-95702 |
KM20..LHD..GEN W/COOLER |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-95701 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S) |
1 | ||
| 87201-95701 |
CM20,KM20..LHD..GEN |
1 | ||
| 87201-95702 |
KM20..LHD..GEN W/COOLER |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 88566-95707 |
KM20..LHD..GEN W/COOLER |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 88566-95707 |
KM20..LHD..GEN W/COOLER |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 88566-95708 |
KM20..LHD..GEN W/COOLER |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 88566-95708 |
KM20..LHD..GEN W/COOLER |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-95401 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 87231-95401 |
CM20,KM20..LHD |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-95401 |
CM20,KM20..LHD |
1 | ||
| 87231-95401 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| Common parts | ||||
| 55849-95700 | ||||
| 55849-95A00 | ||||
| 88718-95700 | ||||
| 88896-95400 | ||||
| 90463-15439 | ||||
| 90480-26004 | ||||
| 91651-40612 | ||||
| 91651-40618 | ||||
| 91651-40620 | ||||
| 93385-16012 | ||||
| 93385-18016 | ||||
| 93385-18020 | ||||
| 93540-55010 | ||||
| 93540-55012 | ||||
| 93560-14016 | ||||
| 93560-15010 | ||||
(7910-8210) ; (8210- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95705 |
CM20,KM20..LHD L=680 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95703 |
CM20,KM20..LHD L=790 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95703 |
CM20,KM20..LHD L=830 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95701 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S L=610 |
1 | ||
| 55909-95701 |
CM20,KM20..LHD L=610 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95705 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,09S) |
1 | ||
| 55910-95708 |
KM20..LHD..GEN W/BOOST VENTILATOR |
1 | ||
| 55910-95709 |
CM20,KM20..LHD |
1 | ||
| 55910-95712 |
KM20..LHD..GEN W/BOOST VENTILATOR |
1 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-14020 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
4 | ||
| 55933-14020 |
CM20,KM20..LHD |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-95702 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
4 | ||
| 55905-12070 |
CM20,KM20,YM2# |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-95702 |
KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S |
4 | ||
| 55905-12070 |
CM20,KM20,YM2# |
4 | ||
| 55939 - ORNAMENT, HEATER CONTROL | ||||
| 55519-95701 |
KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S) |
1 | ||
| 55519-95709 |
KM20..LHD..GEN W/BOOST VENTILATOR |
1 | ||
| 55519-95706 |
KM20..LHD..GEN W/BOOST VENTILATOR |
1 | ||
| 55519-95704 |
KM20..LHD..GEN W/O HEATER |
1 | ||
| 55519-95707 |
CM20,KM20..LHD |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88610-95701 |
KM20..LHD..GEN |
1 | ||
| Common parts | ||||
| 88611-95710 | ||||
| 90209-08002 | ||||
| 90463-06097 | ||||
| 90464-00238 | ||||
| 90480-13013 | ||||
| 93249-55014 | ||||
| 93510-54006 | ||||
| 93566-14512 | ||||
| 93566-15514 | ||||
| 94614-10600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
