KM20LV-JRBFE (1979)
Toyota Liteace
(8001- )4K..LHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13120 |
4K..KM20..4F;4K..KM20..LHD..VSP..4H..EUR;4K..KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 17700-13490 |
4K..KM20..LHD..GEN |
1 | ||
| 17700-13180 |
4K..KM20..LHD..GEN CYCLONE |
1 | ||
| 17700-13500 |
4K..KM20..LHD..GEN CYCLONE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13120 |
4K..KM20..4F;4K..KM20..LHD..VSP..4H..EUR;4K..KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 17700-13490 |
4K..KM20..LHD..GEN |
1 | ||
| 17700-13180 |
4K..KM20..LHD..GEN CYCLONE |
1 | ||
| 17700-13500 |
4K..KM20..LHD..GEN CYCLONE |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-09006 |
4K..KM20..LHD..GEN CYCLONE |
1 | ||
| 17700E - BOLT, WING(FOR AIR CLEANER) | ||||
| 90122-10002 |
4K..KM20..LHD..GEN CYCLONE |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 |
4K..KM20 L=80,S=12&28 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17703-13010 |
4K..KM20..LHD..GEN CYCLONE |
1 | ||
| 17705-13020 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 17705-13020 |
4K..KM20..ARL,GEN |
1 | ||
| 17709B - SPACER, AIR CLEANER INLET | ||||
| 90560-08018 |
4K..KM20..ARL,GEN |
3 | ||
| 90560-08038 |
4K..KM20..ARL,GEN |
3 | ||
| 90560-08018 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
3 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54020 |
4K..KM20..LHD..GEN CYCLONE |
1 | ||
| 17801-23020 |
4K..KM20..ARL,GEN |
1 | ||
| 17801-23020 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-13030 |
4K..KM20..LHD..GEN |
1 | ||
| 17861-13030 |
4K..KM20..4F;4K..KM20..LHD..VSP..4H..EUR;4K..KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 17805A - GASKET & WASHER, SEAL | ||||
| 90210-06023 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 17826 - PLATE, FILTER ELEMENT BAFFLE | ||||
| 17826-54010 |
4K..KM20..LHD..GEN CYCLONE |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17846-87301 |
4K..KM20..LHD..GEN CYCLONE |
1 | ||
| 17845-24030 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 17845-24030 |
4K..KM20..ARL,GEN |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-13010 |
4K..KM20 |
1 | ||
| 90430-63187 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 17871 - STAY, AIR CONNECTOR | ||||
| 17871-13020 |
4K..KM20..LHD |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-13040 |
4K..KM20..ARL,GEN |
1 | ||
| 17881-13040 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-78001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
2 | ||
| 90460-78002 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
2 | ||
| 90460-78002 |
4K..KM20..ARL,GEN |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-78001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
2 | ||
| 90460-78002 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
2 | ||
| 90460-78002 |
4K..KM20..ARL,GEN |
2 | ||
| Common parts | ||||
| 90119-08337 | ||||
| 90179-06027 | ||||
| 90480-12010 | ||||
| 91611-60816 | ||||
| 91661-40820 | ||||
| 94110-40600 | ||||
(7910-8210) ; (8210- )4K..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-13120 |
4K..KM20..4F;4K..KM20..LHD..VSP..4H..EUR;4K..KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 17700-13490 |
4K..KM20..LHD..GEN |
1 | ||
| 17700-13180 |
4K..KM20..LHD..GEN CYCLONE |
1 | ||
| 17700-13500 |
4K..KM20..LHD..GEN CYCLONE |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 |
4K..KM20 L=80,S=12&28 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17703-13010 |
4K..KM20..LHD..GEN CYCLONE |
1 | ||
| 17705-13020 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 17705-13020 |
4K..KM20..ARL,GEN |
1 | ||
| 17709B - SPACER, AIR CLEANER INLET | ||||
| 90560-08018 |
4K..KM20..ARL,GEN |
3 | ||
| 90560-08038 |
4K..KM20..ARL,GEN |
3 | ||
| 90560-08018 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
3 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54020 |
4K..KM20..LHD..GEN CYCLONE |
1 | ||
| 17801-23020 |
4K..KM20..ARL,GEN |
1 | ||
| 17801-23020 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-13030 |
4K..KM20..LHD..GEN |
1 | ||
| 17861-13030 |
4K..KM20..4F;4K..KM20..LHD..VSP..4H..EUR;4K..KM20..LHD..4H..(03S,05S,06S,07S,09S) |
1 | ||
| 17805A - GASKET & WASHER, SEAL | ||||
| 90210-06023 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-24030 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
2 | ||
| 17841-24030 |
4K..KM20..ARL,GEN |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-24030 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
2 | ||
| 17841-24030 |
4K..KM20..ARL,GEN |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17846-87301 |
4K..KM20..LHD..GEN CYCLONE |
1 | ||
| 17845-24030 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 17845-24030 |
4K..KM20..ARL,GEN |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-13010 |
4K..KM20 |
1 | ||
| 90430-63187 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 17871 - STAY, AIR CONNECTOR | ||||
| 17871-13020 |
4K..KM20..LHD |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-13040 |
4K..KM20..ARL,GEN |
1 | ||
| 17881-13040 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-78001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
2 | ||
| 90460-78002 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
2 | ||
| 90460-78002 |
4K..KM20..ARL,GEN |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-78001 |
4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S) |
2 | ||
| 90460-78002 |
4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S |
2 | ||
| 90460-78002 |
4K..KM20..ARL,GEN |
2 | ||
| Common parts | ||||
| 90119-08337 | ||||
| 90179-06027 | ||||
| 90480-12010 | ||||
| 91611-60816 | ||||
| 91661-40816 | ||||
| 94110-40600 | ||||

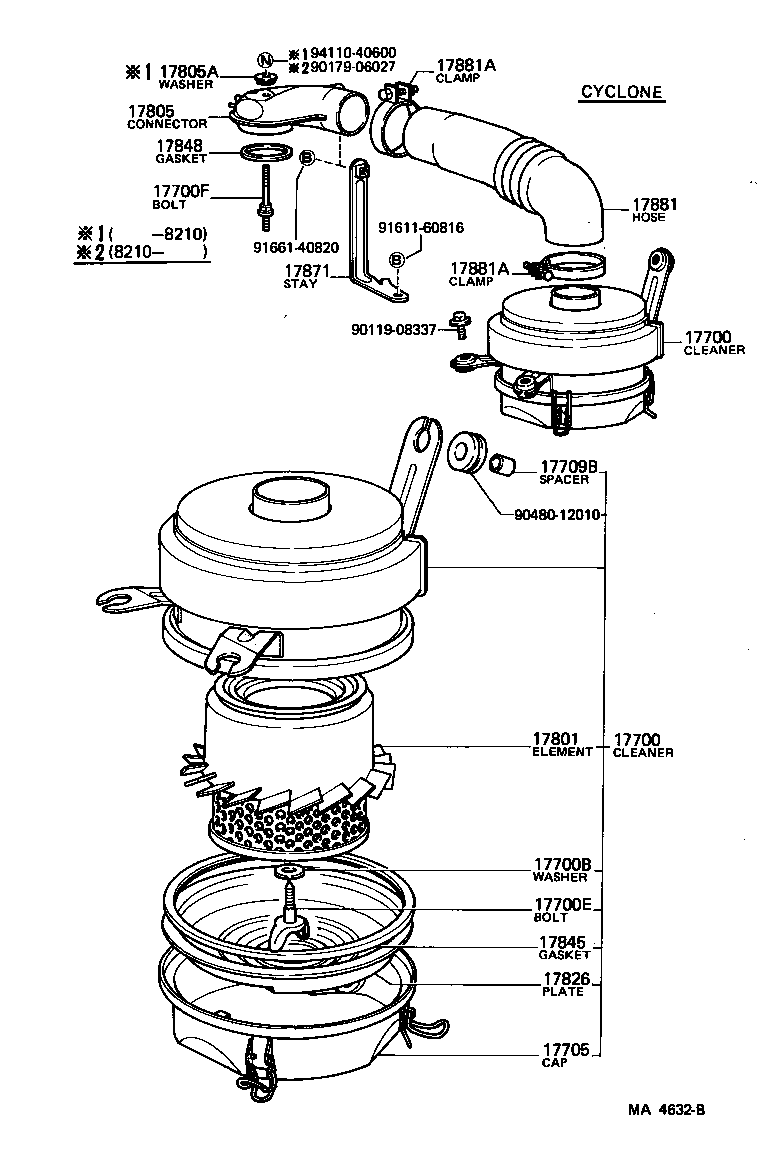

| Linked diagrams | ||||
| 1709 | ||||
