KM11RV-JRZ (1978)

Toyota Liteace

Production Feb 1978 - Sep 1979
Engine 4KJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7909)HRF,SRF

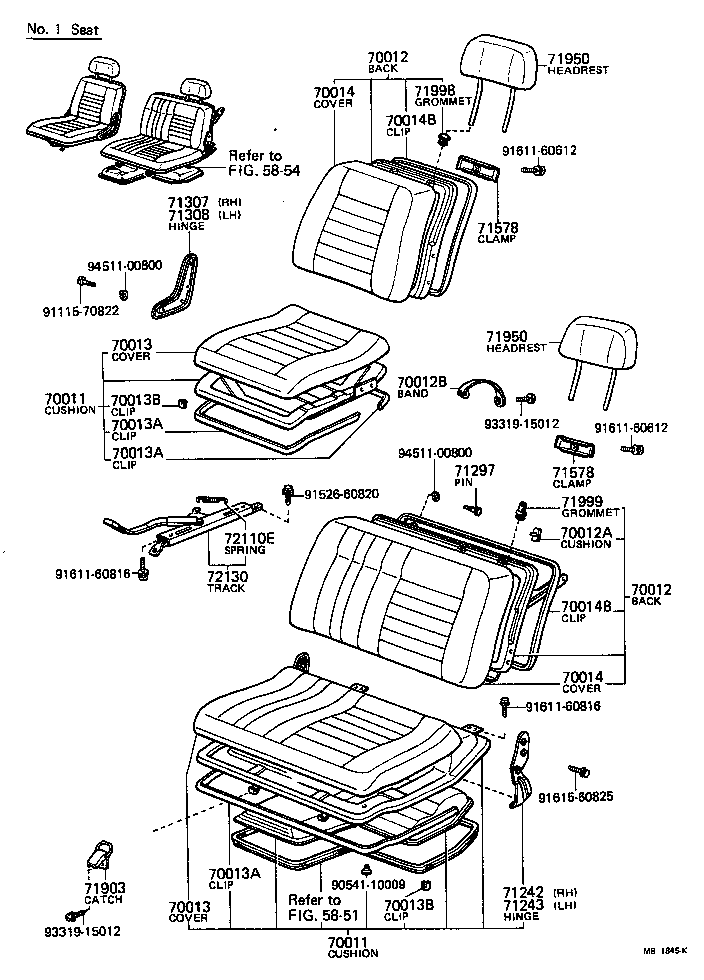

Click highlighted areas on diagram

diagram 5851 5854 70011 70011 70012 70012 70012A 70012B 70013 70013 70013A 70013A 70013A 70013B 70013B 70014 70014 70014B 70014B 71242 71243 71297 71307 71308 71578 71578 71903 71950 71950 71998 71999 72110E 72130 9054110009 9111570822 9152660820 9161160612 9161160612 9161160816 9161160816 9161560825 9331915012 9331915012 9451100800 9451100800
Part # Description Qty Price
70011 - CUSHION ASSY, NO.1 SEAT
71420-9571001

KM11..V

LH.BLACK,BLACK

 1
70011 - CUSHION ASSY, NO.1 SEAT
71420-9571001

KM11..V

LH.BLACK,BLACK

 1
70012 - BACK ASSY, NO.1 SEAT
71440-95714

KM11..V

LH.

 1
70012 - BACK ASSY, NO.1 SEAT
71440-95714

KM11..V

LH.

 1
70012A - CUSHION(FOR NO.1 SEAT BACK)
90541-06088

KM1#..HRF,SRF

 2
70012B - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58930-95700

KM11

L=210

 1
70013 - COVER ASSY, NO.1 SEAT CUSHION
71072-9571101

KM11..V

LH.BLACK,BLACK

 1
70013 - COVER ASSY, NO.1 SEAT CUSHION
71072-9571101

KM11..V

LH.BLACK,BLACK

 1
70014 - COVER ASSY, NO.1 SEAT BACK
71074-9570901

KM11..V

LH.BLACK,BLACK

 1
70014 - COVER ASSY, NO.1 SEAT BACK
71074-9570901

KM11..V

LH.BLACK,BLACK

 1
71242 - HINGE, PASSENGER SEAT BACK, RH
71301-95701

KM11

 1
71243 - HINGE, PASSENGER SEAT BACK, LH
71302-95701

KM11

 1
71297 - PIN, PASSENGER SEAT BACK SUPPORT
71297-95700

KM1#..HRF,SRF

 2
71950 - HEADREST ASSY, FRONT SEAT
71950-9570001

KM11..V

RH.BLACK,BLACK

 2
71960-9570001

KM11..V

LH.BLACK,BLACK

 1
71950 - HEADREST ASSY, FRONT SEAT
71950-9570001

KM11..V

RH.BLACK,BLACK

 2
71960-9570001

KM11..V

LH.BLACK,BLACK

 1
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-14147

KM1#

 2
Common parts
90541-10009
91115-70822
91526-60820
91611-60612
91611-60816
91615-60825
93319-15012
94511-00800
Linked diagrams
5851
5854

(7105-7909)V

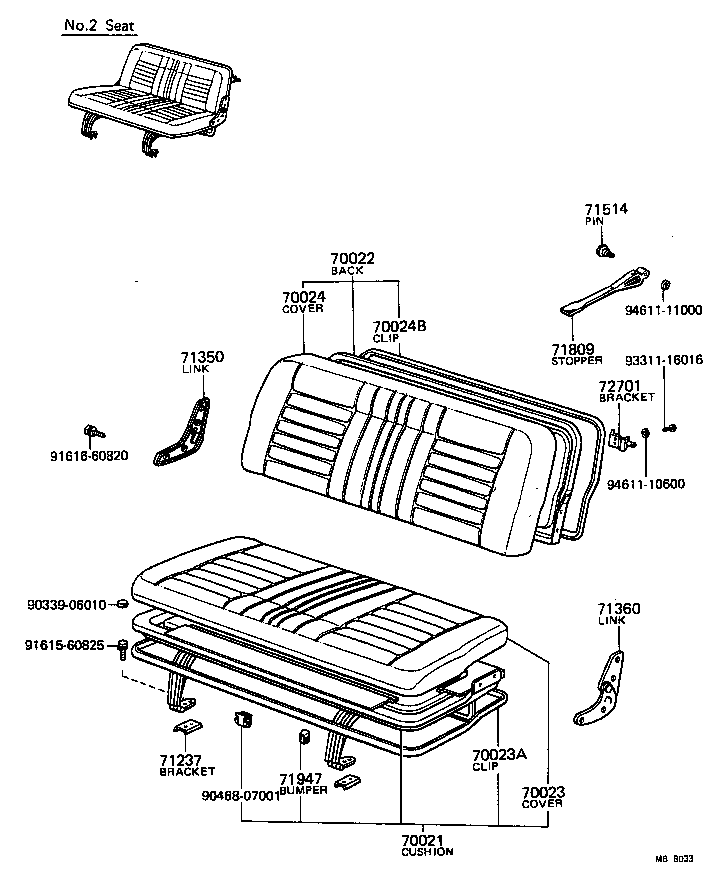

Click highlighted areas on diagram

diagram 70021 70022 70023 70023A 70024 70024B 71237 71350 71360 71514 71809 71947 72701 9033906010 9046807001 9161560825 9161660820 9331116016 9461110600 9461111000
Part # Description Qty Price
71237 - BRACKET, REAR SEAT
71236-95700

KM1#..V

 2
71514 - PIN, REAR SEAT BACK STOPPER
71716-95700

KM1#..V

 1
71809 - STOPPER SUB-ASSY, REAR SEAT BACK, LH
71502-95700

KM1#..V

 1
72701 - BRACKET SUB-ASSY, REAR SEAT BACK STOPPER
71701-95700

KM1#..V

 1
Common parts
90339-06010
90468-07001
91615-60825
91616-60820
93311-16016
94611-10600
94611-11000
