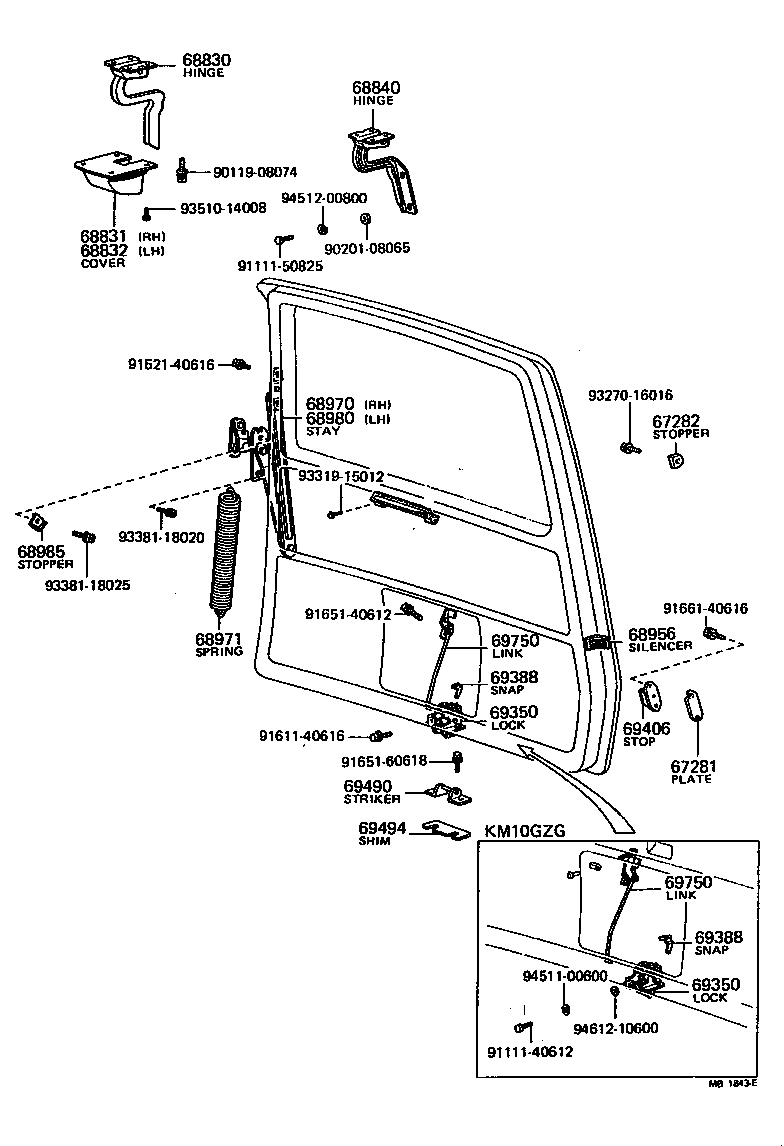

Toyota Liteace KM11 BACK DOOR LOCK & HINGE

Part #	Description	Period	Qty
67281 - PLATE, BACK DOOR STOPPER
69467-95700	KM1#..HRF,SRF	05/1971 - 09/1979	2
67282 - STOPPER, BACK DOOR, NO.1
69452-95700	KM1#..HRF,SRF	05/1971 - 09/1979	2
68830 - HINGE ASSY, BACK DOOR, RH
68810-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
68840 - HINGE ASSY, BACK DOOR, LH
68820-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
68956 - SILENCER, BACK DOOR STAY
68956-95660	KM1#..HRF,SRF	05/1971 - 09/1979	2
68970 - STAY ASSY, BACK DOOR, RH
68950-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
68971 - SPRING, BACK DOOR UPPER BALANCER
90506-60345	KM1#..HRF,SRF	05/1971 - 09/1979	2
68980 - STAY ASSY, BACK DOOR
68960-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
68985 - STOPPER, BACK DOOR UPPER STAY
68966-95700	KM1#..HRF,SRF	05/1971 - 09/1979	2
69350 - LOCK ASSY, BACK DOOR
69350-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
69350 - LOCK ASSY, BACK DOOR
69350-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
69388 - SNAP, ROD(FOR DOOR LOCK)
69768-13010	KM1#..HRF,SRF	05/1971 - 09/1979	1
69388 - SNAP, ROD(FOR DOOR LOCK)
69768-13010	KM1#..HRF,SRF	05/1971 - 09/1979	1
69406 - STOP SUB-ASSY, BACK DOOR DOWN
69407-95700	KM1#..HRF,SRF	05/1971 - 09/1979	2
69490 - STRIKER ASSY, BACK DOOR LOCK
69450-13010	KM1#..HRF,SRF	05/1971 - 09/1979	1
69750 - LINK SUB-ASSY, BACK DOOR REMOTE CONTROL
75410-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
69750 - LINK SUB-ASSY, BACK DOOR REMOTE CONTROL
75410-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
Common parts
90119-08074
90201-08065
91111-40612
91111-50825
91521-40616
91611-40616
91651-40612
91651-60618
91661-40616
93270-16016
93319-15012
93381-18020
93381-18025
93510-14008
94511-00600
94512-00800
94612-10600

KM11RV-JRZ (1978)

(7105-7909)HRF,SRF
