KM11RV-JRZ (1978)

Toyota Liteace

Production Feb 1978 - Sep 1979
Engine 4KJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7909)

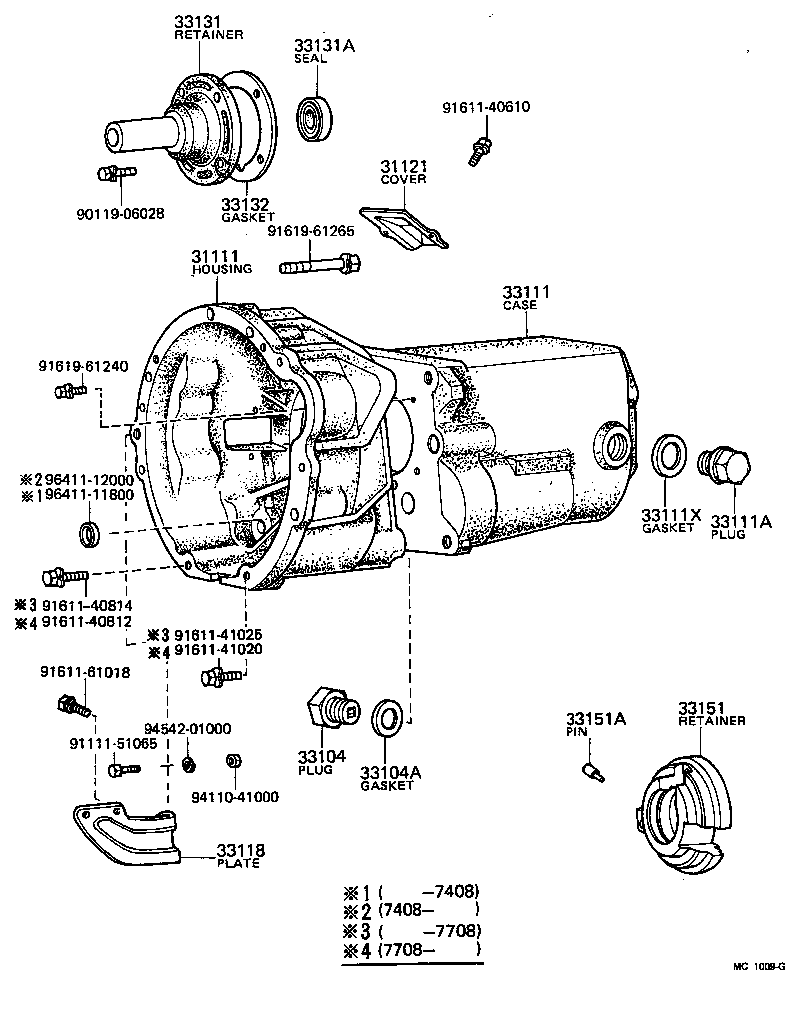

Click highlighted areas on diagram

diagram 31111 31121 33104 33104A 33111 33111A 33111X 33118 33131 33131A 33132 33151 33151A 9011906028 9111151065 9161140610 9161140812 9161140814 9161141020 9161141025 9161161018 9161961240 9161961265 9411041000 9454201000 9641111800 9641112000
Part # Description Qty Price
31121 - COVER, CLUTCH HOUSING, NO.1
31121-30030

KM1#

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

KM1#

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

KM1#

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

KM1#

 1
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

KM1#

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-30030

KM1#

 1
Common parts
90119-06028
91111-51065
91611-40610
91611-40812
91611-40814
91611-41020
91611-41025
91611-61018
91619-61240
91619-61265
94110-41000
94542-01000
96411-11800
96411-12000
