Toyota Liteace KM11 CONTROL SHAFT & CROSSSHAFT

KM11R-JRB (1978)

Toyota Liteace

Production Feb 1978 - Sep 1979

Engine 4KJ

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

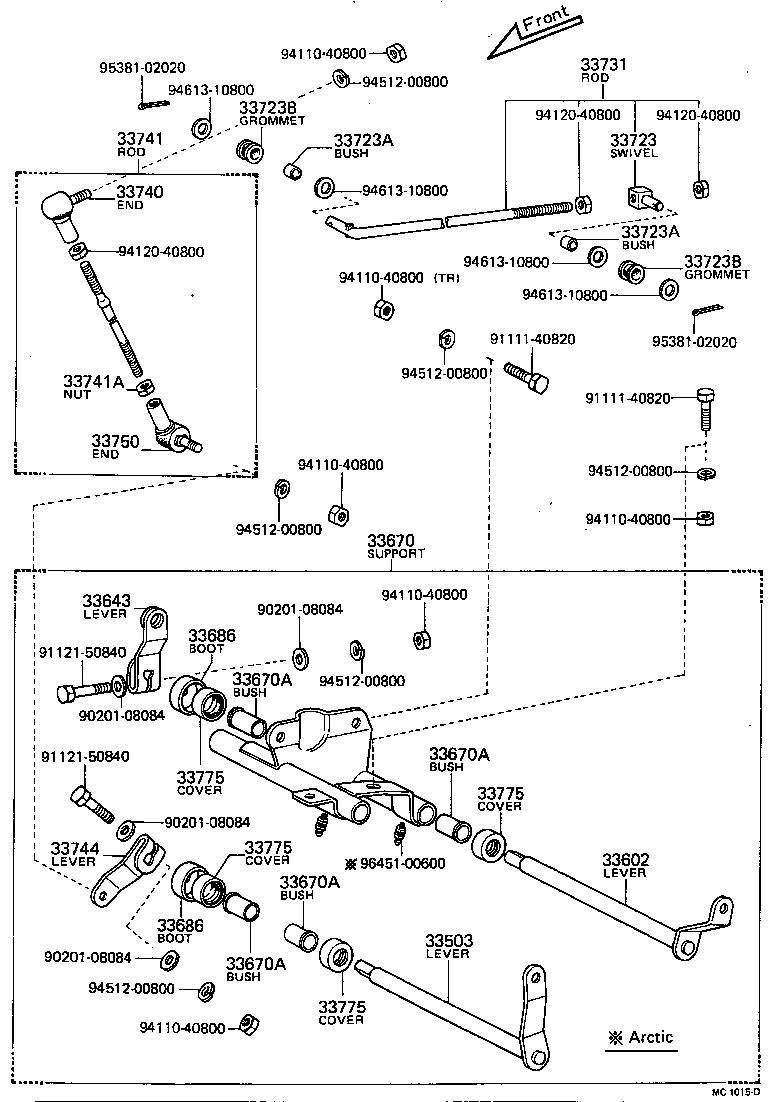

Click highlighted areas on diagram

Part #	Description	Period	Qty
33670A - BUSH (FOR CONTROL ROD SUPPORT)
90386-15082	KM1#	05/1971 - 09/1979	4
33670A - BUSH (FOR CONTROL ROD SUPPORT)
90386-15082	KM1#	05/1971 - 09/1979	4
33670A - BUSH (FOR CONTROL ROD SUPPORT)
90386-15082	KM1#	05/1971 - 09/1979	4
33670A - BUSH (FOR CONTROL ROD SUPPORT)
90386-15082	KM1#	05/1971 - 09/1979	4
33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723-10020	KM1#	05/1971 - 09/1979	1
33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT)
90389-08005	KM1#	05/1971 - 09/1979	2
33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT)
90389-08005	KM1#	05/1971 - 09/1979	2
33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT)
90480-17177	KM1#	05/1971 - 09/1979	2
33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT)
90480-17177	KM1#	05/1971 - 09/1979	2
33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)
33720-27010	KM1#	05/1971 - 09/1979	1
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011	KM1# RH.SCREW	05/1971 - 09/1979	1
33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)
33710-27010	KM1#	05/1971 - 09/1979	1
33741A - NUT, HEXAGON (FOR COLUMN SHIFT SELECTING OR SHIFTING RO
90170-08052	KM1# LH.SCREW	05/1971 - 09/1979	1
33750 - END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT)
33750-35011	KM1# LH.SCREW	05/1971 - 09/1979	1
Common parts
90201-08084
91111-40820
91121-50840
91121-58840
94110-40800
94120-40800
94512-00800
94613-10800
95381-02020
96451-00600

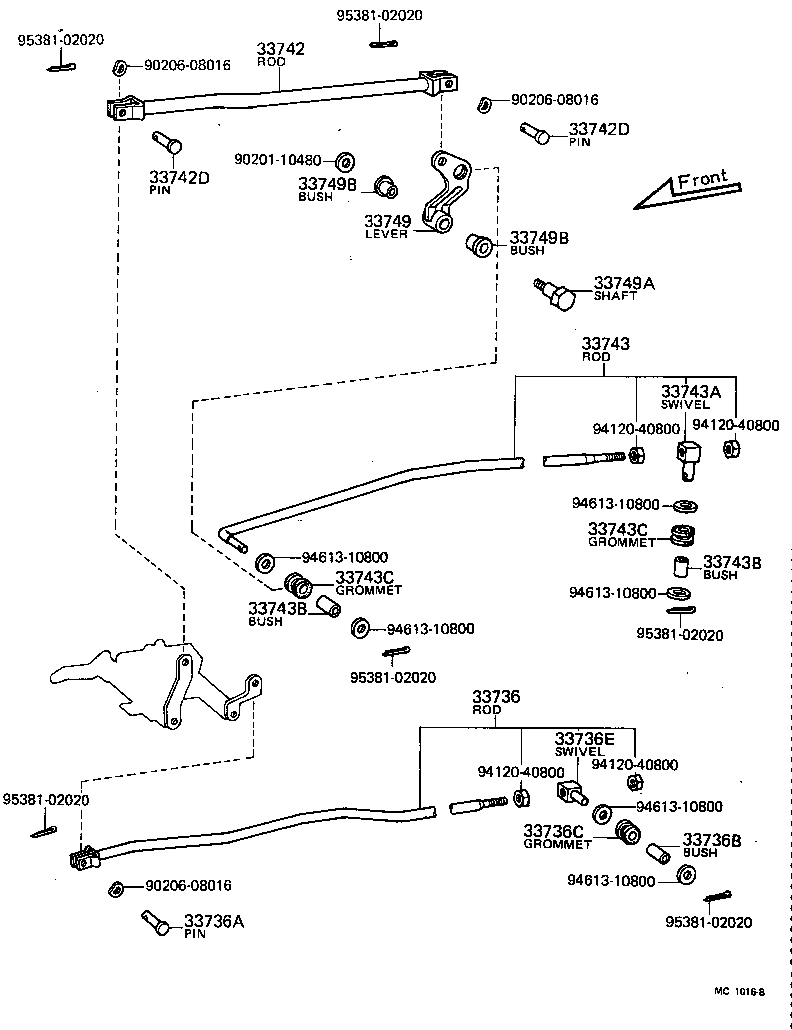

Click highlighted areas on diagram

Part #	Description	Period	Qty
33736 - ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT)
33701-27010	KM1#	05/1971 - 09/1979	1
33736A - PIN, W/HOLE
90240-08094	KM1#	05/1971 - 09/1979	1
33736B - BUSH(FOR GEAR SELECTING ROD, NO.2)
90389-08005	KM1#	05/1971 - 09/1979	1
33736C - GROMMET(FOR GEAR SELECTING ROD, NO.2)
90480-17177	KM1#	05/1971 - 09/1979	1
33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT)
33703-27010	KM11..T3	02/1978 - 09/1979	1
33742D - PIN, W/HOLE
90240-08094	KM1#	05/1971 - 09/1979	2
33742D - PIN, W/HOLE
90240-08094	KM1#	05/1971 - 09/1979	2
33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT)
33840-27010	KM11..T3	02/1978 - 09/1979	1
33743B - BUSH, NO.1
90389-08005	KM1#	05/1971 - 09/1979	2
33743B - BUSH, NO.1
90389-08005	KM1#	05/1971 - 09/1979	2
33743C - GROMMET
90480-17177	KM1#	05/1971 - 09/1979	2
33743C - GROMMET
90480-17177	KM1#	05/1971 - 09/1979	2
33749 - LEVER, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT)
33749-27010	KM1#	05/1971 - 09/1979	1
33749A - SHAFT, CONTROL SELECT LEVER
33536-25010	KM1#	05/1971 - 09/1979	1
33749B - BUSH (FOR COLUMN SHIFT GEAR SHIFTING LEVER)
90386-13007	KM1#	05/1971 - 09/1979	2
33749B - BUSH (FOR COLUMN SHIFT GEAR SHIFTING LEVER)
90386-13007	KM1#	05/1971 - 09/1979	2
Common parts
90201-10480
90206-08016
94120-40800
94613-10800
95381-02020
