KM10V-Z (1976)

Toyota Liteace

Production Jul 1976 - Feb 1978
Engine 3KJ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7909)HRF,SRF

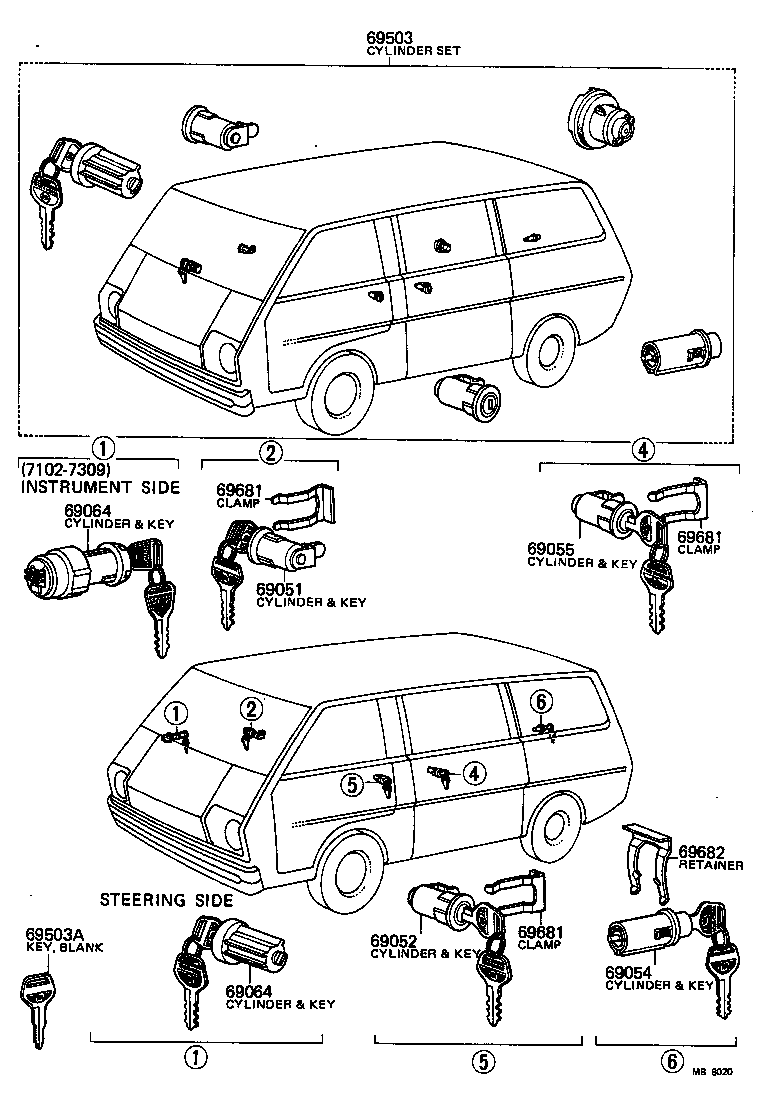

Click highlighted areas on diagram

diagram 69051 69052 69054 69055 69064 69064 69503 69503A 69681 69681 69681 69682
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-27010

KM10

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-27010

KM10

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
84045-27010

KM10

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
84045-27010

KM10

 1
69503A - KEY, BLANK
90999-00027

KM10

FOR DOOR & IGNITION

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

KM10

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

KM10

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

KM10

 3
69682 - RETAINER, LOCK CYLINDER
69682-13010

KM1#..HRF,SRF

 1
