Toyota Liteace KM10 SIDE MEMBER - JDM Part Detective

Part #	Description	Period	Qty
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61103-95700	KM10..TR,V	05/1971 - 02/1978	1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61104-95700	KM10	05/1971 - 11/1971	1
61159 - COVER, FRONT PILLAR SERVICE HOLE
61181-95701	KM10	05/1971 - 07/1973	2
61163 - PILLAR, FRONT BODY, INNER RH
61105-95700	KM1#	05/1971 - 09/1979	1
61164 - PILLAR, FRONT BODY, INNER LH
61106-95700	KM1#	05/1971 - 09/1979	1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61231-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61202-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH
61208-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61223 - CHANNEL, ROOF DRIP, FRONT RH
61261-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61224 - CHANNEL, ROOF DRIP, FRONT LH
61262-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61302 - PILLAR SUB-ASSY, CENTER BODY, LH
61302-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH
61304-95701	KM10..HRF	07/1976 - 02/1978	1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61315-95700	KM1#..HRF,SRF	05/1971 - 09/1979	2
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61315-95700	KM1#..HRF,SRF	05/1971 - 09/1979	2
61323 - REINFORCEMENT, FRONT DOOR LOCK STRIKER
61323-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61333 - PLATE, CENTER PILLAR, RH
57421-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61334 - PLATE, CENTER PILLAR, LH
57422-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61337 - PATCH, CENTER BODY PILLAR
61613-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61351 - COVER, CENTER BODY, INNER RH
61352-95700	KM1#..HRF,SRF	05/1971 - 09/1979	2
61352 - COVER, CENTER BODY, INNER, LH
61352-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61413 - PANEL, ROCKER, CENTER RH
57413-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61414 - PANEL, ROCKER, CENTER LH
57414-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61415 - PANEL, ROCKER, REAR RH
57415-95700	KM10..HRF,SRF	05/1971 - 02/1977	1
61416 - PANEL, ROCKER, REAR LH
57416-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61533 - PANEL, REAR PILLAR INNER, LOWER RH
61615-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
61605-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
61606-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61619 - REINFORCEMENT, SLIDE DOOR LOCK STRIKER
61617-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61633-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61634-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61633 - EXTENSION, WHEEL HOUSE, RH
61643-95700	KM1#..HRF,SRF REAR	05/1971 - 09/1979	1
61641-95700	KM1#..HRF,SRF FRONT	05/1971 - 09/1979	1
61633 - EXTENSION, WHEEL HOUSE, RH
61643-95700	KM1#..HRF,SRF REAR	05/1971 - 09/1979	1
61641-95700	KM1#..HRF,SRF FRONT	05/1971 - 09/1979	1
61634 - EXTENSION, WHEEL HOUSE, LH
61642-95700	KM1#..HRF,SRF FRONT	05/1971 - 09/1979	1
61644-95700	KM1#..HRF,SRF REAR	05/1971 - 09/1979	1
61634 - EXTENSION, WHEEL HOUSE, LH
61642-95700	KM1#..HRF,SRF FRONT	05/1971 - 09/1979	1
61644-95700	KM1#..HRF,SRF REAR	05/1971 - 09/1979	1
61694 - COVER, QUARTER INNER, NO.1
61671-95700	KM1#..HRF,SRF	05/1971 - 09/1979	2
61694 - COVER, QUARTER INNER, NO.1
61671-95700	KM1#..HRF,SRF	05/1971 - 09/1979	2
61695 - COVER, QUARTER INNER, NO.2
61674-95700	KM1#..HRF,SRF LH.	05/1971 - 09/1979	1
61673-95700	KM1#..HRF,SRF RH.	05/1971 - 09/1979	1
61696 - COVER, QUARTER INNER, NO.3
61675-95700	KM1#..V	05/1971 - 09/1979	2
61697 - COVER, QUARTER INNER, NO.4
61678-95700	KM1#..HRF,SRF LH.	05/1971 - 09/1979	1
61677-95700	KM10..HRF,SRF RH.	05/1971 - 02/1977	1
61707 - PANEL SUB-ASSY, QUARTER, INNER RH
61707-95710	KM10..V	02/1977 - 02/1978	1
61707-95700	KM10..V	05/1971 - 02/1977	1
61708B - CLAMP(FOR SLIDE DOOR MOULDING)
62345-95700	KM1#..HRF,SRF REAR UPPER	05/1971 - 09/1979	1
61733 - GUSSET, QUARTER, INNER RH
61011-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61734 - GUSSET, QUARTER, INNER LH
61012-95700	KM1#..HRF,SRF	05/1971 - 09/1979	1
61826 - PLATE, QUARTER INNER PANEL, LOWER FRONT LH
64153-95700	KM1#..HRF,SRF RH.	05/1971 - 09/1979	1
64154-95700	KM1#..HRF,SRF LH.	05/1971 - 09/1979	1
Common parts
90160-60023
90167-60001
90303-05053
90950-01011
90950-01049
91111-40616
91651-40614
93540-14012
93540-25010
94110-40600
94614-10600

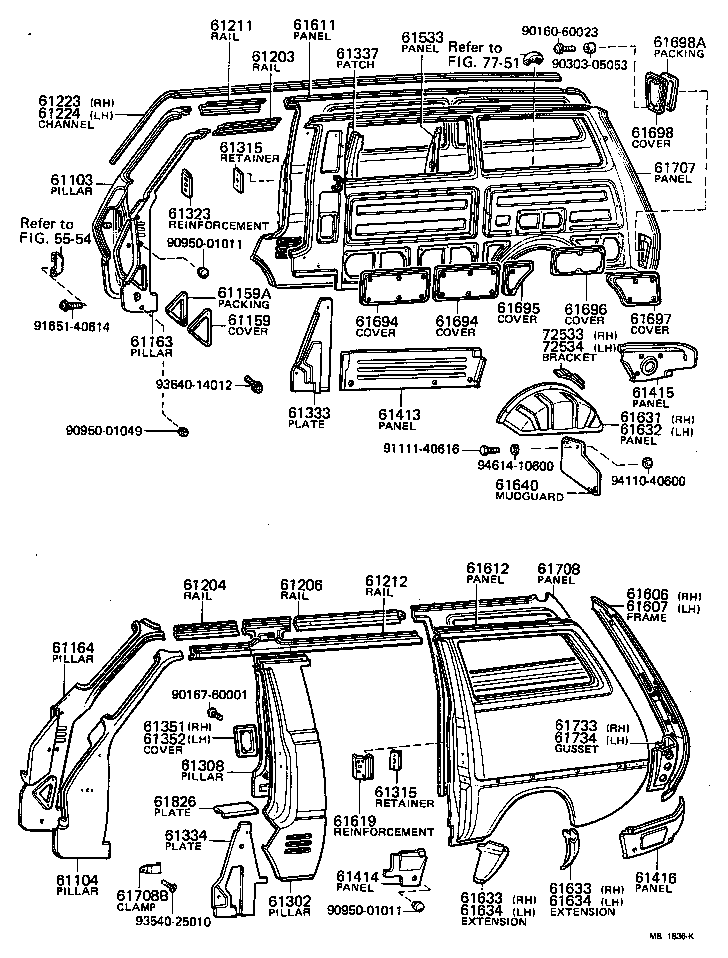

Linked diagrams
5554
7751

KM10V-Z (1976)

(7105-7909)HRF,SRF
