KM10G- (1971)
Toyota Liteace
Production
May 1971
-
Aug 1974
Engine
3K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7105-7309)

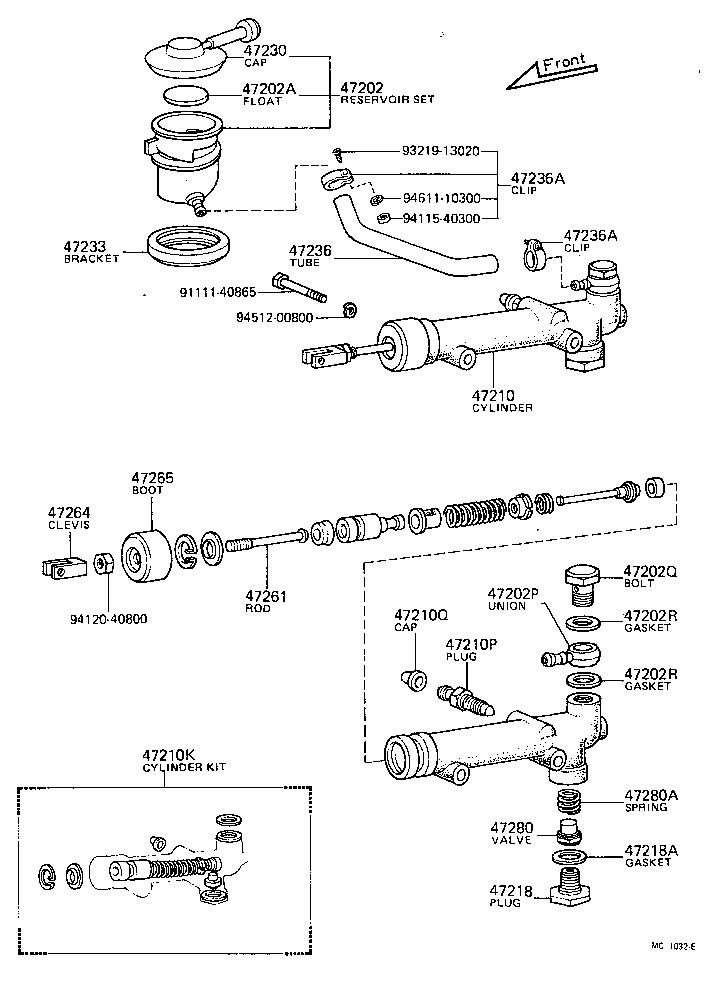

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-27010 |
KM10 |
1 | ||
| 47202A - FLOAT, MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
KM10 |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10125 |
KM10 |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16078 |
KM10 |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16044 |
KM10 |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16044 |
KM10 |
2 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47210-11014 |
KM10 L/BOOSTER |
1 | ||
| 47210-27010 |
KM10 L/BOOSTER |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04471-11018 |
KM10 L/BOOSTER |
1 | ||
| 47210P - PLUG, BLEEDER(FOR BRAKE MASTER CYLINDER) | ||||
| 47547-30020 |
KM10 |
1 | ||
| 47210Q - CAP, BLEEDER PLUG(FOR BRAKE MASTER CYLINDER) | ||||
| 47548-20010 |
KM10 |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-30010 |
KM10 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-20018 |
KM10 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-27010 |
KM1# |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47226-27010 |
KM1# |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47236-27010 |
KM10 |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90460-16069 |
KM1# |
2 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90460-16069 |
KM1# |
2 | ||
| 47261 - ROD, MASTER CYLINDER PUSH | ||||
| 47261-11010 |
KM10 L/BOOSTER |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-10050 |
KM10 |
1 | ||
| 47264-12020 |
KM10 |
1 | ||
| 47264-11011 |
KM10 |
1 | ||
| 47264-11010 |
KM10 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-11011 |
KM10 L/BOOSTER |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-10011 |
KM10 |
1 | ||
| 47280-30010 |
KM10 |
1 | ||
| 47280A - SPRING, COMPRESSION | ||||
| 90501-10551 |
KM10 |
1 | ||
| Common parts | ||||
| 91111-40865 | ||||
| 93219-13020 | ||||
| 94115-40300 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94611-10300 | ||||
