KM10-B (1971)
Toyota Liteace
Production
May 1971
-
Aug 1974
Engine
3K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7105-7408)T3 ; (7607-7909)T3

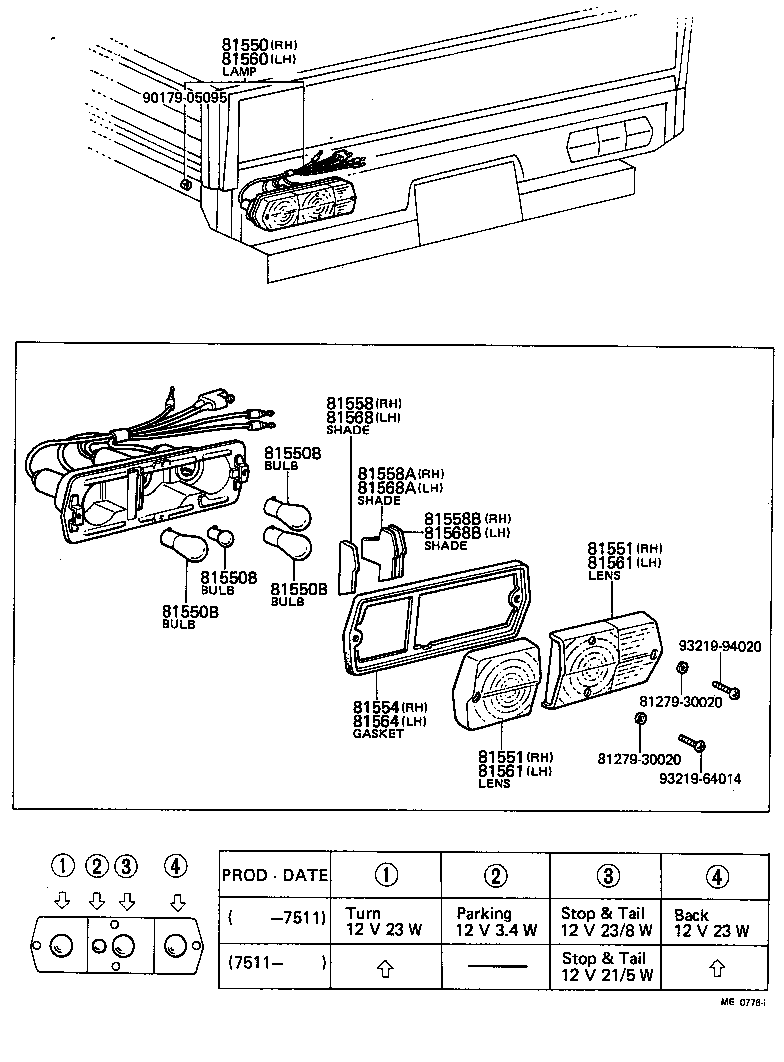

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-19265 |
KM10..T3 AMBER-RED-CLEAR |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-12034 |
KM10 12V 3.4W,12V 3.4W |
2 | ||
| 99132-11230 |
KM1#..TR 12V 23W,12V 23W |
4 | ||
| 99132-21230 |
KM10 12V 23/8W,12V 23/8W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-12034 |
KM10 12V 3.4W,12V 3.4W |
2 | ||
| 99132-11230 |
KM1#..TR 12V 23W,12V 23W |
4 | ||
| 99132-21230 |
KM10 12V 23/8W,12V 23/8W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-12034 |
KM10 12V 3.4W,12V 3.4W |
2 | ||
| 99132-11230 |
KM1#..TR 12V 23W,12V 23W |
4 | ||
| 99132-21230 |
KM10 12V 23/8W,12V 23/8W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-12034 |
KM10 12V 3.4W,12V 3.4W |
2 | ||
| 99132-11230 |
KM1#..TR 12V 23W,12V 23W |
4 | ||
| 99132-21230 |
KM10 12V 23/8W,12V 23/8W |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-36060 |
KM10..T3 RED-CLEAR |
1 | ||
| 81559-36060 |
KM10..T3 AMBER |
1 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-36060 |
KM10..T3 RED-CLEAR |
1 | ||
| 81559-36060 |
KM10..T3 AMBER |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-36060 |
KM10..T3 |
1 | ||
| 81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH | ||||
| 81557-36060 |
KM10..T3 |
1 | ||
| 81558A - SHADE, REAR COMBINATION LAMP, NO.2 RH | ||||
| 81558-36060 |
KM10..T3 |
1 | ||
| 81558B - SHADE, REAR COMBINATION LAMP, NO.3 RH | ||||
| 81557-36080 |
KM10..T3 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-29195 |
KM10..T3 AMBER-RED-CLEAR |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81569-36050 |
KM10..T3 AMBER |
1 | ||
| 81561-36050 |
KM10..T3 RED-CLEAR |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81569-36050 |
KM10..T3 AMBER |
1 | ||
| 81561-36050 |
KM10..T3 RED-CLEAR |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-36060 |
KM10..T3 |
1 | ||
| 81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH | ||||
| 81557-36060 |
KM10..T3 |
1 | ||
| 81568A - SHADE, REAR COMBINATION LAMP, NO.2 LH | ||||
| 81568-36050 |
KM10..T3 |
1 | ||
| 81568B - SHADE, REAR COMBINATION LAMP, NO.3 LH | ||||
| 81567-36050 |
KM10..T3 |
1 | ||
| Common parts | ||||
| 81279-30020 | ||||
| 90179-05095 | ||||
| 93219-64014 | ||||
| 93219-94020 | ||||
