KM10-B (1971)

Toyota Liteace

Production May 1971 - Aug 1974
Engine 3K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7408)T3 ; (7607-7909)T3

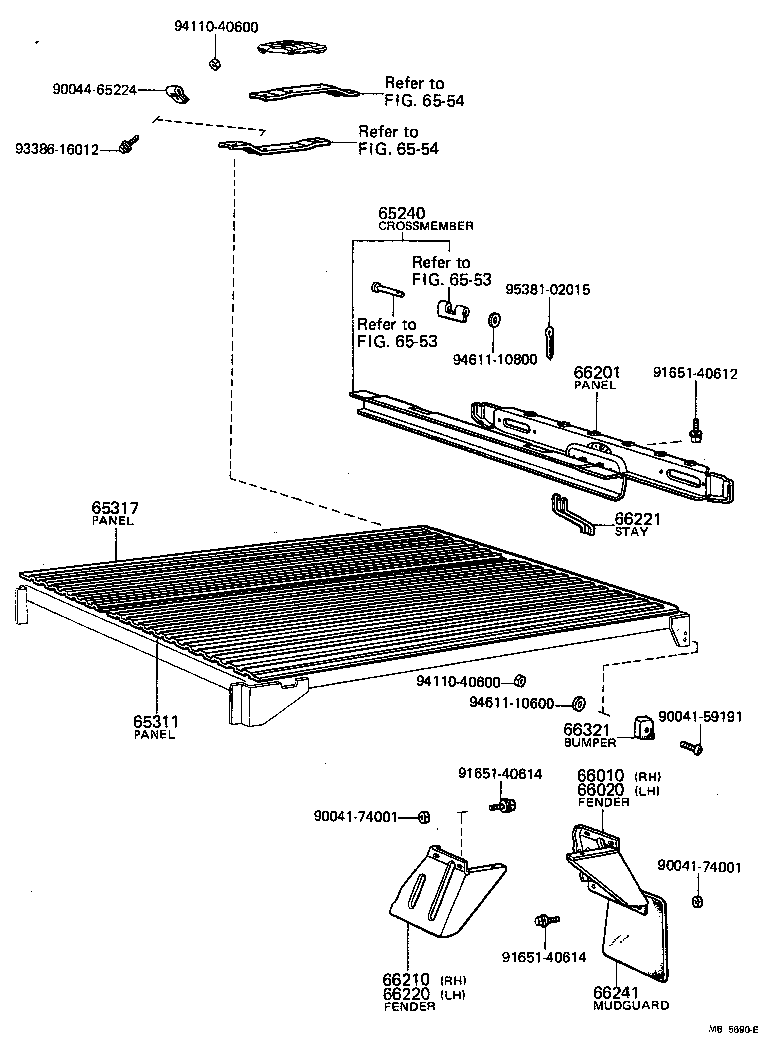

Click highlighted areas on diagram

diagram 65240 65311 65317 6553 6553 6554 6554 66010 66020 66201 66210 66220 66221 66241 66321 9004159191 9004174001 9004174001 9004465224 9165140612 9165140614 9165140614 9338616012 9411040600 9411040600 9461110600 9461110800 9538102015
Part # Description Qty Price
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-87402

KM10..T3

 1
65311 - PANEL, FLOOR, CENTER
65311-87401

KM10..TR

 1
65317 - PANEL, FLOOR SIDE, RH
65312-87401

KM10..T3

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66207-87401

KM10..T3

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66208-87401

KM10..T3

 1
66201 - PANEL SUB-ASSY, SKIRT, REAR
66201-87401

KM10..T3

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66231-87401

KM10..T3

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66232-87401

KM10..T3

 1
66221 - STAY, PANEL SKIRT, REAR
66221-87401

KM10..T3

 1
66241 - MUDGUARD, REAR
66241-95600

KM10..T3

 2
66321 - BUMPER, GATE RUBBER
66303-87401

KM10..TR

 6
Common parts
90041-59191
90041-74001
90044-65224
91651-40612
91651-40614
93386-16012
94110-40600
94611-10600
94611-10800
95381-02015
Linked diagrams
6553
6554
