KM10- (1971)

Toyota Liteace

Production May 1971 - Aug 1974
Engine 3K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7909)

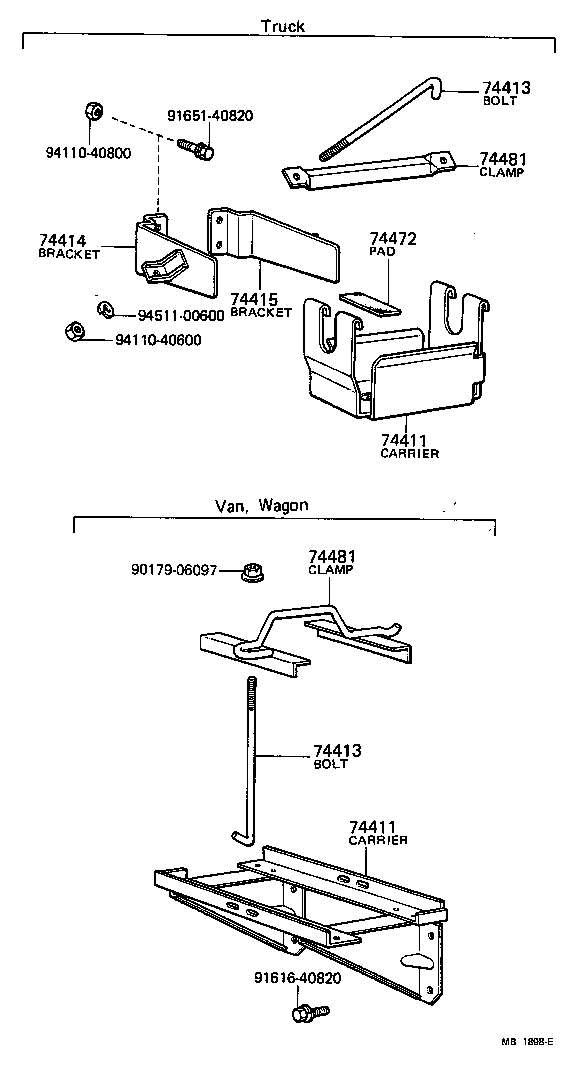

Click highlighted areas on diagram

diagram 74411 74411 74413 74413 74414 74415 74472 74481 74481 9017906097 9161640820 9165140820 9411040600 9411040800 9451100600
Part # Description Qty Price
74411 - CARRIER, BATTERY
74421-27010

KM10..TR

FOR NS40L

 1
74411 - CARRIER, BATTERY
74421-27010

KM10..TR

FOR NS40L

 1
74413 - BOLT, BATTERY CLAMP
74451-11012

KM10..TR

 2
74413 - BOLT, BATTERY CLAMP
74451-11012

KM10..TR

 2
74414 - BRACKET, BATTERY, FR
74401-27010

KM10..TR

 1
74415 - BRACKET, BATTERY, REAR
74402-27010

KM10..TR

 1
74472 - PAD, BATTERY SIDE
74472-25010

KM10..TR

54X20

 2
74481 - CLAMP, BATTERY HOLD DOWN
74453-11012

KM10..TR

FOR NS40L

 1
74481 - CLAMP, BATTERY HOLD DOWN
74453-11012

KM10..TR

FOR NS40L

 1
Common parts
90179-06097
91616-40820
91651-40820
94110-40600
94110-40800
94511-00600
