KM10- (1971)

Toyota Liteace

Production May 1971 - Aug 1974
Engine 3K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7909)

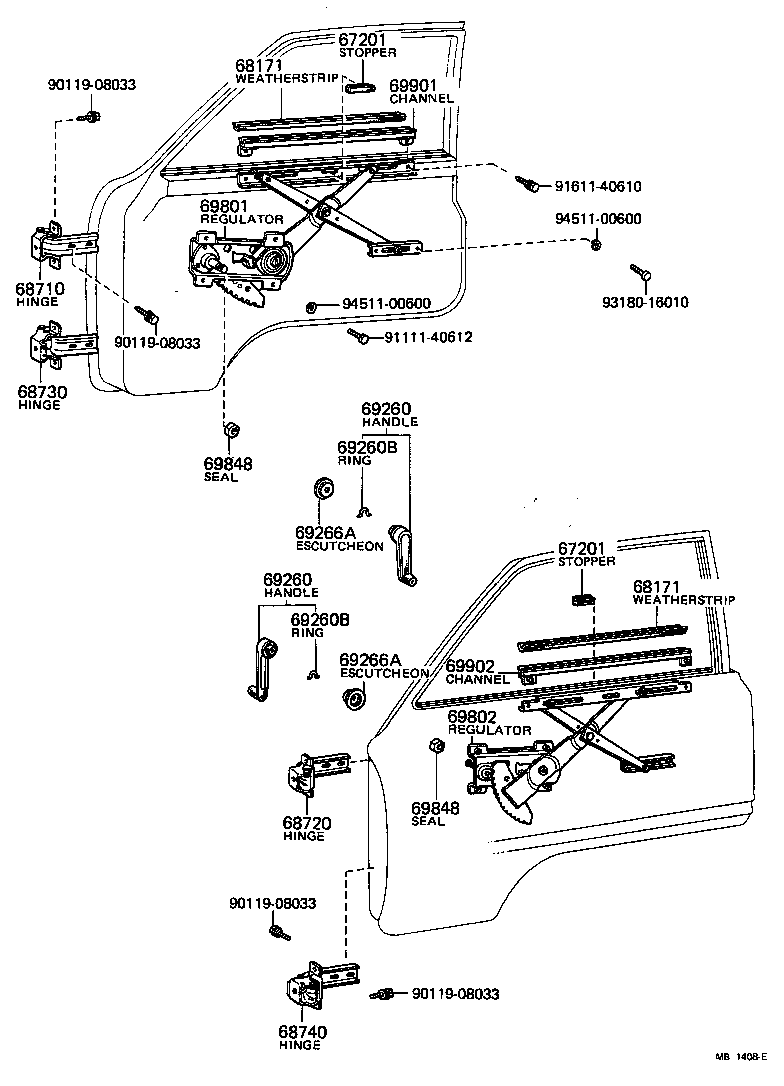

Click highlighted areas on diagram

diagram 67201 67201 68171 68171 68710 68720 68730 68740 69260 69260 69260B 69260B 69266A 69266A 69801 69802 69848 69848 69901 69902 9011908033 9011908033 9011908033 9011908033 9111140612 9161140610 9318016010 9451100600 9451100600
Part # Description Qty Price
67201 - STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)
69982-95700

KM1#

 2
67201 - STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)
69982-95700

KM1#

 2
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
69981-95700

KM10

 2
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
69981-95700

KM10

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-95700

KM1#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68710-95700

KM1#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-95700

KM1#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-95700

KM1#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-10030

KM10

 2
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-10030

KM10

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

KM10

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

KM10

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69272-30010

KM1#

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69272-30010

KM1#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-95700

KM1#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-95700

KM1#

 1
69848 - SEAL, WINDOW REGULATOR HOLE
69848-95700

KM1#

 2
69848 - SEAL, WINDOW REGULATOR HOLE
69848-95700

KM1#

 2
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-95700

KM10

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-95700

KM10

 1
Common parts
90119-08033
91111-40612
91611-40610
93180-16010
94511-00600
