KM10- (1971)

Toyota Liteace

Production May 1971 - Aug 1974
Engine 3K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7105-7802)

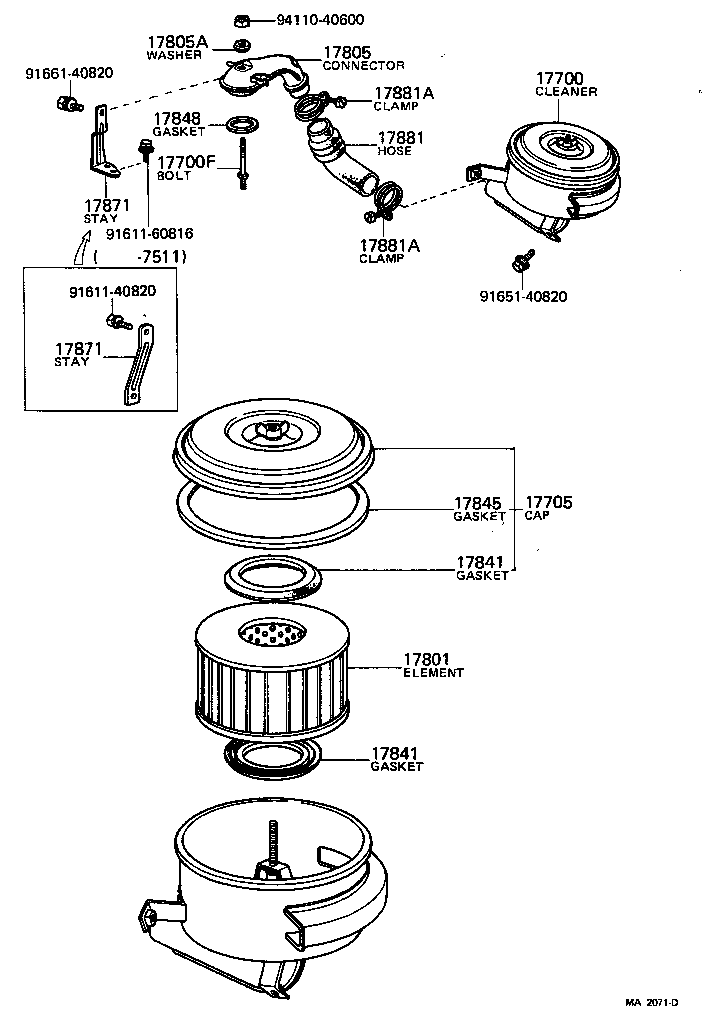

Click highlighted areas on diagram

diagram 17700 17700F 17705 17801 17805 17805A 17841 17841 17845 17848 17871 17871 17881 17881A 17881A 9161140820 9161160816 9165140820 9166140820 9411040600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-24110

3K..KM10

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06090

3K..KM10

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-24060

3K..KM10

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-23020

3K#,4KJ..KM1#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17861-24010

3K..KM10

 1
17805A - GASKET & WASHER, SEAL
90210-06001

3K..KM10

 1
17841 - GASKET, FILTER ELEMENT
17841-24030

3K#,4KJ..KM1#

 2
17841 - GASKET, FILTER ELEMENT
17841-24030

3K#,4KJ..KM1#

 2
17845 - GASKET, AIR CLEANER CAP
17845-24030

3K#,4KJ..KM1#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

3K#,4KJ..KM1#

 1
17871 - STAY, AIR CONNECTOR
17871-24010

3K..KM10

 1
17871 - STAY, AIR CONNECTOR
17871-24010

3K..KM10

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-24010

3K#..KM10

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10560

3K#..KM10

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10560

3K#..KM10

 2
Common parts
91611-40820
91611-60816
91651-40820
91661-40820
94110-40600
