CM20RV-MRBEW (1982)
Toyota Liteace
(8311- )CM20

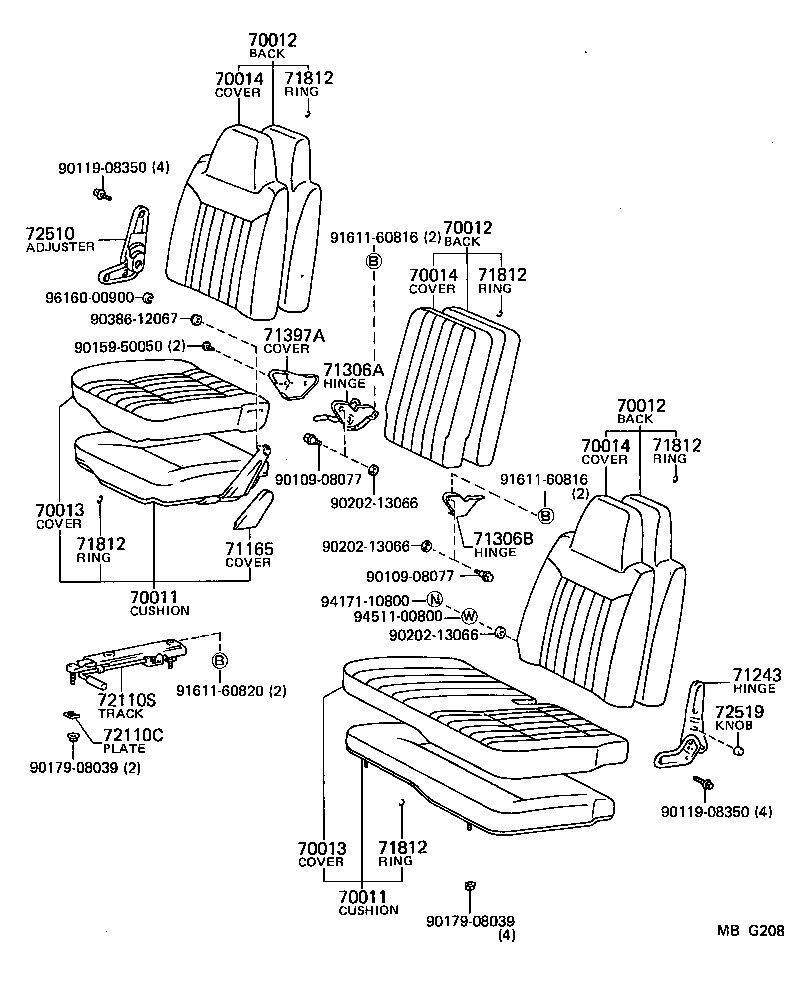

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71110-95737 |
CM20,KM20,YM20..(BUS,V)..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 71210-95751 |
CM20..RHD LH,VL,T=1.5 |
1 | ||
| 71110-95737 |
CM20..RHD..EUR RH,VL,T=1.5 |
1 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71110-95737 |
CM20,KM20,YM20..(BUS,V)..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 71210-95751 |
CM20..RHD LH,VL,T=1.5 |
1 | ||
| 71110-95737 |
CM20..RHD..EUR RH,VL,T=1.5 |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71150-95740 |
CM20,KM20,YM20..RHD..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 71250-95749 |
CM20,KM20,YM20..V..(EUR,GEN) LH,VL,T=1.5 |
1 | ||
| 71250-95749 |
KM20..VSP..4H..EUR;CM20,KM20..V4D..(4F,5F) LH,VL,T=1.5 |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71150-95740 |
CM20,KM20,YM20..RHD..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 71250-95749 |
CM20,KM20,YM20..V..(EUR,GEN) LH,VL,T=1.5 |
1 | ||
| 71250-95749 |
KM20..VSP..4H..EUR;CM20,KM20..V4D..(4F,5F) LH,VL,T=1.5 |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71150-95740 |
CM20,KM20,YM20..RHD..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 71250-95749 |
CM20,KM20,YM20..V..(EUR,GEN) LH,VL,T=1.5 |
1 | ||
| 71250-95749 |
KM20..VSP..4H..EUR;CM20,KM20..V4D..(4F,5F) LH,VL,T=1.5 |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71108-95738 |
CM20,KM20,YM20..(BUS,V)..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 71208-95754 |
CM20..RHD LH,VL,T=1.5 |
1 | ||
| 71108-95738 |
KM20..VSP..4H..EUR;CM20,KM20..V4D..(4F,5F) RH,VL,T=1.5 |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71108-95738 |
CM20,KM20,YM20..(BUS,V)..(EUR,GEN) RH,VL,T=1.5 |
1 | ||
| 71208-95754 |
CM20..RHD LH,VL,T=1.5 |
1 | ||
| 71108-95738 |
KM20..VSP..4H..EUR;CM20,KM20..V4D..(4F,5F) RH,VL,T=1.5 |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71109-95739 |
KM20..VSP..4H..EUR;CM20,KM20..V..(4F,5F) RH,VL,T=1.5 |
1 | ||
| 71209-95742 |
CM20,KM20,YM20..V..(EUR,GEN) LH,VL,T=1.5 |
1 | ||
| 71209-95742 |
KM20..VSP..4H..EUR;CM20,KM20..V4D..(4F,5F) LH,VL,T=1.5 |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71109-95739 |
KM20..VSP..4H..EUR;CM20,KM20..V..(4F,5F) RH,VL,T=1.5 |
1 | ||
| 71209-95742 |
CM20,KM20,YM20..V..(EUR,GEN) LH,VL,T=1.5 |
1 | ||
| 71209-95742 |
KM20..VSP..4H..EUR;CM20,KM20..V4D..(4F,5F) LH,VL,T=1.5 |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71109-95739 |
KM20..VSP..4H..EUR;CM20,KM20..V..(4F,5F) RH,VL,T=1.5 |
1 | ||
| 71209-95742 |
CM20,KM20,YM20..V..(EUR,GEN) LH,VL,T=1.5 |
1 | ||
| 71209-95742 |
KM20..VSP..4H..EUR;CM20,KM20..V4D..(4F,5F) LH,VL,T=1.5 |
1 | ||
| 71165 - COVER, FRONT RH SEAT HINGE | ||||
| 71165-9570005 |
CM20,KM20,YM2# BEIGE,BEIGE |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM20,KM20,YM2# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM20,KM20,YM2# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM20,KM20,YM2# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM20,KM20,YM2# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
CM20,KM20,YM2# |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72710-95705 |
CM20,KM20,YM2#..RHD |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-95706 |
CM20,KM20..V..EUR |
1 | ||
| Common parts | ||||
| 90109-08077 | ||||
| 90119-08350 | ||||
| 90159-50050 | ||||
| 90179-08039 | ||||
| 90202-13066 | ||||
| 90386-12067 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 94171-10800 | ||||
| 94511-00800 | ||||
| 96160-00900 | ||||
