CM20RV-JRZ (1982)

Toyota Liteace

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

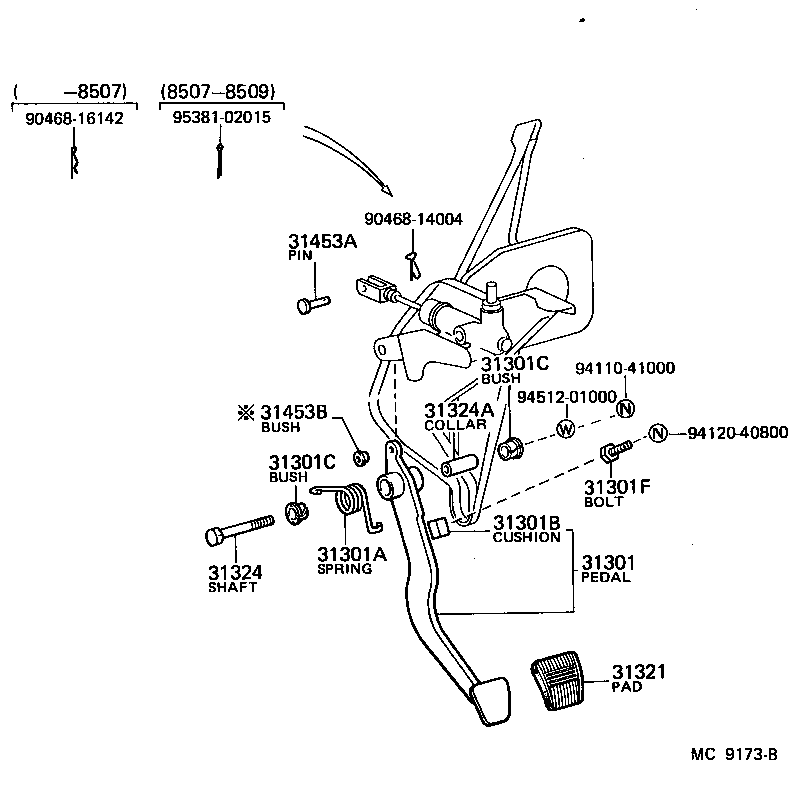

(8210- )CM20,YM2#..MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 9046814004 9046816142 9411041000 9412040800 9451201000 9538102015
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-27072

CM20,YM2#..RHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-32002

CM20,YM2#..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-10020

CM20,KM20,YM2#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CM20,KM20,YM2#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CM20,KM20,YM2#..MTM

 2
31321 - PAD, CLUTCH PEDAL
31321-14010

CM20,KM20,YM2#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
91111-51060

CM20,KM20,YM2#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

CM20,KM20,YM2#..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

CM20,YM2#..MTM

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

CM20,YM2#..MTM

 1
Common parts
90468-14004
90468-16142
94110-41000
94120-40800
94512-01000
95381-02015

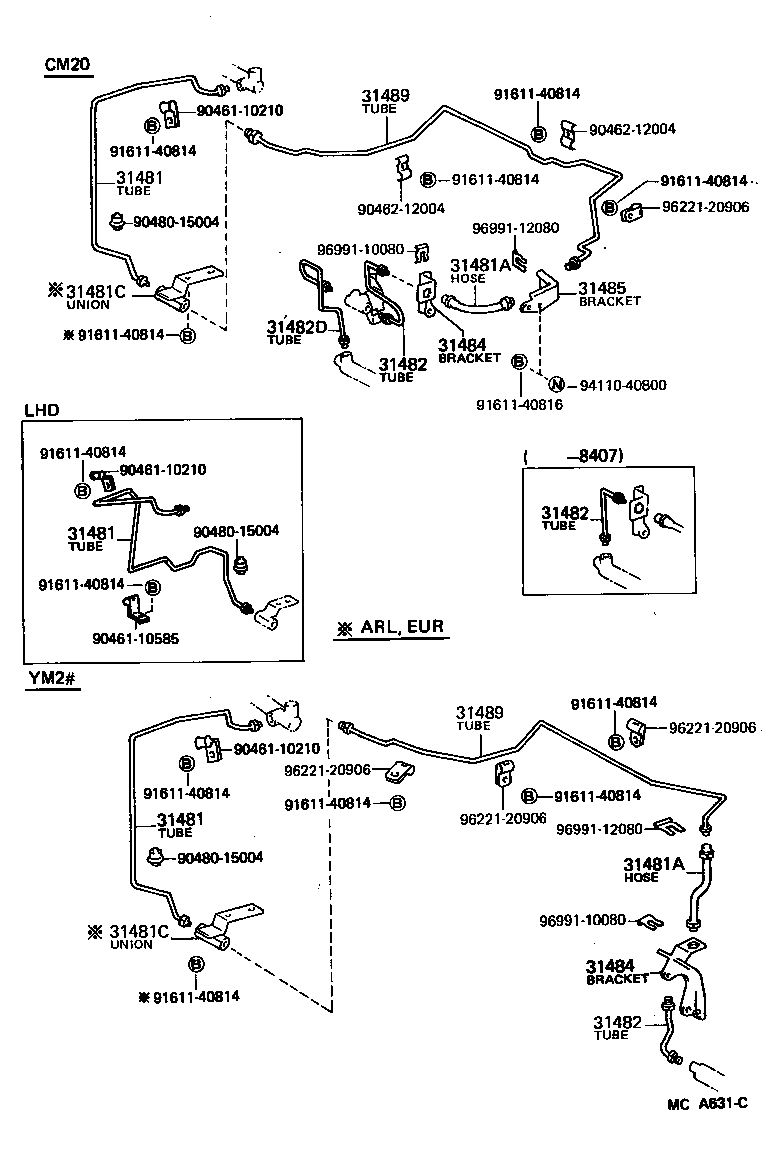

(8210- )CM20,YM2#..MTM

Click highlighted areas on diagram

diagram 31481 31481 31481 31481A 31481A 31481C 31481C 31482 31482 31482 31482D 31484 31484 31485 31489 31489 9046110210 9046110210 9046110210 9046110585 9046212004 9046212004 9048015004 9048015004 9048015004 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140816 9411040800 9622120906 9622120906 9622120906 9622120906 9699110080 9699110080 9699112080 9699112080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-27011

CM20,YM2#..RHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-27011

CM20,YM2#..RHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-27011

CM20,YM2#..RHD..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96817-50260

CM20

 1
31481A - HOSE, CLUTCH, NO.1
96817-50260

CM20

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31488-27010

CM20

 1
31482-27040

CM20..GEN

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31488-27010

CM20

 1
31482-27040

CM20..GEN

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31488-27010

CM20

 1
31482-27040

CM20..GEN

 1
31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR
31482-27051

CM20..4H

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-27010

CM20

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-27010

CM20

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-27010

CM20

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-27020

CM20

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-27020

CM20

 1
Common parts
90461-10210
90461-10585
90462-12004
90480-15004
91611-40814
91611-40816
94110-40800
96221-20906
96991-10080
96991-12080

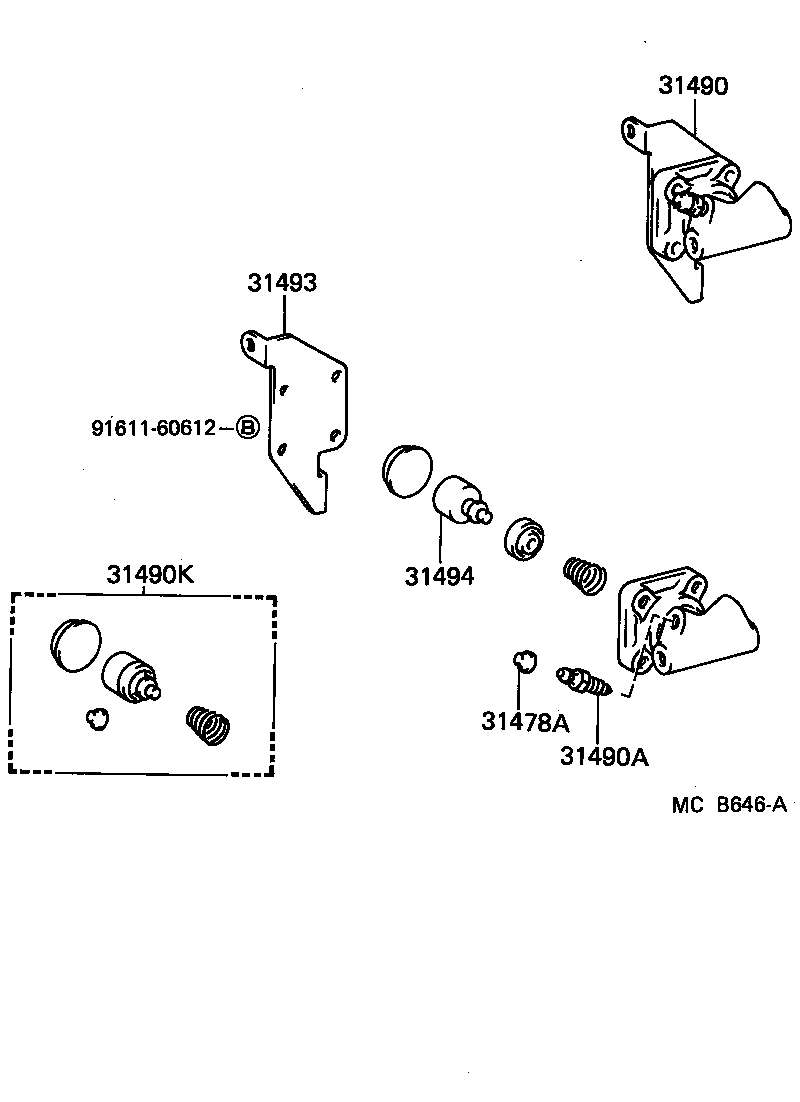

(8410- )CM20

Click highlighted areas on diagram

diagram 31478A 31490 31490A 31490K 31493 31494 9161160612
Part # Description Qty Price
31478A - CAP, BLEEDER PLUG(FOR CLUTCH ACCUMULATOR)
31478-30010

CM20

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-27010

CM20

 1
31490A - PLUG, BLEEDER(FOR CLUTCH ACCUMULATOR)
47547-12010

CM20

 1
31490K - CUP KIT, CLUTCH ACCUMULATOR
04319-28010

CM20

 1
31493 - BRACKET, CLUTCH ACCUMULATOR
31493-28010

CM20

 1
31494 - PISTON, CLUTCH ACCUMULATOR
31494-28010

CM20

 1
Common parts
91611-60612
