CM20RV-JRZ (1982)

Toyota Liteace

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1C

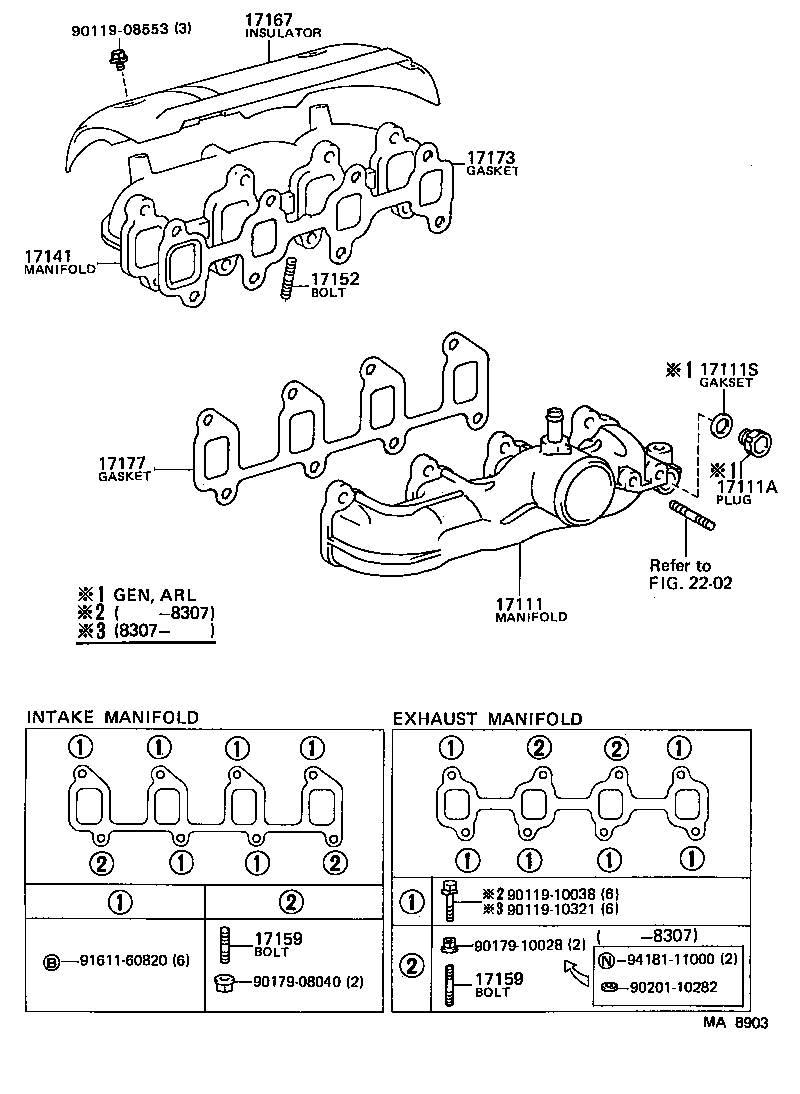

Click highlighted areas on diagram

diagram 17111 17111A 17111S 17141 17152 17159 17159 17167 17173 17177 2202 9011908553 9011910038 9011910321 9017908040 9017910028 9020110282 9161160820 9418111000
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-64010

1C..CM20

 1
17111A - PLUG, NO.1
90341-18006

1C..CM20..ARL,GEN

 1
17111S - GASKET(FOR MANIFOLD PLUG)
90430-18001

1C..CM20..ARL,GEN

 1
17141 - MANIFOLD, EXHAUST
17141-64011

1C..CM20

 1
17141-64010

1C..CM20

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

1C..CM20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10095

1C..CM20

EXHAUST MANIFOLD

 2
92122-61032

1C..CM20

EXHAUST MANIFOLD

 2
92122-60820

1C..CM20

INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10095

1C..CM20

EXHAUST MANIFOLD

 2
92122-61032

1C..CM20

EXHAUST MANIFOLD

 2
92122-60820

1C..CM20

INTAKE MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-64020

1C..CM20

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-64020

1C..CM20

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-64010

1C..CM20

 1
Common parts
90119-08553
90119-10038
90119-10321
90179-08040
90179-10028
90201-10282
91611-60820
94181-11000
Linked diagrams
2202
