CM20RV-JRBE (1982)

Toyota Liteace

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )1C

Click highlighted areas on diagram

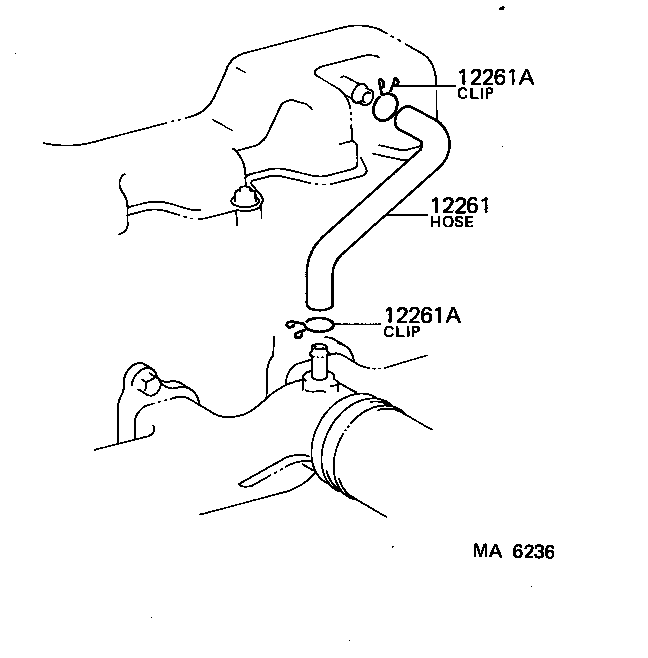

diagram 12261 12261A 12261A
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-64020

1C..CM20

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

1C..CM20

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

1C..CM20

 2
