CM20LV-MRZW (1982)

Toyota Liteace

Production Oct 1982 - Aug 1985
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )CM20 ; (8311- )YM21..08S

Click highlighted areas on diagram

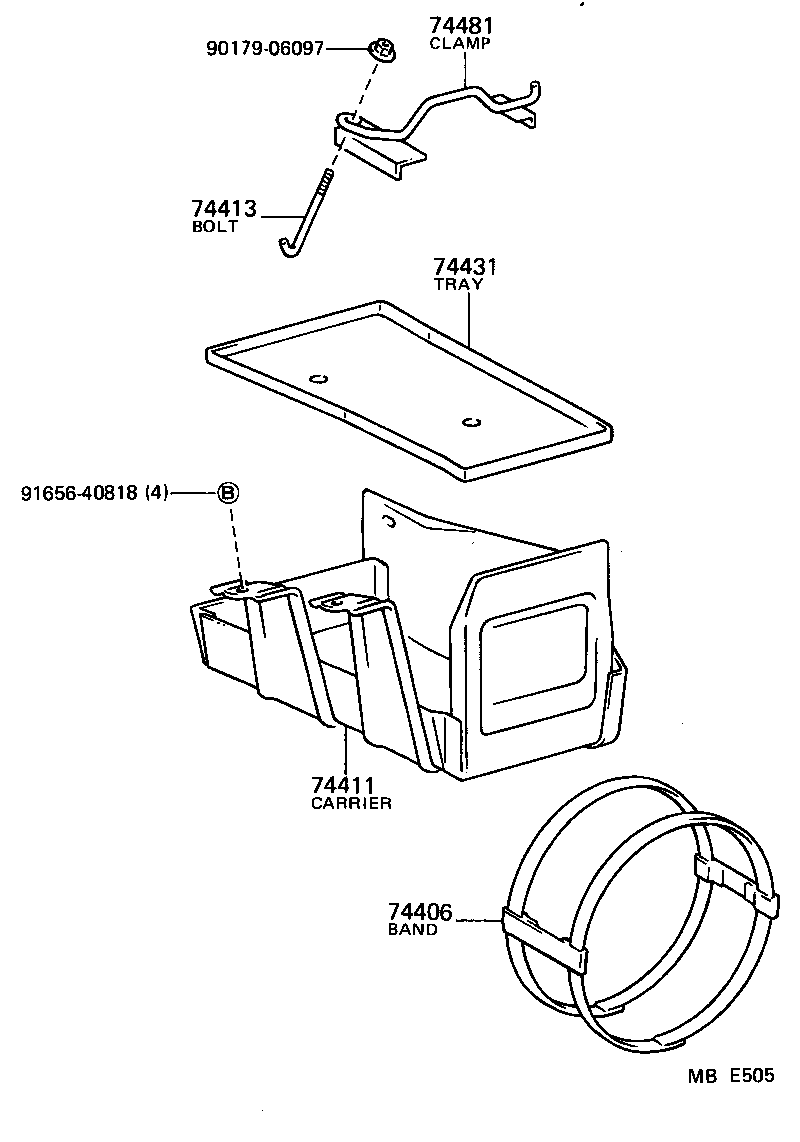

diagram 74406 74411 74413 74431 74481 9017906097 9165640818
Part # Description Qty Price
74406 - BELT SUB-ASSY, BATTERY
74446-95702

CM20

 1
74411 - CARRIER, BATTERY
74410-95707

CM20..LHD

 1
74413 - BOLT, BATTERY CLAMP
74451-95702

CM20;YM21..08S

 1
74431 - TRAY, BATTERY
74431-95701

CM20..LHD

 1
74481 - CLAMP, BATTERY HOLD DOWN
74406-95703

CM20..LHD

 1
Common parts
90179-06097
91656-40818
