CM20LV-MRZW (1982)
Toyota Liteace
Production
Oct 1982
-
Aug 1985
Engine
1C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8210- )CM20,YM2#..MTM

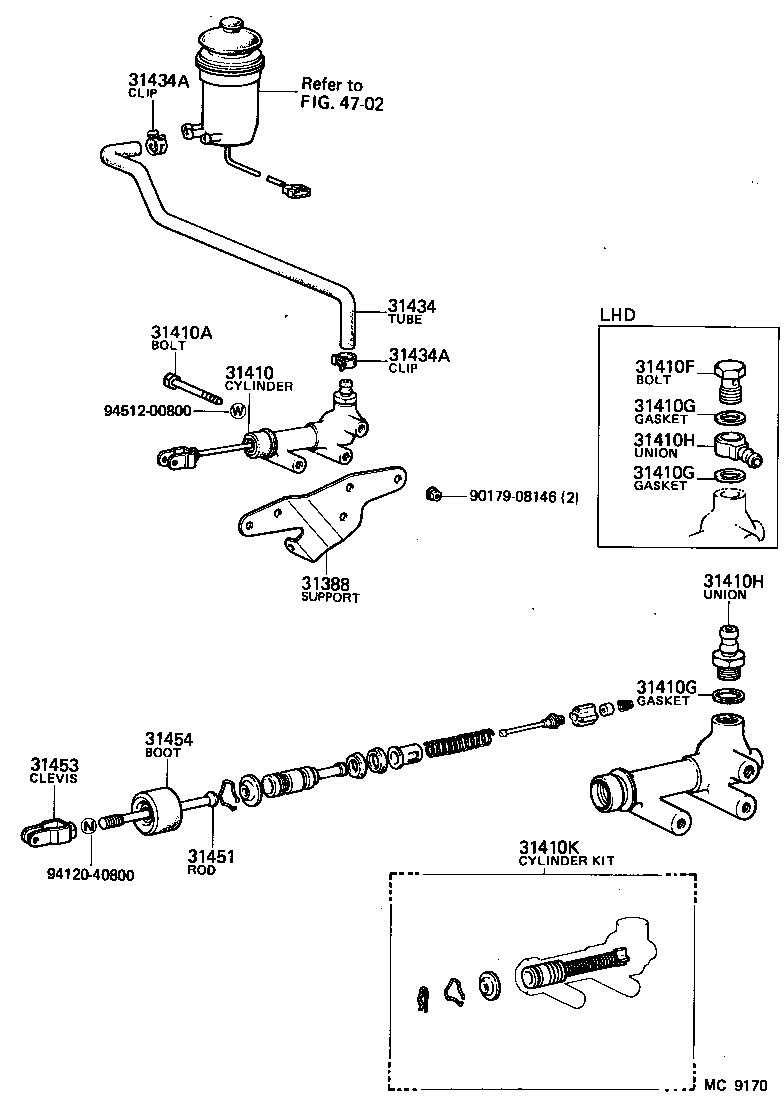

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31388 - SUPPORT, CLUTCH MASTER CYLINDER | ||||
| 55105-95703 |
CM20..LHD |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-27042 |
CM20..LHD |
1 | ||
| 31420-27041 |
CM20..LHD |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 91121-40865 |
CM20,YM2#..MTM |
2 | ||
| 31410F - BOLT, UNION(FOR CLUTCH MASTER CYLINDER) | ||||
| 90401-16078 |
CM20..LHD |
1 | ||
| 31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION) | ||||
| 90430-16242 |
CM20,YM2#..MTM |
2 | ||
| 31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION) | ||||
| 90430-16242 |
CM20,YM2#..MTM |
2 | ||
| 31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION) | ||||
| 90430-16242 |
CM20,YM2#..MTM |
2 | ||
| 31410H - UNION(FOR CLUTCH MASTER CYLINDER) | ||||
| 90405-10125 |
CM20..LHD |
1 | ||
| 31410H - UNION(FOR CLUTCH MASTER CYLINDER) | ||||
| 90405-10125 |
CM20..LHD |
1 | ||
| 31410K - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-30080 |
CM20 |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-27030 |
CM20..LHD |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96132-30800 |
CM20,YM2#..MTM |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96132-30800 |
CM20,YM2#..MTM |
2 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-30060 |
CM20 |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-28011 |
CM20 |
1 | ||
| 31404-28010 |
CM20 |
1 | ||
| 31404-30041 |
CM20 |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14010 |
CM20,YM2#..MTM |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
