KMA10R-AWDBSW (2020)

Toyota Lexus Ux300e

Production Nov 2020 - Sep 9999
Engine 4KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(2011- )RHD

Click highlighted areas on diagram

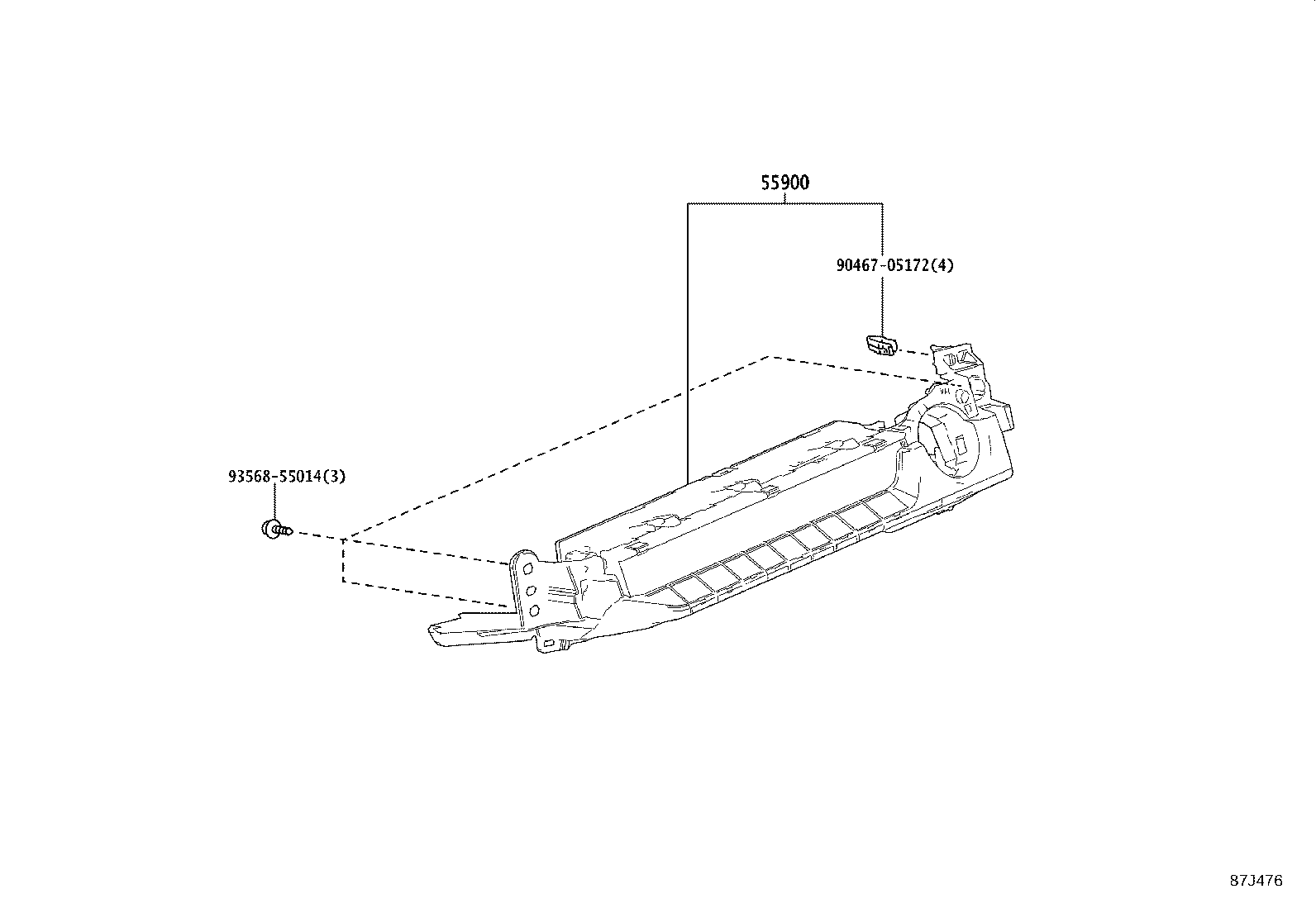

HEATER CONTROL PANEL

diagram 55900 9046705172 9356855014
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-76130

KMA10..RHD

 1
Common parts
90467-05172
93568-55014

ILLUST NO. 2 OF 3(2011- )RHD

Click highlighted areas on diagram

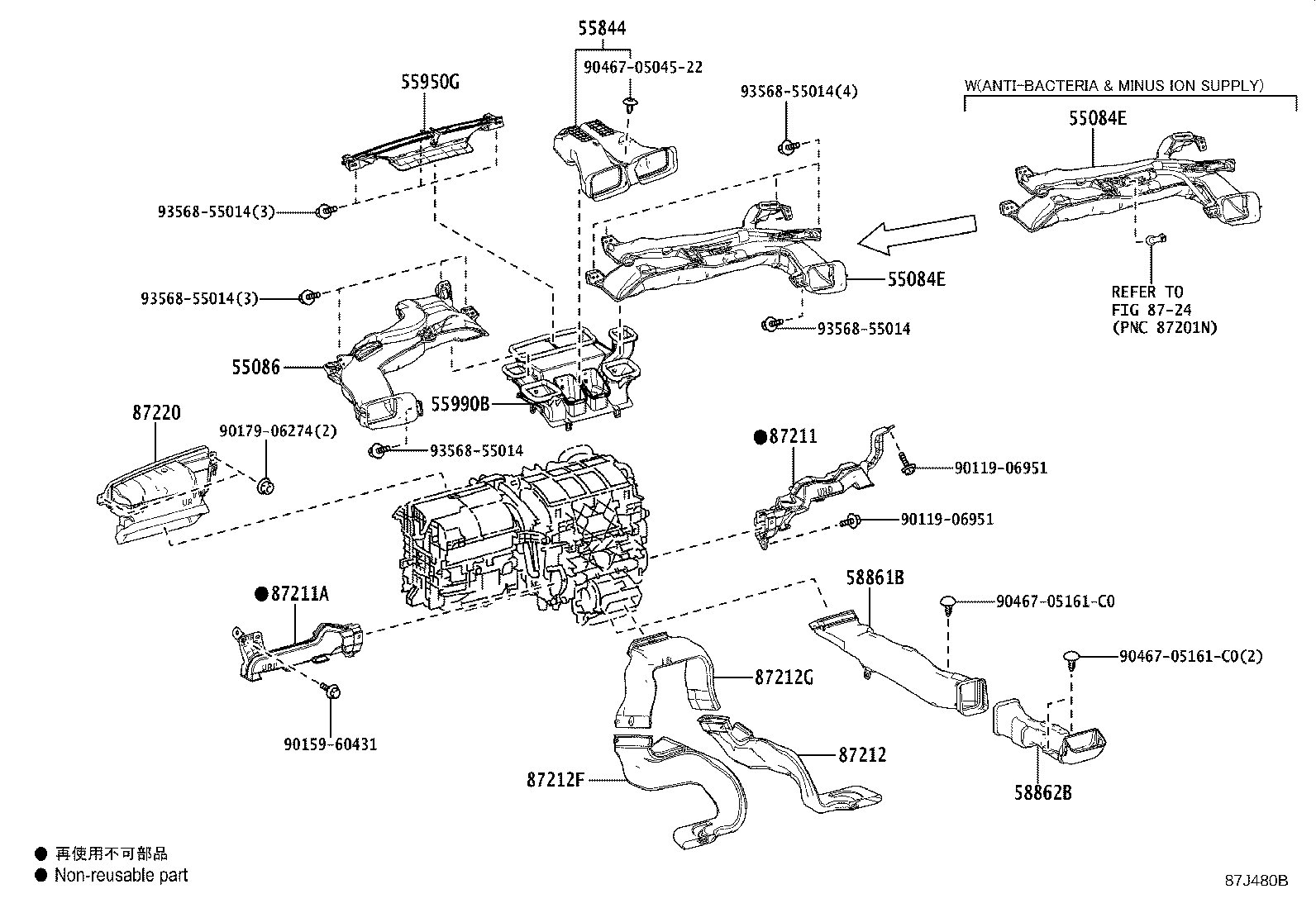

AIR DUCT

diagram 55084E 55084E 55086 55844 55950G 55990B 58861B 58862B 87211 87211A 87212 87212F 87212G 87220 8724 9011906951 9011906951 9015960431 9017906274 904670504522 9046705161C0 9046705161C0 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-76070

KMA10..RHD..EUR

 1
55084-76110

KMA10..RHD..EUR

LUXURY PACKAGE

 1
55084-76072

KMA10..RHD..EUR

 1
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-76070

KMA10..RHD..EUR

 1
55084-76110

KMA10..RHD..EUR

LUXURY PACKAGE

 1
55084-76072

KMA10..RHD..EUR

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-76050

KMA10..RHD

 1
55086-76052

KMA10..RHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-76040

KMA10..RHD

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-76040

KMA10..RHD

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-76040

KMA10..RHD

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-76050

KMA10..RHD

 1
58862B - DUCT, CONSOLE BOX, NO.2
58862-76030

KMA10

 1
87211 - DUCT, AIR, NO.1
87211-76020

KMA10..RHD

 1
87211A - DUCT, AIR, NO.2
87211-76030

KMA10..RHD

 1
87212 - DUCT, AIR, REAR NO.1
87212-76010

KMA10

 1
87212F - DUCT, AIR, REAR NO.2
87213-76010

KMA10

 1
87212G - DUCT, AIR, REAR NO.3
87215-12070

KMA10..RHD

 1
87220 - DUCT ASSY, AIR
87220-76030

KMA10..RHD

 1
Common parts
90119-06951
90159-60431
90179-06274
90467-0504522
90467-05161C0
93568-55014
Linked diagrams
8724

ILLUST NO. 3 OF 3(2011- )RHD

Click highlighted areas on diagram

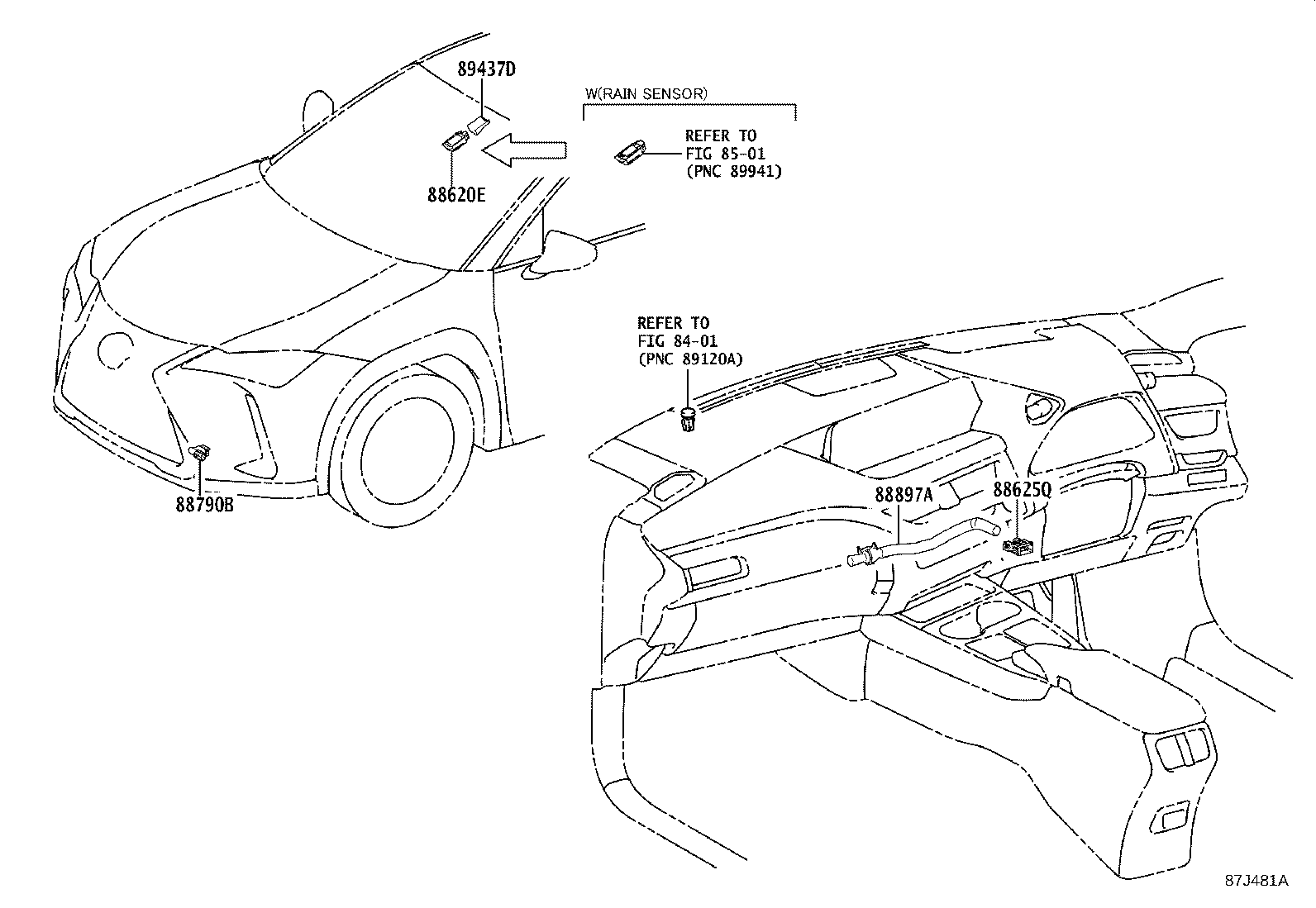

SENSOR

diagram 8401 8501 88620E 88625Q 88790B 88897A 89437D
Part # Description Qty Price
88620E - THERMISTOR ASSY, AIR CONDITIONER
89941-76010

KMA10

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

 1
89941-76010

KMA10

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

KMA10

 1
88790B - THERMISTOR ASSY
88790-28100

KMA10

 1
88897A - PIPE, ASPIRATOR
88505-76030

KMA10..RHD

 1
89437D - COVER, SENSOR
89943-76020

KMA10

WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

 1
89943-76020

KMA10

 1
Linked diagrams
8401
8501
