KMA10R-AWDBSW (2020)

Toyota Lexus Ux300e

Production Nov 2020 - Sep 9999
Engine 4KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2004- )

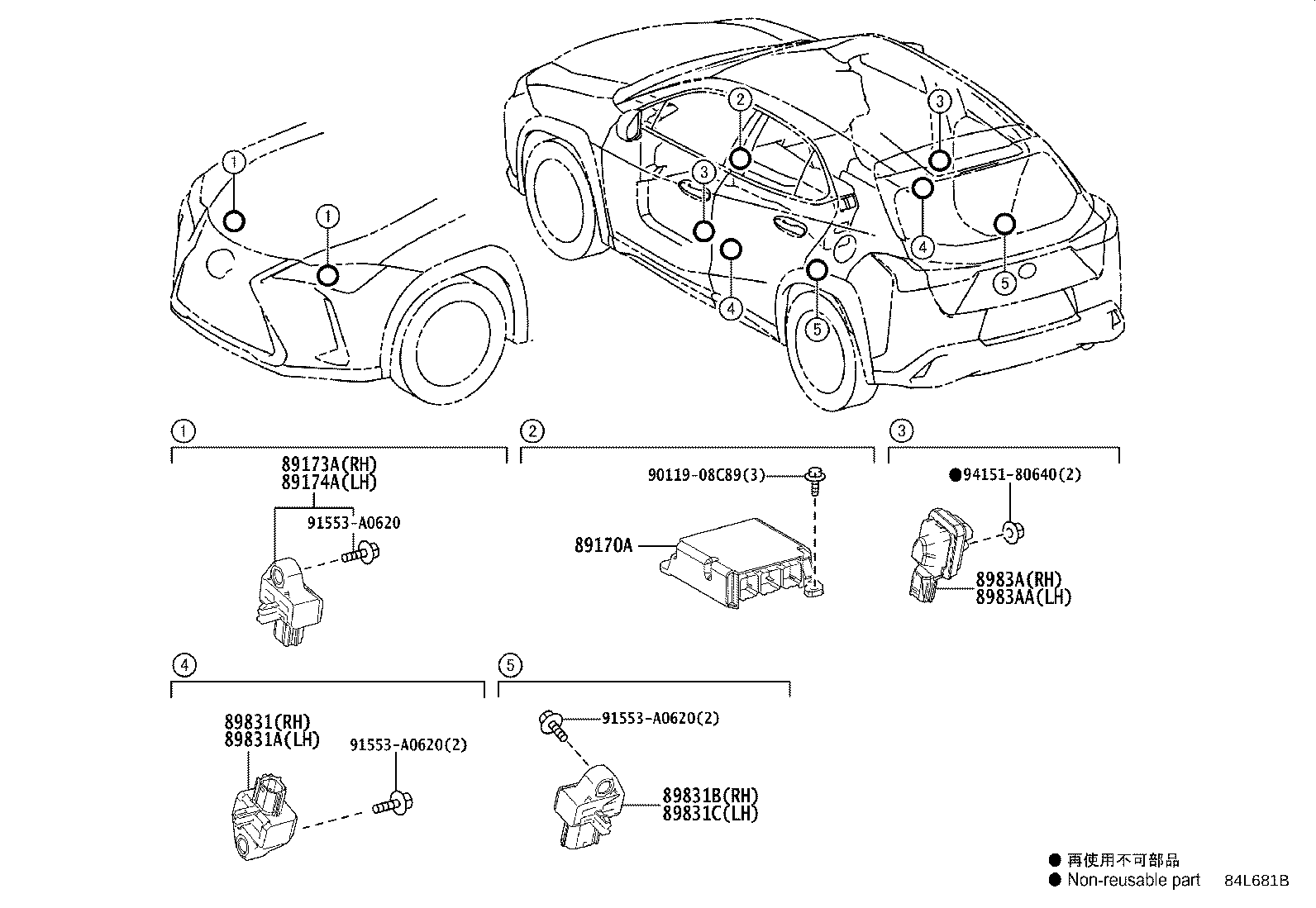

Click highlighted areas on diagram

diagram 89170A 89173A 89174A 89831 89831A 89831B 89831C 8983A 8983AA 9011908C89 91553A0620 91553A0620 91553A0620 9415180640
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-76570

KMA10..RHD..EUR

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-49495

KMA10

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-49495

KMA10

 1
89831 - SENSOR, SIDE AIR BAG, RH, NO.1
89831-47050

KMA10

 1
89831A - SENSOR, SIDE AIR BAG, LH, NO.1
89831-47050

KMA10

 1
89831B - SENSOR, SIDE AIR BAG, RH, NO.2
89831-28040

KMA10

 1
89831C - SENSOR, SIDE AIR BAG, LH, NO.2
89831-28040

KMA10

 1
8983A - SENSOR, SIDE AIR BAG PRESSURE, RH
8983A-33010

KMA10

 1
8983A-33011

KMA10

 1
8983AA - SENSOR, SIDE AIR BAG PRESSURE, LH
8983A-33010

KMA10

 1
8983A-33011

KMA10

 1
Common parts
90119-08C89
91553-A0620
94151-80640
