KMA10R-AWDBSW (2020)
Toyota Lexus Ux300e
ILLUST NO. 4 OF11(2004- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-76450 |
KMA10..RHD..EUR LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH&INNER REAR VIEW MIRROR-*247&BACK MONITOR-WITH(GUIDE)&BLIND SPOT MONITOR-WITH |
1 | ||
| 82151-76450 |
KMA10..RHD..EUR LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR))&INNER REARVIEW MIRROR-*247&BACK MONITOR-WITH(GUIDE)&BLIND SPOT MONITOR-WITH |
1 | ||
| 82151-76A00 |
KMA10..RHD..EUR LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR))&INNER REARVIEW MIRROR-*247&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH |
1 | ||
| 82151-76A00 |
KMA10..RHD..EUR LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH&INNER REAR VIEW MIRROR-*247&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH |
1 | ||
| 82151-76710 |
KMA10..RHD..EUR PREMIUM PACKAGE |
1 | ||
| 82151-76740 |
KMA10..RHD..EUR |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-76660 |
KMA10..RHD..EUR LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH&INNER REAR VIEW MIRROR-*247&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH |
1 | ||
| 82152-76660 |
KMA10..RHD..EUR LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR))&INNER REARVIEW MIRROR-*247&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH |
1 | ||
| 82152-76670 |
KMA10..RHD..EUR LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR))&INNER REARVIEW MIRROR-*247&BACK MONITOR-WITH(GUIDE)&BLIND SPOT MONITOR-WITH |
1 | ||
| 82152-76670 |
KMA10..RHD..EUR LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH&INNER REAR VIEW MIRROR-*247&BACK MONITOR-WITH(GUIDE)&BLIND SPOT MONITOR-WITH |
1 | ||
| 82152-76680 |
KMA10..RHD..EUR |
1 | ||
| 82152-76650 |
KMA10..RHD..EUR PREMIUM PACKAGE |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-76660 |
KMA10 BACK MONITOR-WITH(GUIDE) |
1 | ||
| 82184-76670 |
KMA10 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-76020 |
KMA10 HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR))&BACK MONITOR-WITH(GUIDE) |
1 | ||
| 82185-76030 |
KMA10 HANDS FREE POWER BACK DOOR-WITH&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82185-76050 |
KMA10 BACK MONITOR-WITH(GUIDE) |
1 | ||
| 82185-76020 |
KMA10 HANDS FREE POWER BACK DOOR-WITH&BACK MONITOR-WITH(GUIDE) |
1 | ||
| 82185-76070 |
KMA10 |
1 | ||
| 82185-76030 |
KMA10 HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR))&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60220 |
KMA10 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-26180 |
KMA10 |
1 | ||
| 82819 - GROMMET, WIRING HARNESS | ||||
| 82817-76B10 |
KMA10 |
1 | ||
| Common parts | ||||
| 90119-06A07 | ||||
ILLUST NO. 5 OF11(2004- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-76K60 |
KMA10..RHD..EUR |
1 | ||
| 82161-76K70 |
KMA10..RHD..EUR LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH&INNER REAR VIEW MIRROR-*247&BACK MONITOR-WITH(GUIDE)&BLIND SPOT MONITOR-WITH |
1 | ||
| 82161-76K70 |
KMA10..RHD..EUR LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR))&INNER REARVIEW MIRROR-*247&BACK MONITOR-WITH(GUIDE)&BLIND SPOT MONITOR-WITH |
1 | ||
| 82161-76K70 |
KMA10..RHD..EUR LUXURY PACKAGE&HANDS FREE POWER BACK DOOR- WITHOUT(W(POWER BACK DOOR))&INNER REARVIEW MIRROR-*247&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH |
1 | ||
| 82161-76K70 |
KMA10..RHD..EUR LUXURY PACKAGE&HANDS FREE POWER BACK DOOR-WITH&INNER REAR VIEW MIRROR-*247&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH |
1 | ||
| 8216A - WIRE, FLOOR NO.7 | ||||
| 8216A-76070 |
KMA10 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-76G50 |
KMA10..RHD..EUR LUXURY PACKAGE&MOON ROOF-WITH |
1 | ||
| 82171-76G30 |
KMA10..RHD..EUR MOON ROOF-WITH |
1 | ||
| 82171-76G70 |
KMA10..RHD..EUR |
1 | ||
| 82171-76G90 |
KMA10..RHD..EUR LUXURY PACKAGE |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-76300 |
KMA10 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-76290 |
KMA10 |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-76070 |
KMA10 |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-76080 |
KMA10 |
1 | ||
| Common parts | ||||
| 90119-06A07 | ||||
| 91673-80616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8601 | ||||

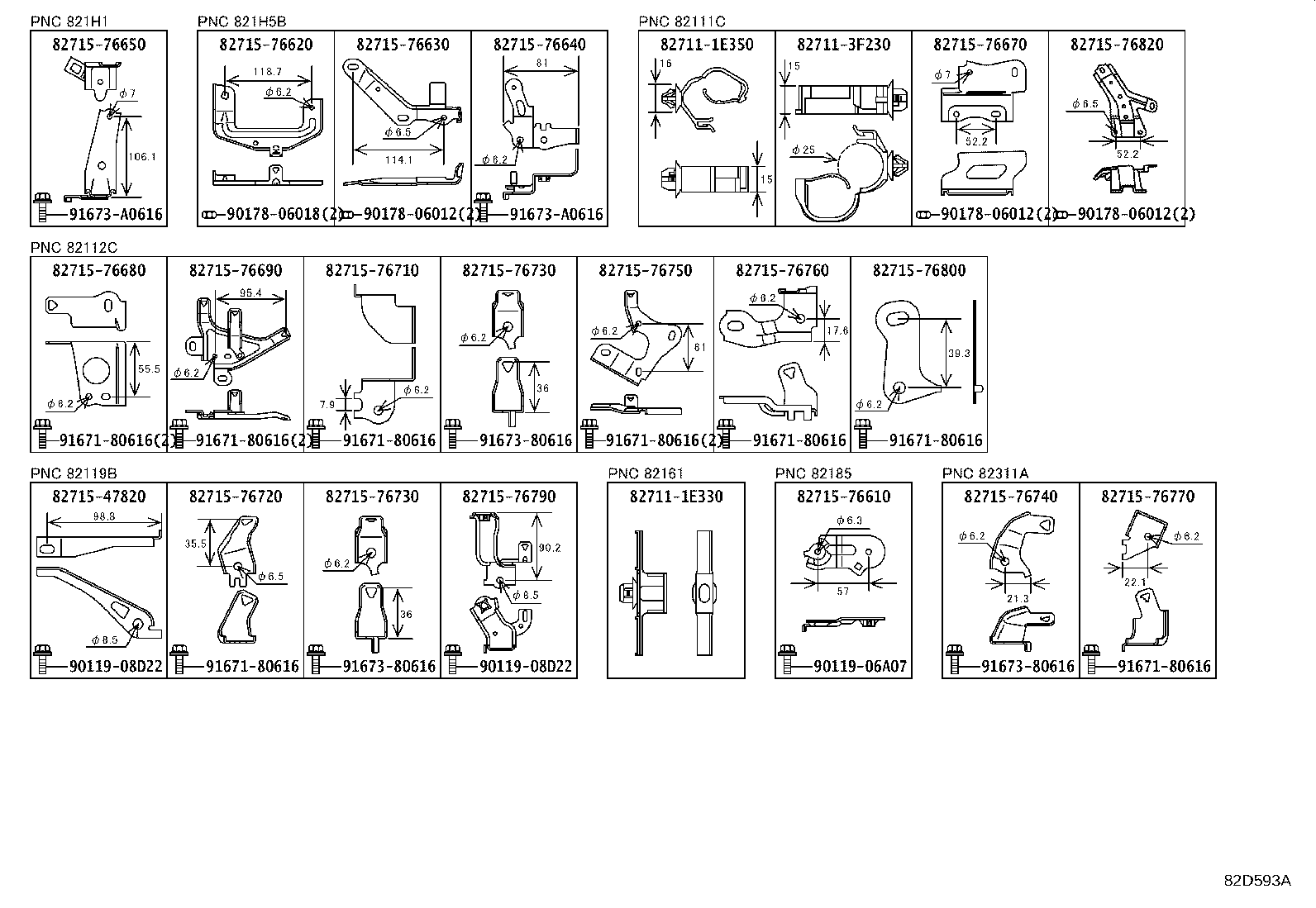

ILLUST NO. 8 OF11(2004- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E330 | ||||
| 82711-1E350 | ||||
| 82711-3F230 | ||||
| 82715-47820 | ||||
| 82715-76610 | ||||
| 82715-76620 | ||||
| 82715-76630 | ||||
| 82715-76640 | ||||
| 82715-76650 | ||||
| 82715-76670 | ||||
| 82715-76680 | ||||
| 82715-76690 | ||||
| 82715-76710 | ||||
| 82715-76720 | ||||
| 82715-76730 | ||||
| 82715-76740 | ||||
| 82715-76750 | ||||
| 82715-76760 | ||||
| 82715-76770 | ||||
| 82715-76790 | ||||
| 82715-76800 | ||||
| 82715-76820 | ||||
| 90119-06A07 | ||||
| 90119-08D22 | ||||
| 90178-06012 | ||||
| 90178-06018 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| 91673-A0616 | ||||
ILLUST NO.10 OF11(2004- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-10794 | ||||
| 90980-11148 | ||||
| 90980-11246 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
| 90980-12732 | ||||
| 90980-12C12 | ||||
| 90980-12C13 | ||||
| 90980-12D15 | ||||
ILLUST NO.11 OF11(2004- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-12059 | ||||
| 90980-12554 | ||||
| 90980-12910 | ||||
| 90980-12A59 | ||||
| 90980-12C39 | ||||
| 90980-12D25 | ||||
ILLUST NO. 3 OF11(2011- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-76C30 |
KMA10..RHD..EUR |
1 | ||
| 82145-76C40 |
KMA10..RHD..EUR LUXURY PACKAGE |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-76740 |
KMA10..RHD |
1 | ||
| 82142-76650 |
KMA10..RHD LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82142-76750 |
KMA10..RHD BACK MONITOR-WITH(GUIDE) |
1 | ||
| 82142-76660 |
KMA10..RHD LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(GUIDE) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-76020 |
KMA10 |
1 | ||
| 82149A - WIRE, INSTRUMENT PANEL, NO.5 | ||||
| 82149-76010 |
KMA10 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-76080 |
KMA10 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-76170 |
KMA10 |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF11(2011- )RHD
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-33E00 |
KMA10..RHD |
1 | ||
| 82191-76230 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 82191-76230 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 82191A - WIRE, FRONT SEAT, RH | ||||
| 82191-11090 |
KMA10..RHD |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-76110 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 82192-76110 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 82192-76210 |
KMA10..RHD |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-33170 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 8219A-33170 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 8219A-33160 |
KMA10..RHD |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-33100 |
KMA10..RHD |
1 | ||
| 8219B-42070 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 8219B-42070 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
ILLUST NO. 6 OF11(2011- )RHD
HIGH TENSION CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 821H1 - WIRE, FLOOR UNDER | ||||
| 821H1-76060 |
KMA10 |
1 | ||
| 821H5B - WIRE, EV BATTERY CHARGER | ||||
| 821H5-76020 |
KMA10..RHD |
1 | ||
| Common parts | ||||
| 90119-06A24 | ||||
| 90178-06012 | ||||
| 90467-07215 | ||||
| 91673-A0616 | ||||
ILLUST NO. 1 OF11(2011- )RHD
MOTOR ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111C - WIRE, FRONT COMPARTMENT, MAIN | ||||
| 82111-76R10 |
KMA10..RHD |
1 | ||
| 82112C - WIRE, FROMT COMPARTMENT, NO.2 | ||||
| 82112-76010 |
KMA10 |
1 | ||
| 82113A - WIRE, FRONT COMPARTMENT, NO.3 | ||||
| 82113-76080 |
KMA10..RHD..EUR CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 82113-76060 |
KMA10..RHD..EUR CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(GUIDE) |
1 | ||
| 82113-76090 |
KMA10..RHD..EUR |
1 | ||
| 82113-76060 |
KMA10..RHD..EUR CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE) |
1 | ||
| 82119B - WIRE, FRONT COMPARTMENT, NO.5 | ||||
| 82119-76010 |
KMA10 |
1 | ||
| 82311A - WIRE, AIR CONDITIONER | ||||
| 821H2-76020 |
KMA10 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-50C30 |
KMA10..RHD..EUR |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-30610 |
KMA10 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-30650 |
KMA10 |
2 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-47680 |
KMA10 |
1 | ||
| 82821P - COVER, CONNECTOR | ||||
| 82821-48040 |
KMA10 |
1 | ||
| 82821R - COVER, CONNECTOR | ||||
| 82821-50780 |
KMA10 |
2 | ||
| 82821R - COVER, CONNECTOR | ||||
| 82821-50780 |
KMA10 |
2 | ||
| 82821U - COVER, CONNECTOR | ||||
| 82821-78050 |
KMA10 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-47050 |
KMA10 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-76140 |
KMA10..CHI,EUR |
2 | ||
| 89515 - CLIP | ||||
| 89348-50050 |
KMA10 CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE) |
2 | ||
| 89348-50050 |
KMA10..RHD..EUR |
1 | ||
| 89515 - CLIP | ||||
| 89348-50050 |
KMA10 CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE) |
2 | ||
| 89348-50050 |
KMA10..RHD..EUR |
1 | ||
| Common parts | ||||
| 90119-06A07 | ||||
| 90119-06A24 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
ILLUST NO. 2 OF11(2011- )RHD
MOTOR ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-47020 |
KMA10 |
1 | ||
| 82661E - COVER, RELAY BLOCK, SIDE NO.2 | ||||
| 82661-47030 |
KMA10 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47C90 |
KMA10..RHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47D30 |
KMA10..RHD |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-47880 |
KMA10 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-47C20 |
KMA10 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-47D40 |
KMA10..RHD |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-76610 |
KMA10..RHD |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-47E50 |
KMA10 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-76A30 |
KMA10..RHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47N60 |
KMA10..RHD |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-47N30 |
KMA10 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47N40 |
KMA10 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47P00 |
KMA10..RHD |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-47P10 |
KMA10..RHD |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-47Q20 |
KMA10 |
1 | ||
| 82821V - COVER, CONNECTOR | ||||
| 82821-12600 |
KMA10 |
1 | ||
| 82821W - COVER, CONNECTOR | ||||
| 82821-47330 |
KMA10 |
1 | ||
| 82821X - COVER, CONNECTOR | ||||
| 82821-47480 |
KMA10 |
1 | ||
| 82821Y - COVER, CONNECTOR | ||||
| 82821-47490 |
KMA10 |
1 | ||
| 82H21C - COVER, CONNECTOR | ||||
| 82821-47690 |
KMA10 |
1 | ||
| 82H21D - COVER, CONNECTOR | ||||
| 82821-78050 |
KMA10 |
1 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90119-08D22 | ||||
| 90178-06026 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 9 OF11(2011- )RHD
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| G1570-76010 |
KMA10..RHD |
1 | ||
| Common parts | ||||
| 90119-06A14 | ||||
| 90119-06A24 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
