KMA10R-AWDBSW (2020)
Toyota Lexus Ux300e

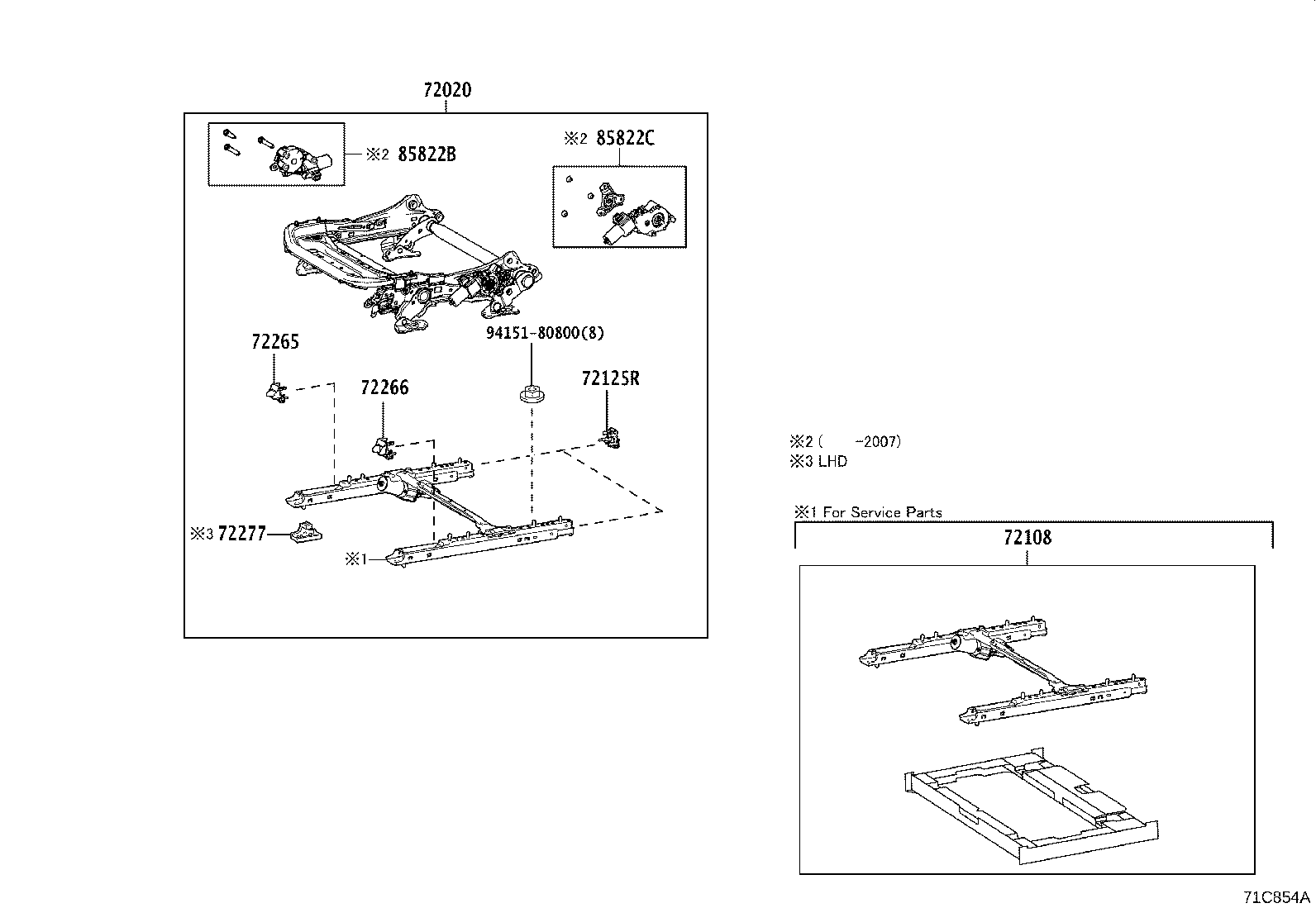

ILLUST NO. 2 OF 2(2004- )
LH SIDE,SEAT ADJUSTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-33520 |
KMA10..RHD |
1 | ||
| 72108 - RAIL SUB-ASSY, SEAT TRACK, UPPER LH | ||||
| 72108-33010 |
KMA10 |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47020 |
KMA10 |
4 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47020 |
KMA10 |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47020 |
KMA10 |
2 | ||
| 72277 - PROTECTOR, SEAT SLIDE POSITION SENSOR, | ||||
| 72277-47050 |
KMA10 |
1 | ||
| Common parts | ||||
| 94151-80800 | ||||
ILLUST NO. 2 OF 2(2004- )
RH SIDE,SEAT ADJUSTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-33610 |
KMA10..RHD |
1 | ||
| 72106B - RAIL SUB-ASSY, SEAT TRACK, UPPER RH | ||||
| 72106-33010 |
KMA10 |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47020 |
KMA10 |
4 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47020 |
KMA10 |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47020 |
KMA10 |
2 | ||
| 72277 - PROTECTOR, SEAT SLIDE POSITION SENSOR, | ||||
| 72277-47050 |
KMA10 |
1 | ||
| Common parts | ||||
| 94151-80800 | ||||
ILLUST NO. 1 OF 2(2011- )RHD
DRIVER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
KMA10 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-76C20C0 |
KMA10 BLACK,TRIM2# |
1 | ||
| 71071-76C20B0 |
KMA10 CHATEAU,TRIM11 |
1 | ||
| 71071-76C20B1 |
KMA10 WHITE ASH,TRIM10,8# |
1 | ||
| 71071-76C20E0 |
KMA10..EUR OCHER,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-76880B3 |
KMA10..RHD..EUR CHATEAU,TRIM11 |
1 | ||
| 71073-76880B4 |
KMA10..RHD..EUR WHITE ASH,TRIM10 |
1 | ||
| 71073-76880B5 |
KMA10..RHD..EUR WHITE ASH/BLUE,TRIM8# |
1 | ||
| 71073-76880E1 |
KMA10..RHD..EUR OCHER,TRIM4# |
1 | ||
| 71073-76A00B2 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),WHITE ASH/BLUE,TRIM8# |
1 | ||
| 71073-76A00B2 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),WHITE ASH/BLUE,TRIM8# |
1 | ||
| 71073-76A00A1 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),RICH CREAM,TRIM0# |
1 | ||
| 71073-76A00B3 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),WHITE ASH,TRIM1# |
1 | ||
| 71073-76A00E1 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),OCHER,TRIM4# |
1 | ||
| 71073-76A00A1 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),RICH CREAM,TRIM0# |
1 | ||
| 71073-76A00B3 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),WHITE ASH,TRIM1# |
1 | ||
| 71073-76A00E1 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),OCHER,TRIM4# |
1 | ||
| 71073-76880C1 |
KMA10..RHD..EUR BLACK,TRIM2# |
1 | ||
| 71073-76A00C1 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71073-76A00C1 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-76050 |
KMA10 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-76060 |
KMA10 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
KMA10 |
4 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
KMA10 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-50040 |
KMA10 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-50040 |
KMA10 |
4 | ||
| 71805A - SHIELD SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71805-76010C0 |
KMA10 BLACK,TRIM0#,1#,2#,4#,8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-76110C0 |
KMA10 BLACK,TRIM0#,1#,2#,4#,8# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-33010 |
KMA10 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070C1 |
KMA10 BLACK,TRIM0#,1#,2#,4#,8# |
1 | ||
| 71867V - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-33100C0 |
KMA10 BLACK,TRIM0#,1#,2#,4#,8# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47090 |
KMA10..RHD;KMA10..CHI |
1 | ||
| 71873B - SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1 | ||||
| 71873-76010 |
KMA10..RHD;KMA10..CHI |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-47080 |
KMA10 |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-76020C0 |
KMA10 BLACK,TRIM0#,1#,2#,4#,8# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
KMA10..RHD..EUR W(LOCK),BLACK,TRIM1#,2#,4#,8# |
2 | ||
| 71931-47030C4 |
KMA10..RHD..EUR W/O(LOCK),BLACK,TRIM1#,2#,4#,8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
KMA10..RHD..EUR W(LOCK),BLACK,TRIM1#,2#,4#,8# |
2 | ||
| 71931-47030C4 |
KMA10..RHD..EUR W/O(LOCK),BLACK,TRIM1#,2#,4#,8# |
2 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-10100 |
KMA10 |
2 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72123-10100 |
KMA10 |
2 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-47060 |
KMA10 |
1 | ||
| 72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-47080 |
KMA10 |
1 | ||
| 72713 - BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH | ||||
| 72713-33020 |
KMA10 |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-33140 |
KMA10..RHD |
1 | ||
| 72750-33150 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 72750-33150 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-76040 |
KMA10 |
1 | ||
| 79968B - CLIP | ||||
| 90467-07215 |
KMA10 |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-33040 |
KMA10 |
2 | ||
| 79977G - FELT, FRONT SEAT BACK, RH | ||||
| 79977-76010 |
KMA10..RHD |
1 | ||
| 85867 - BLOWER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85867-33030 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 85867-33030 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 91553-80514 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(2011- )RHD
PASSENGER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47090 |
KMA10 |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-47050 |
KMA10..RHD |
1 | ||
| 71053-76020 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 71053-76020 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-76C40C0 |
KMA10 BLACK,TRIM2# |
1 | ||
| 71072-76C40B1 |
KMA10 WHITE ASH,TRIM10,8# |
1 | ||
| 71072-76C40B0 |
KMA10 CHATEAU,TRIM11 |
1 | ||
| 71072-76C40E0 |
KMA10..EUR OCHER,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-76860B4 |
KMA10..RHD WHITE ASH,TRIM10 |
1 | ||
| 71074-76860C1 |
KMA10..RHD BLACK,TRIM2# |
1 | ||
| 71074-76860B5 |
KMA10..RHD WHITE ASH/BLUE,TRIM8# |
1 | ||
| 71074-76860E1 |
KMA10..RHD OCHER,TRIM4# |
1 | ||
| 71074-76860B3 |
KMA10..RHD CHATEAU,TRIM11 |
1 | ||
| 71074-76880A1 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),RICH CREAM,TRIM0# |
1 | ||
| 71074-76880B2 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),WHITE ASH/BLUE,TRIM8# |
1 | ||
| 71074-76880A1 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),RICH CREAM,TRIM0# |
1 | ||
| 71074-76880B3 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),WHITE ASH,TRIM1# |
1 | ||
| 71074-76880E1 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),OCHER,TRIM4# |
1 | ||
| 71074-76880B3 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),WHITE ASH,TRIM1# |
1 | ||
| 71074-76880E1 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),OCHER,TRIM4# |
1 | ||
| 71074-76880C1 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71074-76880C1 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 71074-76880B2 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),WHITE ASH/BLUE,TRIM8# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-76040 |
KMA10..RHD |
1 | ||
| 71502-76050 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 71502-76050 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-76060 |
KMA10 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
KMA10 |
4 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
KMA10 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-50040 |
KMA10 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-50040 |
KMA10 |
4 | ||
| 71806 - SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71806-76010C0 |
KMA10 BLACK,TRIM0#,1#,2#,4#,8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-76100C0 |
KMA10 BLACK,TRIM0#,1#,2#,4#,8# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-33010 |
KMA10 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47090C1 |
KMA10 BLACK,TRIM0#,1#,2#,4#,8# |
1 | ||
| 71868N - SHIELD, FRONT SEAT CUSHION, FRONT LH | ||||
| 71868-33100C0 |
KMA10 BLACK,TRIM0#,1#,2#,4#,8# |
1 | ||
| 71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-47080 |
KMA10 |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-76010 |
KMA10 |
1 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47090 |
KMA10 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-76020C0 |
KMA10 BLACK,TRIM0#,1#,2#,4#,8# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
KMA10..RHD..EUR W(LOCK),BLACK,TRIM1#,2#,4#,8# |
2 | ||
| 71931-47030C4 |
KMA10..RHD..EUR W/O(LOCK),BLACK,TRIM1#,2#,4#,8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
KMA10..RHD..EUR W(LOCK),BLACK,TRIM1#,2#,4#,8# |
2 | ||
| 71931-47030C4 |
KMA10..RHD..EUR W/O(LOCK),BLACK,TRIM1#,2#,4#,8# |
2 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-10100 |
KMA10 |
2 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72123-10100 |
KMA10 |
2 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-47060 |
KMA10 |
1 | ||
| 72158E - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-47080 |
KMA10 |
1 | ||
| 72714 - BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH | ||||
| 72714-33010 |
KMA10 |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-76040 |
KMA10 |
1 | ||
| 79968B - CLIP | ||||
| 90467-07215 |
KMA10 |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-33040 |
KMA10 |
2 | ||
| 79977H - FELT, FRONT SEAT BACK, LH | ||||
| 79977-76010 |
KMA10..RHD..EUR LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 79977-76010 |
KMA10..RHD..EUR PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 82667D - HOLDER, CONNECTOR | ||||
| 82666-47630 |
KMA10 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 91553-80514 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
