KMA10R-AWDBSW (2020)
Toyota Lexus Ux300e
Production
Nov 2020
-
Sep 9999
Engine
4KM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2011- )RHD

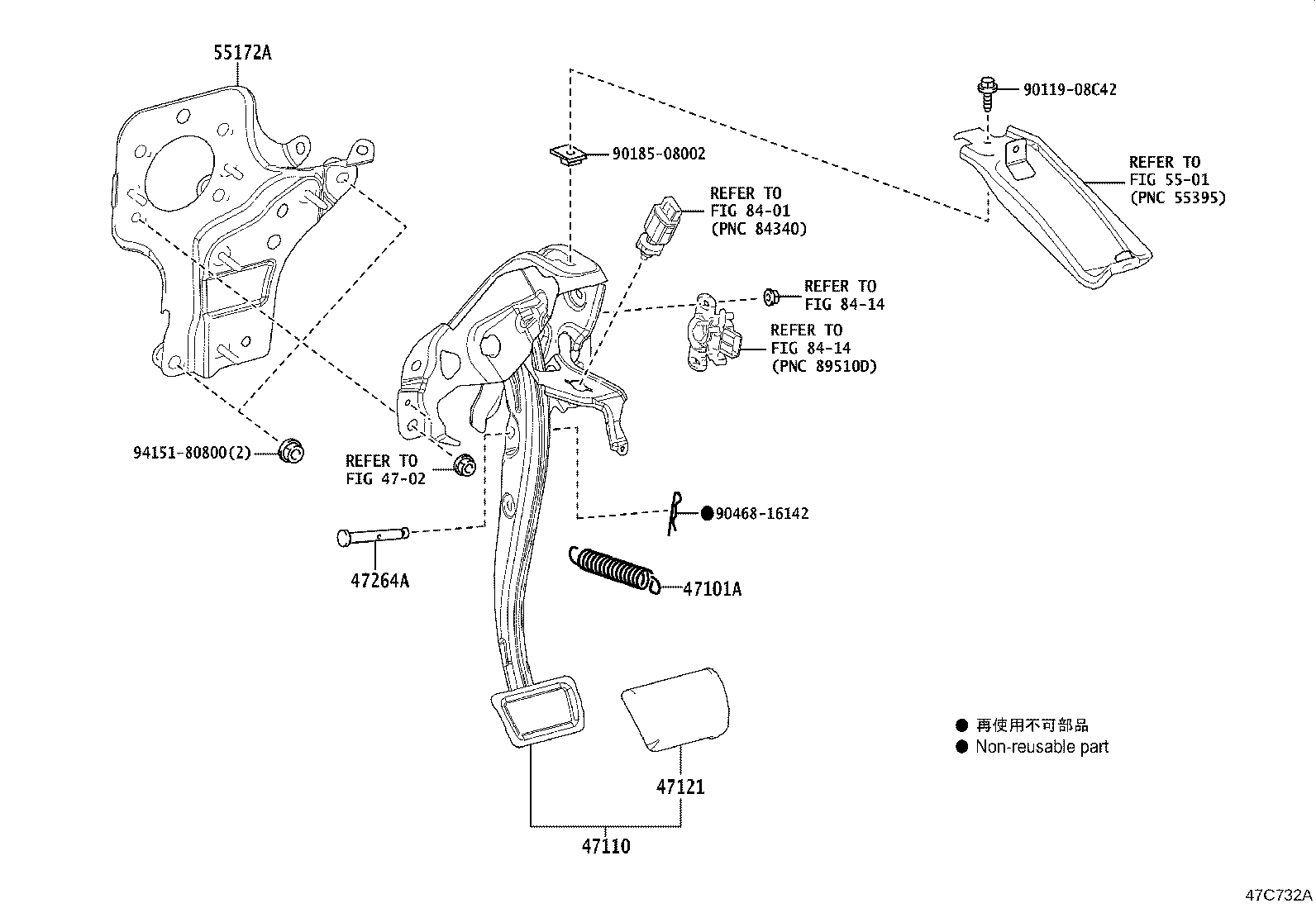

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-15013 |
KMA10 |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-47070 |
KMA10..RHD |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-47010 |
KMA10 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08309 |
KMA10 |
1 | ||
| 55172A - BASE, BRAKE PEDAL SUPPORT | ||||
| 55172-12170 |
KMA10..RHD |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90185-08002 | ||||
| 90468-16142 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 5501 | ||||
| 8401 | ||||
| 8414 | ||||
