KMA10R-AWDBSW (2020)
Toyota Lexus Ux300e
Production
Nov 2020
-
Sep 9999
Engine
4KM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2011- )RHD

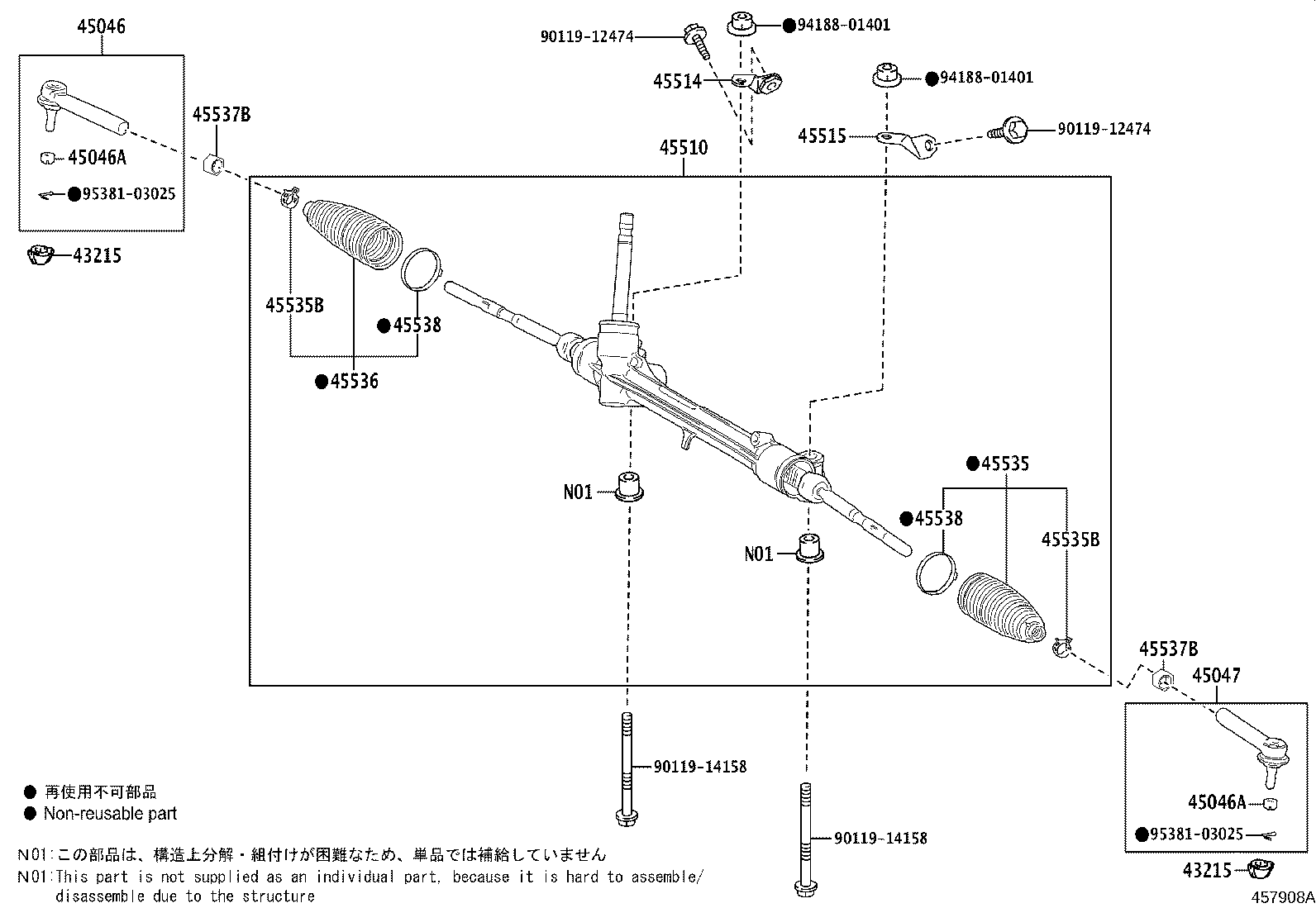

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43215 - SEAL, STEERING KNUCKLE | ||||
| 43215-12010 |
KMA10 |
2 | ||
| 43215 - SEAL, STEERING KNUCKLE | ||||
| 43215-12010 |
KMA10 |
2 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-79035 |
KMA10 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
KMA10 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
KMA10 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-79035 |
KMA10 |
1 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-76090 |
KMA10..RHD |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-76020 |
KMA10 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-76010 |
KMA10 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-59075 |
KMA10 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
KMA10 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
KMA10 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-59075 |
KMA10 |
1 | ||
| 45537B - NUT, RACK END LOCK | ||||
| 90178-16001 |
KMA10 |
2 | ||
| 45537B - NUT, RACK END LOCK | ||||
| 90178-16001 |
KMA10 |
2 | ||
| 45538 - RETAINER, STEERING RACK BOOT | ||||
| 45538-48020 |
KMA10 |
1 | ||
| 45538 - RETAINER, STEERING RACK BOOT | ||||
| 45538-48020 |
KMA10 |
1 | ||
| Common parts | ||||
| 90119-12474 | ||||
| 90119-14158 | ||||
| 94188-01401 | ||||
| 95381-03025 | ||||
