KMA10L-AWDBSC (2020)

Toyota Lexus Ux300e

Production Apr 2020 - Sep 9999
Engine 4KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2004- )CHI

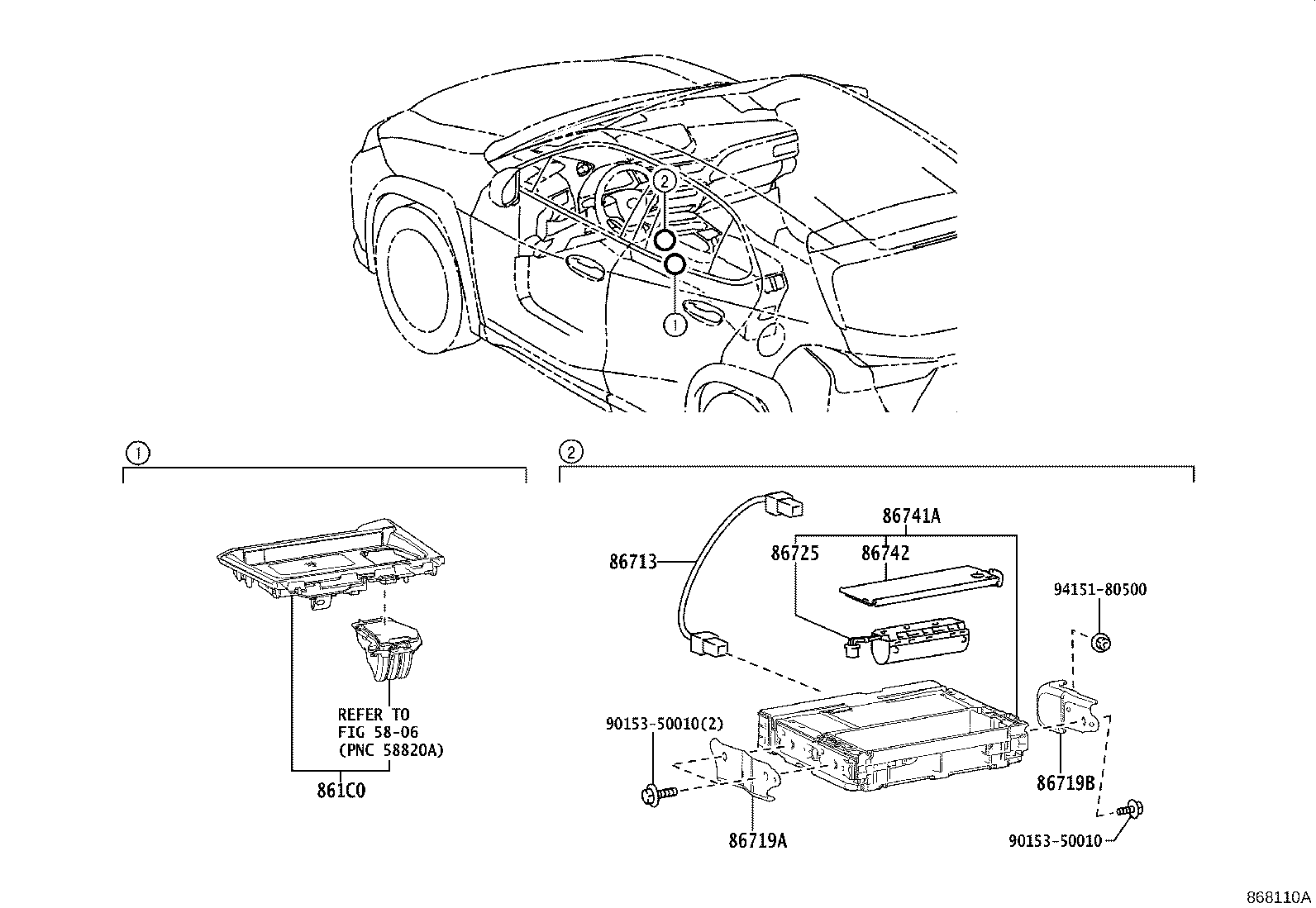

Click highlighted areas on diagram

diagram 5806 861C0 86713 86719A 86719B 86725 86741A 86742 9015350010 9015350010 9415180500
Part # Description Qty Price
861C0 - CRADLE ASSY, MOBILE WIRELESS CHARGER
861C0-76110

KMA10..CHI

LUXURY PACKAGE&WIRELESS CHARGER-WITH

 1
861C0-76120

KMA10..CHI

PREMIUM PACKAGE&WIRELESS CHARGER-WITH

 1
86713 - WIRE, TELEPHONE COMPUTER
86713-76060

KMA10..CHI

 1
86719A - BRACKET, TELEPHONE NO.1
86719-76200

KMA10..LHD

 1
86719B - BRACKET, TELEPHONE NO.2
86719-76210

KMA10..LHD

 1
86725 - BATTERY, MOBILEPHONE
86725-26010

KMA10..CHI

 1
86741A - TRANSCEIVER, TELEMATICS
86741-76010

KMA10..CHI

 1
86742 - COVER, TRANSCEIVER
86742-26010

KMA10..CHI

 1
Common parts
90153-50010
94151-80500
Linked diagrams
5806
