KMA10L-AWDBSC (2020)

Toyota Lexus Ux300e

Production Apr 2020 - Sep 9999
Engine 4KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 4(2004- )

Click highlighted areas on diagram

EV CHARGER

diagram 8202 8441 8441 8441 8441 9011908C92 9017808023 90178C0140 G9090B
Part # Description Qty Price
G9090B - CHARGER ASSY, ELECTRIC VEHICLE
G9099-76010

KMA10..CHI

 1
Common parts
90119-08C92
90178-08023
90178-C0140
Linked diagrams
8202
8441

ILLUST NO. 3 OF 4(2004- )

Click highlighted areas on diagram

AC CHARGER LID(RH SIDE)

diagram 46226 63189E 67139E 77030D 77305C 77350H 77371A 81360Q 8202 89612B 9011906983 9011906983 9011906A07 9015950269 9017806012 9017806018 9017906288 9018905151 9613741701 G9060B G9081C G90F0A G90H0 G926HA G93B1
Part # Description Qty Price
46226 - PIN, CONNECTOR
46226-47010

KMA10

 1
63189E - BRACKET, WIRING HARNESS CONNECTOR
63189-76030

KMA10

 1
67139E - SHEET, AC CHARGING PORT OPENING LID
67139-76030

KMA10

 1
77030D - LOCK ASSY, AC CHARGING PORT OPENING LID W/MOTOR
77030-76040

KMA10

 1
77305C - LID SUB-ASSY, AC CHARGING PORT OPENING
77305-76010

KMA10

 1
77350H - LID ASSY, AC CHARGING PORT OPENING
77350-76030

KMA10

 1
77371A - BRACKET, AC CHARGING PORT OPENING LID LOCK
77371-76010

KMA10

 1
81360Q - LAMP ASSY, LID
81360-47010

KMA10

 2
89612B - LIFTER, PUSH
89612-76010

KMA10

 1
G9060B - COVER, CONNECTOR
82821-76250

KMA10..CHI

 1
G9081C - CABLE, AC CHARGER INLET
G9081-76010

KMA10..CHI

 1
G90F0A - LOCK ASSY, CABLE EV CHARGER
G90F0-76010

KMA10..CHI

 1
G90H0 - INDICATOR ASSY, EV CHARGER LID
G90H0-76010

KMA10

 1
G926HA - GROMMET, EV CHARGER
G926H-47010

KMA10

 1
G93B1 - HOSE, EV CHARGE CONNECTOR DRAIN, NO.1
G93B1-76010

KMA10

 1
Common parts
90119-06983
90119-06A07
90159-50269
90178-06012
90178-06018
90179-06288
90189-05151
96137-41701
Linked diagrams
8202

ILLUST NO. 4 OF 4(2004- )

Click highlighted areas on diagram

DC CHARGER LID(LH SIDE)

diagram 63189F 67139F 77030C 77305D 77350G 81360Q 8202 8261376020 82651F 82652A 82823U 82H21B 89612C 9011906983 9011906A07 9011908D17 9017806012 9017806018 9017806018 91551A0612 91551A0612 91551A0612 91551A0612 91551A0612 9415180641 9415180641 9415180641 G9081D G90J0
Part # Description Qty Price
63189F - BRACKET, TERMINAL STAND
63189-76010

KMA10

 1
67139F - SHEET, DC CHARGING PORT OPENING LID
61688-76040

KMA10

 1
77030C - LOCK ASSY, DC CHARGING PORT OPENING LID W/MOTOR
77030-76050

KMA10

 1
77305D - LID SUB-ASSY, DC CHARGING PORT OPENING
77305-76020

KMA10

 1
77350G - LID ASSY, DC CHARGING PORT OPENING
77350-76040

KMA10

 1
81360Q - LAMP ASSY, LID
81360-47010

KMA10

 2
82651F - BLOCK, TERMINAL
82651-76010

KMA10

 1
82652A - COVER, TERMINAL BLOCK
82652-76010

KMA10

 1
82823U - CAP, TERMINAL
82823-76010

KMA10

 1
82H21B - COVER, CONNECTOR
82821-76260

KMA10..CHI

 1
89612C - LIFTER, PUSH(FOR DC CHAEGING PORT)
89612-76010

KMA10

 1
G9081D - CABLE, DC CHARGER INLET
G9082-76010

KMA10..CHI

 1
G90J0 - SWITCH ASSY, EV CHARGER LID
G90J0-76010

KMA10

 1
Common parts
82613-76020
90119-06983
90119-06A07
90119-08D17
90178-06012
90178-06018
91551-A0612
94151-80641
Linked diagrams
8202

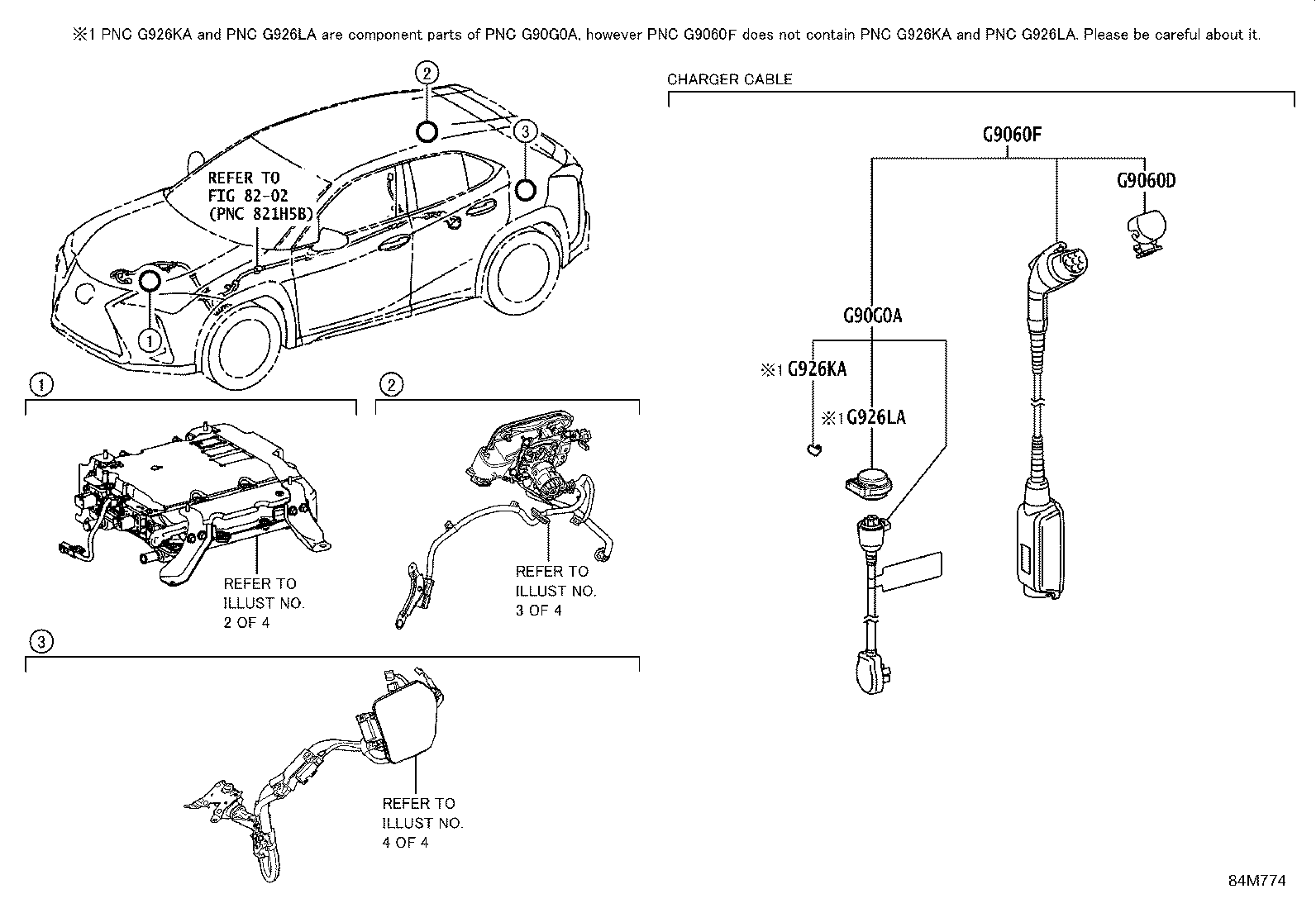

ILLUST NO. 1 OF 4(2004- )CHI

Click highlighted areas on diagram

diagram 8202 G9060D G9060F G90G0A G926KA G926LA
Part # Description Qty Price
G9060D - COVER, EV CHARGER CABLE
82821-12730

KMA10

BATTERY CHARGE CABLE-CHINA(7.5M)

 1
82821-F4040

KMA10..CHI

BATTERY CHARGE CABLE-CHINA(7.5M)

 1
G9060F - CABLE ASSY, ELECTRIC VEHICLE CHARGER
G9060-12020

KMA10

BATTERY CHARGE CABLE-CHINA(7.5M)

 1
G9060-F4010

KMA10..CHI

BATTERY CHARGE CABLE-CHINA(7.5M)

 1
G90G0A - PLUG ASSY, CABLE EV CHARGER
G90G0-12010

KMA10..CHI

BATTERY CHARGE CABLE-CHINA(7.5M)

 1
G926KA - KEY, PLUG CABLE EV CHARGER
G926K-47020

KMA10..CHI

BATTERY CHARGE CABLE-CHINA(7.5M)

 1
G926LA - COVER, PLUG CABLE EV CHARGER
G926L-47020

KMA10..CHI

BATTERY CHARGE CABLE-CHINA(7.5M)

 1
Linked diagrams
8202
