UZZ40R-DKTQKQ (2005)
Toyota Lexus Sc430
ILLUST NO. 1 OF 3(0105- )
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-24010 |
UZZ40..RHD W(EMV) |
1 | ||
| 55901-24010 |
UZZ40..RHD W(EMV) |
1 | ||
| 55901-24040 |
UZZ40..RHD |
1 | ||
| 55901-24040 |
UZZ40..RHD |
1 | ||
| 55902C - PANEL SUB-ASSY, AIR CONDITIONER | ||||
| 55902-24070 |
UZZ40..RHD |
1 | ||
| 55902-24080 |
UZZ40..RHD W(EMV) |
1 | ||
| 55902-24080 |
UZZ40..RHD W(EMV) |
1 | ||
| 55902-24070 |
UZZ40..RHD |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-24060 |
UZZ40..RHD |
1 | ||
| 55905-24060 |
UZZ40..RHD |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-24060 |
UZZ40 |
1 | ||
| 55912-24060 |
UZZ40 |
1 | ||
| 88326C - PLATE, COVER | ||||
| 88326-24030 |
UZZ40 |
1 | ||
| 88326-24030 |
UZZ40 |
1 | ||
| 88484 - WIRE, COOLER, NO.1 | ||||
| 88484-24030 |
UZZ40 |
2 | ||
| 88484-24030 |
UZZ40 |
2 | ||
| 88484 - WIRE, COOLER, NO.1 | ||||
| 88484-24030 |
UZZ40 |
2 | ||
| 88484-24030 |
UZZ40 |
2 | ||
| 88484A - WIRE, COOLER, NO.1 | ||||
| 88484-24020 |
UZZ40..ARL,EUR |
1 | ||
| 88484-24020 |
UZZ40 |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-24380 |
UZZ40 |
1 | ||
| 88650-24400 |
UZZ40 |
1 | ||
| 88650-24360 |
UZZ40..RHD |
1 | ||
| Common parts | ||||
| 90094-90423 | ||||
| Linked diagrams | ||||
| 8603 | ||||
ILLUST NO. 2 OF 3(0105- )RHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-24080 |
UZZ40..RHD |
1 | ||
| 55843-24060 |
UZZ40..RHD |
1 | ||
| 55843-24060 |
UZZ40..RHD |
1 | ||
| 55843B - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-0610701 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 90467-06107B3 |
UZZ40 STONE |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-24060 |
UZZ40..RHD |
1 | ||
| 55844-24060 |
UZZ40..RHD |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-24070 |
UZZ40..RHD |
1 | ||
| 55845-24070 |
UZZ40..RHD |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-24060 |
UZZ40..RHD |
1 | ||
| 55846-24060 |
UZZ40..RHD |
1 | ||
| 55846D - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-0610701 |
UZZ40 BLACK,TRIM0#,20,21 |
2 | ||
| 90467-06107B3 |
UZZ40 STONE |
2 | ||
| 55846D - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-0610701 |
UZZ40 BLACK,TRIM0#,20,21 |
2 | ||
| 90467-06107B3 |
UZZ40 STONE |
2 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-24090 |
UZZ40..RHD |
1 | ||
| 87211-24090 |
UZZ40..RHD |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-24100 |
UZZ40..RHD |
1 | ||
| 87211-24100 |
UZZ40..RHD |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-24050 |
UZZ40 |
1 | ||
| 87211-24050 |
UZZ40 |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 87211-24060 |
UZZ40 |
1 | ||
| 87211-24060 |
UZZ40 |
1 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-06107B3 |
UZZ40 STONE |
2 | ||
| 90467-0610701 |
UZZ40 BLACK,TRIM0#,20,21 |
2 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-06107B3 |
UZZ40 STONE |
2 | ||
| 90467-0610701 |
UZZ40 BLACK,TRIM0#,20,21 |
2 | ||
| Common parts | ||||
| 90467-06155 | ||||
| 93568-55014 | ||||

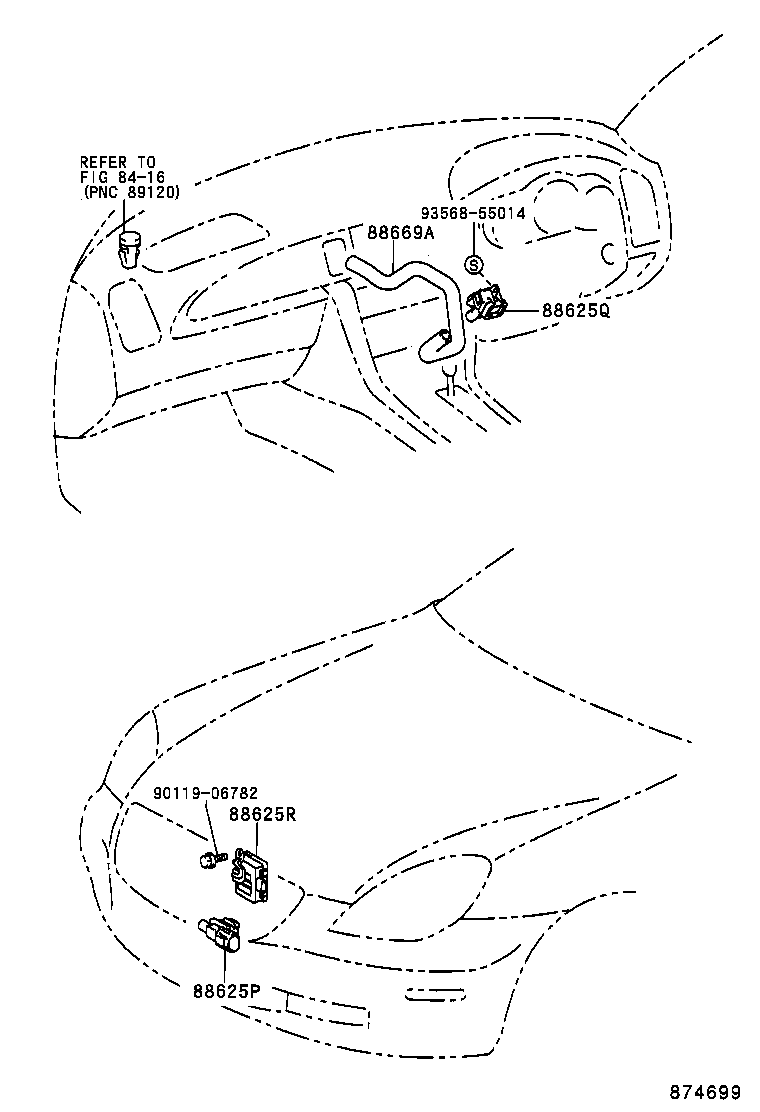

ILLUST NO. 3 OF 3(0105- )RHD
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
UZZ40 |
1 | ||
| 88790-22130 |
UZZ40 |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-50120 |
UZZ40 |
1 | ||
| 88625-50120 |
UZZ40 |
1 | ||
| 88625R - THERMISTOR, COOLER (SENSOR, SMOG VENTILATION) | ||||
| 88898-30010 |
UZZ40 |
1 | ||
| 88898-30010 |
UZZ40 |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-24050 |
UZZ40..RHD |
1 | ||
| 88669-24050 |
UZZ40..RHD |
1 | ||
| 88669-24070 |
UZZ40..RHD |
1 | ||
| Common parts | ||||
| 90119-06782 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8416 | ||||
