UZZ40R-DKTQKQ (2005)

Toyota Lexus Sc430

Production Aug 2005 - Jul 2010

Engine 3UZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

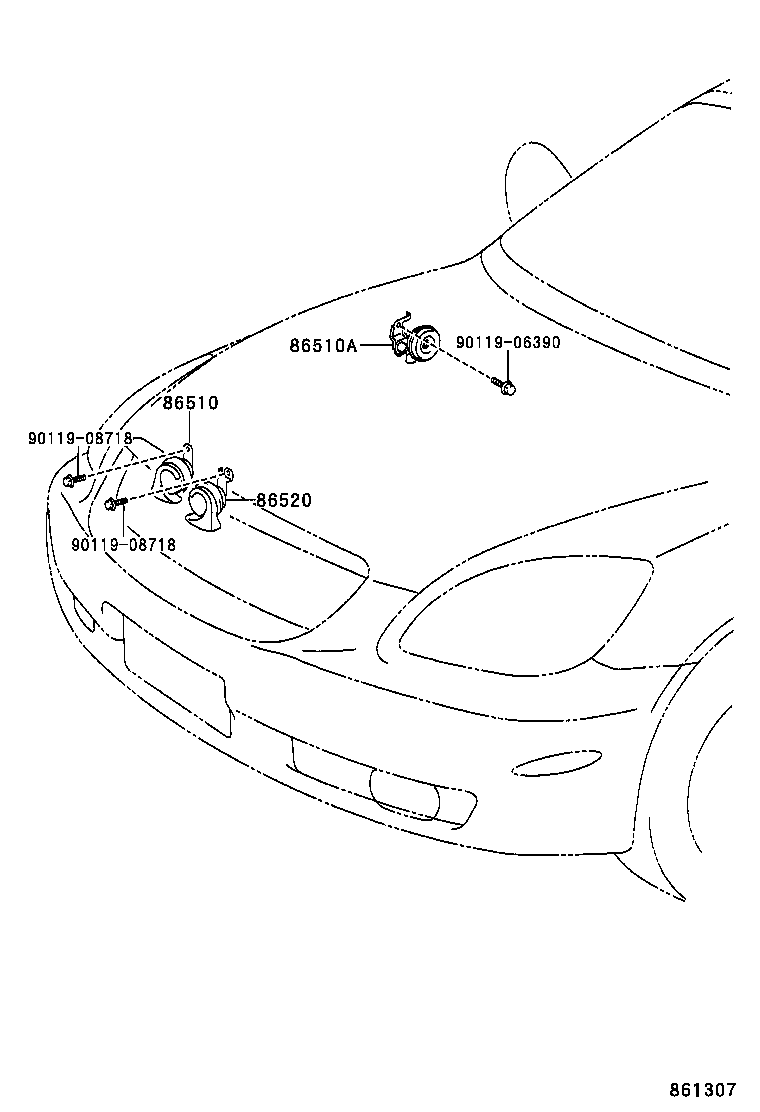

Click highlighted areas on diagram

Part #	Description	Period	Qty
86510 - HORN ASSY, HIGH PITCHED
86510-24080	UZZ40	05/2001 - 08/2005	1
86510-24080	UZZ40	08/2005 - 12/2999	1
86510A - HORN ASSY, SECURITY
86510-24090	UZZ40..ARL,GCC	05/2001 - 08/2005	1
86510-24090	UZZ40..ARL,GCC	08/2005 - 12/2999	1
86520 - HORN ASSY, LOW PITCHED
86520-24050	UZZ40	08/2005 - 12/2999	1
86520-24050	UZZ40	05/2001 - 08/2005	1
Common parts
90119-06390
90119-08718
