UZZ40R-DKTQKQ (2005)
Toyota Lexus Sc430
Production
Aug 2005
-
Jul 2010
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )

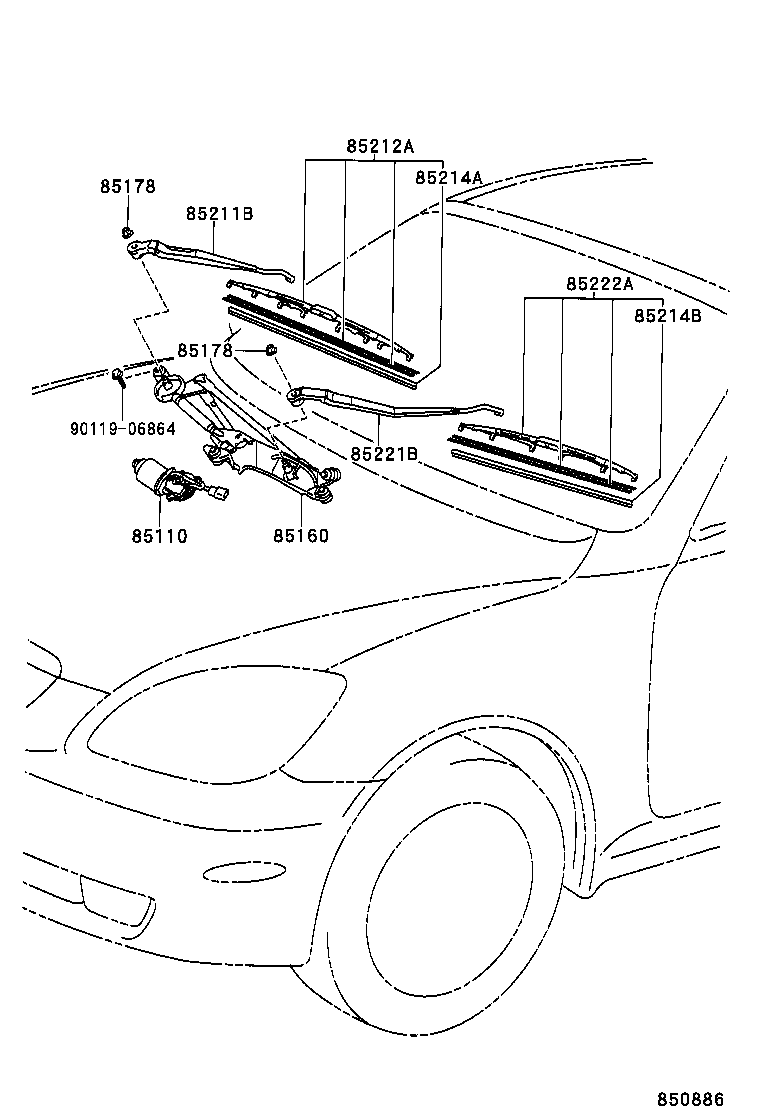

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-24090 |
UZZ40..RHD |
1 | ||
| 85110-24090 |
UZZ40..RHD |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-24100 |
UZZ40..RHD |
1 | ||
| 85150-24101 |
UZZ40..RHD |
1 | ||
| 85150-24100 |
UZZ40..RHD |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-10005 |
UZZ40 |
2 | ||
| 90176-10005 |
UZZ40 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-10005 |
UZZ40 |
2 | ||
| 90176-10005 |
UZZ40 |
2 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-24120 |
UZZ40..ARL |
1 | ||
| 85211-24120 |
UZZ40..ARL |
1 | ||
| 85211-24121 |
UZZ40..ARL |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-24110 |
UZZ40..RHD |
1 | ||
| 85212-24100 |
UZZ40..ARL |
1 | ||
| 85212-24100 |
UZZ40..ARL |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-50100 |
UZZ40..ARL,GCC;UZZ40..LHD..EUR |
1 | ||
| 85214-50100 |
UZZ40..RHD |
1 | ||
| 85214-30380 |
UZZ40..RHD |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-24050 |
UZZ40..ARL,GCC;UZZ40..LHD..EUR |
1 | ||
| 85214-24050 |
UZZ40..RHD |
1 | ||
| 85214-24051 |
UZZ40..RHD |
1 | ||
| 85214-53090 |
UZZ40..RHD |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-24120 |
UZZ40..RHD |
1 | ||
| 85221-24121 |
UZZ40..RHD |
1 | ||
| 85221-24120 |
UZZ40..RHD |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-24100 |
UZZ40..RHD |
1 | ||
| 85222-24100 |
UZZ40..RHD |
1 | ||
| 85222-24101 |
UZZ40..RHD |
1 | ||
| 85222-61010 |
UZZ40..RHD |
1 | ||
| Common parts | ||||
| 90119-06864 | ||||
