UZZ40R-DKTQKQ (2005)
Toyota Lexus Sc430

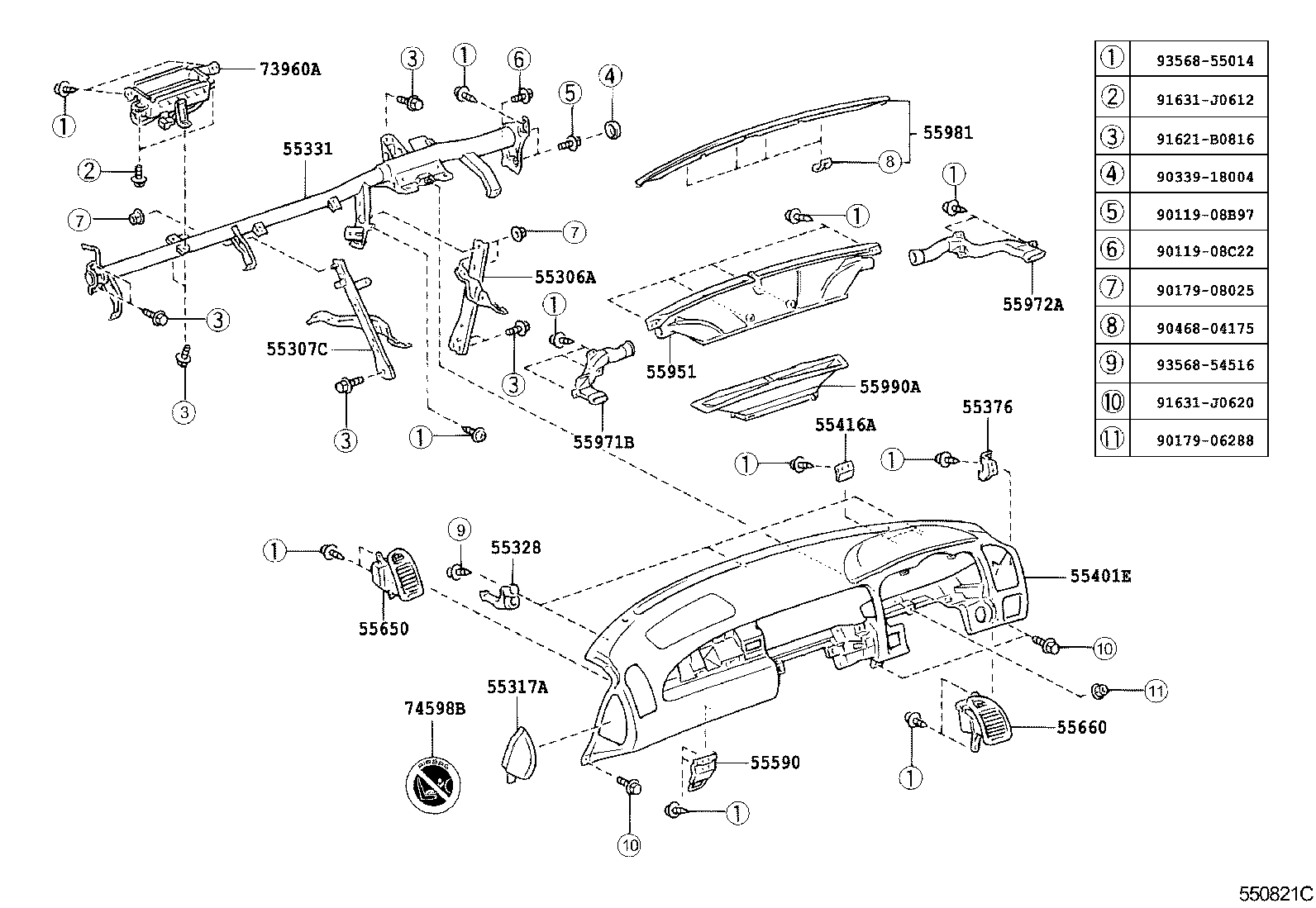

ILLUST NO. 1 OF 2(0105-0608)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-24060 |
UZZ40..RHD |
1 | ||
| 55306-24080 |
UZZ40..RHD |
1 | ||
| 55306-24081 |
UZZ40..RHD |
1 | ||
| 55306-24060 |
UZZ40..RHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-24040 |
UZZ40..RHD |
1 | ||
| 55307-24040 |
UZZ40..RHD |
1 | ||
| 55307-24060 |
UZZ40..RHD |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-24030E0 |
UZZ40..RHD DK.BROWN,TRIM4# |
1 | ||
| 55317-24030C0 |
UZZ40..RHD BLACK,TRIM0#,20,21 |
1 | ||
| 55317-24030C0 |
UZZ40..ARL BLACK,TRIM0#,2#,5# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-48010 |
UZZ40 |
3 | ||
| 55328-48040 |
UZZ40 |
3 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-24100 |
UZZ40..RHD |
1 | ||
| 55330-24120 |
UZZ40..RHD |
1 | ||
| 55330-24100 |
UZZ40..RHD |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-24040 |
UZZ40..RHD |
1 | ||
| 55376-24040 |
UZZ40..RHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-24110C0 |
UZZ40..ARL BLACK,TRIM0#,2#,5# |
1 | ||
| 55401-24110C0 |
UZZ40..RHD BLACK,TRIM0#,20,21 |
1 | ||
| 55401-24120C0 |
UZZ40..RHD BLACK,TRIM0#,2# |
1 | ||
| 55401-24110E0 |
UZZ40..RHD DK.BROWN,TRIM4# |
1 | ||
| 55401-24120E0 |
UZZ40..RHD DK.BROWN,TRIM4# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30140 |
UZZ40 |
2 | ||
| 55416-30140 |
UZZ40 |
2 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-24030 |
UZZ40..RHD |
1 | ||
| 55590-24030 |
UZZ40..RHD |
1 | ||
| 55590-24050 |
UZZ40..RHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-24050C0 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 55650-24050E0 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55650-24050C0 |
UZZ40..ARL BLACK,TRIM0#,2#,5# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-24090C0 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 55660-24090C0 |
UZZ40..ARL BLACK,TRIM0#,2#,5# |
1 | ||
| 55660-24090E0 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55951 - NOZZLE, DEFROSTER, FRONT | ||||
| 55951-24040 |
UZZ40 |
1 | ||
| 55951-24040 |
UZZ40 |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-24060 |
UZZ40 |
1 | ||
| 55971-24060 |
UZZ40 |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-24050 |
UZZ40 |
1 | ||
| 55972-24050 |
UZZ40 |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-24060C0 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 55981-24060C0 |
UZZ40..ARL BLACK,TRIM0#,2#,5# |
1 | ||
| 55981-24060E0 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55990A - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-24020 |
UZZ40..RHD |
1 | ||
| 55990-24020 |
UZZ40..RHD |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-24020 |
UZZ40..RHD |
1 | ||
| 73960-24020 |
UZZ40..RHD |
1 | ||
| 73960-24040 |
UZZ40..RHD |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
UZZ40 |
1 | ||
| 74598-20010 |
UZZ40 |
1 | ||
| Common parts | ||||
| 90119-08B97 | ||||
| 90119-08C22 | ||||
| 90179-06288 | ||||
| 90179-08025 | ||||
| 90339-18004 | ||||
| 90468-04175 | ||||
| 91621-B0816 | ||||
| 91631-J0612 | ||||
| 91631-J0620 | ||||
| 93568-54516 | ||||
| 93568-55014 | ||||

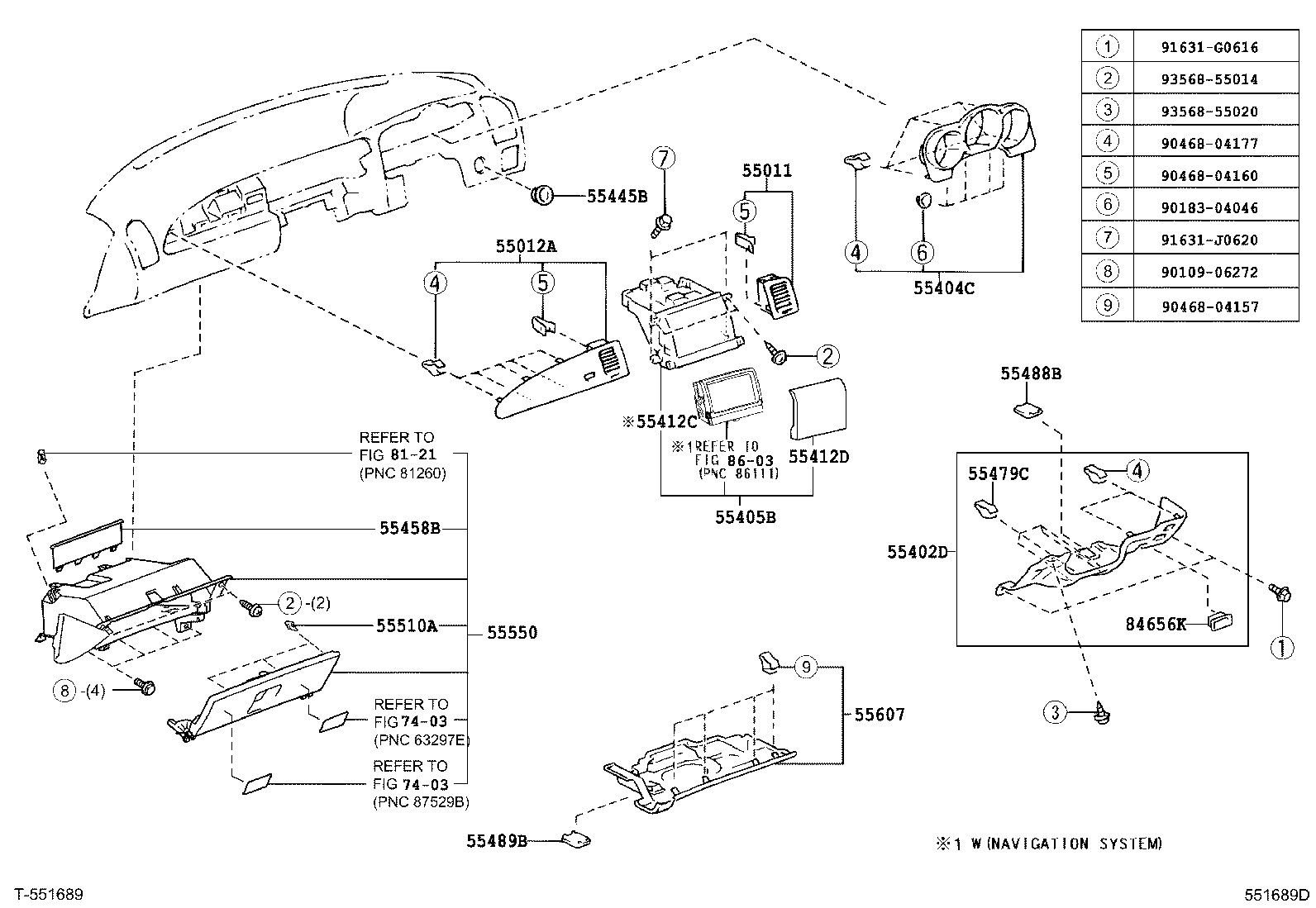

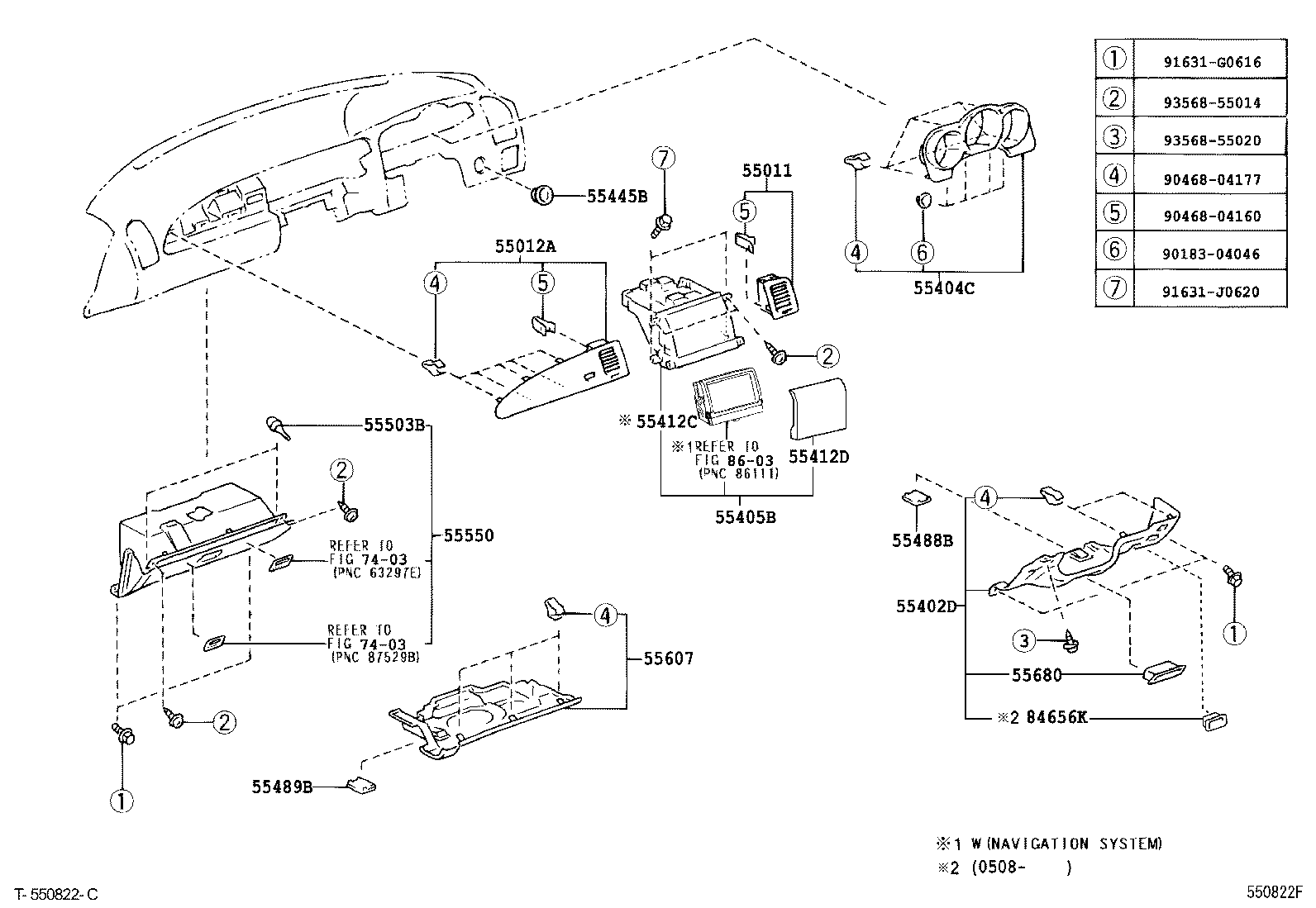

ILLUST NO. 2 OF 2(0105-0608)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011 - GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD | ||||
| 55011-24080B0 |
UZZ40..RHD ECRU BROWN,TRIM0# |
1 | ||
| 55011-24080E3 |
UZZ40..RHD MD.BROWN,TRIM0#,2# |
1 | ||
| 55011-24080E4 |
UZZ40..RHD DK.BROWN,TRIM4# |
1 | ||
| 55011-24080E0 |
UZZ40..RHD MD.BROWN,TRIM20,21 |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-24030B0 |
UZZ40..ARL ECRU BROWN,TRIM0# |
1 | ||
| 55012-24030E0 |
UZZ40..ARL MD.BROWN,TRIM20,21 |
1 | ||
| 55012-24030E3 |
UZZ40..ARL MD.BROWN,TRIM0#,2# |
1 | ||
| 55012-24030E4 |
UZZ40..ARL DK.BROWN,TRIM4# |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-24020A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55402-24050C0 |
UZZ40..ARL BLACK,TRIM2#,5# |
1 | ||
| 55402-24020C0 |
UZZ40..RHD BLACK,TRIM20,21 |
1 | ||
| 55402-24070E0 |
UZZ40..RHD CAMEL,TRIM4# |
1 | ||
| 55402-24070C0 |
UZZ40..RHD BLACK,TRIM2# |
1 | ||
| 55402-24050E0 |
UZZ40..RHD CAMEL,TRIM4# |
1 | ||
| 55402-24070A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55402-24050A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-24060 |
UZZ40 |
1 | ||
| 55404-24060 |
UZZ40 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-24040E0 |
UZZ40..ARL,EUR W(NAVIGATION SYSTEM),MD.BROWN,TRIM20,21 |
1 | ||
| 55405-24050B0 |
UZZ40..RHD ECRU BROWN,TRIM0# |
1 | ||
| 55405-24050E0 |
UZZ40..RHD MD.BROWN,TRIM20,21 |
1 | ||
| 55405-24042E1 |
UZZ40..ARL,GCC W(NAVIGATION SYSTEM),DK.BROWN,TRIM4# |
1 | ||
| 55405-24042E0 |
UZZ40..ARL W(NAVIGATION SYSTEM),MD.BROWN,TRIM0#,2#,5# |
1 | ||
| 55405-24050E1 |
UZZ40..RHD DK.BROWN,TRIM4# |
1 | ||
| 55405-24050E0 |
UZZ40..ARL MD.BROWN,TRIM0#,2#,5# |
1 | ||
| 55405-24040B0 |
UZZ40..ARL,EUR W(NAVIGATION SYSTEM),ECRU BROWN,TRIM0# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55405-24090 |
UZZ40 |
1 | ||
| 55405-24080 |
UZZ40 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-24050E0 |
UZZ40 MD.BROWN,TRIM20,21 |
1 | ||
| 55412-24050E0 |
UZZ40..ARL MD.BROWN,TRIM0#,2#,5# |
1 | ||
| 55412-24050E1 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55412-24050B0 |
UZZ40 ECRU BROWN,TRIM0# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-30160E4 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55445-30160C0 |
UZZ40..ARL BLACK,TRIM0#,2#,5# |
1 | ||
| 55445-30160C0 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 55488B - LENS, FRONT FOOT LAMP, NO.1 | ||||
| 55489-50010 |
UZZ40 |
1 | ||
| 55489-50010 |
UZZ40 |
1 | ||
| 55489B - LENS, FRONT FOOT LAMP, NO.2 | ||||
| 55489-50010 |
UZZ40 |
1 | ||
| 55489-50010 |
UZZ40 |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-05020 |
UZZ40 |
2 | ||
| 90541-05020 |
UZZ40 |
2 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-24080A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55550-24080A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55550-24130A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55550-24130C0 |
UZZ40..RHD BLACK,TRIM2# |
1 | ||
| 55550-24080C0 |
UZZ40..RHD BLACK,TRIM20,21 |
1 | ||
| 55550-24130E0 |
UZZ40..RHD CAMEL,TRIM4# |
1 | ||
| 55550-24080C0 |
UZZ40..ARL BLACK,TRIM2#,5# |
1 | ||
| 55550-24080E0 |
UZZ40..RHD CAMEL,TRIM4# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-24090A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55607-24090C0 |
UZZ40..ARL BLACK,TRIM2#,5# |
1 | ||
| 55607-24090C0 |
UZZ40..RHD BLACK,TRIM20,21 |
1 | ||
| 55607-24090A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55607-24120E0 |
UZZ40..RHD CAMEL,TRIM4# |
1 | ||
| 55607-24090E0 |
UZZ40..RHD CAMEL,TRIM4# |
1 | ||
| 55607-24120C0 |
UZZ40..RHD BLACK,TRIM2# |
1 | ||
| 55607-24120A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-1705022 |
UZZ40..ARL BLACK,TRIM2#,5# |
1 | ||
| 55680-1705022 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 55680-17050A1 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 55680-17050E4 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 55680-17050A1 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 84656K - BEZEL, SWITCH | ||||
| 84656-24010A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 84656-24010C0 |
UZZ40 BLACK,TRIM2# |
1 | ||
| 84656-24010E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| Common parts | ||||
| 90183-04046 | ||||
| 90468-04160 | ||||
| 90468-04177 | ||||
| 91631-G0616 | ||||
| 91631-J0620 | ||||
| 93568-55014 | ||||
| 93568-55020 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8603 | ||||

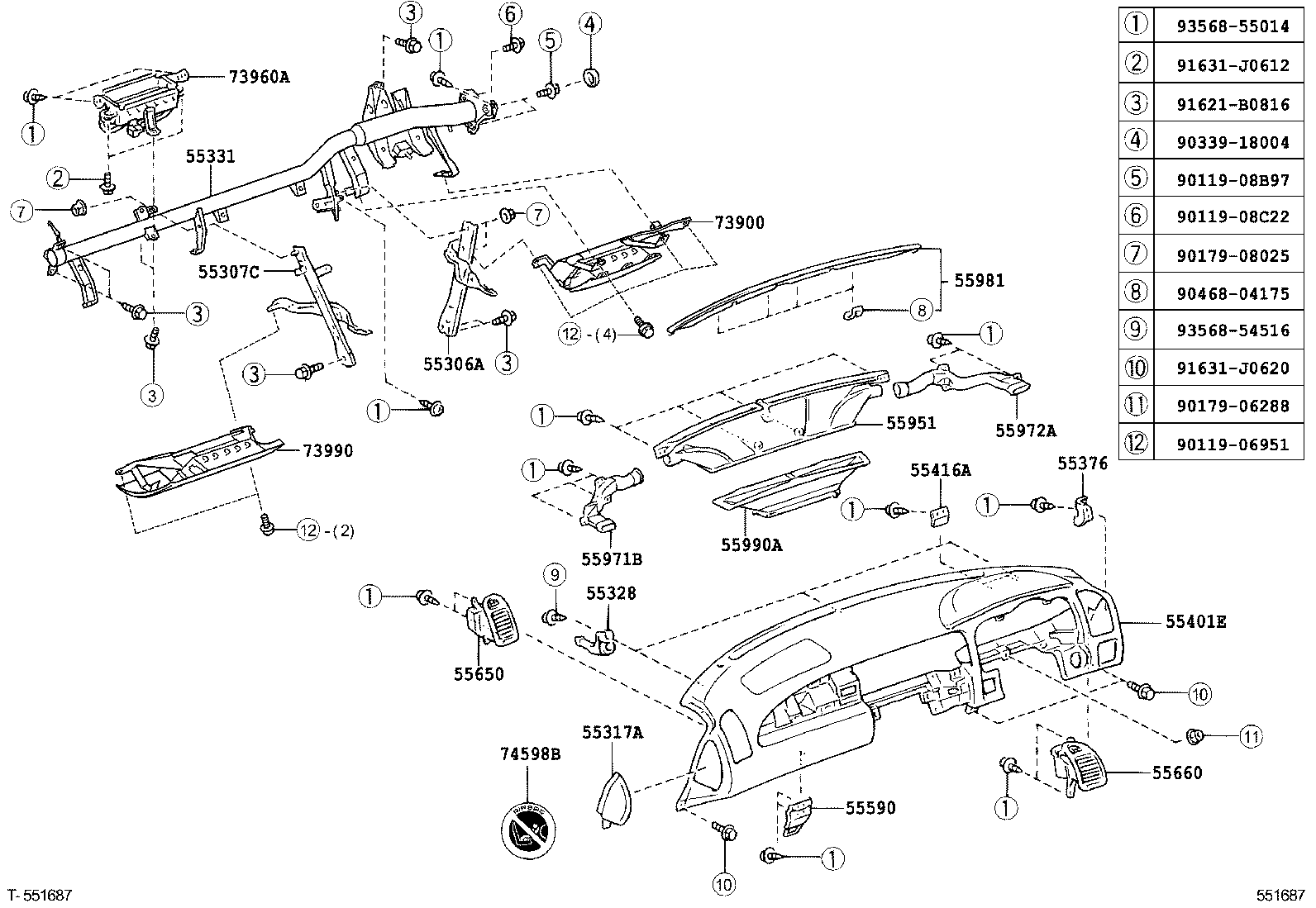

ILLUST NO. 1 OF 2(0608- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-24060 |
UZZ40..RHD |
1 | ||
| 55306-24080 |
UZZ40..RHD |
1 | ||
| 55306-24081 |
UZZ40..RHD |
1 | ||
| 55306-24060 |
UZZ40..RHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-24040 |
UZZ40..RHD |
1 | ||
| 55307-24040 |
UZZ40..RHD |
1 | ||
| 55307-24060 |
UZZ40..RHD |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-24030E0 |
UZZ40..RHD DK.BROWN,TRIM4# |
1 | ||
| 55317-24030C0 |
UZZ40..RHD BLACK,TRIM0#,20,21 |
1 | ||
| 55317-24030C0 |
UZZ40..ARL BLACK,TRIM0#,2#,5# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-48010 |
UZZ40 |
3 | ||
| 55328-48040 |
UZZ40 |
3 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-24100 |
UZZ40..RHD |
1 | ||
| 55330-24120 |
UZZ40..RHD |
1 | ||
| 55330-24100 |
UZZ40..RHD |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-24040 |
UZZ40..RHD |
1 | ||
| 55376-24040 |
UZZ40..RHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-24110C0 |
UZZ40..ARL BLACK,TRIM0#,2#,5# |
1 | ||
| 55401-24110C0 |
UZZ40..RHD BLACK,TRIM0#,20,21 |
1 | ||
| 55401-24120C0 |
UZZ40..RHD BLACK,TRIM0#,2# |
1 | ||
| 55401-24110E0 |
UZZ40..RHD DK.BROWN,TRIM4# |
1 | ||
| 55401-24120E0 |
UZZ40..RHD DK.BROWN,TRIM4# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30140 |
UZZ40 |
2 | ||
| 55416-30140 |
UZZ40 |
2 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-24030 |
UZZ40..RHD |
1 | ||
| 55590-24030 |
UZZ40..RHD |
1 | ||
| 55590-24050 |
UZZ40..RHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-24050C0 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 55650-24050E0 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55650-24050C0 |
UZZ40..ARL BLACK,TRIM0#,2#,5# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-24090C0 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 55660-24090C0 |
UZZ40..ARL BLACK,TRIM0#,2#,5# |
1 | ||
| 55660-24090E0 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55951 - NOZZLE, DEFROSTER, FRONT | ||||
| 55951-24040 |
UZZ40 |
1 | ||
| 55951-24040 |
UZZ40 |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-24060 |
UZZ40 |
1 | ||
| 55971-24060 |
UZZ40 |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-24050 |
UZZ40 |
1 | ||
| 55972-24050 |
UZZ40 |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-24060C0 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 55981-24060C0 |
UZZ40..ARL BLACK,TRIM0#,2#,5# |
1 | ||
| 55981-24060E0 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55990A - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-24020 |
UZZ40..RHD |
1 | ||
| 55990-24020 |
UZZ40..RHD |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-24020C0 |
UZZ40..RHD BLACK,TRIM2# |
1 | ||
| 73900-24020A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 73900-24020E0 |
UZZ40..RHD CAMEL,TRIM4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-24020 |
UZZ40..RHD |
1 | ||
| 73960-24020 |
UZZ40..RHD |
1 | ||
| 73960-24040 |
UZZ40..RHD |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-24020E0 |
UZZ40..RHD CAMEL,TRIM4# |
1 | ||
| 73990-24020A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 73990-24020C0 |
UZZ40..RHD BLACK,TRIM2# |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
UZZ40 |
1 | ||
| 74598-20010 |
UZZ40 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-08B97 | ||||
| 90119-08C22 | ||||
| 90179-06288 | ||||
| 90179-08025 | ||||
| 90339-18004 | ||||
| 90468-04175 | ||||
| 91621-B0816 | ||||
| 91631-J0612 | ||||
| 91631-J0620 | ||||
| 93568-54516 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 2(0608- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011 - GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD | ||||
| 55011-24080B0 |
UZZ40..RHD ECRU BROWN,TRIM0# |
1 | ||
| 55011-24080E3 |
UZZ40..RHD MD.BROWN,TRIM0#,2# |
1 | ||
| 55011-24080E4 |
UZZ40..RHD DK.BROWN,TRIM4# |
1 | ||
| 55011-24080E0 |
UZZ40..RHD MD.BROWN,TRIM20,21 |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-24030B0 |
UZZ40..ARL ECRU BROWN,TRIM0# |
1 | ||
| 55012-24030E0 |
UZZ40..ARL MD.BROWN,TRIM20,21 |
1 | ||
| 55012-24030E3 |
UZZ40..ARL MD.BROWN,TRIM0#,2# |
1 | ||
| 55012-24030E4 |
UZZ40..ARL DK.BROWN,TRIM4# |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-24020A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55402-24050C0 |
UZZ40..ARL BLACK,TRIM2#,5# |
1 | ||
| 55402-24020C0 |
UZZ40..RHD BLACK,TRIM20,21 |
1 | ||
| 55402-24070E0 |
UZZ40..RHD CAMEL,TRIM4# |
1 | ||
| 55402-24070C0 |
UZZ40..RHD BLACK,TRIM2# |
1 | ||
| 55402-24050E0 |
UZZ40..RHD CAMEL,TRIM4# |
1 | ||
| 55402-24070A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55402-24050A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-24060 |
UZZ40 |
1 | ||
| 55404-24060 |
UZZ40 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-24040E0 |
UZZ40..ARL,EUR W(NAVIGATION SYSTEM),MD.BROWN,TRIM20,21 |
1 | ||
| 55405-24050B0 |
UZZ40..RHD ECRU BROWN,TRIM0# |
1 | ||
| 55405-24050E0 |
UZZ40..RHD MD.BROWN,TRIM20,21 |
1 | ||
| 55405-24042E1 |
UZZ40..ARL,GCC W(NAVIGATION SYSTEM),DK.BROWN,TRIM4# |
1 | ||
| 55405-24042E0 |
UZZ40..ARL W(NAVIGATION SYSTEM),MD.BROWN,TRIM0#,2#,5# |
1 | ||
| 55405-24050E1 |
UZZ40..RHD DK.BROWN,TRIM4# |
1 | ||
| 55405-24050E0 |
UZZ40..ARL MD.BROWN,TRIM0#,2#,5# |
1 | ||
| 55405-24040B0 |
UZZ40..ARL,EUR W(NAVIGATION SYSTEM),ECRU BROWN,TRIM0# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55405-24090 |
UZZ40 |
1 | ||
| 55405-24080 |
UZZ40 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-24050E0 |
UZZ40 MD.BROWN,TRIM20,21 |
1 | ||
| 55412-24050E0 |
UZZ40..ARL MD.BROWN,TRIM0#,2#,5# |
1 | ||
| 55412-24050E1 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55412-24050B0 |
UZZ40 ECRU BROWN,TRIM0# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-30160E4 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55445-30160C0 |
UZZ40..ARL BLACK,TRIM0#,2#,5# |
1 | ||
| 55445-30160C0 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-48010 |
UZZ40 |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
UZZ40 YELLOW |
2 | ||
| 90467-10201 |
UZZ40 NATURAL |
2 | ||
| 55488B - LENS, FRONT FOOT LAMP, NO.1 | ||||
| 55489-50010 |
UZZ40 |
1 | ||
| 55489-50010 |
UZZ40 |
1 | ||
| 55489B - LENS, FRONT FOOT LAMP, NO.2 | ||||
| 55489-50010 |
UZZ40 |
1 | ||
| 55489-50010 |
UZZ40 |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05026 |
UZZ40 |
3 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-24080A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55550-24080A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55550-24130A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55550-24130C0 |
UZZ40..RHD BLACK,TRIM2# |
1 | ||
| 55550-24080C0 |
UZZ40..RHD BLACK,TRIM20,21 |
1 | ||
| 55550-24130E0 |
UZZ40..RHD CAMEL,TRIM4# |
1 | ||
| 55550-24080C0 |
UZZ40..ARL BLACK,TRIM2#,5# |
1 | ||
| 55550-24080E0 |
UZZ40..RHD CAMEL,TRIM4# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-24090A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55607-24090C0 |
UZZ40..ARL BLACK,TRIM2#,5# |
1 | ||
| 55607-24090C0 |
UZZ40..RHD BLACK,TRIM20,21 |
1 | ||
| 55607-24090A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 55607-24120E0 |
UZZ40..RHD CAMEL,TRIM4# |
1 | ||
| 55607-24090E0 |
UZZ40..RHD CAMEL,TRIM4# |
1 | ||
| 55607-24120C0 |
UZZ40..RHD BLACK,TRIM2# |
1 | ||
| 55607-24120A0 |
UZZ40..RHD ECRU,TRIM0# |
1 | ||
| 84656K - BEZEL, SWITCH | ||||
| 84656-24010A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 84656-24010C0 |
UZZ40 BLACK,TRIM2# |
1 | ||
| 84656-24010E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| Common parts | ||||
| 90109-06272 | ||||
| 90183-04046 | ||||
| 90468-04157 | ||||
| 90468-04160 | ||||
| 90468-04177 | ||||
| 91631-G0616 | ||||
| 91631-J0620 | ||||
| 93568-55014 | ||||
| 93568-55020 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8121 | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
