UZZ40R-DKTQKQ (2005)

Toyota Lexus Sc430

Production Aug 2005 - Jul 2010
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )

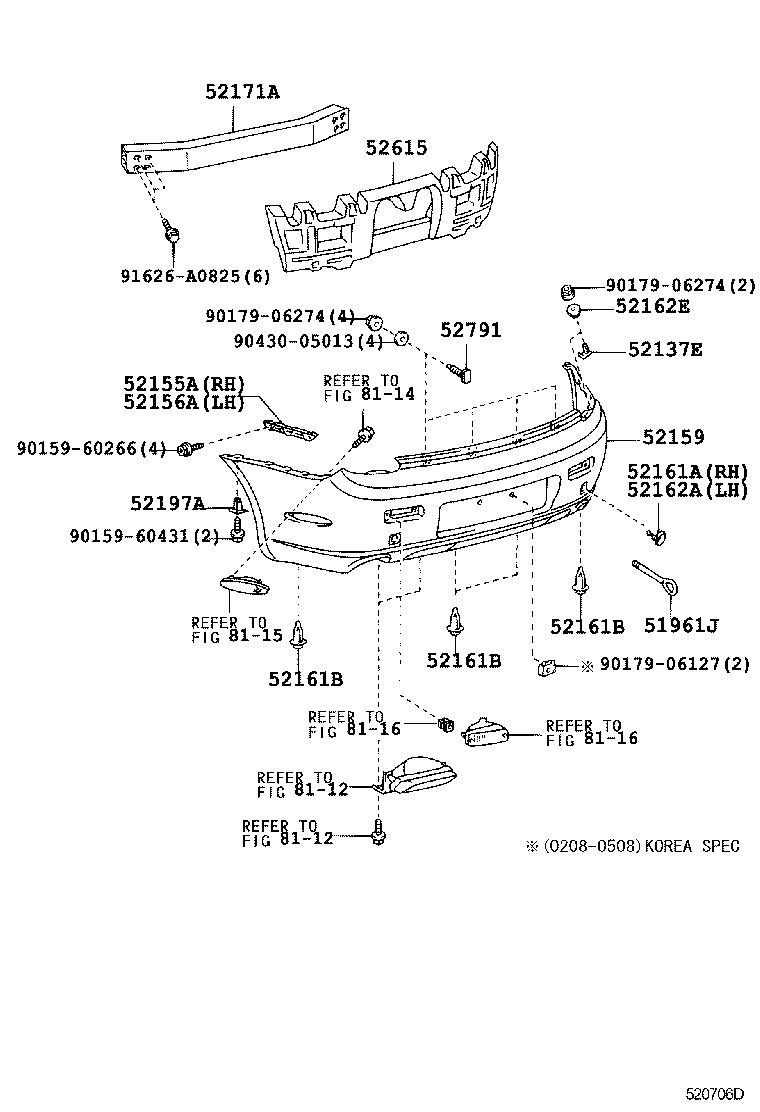

Click highlighted areas on diagram

diagram 51961J 52137E 52155A 52156A 52159 52161A 52161B 52161B 52161B 52162A 52162E 52171A 52197A 52615 52791 8112 8112 8114 8115 8116 8116 9015960266 9015960431 9017906127 9017906274 9017906274 9043005013 91626A0825
Part # Description Qty Price
51961J - HOOK, REAR
51961-50030

UZZ40

 2
51961-50030

UZZ40

 2
52137E - PLATE, REAR BUMPER BRACKET, NO.1
52137-20070

UZZ40

 2
52137-20070

UZZ40

 2
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-24010

UZZ40

 1
52155-24010

UZZ40

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52155-24010

UZZ40

 1
52155-24010

UZZ40

 1
52159 - COVER, REAR BUMPER
52159-24910

UZZ40..ARL

 1
52159-24910

UZZ40..ARL

 1
52161A - PIECE, REAR BUMPER, RH
52161-24010J1

UZZ40

DK.BLUE M.M.,8P4

 1
52161-24010B0

UZZ40

SILVER ME.,1C0

 1
52161-24010E0

UZZ40

BEIGE M.M.,4Q8

 1
52161-24010C0

UZZ40

*104,BLACK,202 ,3P0

 1
52161-24010A0

UZZ40

WHITE PEARL CS.,065

 1
52161-24010G0

UZZ40

DARK GREEN MC.,6S6

 1
52161-24010E1

UZZ40

PREMIUM BEIGE,4S7

 1
52161-24010J4

UZZ40

DK.BLUE MC. CC.,8U0

 1
52161-24010D0

UZZ40

*104,SUPER RED 5,3P0

 1
52161-24010A0

UZZ40

WHITE PEARL CS.,065

 1
52161-24010D1

UZZ40

BLACKISH RED MC.,3P6

 1
52161-24010E2

UZZ40

PREMIUM BROWN,4T2

 1
52161-24010D2

UZZ40

RED MC.CS.,3R1

 1
52161-24010J5

UZZ40

BLUE M.M.,8U4

 1
52161-24010B4

UZZ40

DK.GRAY MC.,1G0

 1
52161-24010J1

UZZ40

DK.BLUE M.M.,8P4

 1
52161-24010C0

UZZ40

BLACK,202

 1
52161-24010D1

UZZ40

BLACKISH RED MC.,3P6

 1
52161-24010A1

UZZ40

WHITE PEARL CS.,077

 1
52161-24010B3

UZZ40

PREMIUM SILVER,1F2

 1
52161-24010E3

UZZ40

BEIGE ME.,4T1

 1
52161-24010D3

UZZ40

SHELL M.M.,3R4

 1
52161-24010C2

UZZ40

BLACK,212

 1
52161B - PIECE, REAR BUMPER
52161-16010

UZZ40

 4
52161-16010

UZZ40

 4
52161B - PIECE, REAR BUMPER
52161-16010

UZZ40

 4
52161-16010

UZZ40

 4
52161B - PIECE, REAR BUMPER
52161-16010

UZZ40

 4
52161-16010

UZZ40

 4
52162A - PIECE, REAR BUMPER, LH
52162-24010G0

UZZ40

DARK GREEN MC.,6S6

 1
52162-24010J1

UZZ40

DK.BLUE M.M.,8P4

 1
52162-24010B0

UZZ40

SILVER ME.,1C0

 1
52162-24010B4

UZZ40

DK.GRAY MC.,1G0

 1
52162-24010C0

UZZ40

*104,BLACK,202 ,3P0

 1
52162-24010D1

UZZ40

BLACKISH RED MC.,3P6

 1
52162-24010E1

UZZ40

PREMIUM BEIGE,4S7

 1
52162-24010E2

UZZ40

PREMIUM BROWN,4T2

 1
52162-24010D1

UZZ40

BLACKISH RED MC.,3P6

 1
52162-24010A0

UZZ40

WHITE PEARL CS.,065

 1
52162-24010J1

UZZ40

DK.BLUE M.M.,8P4

 1
52162-24010D0

UZZ40

*104,SUPER RED 5,3P0

 1
52162-24010A1

UZZ40

WHITE PEARL CS.,077

 1
52162-24010A0

UZZ40

WHITE PEARL CS.,065

 1
52162-24010C0

UZZ40

BLACK,202

 1
52162-24010J4

UZZ40

DK.BLUE MC. CC.,8U0

 1
52162-24010J5

UZZ40

BLUE M.M.,8U4

 1
52162-24010E3

UZZ40

BEIGE ME.,4T1

 1
52162-24010C2

UZZ40

BLACK,212

 1
52162-24010D3

UZZ40

SHELL M.M.,3R4

 1
52162-24010B3

UZZ40

PREMIUM SILVER,1F2

 1
52162-24010E0

UZZ40

BEIGE M.M.,4Q8

 1
52162-24010D2

UZZ40

RED MC.CS.,3R1

 1
52162E - PIECE, REAR BUMPER
52162-12050

UZZ40

 2
52162-12050

UZZ40

 2
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-24060

UZZ40

 1
52171-24060

UZZ40

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-20010

UZZ40

 2
52197-20010

UZZ40

 2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-24060

UZZ40..ARL,EUR

 1
52615-24060

UZZ40..ARL,EUR

 1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12040

UZZ40

 4
52791-12040

UZZ40

 4
Common parts
90159-60266
90159-60431
90179-06127
90179-06274
90430-05013
91626-A0825
Linked diagrams
8112
8114
8115
8116
