UZZ40R-DKTQKQ (2005)
Toyota Lexus Sc430
Production
Aug 2005
-
Jul 2010
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )RHD

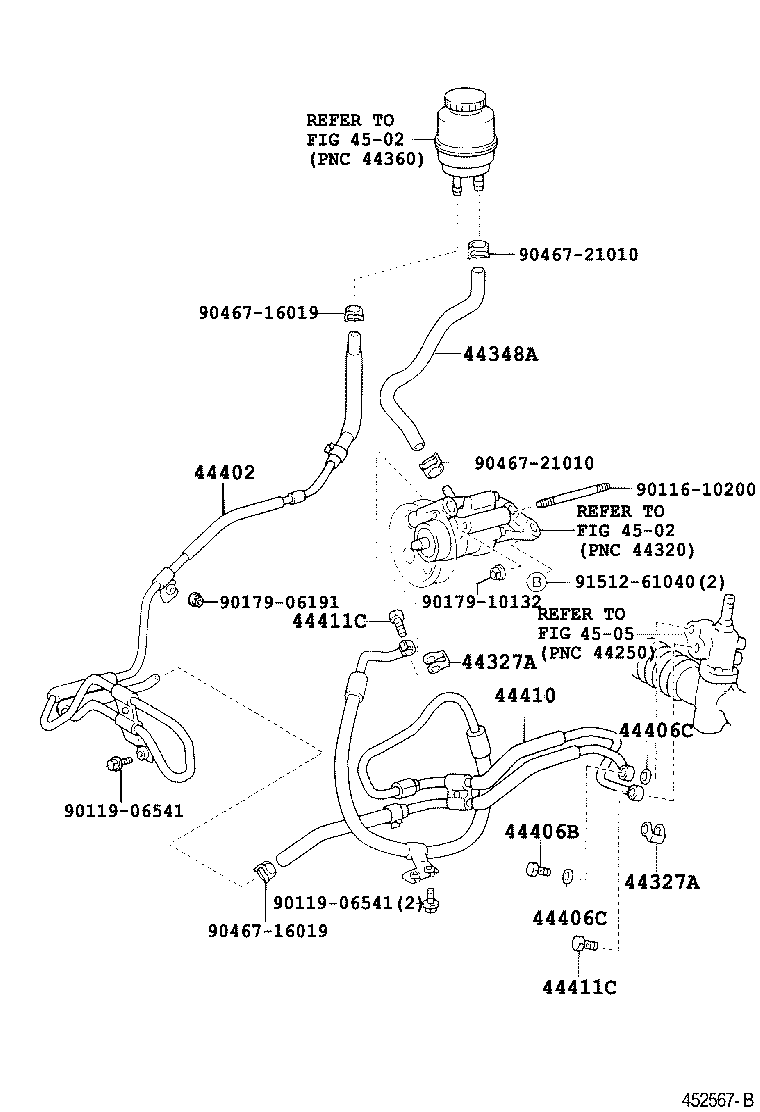

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
UZZ40 |
2 | ||
| 44327-30030 |
UZZ40 |
2 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
UZZ40 |
2 | ||
| 44327-30030 |
UZZ40 |
2 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-30200 |
UZZ40 |
1 | ||
| 44348-30200 |
UZZ40 |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-24260 |
UZZ40..RHD |
1 | ||
| 44402-24260 |
UZZ40..RHD |
1 | ||
| 44406B - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-17005 |
UZZ40 |
1 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-17008 |
UZZ40 |
2 | ||
| 90430-17008 |
UZZ40 |
2 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-17008 |
UZZ40 |
2 | ||
| 90430-17008 |
UZZ40 |
2 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-30570 |
UZZ40..RHD |
1 | ||
| 44410-30570 |
UZZ40..RHD |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 96341-41603 |
UZZ40 |
2 | ||
| 96341-41603 |
UZZ40 |
2 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 96341-41603 |
UZZ40 |
2 | ||
| 96341-41603 |
UZZ40 |
2 | ||
| Common parts | ||||
| 90116-10200 | ||||
| 90119-06541 | ||||
| 90179-06191 | ||||
| 90179-10132 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 91512-61040 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
