UZZ40R-DKTQKQ (2005)
Toyota Lexus Sc430
(0105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

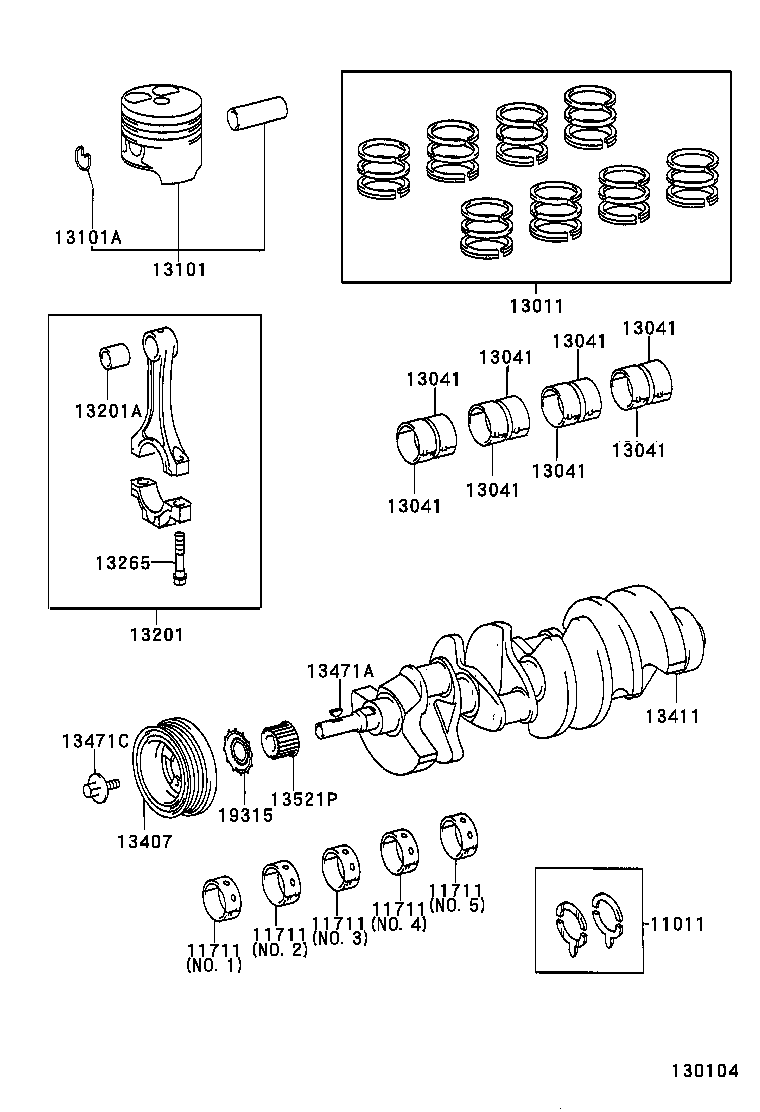

| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-50010 |
3UZFE..UZZ40 STD |
1 | ||
| 11011-50010 |
3UZFE..UZZ40 STD |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-50030A2 |
3UZFE..UZZ40 MARK UPPER 1 LOWER 2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030C3 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 3,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030A1 |
3UZFE..UZZ40 MARK UPPER 1 LOWER 1,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030B2 |
3UZFE..UZZ40 MARK UPPER 2 LOWER 2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030D4 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 4,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030E5 |
3UZFE..UZZ40 MARK UPPER 5 LOWER 5,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030C4 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 4,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030D5 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 5,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50040C4 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 4,NO.1,5 REFER R/M |
2 | ||
| 11701-50040D4 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 4,NO.1,5 REFER R/M |
2 | ||
| 11071-50030B3 |
3UZFE..UZZ40 MARK UPPER 2 LOWER 3,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50040E6 |
3UZFE..UZZ40 MARK UPPER 5 LOWER 6,NO.1,5 REFER R/M |
2 | ||
| 11701-50040F6 |
3UZFE..UZZ40 MARK UPPER 6 LOWER 6,NO.1,5 REFER R/M |
2 | ||
| 11701-50040C3 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 3,NO.1,5 REFER R/M |
2 | ||
| 11701-50040G7 |
3UZFE..UZZ40 MARK UPPER 7 LOWER 7,NO.1,5 REFER R/M |
2 | ||
| 11701-50040D5 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 5,NO.1,5 REFER R/M |
2 | ||
| 11701-50040E5 |
3UZFE..UZZ40 MARK UPPER 5 LOWER 5,NO.1,5 REFER R/M |
2 | ||
| 11071-50031B2 |
3UZFE..UZZ40 MARKUPPER2LOWER2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50031A2 |
3UZFE..UZZ40 MARKUPPER1LOWER2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50031D4 |
3UZFE..UZZ40 MARKUPPER4LOWER4,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50040F7 |
3UZFE..UZZ40 MARK UPPER 6 LOWER 7,NO.1,5 REFER R/M |
2 | ||
| 11071-50031B3 |
3UZFE..UZZ40 MARKUPPER2LOWER3,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041C4 |
3UZFE..UZZ40 MARKUPPER3LOWER4,NO.1,5 REFER R/M |
2 | ||
| 11071-50031C3 |
3UZFE..UZZ40 MARKUPPER3LOWER3,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041D4 |
3UZFE..UZZ40 MARKUPPER4LOWER4,NO.1,5 REFER R/M |
2 | ||
| 11701-50041F6 |
3UZFE..UZZ40 MARKUPPER6LOWER6,NO.1,5 REFER R/M |
2 | ||
| 11071-50031D5 |
3UZFE..UZZ40 MARKUPPER4LOWER5,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50031C4 |
3UZFE..UZZ40 MARKUPPER3LOWER4,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041E5 |
3UZFE..UZZ40 MARKUPPER5LOWER5,NO.1,5 REFER R/M |
2 | ||
| 11701-50041C3 |
3UZFE..UZZ40 MARKUPPER3LOWER3,NO.1,5 REFER R/M |
2 | ||
| 11701-50041G7 |
3UZFE..UZZ40 MARKUPPER7LOWER7,NO.1,5 REFER R/M |
2 | ||
| 11071-50031A1 |
3UZFE..UZZ40 MARKUPPER2LOWER1,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041E6 |
3UZFE..UZZ40 MARKUPPER5LOWER6,NO.1,5 REFER R/M |
2 | ||
| 11071-50031E5 |
3UZFE..UZZ40 MARKUPPER5LOWER5,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041D5 |
3UZFE..UZZ40 MARKUPPER4LOWER5,NO.1,5 REFER R/M |
2 | ||
| 11701-50041F7 |
3UZFE..UZZ40 MARKUPPER6LOWER7,NO.1,5 REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-50030A2 |
3UZFE..UZZ40 MARK UPPER 1 LOWER 2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030C3 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 3,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030A1 |
3UZFE..UZZ40 MARK UPPER 1 LOWER 1,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030B2 |
3UZFE..UZZ40 MARK UPPER 2 LOWER 2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030D4 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 4,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030E5 |
3UZFE..UZZ40 MARK UPPER 5 LOWER 5,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030C4 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 4,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030D5 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 5,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50040C4 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 4,NO.1,5 REFER R/M |
2 | ||
| 11701-50040D4 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 4,NO.1,5 REFER R/M |
2 | ||
| 11071-50030B3 |
3UZFE..UZZ40 MARK UPPER 2 LOWER 3,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50040E6 |
3UZFE..UZZ40 MARK UPPER 5 LOWER 6,NO.1,5 REFER R/M |
2 | ||
| 11701-50040F6 |
3UZFE..UZZ40 MARK UPPER 6 LOWER 6,NO.1,5 REFER R/M |
2 | ||
| 11701-50040C3 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 3,NO.1,5 REFER R/M |
2 | ||
| 11701-50040G7 |
3UZFE..UZZ40 MARK UPPER 7 LOWER 7,NO.1,5 REFER R/M |
2 | ||
| 11701-50040D5 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 5,NO.1,5 REFER R/M |
2 | ||
| 11701-50040E5 |
3UZFE..UZZ40 MARK UPPER 5 LOWER 5,NO.1,5 REFER R/M |
2 | ||
| 11071-50031B2 |
3UZFE..UZZ40 MARKUPPER2LOWER2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50031A2 |
3UZFE..UZZ40 MARKUPPER1LOWER2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50031D4 |
3UZFE..UZZ40 MARKUPPER4LOWER4,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50040F7 |
3UZFE..UZZ40 MARK UPPER 6 LOWER 7,NO.1,5 REFER R/M |
2 | ||
| 11071-50031B3 |
3UZFE..UZZ40 MARKUPPER2LOWER3,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041C4 |
3UZFE..UZZ40 MARKUPPER3LOWER4,NO.1,5 REFER R/M |
2 | ||
| 11071-50031C3 |
3UZFE..UZZ40 MARKUPPER3LOWER3,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041D4 |
3UZFE..UZZ40 MARKUPPER4LOWER4,NO.1,5 REFER R/M |
2 | ||
| 11701-50041F6 |
3UZFE..UZZ40 MARKUPPER6LOWER6,NO.1,5 REFER R/M |
2 | ||
| 11071-50031D5 |
3UZFE..UZZ40 MARKUPPER4LOWER5,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50031C4 |
3UZFE..UZZ40 MARKUPPER3LOWER4,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041E5 |
3UZFE..UZZ40 MARKUPPER5LOWER5,NO.1,5 REFER R/M |
2 | ||
| 11701-50041C3 |
3UZFE..UZZ40 MARKUPPER3LOWER3,NO.1,5 REFER R/M |
2 | ||
| 11701-50041G7 |
3UZFE..UZZ40 MARKUPPER7LOWER7,NO.1,5 REFER R/M |
2 | ||
| 11071-50031A1 |
3UZFE..UZZ40 MARKUPPER2LOWER1,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041E6 |
3UZFE..UZZ40 MARKUPPER5LOWER6,NO.1,5 REFER R/M |
2 | ||
| 11071-50031E5 |
3UZFE..UZZ40 MARKUPPER5LOWER5,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041D5 |
3UZFE..UZZ40 MARKUPPER4LOWER5,NO.1,5 REFER R/M |
2 | ||
| 11701-50041F7 |
3UZFE..UZZ40 MARKUPPER6LOWER7,NO.1,5 REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-50030A2 |
3UZFE..UZZ40 MARK UPPER 1 LOWER 2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030C3 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 3,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030A1 |
3UZFE..UZZ40 MARK UPPER 1 LOWER 1,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030B2 |
3UZFE..UZZ40 MARK UPPER 2 LOWER 2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030D4 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 4,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030E5 |
3UZFE..UZZ40 MARK UPPER 5 LOWER 5,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030C4 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 4,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030D5 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 5,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50040C4 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 4,NO.1,5 REFER R/M |
2 | ||
| 11701-50040D4 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 4,NO.1,5 REFER R/M |
2 | ||
| 11071-50030B3 |
3UZFE..UZZ40 MARK UPPER 2 LOWER 3,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50040E6 |
3UZFE..UZZ40 MARK UPPER 5 LOWER 6,NO.1,5 REFER R/M |
2 | ||
| 11701-50040F6 |
3UZFE..UZZ40 MARK UPPER 6 LOWER 6,NO.1,5 REFER R/M |
2 | ||
| 11701-50040C3 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 3,NO.1,5 REFER R/M |
2 | ||
| 11701-50040G7 |
3UZFE..UZZ40 MARK UPPER 7 LOWER 7,NO.1,5 REFER R/M |
2 | ||
| 11701-50040D5 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 5,NO.1,5 REFER R/M |
2 | ||
| 11701-50040E5 |
3UZFE..UZZ40 MARK UPPER 5 LOWER 5,NO.1,5 REFER R/M |
2 | ||
| 11071-50031B2 |
3UZFE..UZZ40 MARKUPPER2LOWER2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50031A2 |
3UZFE..UZZ40 MARKUPPER1LOWER2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50031D4 |
3UZFE..UZZ40 MARKUPPER4LOWER4,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50040F7 |
3UZFE..UZZ40 MARK UPPER 6 LOWER 7,NO.1,5 REFER R/M |
2 | ||
| 11071-50031B3 |
3UZFE..UZZ40 MARKUPPER2LOWER3,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041C4 |
3UZFE..UZZ40 MARKUPPER3LOWER4,NO.1,5 REFER R/M |
2 | ||
| 11071-50031C3 |
3UZFE..UZZ40 MARKUPPER3LOWER3,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041D4 |
3UZFE..UZZ40 MARKUPPER4LOWER4,NO.1,5 REFER R/M |
2 | ||
| 11701-50041F6 |
3UZFE..UZZ40 MARKUPPER6LOWER6,NO.1,5 REFER R/M |
2 | ||
| 11071-50031D5 |
3UZFE..UZZ40 MARKUPPER4LOWER5,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50031C4 |
3UZFE..UZZ40 MARKUPPER3LOWER4,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041E5 |
3UZFE..UZZ40 MARKUPPER5LOWER5,NO.1,5 REFER R/M |
2 | ||
| 11701-50041C3 |
3UZFE..UZZ40 MARKUPPER3LOWER3,NO.1,5 REFER R/M |
2 | ||
| 11701-50041G7 |
3UZFE..UZZ40 MARKUPPER7LOWER7,NO.1,5 REFER R/M |
2 | ||
| 11071-50031A1 |
3UZFE..UZZ40 MARKUPPER2LOWER1,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041E6 |
3UZFE..UZZ40 MARKUPPER5LOWER6,NO.1,5 REFER R/M |
2 | ||
| 11071-50031E5 |
3UZFE..UZZ40 MARKUPPER5LOWER5,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041D5 |
3UZFE..UZZ40 MARKUPPER4LOWER5,NO.1,5 REFER R/M |
2 | ||
| 11701-50041F7 |
3UZFE..UZZ40 MARKUPPER6LOWER7,NO.1,5 REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-50030A2 |
3UZFE..UZZ40 MARK UPPER 1 LOWER 2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030C3 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 3,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030A1 |
3UZFE..UZZ40 MARK UPPER 1 LOWER 1,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030B2 |
3UZFE..UZZ40 MARK UPPER 2 LOWER 2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030D4 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 4,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030E5 |
3UZFE..UZZ40 MARK UPPER 5 LOWER 5,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030C4 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 4,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030D5 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 5,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50040C4 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 4,NO.1,5 REFER R/M |
2 | ||
| 11701-50040D4 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 4,NO.1,5 REFER R/M |
2 | ||
| 11071-50030B3 |
3UZFE..UZZ40 MARK UPPER 2 LOWER 3,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50040E6 |
3UZFE..UZZ40 MARK UPPER 5 LOWER 6,NO.1,5 REFER R/M |
2 | ||
| 11701-50040F6 |
3UZFE..UZZ40 MARK UPPER 6 LOWER 6,NO.1,5 REFER R/M |
2 | ||
| 11701-50040C3 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 3,NO.1,5 REFER R/M |
2 | ||
| 11701-50040G7 |
3UZFE..UZZ40 MARK UPPER 7 LOWER 7,NO.1,5 REFER R/M |
2 | ||
| 11701-50040D5 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 5,NO.1,5 REFER R/M |
2 | ||
| 11701-50040E5 |
3UZFE..UZZ40 MARK UPPER 5 LOWER 5,NO.1,5 REFER R/M |
2 | ||
| 11071-50031B2 |
3UZFE..UZZ40 MARKUPPER2LOWER2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50031A2 |
3UZFE..UZZ40 MARKUPPER1LOWER2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50031D4 |
3UZFE..UZZ40 MARKUPPER4LOWER4,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50040F7 |
3UZFE..UZZ40 MARK UPPER 6 LOWER 7,NO.1,5 REFER R/M |
2 | ||
| 11071-50031B3 |
3UZFE..UZZ40 MARKUPPER2LOWER3,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041C4 |
3UZFE..UZZ40 MARKUPPER3LOWER4,NO.1,5 REFER R/M |
2 | ||
| 11071-50031C3 |
3UZFE..UZZ40 MARKUPPER3LOWER3,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041D4 |
3UZFE..UZZ40 MARKUPPER4LOWER4,NO.1,5 REFER R/M |
2 | ||
| 11701-50041F6 |
3UZFE..UZZ40 MARKUPPER6LOWER6,NO.1,5 REFER R/M |
2 | ||
| 11071-50031D5 |
3UZFE..UZZ40 MARKUPPER4LOWER5,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50031C4 |
3UZFE..UZZ40 MARKUPPER3LOWER4,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041E5 |
3UZFE..UZZ40 MARKUPPER5LOWER5,NO.1,5 REFER R/M |
2 | ||
| 11701-50041C3 |
3UZFE..UZZ40 MARKUPPER3LOWER3,NO.1,5 REFER R/M |
2 | ||
| 11701-50041G7 |
3UZFE..UZZ40 MARKUPPER7LOWER7,NO.1,5 REFER R/M |
2 | ||
| 11071-50031A1 |
3UZFE..UZZ40 MARKUPPER2LOWER1,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041E6 |
3UZFE..UZZ40 MARKUPPER5LOWER6,NO.1,5 REFER R/M |
2 | ||
| 11071-50031E5 |
3UZFE..UZZ40 MARKUPPER5LOWER5,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041D5 |
3UZFE..UZZ40 MARKUPPER4LOWER5,NO.1,5 REFER R/M |
2 | ||
| 11701-50041F7 |
3UZFE..UZZ40 MARKUPPER6LOWER7,NO.1,5 REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-50030A2 |
3UZFE..UZZ40 MARK UPPER 1 LOWER 2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030C3 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 3,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030A1 |
3UZFE..UZZ40 MARK UPPER 1 LOWER 1,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030B2 |
3UZFE..UZZ40 MARK UPPER 2 LOWER 2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030D4 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 4,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030E5 |
3UZFE..UZZ40 MARK UPPER 5 LOWER 5,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030C4 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 4,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50030D5 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 5,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50040C4 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 4,NO.1,5 REFER R/M |
2 | ||
| 11701-50040D4 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 4,NO.1,5 REFER R/M |
2 | ||
| 11071-50030B3 |
3UZFE..UZZ40 MARK UPPER 2 LOWER 3,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50040E6 |
3UZFE..UZZ40 MARK UPPER 5 LOWER 6,NO.1,5 REFER R/M |
2 | ||
| 11701-50040F6 |
3UZFE..UZZ40 MARK UPPER 6 LOWER 6,NO.1,5 REFER R/M |
2 | ||
| 11701-50040C3 |
3UZFE..UZZ40 MARK UPPER 3 LOWER 3,NO.1,5 REFER R/M |
2 | ||
| 11701-50040G7 |
3UZFE..UZZ40 MARK UPPER 7 LOWER 7,NO.1,5 REFER R/M |
2 | ||
| 11701-50040D5 |
3UZFE..UZZ40 MARK UPPER 4 LOWER 5,NO.1,5 REFER R/M |
2 | ||
| 11701-50040E5 |
3UZFE..UZZ40 MARK UPPER 5 LOWER 5,NO.1,5 REFER R/M |
2 | ||
| 11071-50031B2 |
3UZFE..UZZ40 MARKUPPER2LOWER2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50031A2 |
3UZFE..UZZ40 MARKUPPER1LOWER2,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50031D4 |
3UZFE..UZZ40 MARKUPPER4LOWER4,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50040F7 |
3UZFE..UZZ40 MARK UPPER 6 LOWER 7,NO.1,5 REFER R/M |
2 | ||
| 11071-50031B3 |
3UZFE..UZZ40 MARKUPPER2LOWER3,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041C4 |
3UZFE..UZZ40 MARKUPPER3LOWER4,NO.1,5 REFER R/M |
2 | ||
| 11071-50031C3 |
3UZFE..UZZ40 MARKUPPER3LOWER3,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041D4 |
3UZFE..UZZ40 MARKUPPER4LOWER4,NO.1,5 REFER R/M |
2 | ||
| 11701-50041F6 |
3UZFE..UZZ40 MARKUPPER6LOWER6,NO.1,5 REFER R/M |
2 | ||
| 11071-50031D5 |
3UZFE..UZZ40 MARKUPPER4LOWER5,NO.2,3,4 REFER R/M |
3 | ||
| 11071-50031C4 |
3UZFE..UZZ40 MARKUPPER3LOWER4,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041E5 |
3UZFE..UZZ40 MARKUPPER5LOWER5,NO.1,5 REFER R/M |
2 | ||
| 11701-50041C3 |
3UZFE..UZZ40 MARKUPPER3LOWER3,NO.1,5 REFER R/M |
2 | ||
| 11701-50041G7 |
3UZFE..UZZ40 MARKUPPER7LOWER7,NO.1,5 REFER R/M |
2 | ||
| 11071-50031A1 |
3UZFE..UZZ40 MARKUPPER2LOWER1,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041E6 |
3UZFE..UZZ40 MARKUPPER5LOWER6,NO.1,5 REFER R/M |
2 | ||
| 11071-50031E5 |
3UZFE..UZZ40 MARKUPPER5LOWER5,NO.2,3,4 REFER R/M |
3 | ||
| 11701-50041D5 |
3UZFE..UZZ40 MARKUPPER4LOWER5,NO.1,5 REFER R/M |
2 | ||
| 11701-50041F7 |
3UZFE..UZZ40 MARKUPPER6LOWER7,NO.1,5 REFER R/M |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-50170 |
3UZFE..UZZ40..ARL,EUR STD |
1 | ||
| 13011-50170 |
3UZFE..UZZ40..ARL,EUR STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5005005 |
3UZFE..UZZ40 MARK 5,REFER REPAIR MANUAL |
8 | ||
| 13041-5005006 |
3UZFE..UZZ40 MARK 6,REFER REPAIR MANUAL |
8 | ||
| 13041-5005003 |
3UZFE..UZZ40 MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13041-5005007 |
3UZFE..UZZ40 MARK 7,REFER REPAIR MANUAL |
8 | ||
| 13041-5003103 |
3UZFE..UZZ40 MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041-5005002 |
3UZFE..UZZ40 MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13041-5003102 |
3UZFE..UZZ40 MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5003107 |
3UZFE..UZZ40 MARK7,REFER REPAIR MANUAL |
8 | ||
| 13041-5005004 |
3UZFE..UZZ40 MARK 4,REFER REPAIR MANUAL |
8 | ||
| 13041-5003104 |
3UZFE..UZZ40 MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5003106 |
3UZFE..UZZ40 MARK6,REFER REPAIR MANUAL |
8 | ||
| 13041-5003105 |
3UZFE..UZZ40 MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5005005 |
3UZFE..UZZ40 MARK 5,REFER REPAIR MANUAL |
8 | ||
| 13041-5005006 |
3UZFE..UZZ40 MARK 6,REFER REPAIR MANUAL |
8 | ||
| 13041-5005003 |
3UZFE..UZZ40 MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13041-5005007 |
3UZFE..UZZ40 MARK 7,REFER REPAIR MANUAL |
8 | ||
| 13041-5003103 |
3UZFE..UZZ40 MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041-5005002 |
3UZFE..UZZ40 MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13041-5003102 |
3UZFE..UZZ40 MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5003107 |
3UZFE..UZZ40 MARK7,REFER REPAIR MANUAL |
8 | ||
| 13041-5005004 |
3UZFE..UZZ40 MARK 4,REFER REPAIR MANUAL |
8 | ||
| 13041-5003104 |
3UZFE..UZZ40 MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5003106 |
3UZFE..UZZ40 MARK6,REFER REPAIR MANUAL |
8 | ||
| 13041-5003105 |
3UZFE..UZZ40 MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5005005 |
3UZFE..UZZ40 MARK 5,REFER REPAIR MANUAL |
8 | ||
| 13041-5005006 |
3UZFE..UZZ40 MARK 6,REFER REPAIR MANUAL |
8 | ||
| 13041-5005003 |
3UZFE..UZZ40 MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13041-5005007 |
3UZFE..UZZ40 MARK 7,REFER REPAIR MANUAL |
8 | ||
| 13041-5003103 |
3UZFE..UZZ40 MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041-5005002 |
3UZFE..UZZ40 MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13041-5003102 |
3UZFE..UZZ40 MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5003107 |
3UZFE..UZZ40 MARK7,REFER REPAIR MANUAL |
8 | ||
| 13041-5005004 |
3UZFE..UZZ40 MARK 4,REFER REPAIR MANUAL |
8 | ||
| 13041-5003104 |
3UZFE..UZZ40 MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5003106 |
3UZFE..UZZ40 MARK6,REFER REPAIR MANUAL |
8 | ||
| 13041-5003105 |
3UZFE..UZZ40 MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5005005 |
3UZFE..UZZ40 MARK 5,REFER REPAIR MANUAL |
8 | ||
| 13041-5005006 |
3UZFE..UZZ40 MARK 6,REFER REPAIR MANUAL |
8 | ||
| 13041-5005003 |
3UZFE..UZZ40 MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13041-5005007 |
3UZFE..UZZ40 MARK 7,REFER REPAIR MANUAL |
8 | ||
| 13041-5003103 |
3UZFE..UZZ40 MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041-5005002 |
3UZFE..UZZ40 MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13041-5003102 |
3UZFE..UZZ40 MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5003107 |
3UZFE..UZZ40 MARK7,REFER REPAIR MANUAL |
8 | ||
| 13041-5005004 |
3UZFE..UZZ40 MARK 4,REFER REPAIR MANUAL |
8 | ||
| 13041-5003104 |
3UZFE..UZZ40 MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5003106 |
3UZFE..UZZ40 MARK6,REFER REPAIR MANUAL |
8 | ||
| 13041-5003105 |
3UZFE..UZZ40 MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5005005 |
3UZFE..UZZ40 MARK 5,REFER REPAIR MANUAL |
8 | ||
| 13041-5005006 |
3UZFE..UZZ40 MARK 6,REFER REPAIR MANUAL |
8 | ||
| 13041-5005003 |
3UZFE..UZZ40 MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13041-5005007 |
3UZFE..UZZ40 MARK 7,REFER REPAIR MANUAL |
8 | ||
| 13041-5003103 |
3UZFE..UZZ40 MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041-5005002 |
3UZFE..UZZ40 MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13041-5003102 |
3UZFE..UZZ40 MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5003107 |
3UZFE..UZZ40 MARK7,REFER REPAIR MANUAL |
8 | ||
| 13041-5005004 |
3UZFE..UZZ40 MARK 4,REFER REPAIR MANUAL |
8 | ||
| 13041-5003104 |
3UZFE..UZZ40 MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5003106 |
3UZFE..UZZ40 MARK6,REFER REPAIR MANUAL |
8 | ||
| 13041-5003105 |
3UZFE..UZZ40 MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5005005 |
3UZFE..UZZ40 MARK 5,REFER REPAIR MANUAL |
8 | ||
| 13041-5005006 |
3UZFE..UZZ40 MARK 6,REFER REPAIR MANUAL |
8 | ||
| 13041-5005003 |
3UZFE..UZZ40 MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13041-5005007 |
3UZFE..UZZ40 MARK 7,REFER REPAIR MANUAL |
8 | ||
| 13041-5003103 |
3UZFE..UZZ40 MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041-5005002 |
3UZFE..UZZ40 MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13041-5003102 |
3UZFE..UZZ40 MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5003107 |
3UZFE..UZZ40 MARK7,REFER REPAIR MANUAL |
8 | ||
| 13041-5005004 |
3UZFE..UZZ40 MARK 4,REFER REPAIR MANUAL |
8 | ||
| 13041-5003104 |
3UZFE..UZZ40 MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5003106 |
3UZFE..UZZ40 MARK6,REFER REPAIR MANUAL |
8 | ||
| 13041-5003105 |
3UZFE..UZZ40 MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5005005 |
3UZFE..UZZ40 MARK 5,REFER REPAIR MANUAL |
8 | ||
| 13041-5005006 |
3UZFE..UZZ40 MARK 6,REFER REPAIR MANUAL |
8 | ||
| 13041-5005003 |
3UZFE..UZZ40 MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13041-5005007 |
3UZFE..UZZ40 MARK 7,REFER REPAIR MANUAL |
8 | ||
| 13041-5003103 |
3UZFE..UZZ40 MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041-5005002 |
3UZFE..UZZ40 MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13041-5003102 |
3UZFE..UZZ40 MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5003107 |
3UZFE..UZZ40 MARK7,REFER REPAIR MANUAL |
8 | ||
| 13041-5005004 |
3UZFE..UZZ40 MARK 4,REFER REPAIR MANUAL |
8 | ||
| 13041-5003104 |
3UZFE..UZZ40 MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5003106 |
3UZFE..UZZ40 MARK6,REFER REPAIR MANUAL |
8 | ||
| 13041-5003105 |
3UZFE..UZZ40 MARK5,REFER REPAIR MANUAL |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5005005 |
3UZFE..UZZ40 MARK 5,REFER REPAIR MANUAL |
8 | ||
| 13041-5005006 |
3UZFE..UZZ40 MARK 6,REFER REPAIR MANUAL |
8 | ||
| 13041-5005003 |
3UZFE..UZZ40 MARK 3,REFER REPAIR MANUAL |
8 | ||
| 13041-5005007 |
3UZFE..UZZ40 MARK 7,REFER REPAIR MANUAL |
8 | ||
| 13041-5003103 |
3UZFE..UZZ40 MARK3,REFER REPAIR MANUAL |
8 | ||
| 13041-5005002 |
3UZFE..UZZ40 MARK 2,REFER REPAIR MANUAL |
8 | ||
| 13041-5003102 |
3UZFE..UZZ40 MARK2,REFER REPAIR MANUAL |
8 | ||
| 13041-5003107 |
3UZFE..UZZ40 MARK7,REFER REPAIR MANUAL |
8 | ||
| 13041-5005004 |
3UZFE..UZZ40 MARK 4,REFER REPAIR MANUAL |
8 | ||
| 13041-5003104 |
3UZFE..UZZ40 MARK4,REFER REPAIR MANUAL |
8 | ||
| 13041-5003106 |
3UZFE..UZZ40 MARK6,REFER REPAIR MANUAL |
8 | ||
| 13041-5003105 |
3UZFE..UZZ40 MARK5,REFER REPAIR MANUAL |
8 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13301-5006001 |
3UZFE..UZZ40 STD,MARK 1,LH,REFER R/M |
4 | ||
| 13301-5006002 |
3UZFE..UZZ40 STD,MARK 2,LH,REFER R/M |
4 | ||
| 13101-5007003 |
3UZFE..UZZ40 STD,MARK 3,RH,REFER R/M |
4 | ||
| 13101-5007003 |
3UZFE..UZZ40 STD,MARK 3,RH,REFER R/M |
4 | ||
| 13301-5006003 |
3UZFE..UZZ40 STD,MARK 3,LH,REFER R/M |
4 | ||
| 13101-5007001 |
3UZFE..UZZ40 STD,MARK 1,RH,REFER R/M |
4 | ||
| 13301-5006001 |
3UZFE..UZZ40 STD,MARK 1,LH,REFER R/M |
4 | ||
| 13101-5007002 |
3UZFE..UZZ40 STD,MARK 2,RH,REFER R/M |
4 | ||
| 13301-5006002 |
3UZFE..UZZ40 STD,MARK 2,LH,REFER R/M |
4 | ||
| 13101-5007002 |
3UZFE..UZZ40 STD,MARK 2,RH,REFER R/M |
4 | ||
| 13101-5007001 |
3UZFE..UZZ40 STD,MARK 1,RH,REFER R/M |
4 | ||
| 13301-5006003 |
3UZFE..UZZ40 STD,MARK 3,LH,REFER R/M |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25004 |
3UZFE..UZZ40 |
16 | ||
| 90521-25004 |
3UZFE..UZZ40 |
16 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-50032 |
3UZFE..UZZ40 |
8 | ||
| 13201-50032 |
3UZFE..UZZ40 |
8 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73144 |
3UZFE..UZZ40 |
8 | ||
| 90999-73144 |
3UZFE..UZZ40 |
8 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-28010 |
3UZFE..UZZ40 |
16 | ||
| 13265-28010 |
3UZFE..UZZ40 |
16 | ||
| 13407 - DAMPER SUB-ASSY, CRANKSHAFT | ||||
| 13407-50020 |
3UZFE..UZZ40..ARL |
1 | ||
| 13407-50020 |
3UZFE..UZZ40..ARL |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-50040 |
3UZFE..UZZ40 |
1 | ||
| 13411-50040 |
3UZFE..UZZ40 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05005 |
3UZFE..UZZ40 |
1 | ||
| 90280-05005 |
3UZFE..UZZ40 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90109-18003 |
3UZFE..UZZ40 |
1 | ||
| 90109-18003 |
3UZFE..UZZ40 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-50022 |
3UZFE..UZZ40 |
1 | ||
| 13521-50022 |
3UZFE..UZZ40 |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-50020 |
3UZFE..UZZ40 |
1 | ||
| 19315-50020 |
3UZFE..UZZ40 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
