UZZ40L-DKTQKW (2005)

Toyota Lexus Sc430

Production Aug 2005 - Jul 2010
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0105- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

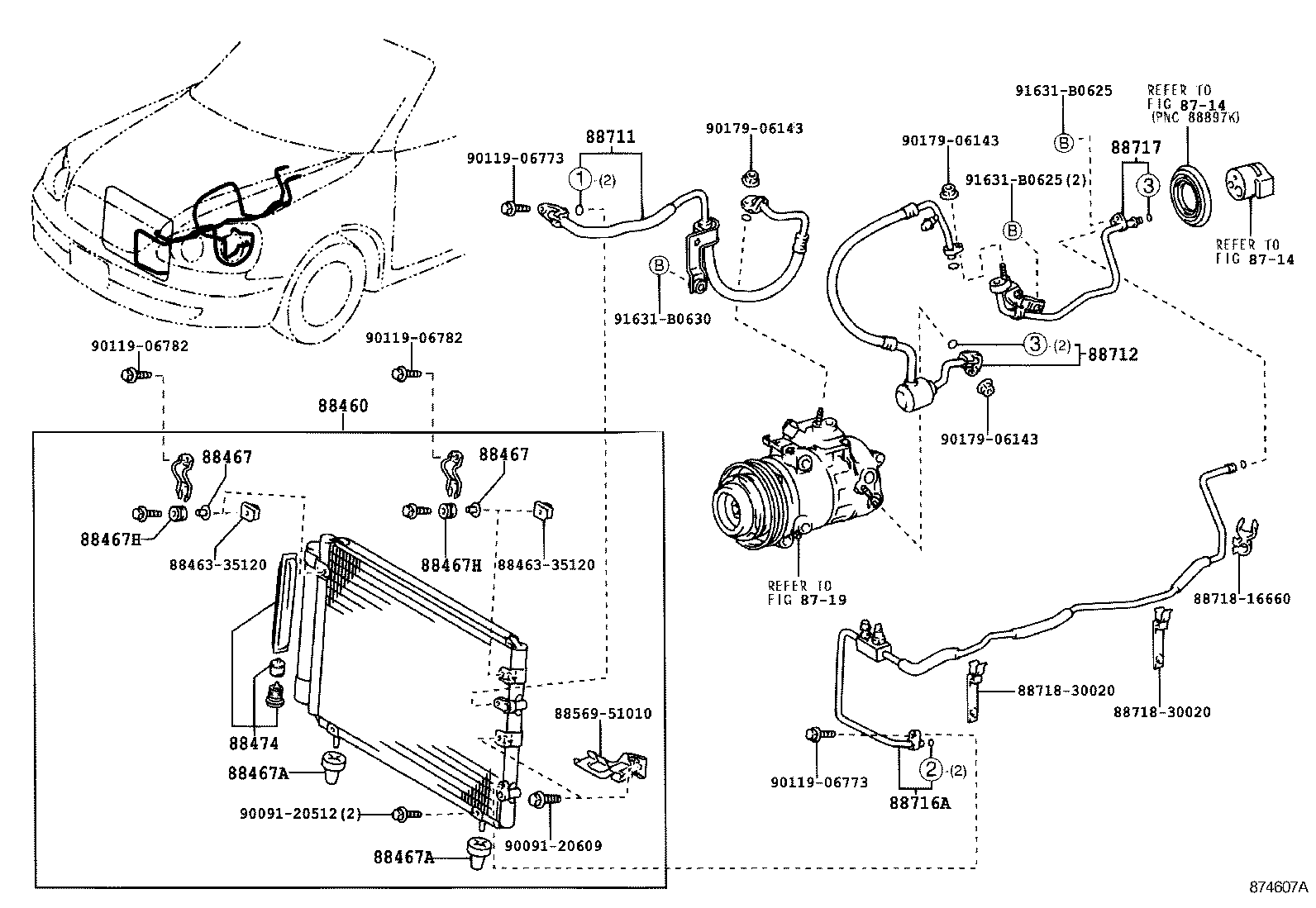

ILLUST NO. 1 OF 2(0105- )

Click highlighted areas on diagram

diagram 8714 8714 8719 88460 8846335120 8846335120 88467 88467 88467A 88467A 88467H 88467H 88474 8856951010 88711 88712 88716A 88717 8871816660 8871830020 8871830020 9009120512 9009120609 9011906773 9011906773 9011906782 9011906782 9017906143 9017906143 9017906143 91631B0625 91631B0625 91631B0630
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-24091

UZZ40

 1
88460-24091

UZZ40

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14050

UZZ40

 2
88467-14050

UZZ40

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14050

UZZ40

 2
88467-14050

UZZ40

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-20190

UZZ40

 2
88467-20190

UZZ40

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-20190

UZZ40

 2
88467-20190

UZZ40

 2
88467H - CUSHION, CONDENSER BRACKET, NO.1
88467-24060

UZZ40

 2
88467-24060

UZZ40

 2
88467H - CUSHION, CONDENSER BRACKET, NO.1
88467-24060

UZZ40

 2
88467-24060

UZZ40

 2
88474 - DRYER, COOLER
88474-47010

UZZ40

 1
88474-47010

UZZ40

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-24030

UZZ40..LHD

 1
88703-24030

UZZ40..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-24210

UZZ40

 1
88712-24211

UZZ40

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88706-24130

UZZ40

 1
88706-24130

UZZ40

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88707-24020

UZZ40..LHD

 1
88707-24020

UZZ40..LHD

 1
Common parts
88463-35120
88569-51010
88718-16660
88718-30020
90091-20512
90091-20609
90119-06773
90119-06782
90179-06143
91631-B0625
91631-B0630
Linked diagrams
8714
8719
