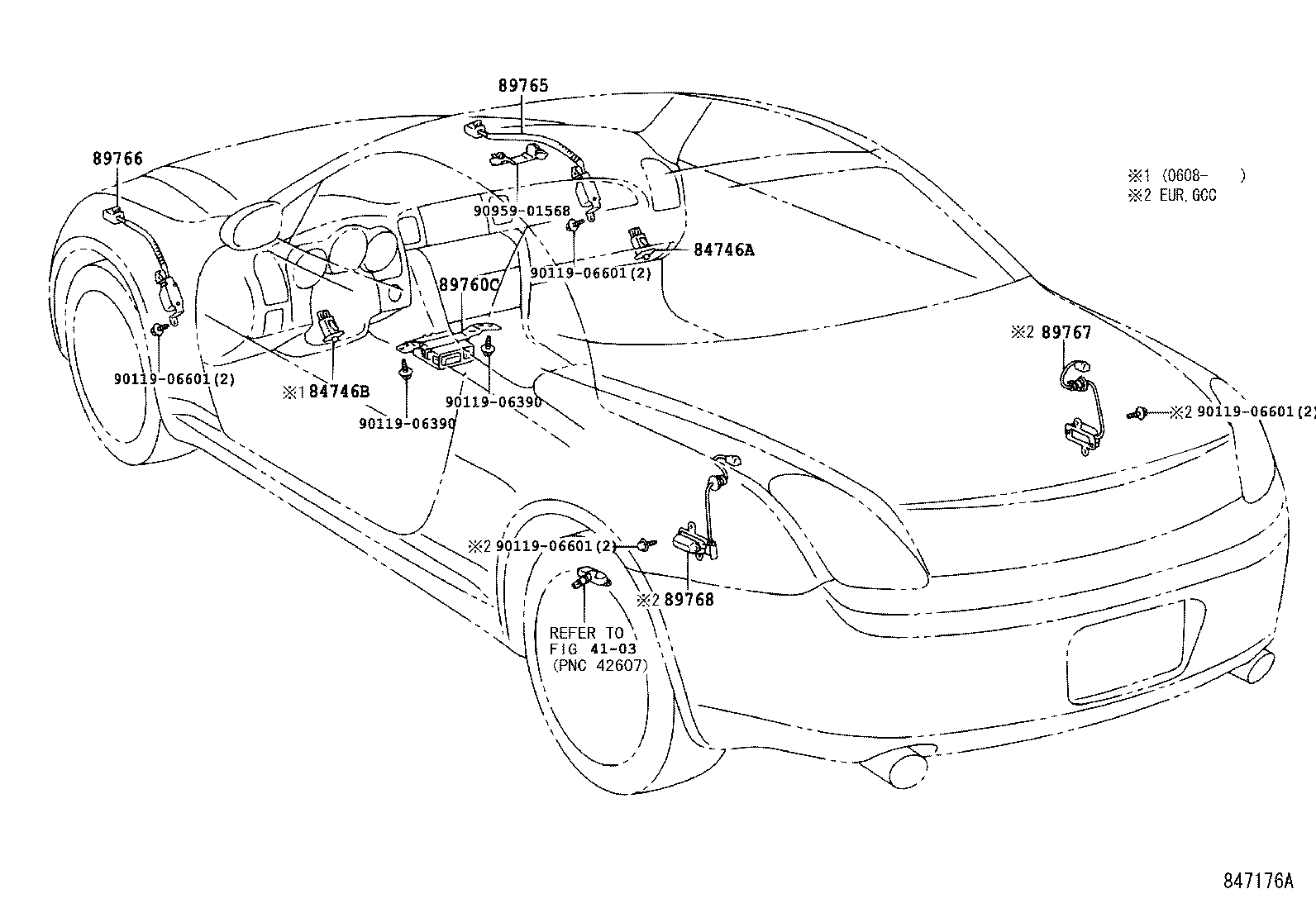

Toyota Lexus sc430 UZZ40 TIRE PRESSURE WARNING SYSTEM

Part #	Description	Period	Qty
84746A - SWITCH, TIRE PRESSURE WARNING, NO.1
84746-24010	UZZ40	08/2005 - 12/2999	1
84746-24010	UZZ40	05/2001 - 08/2005	1
84746B - SWITCH, TIRE PRESSURE WARNING, NO.2
84746-48010	UZZ40	08/2006 - 12/2999	1
89760C - RECEIVER ASSY, TIRE PRESSURE MONITOR
89760-24030	UZZ40..LHD..EUR CHINA SPEC	08/2005 - 08/2006	1
89760-24020	UZZ40	05/2001 - 08/2005	1
89760-24050	UZZ40..EUR,GCC	08/2006 - 07/2007	1
89760-24060	UZZ40..LHD..EUR BEIJING OR CHINA SPEC	08/2006 - 12/2999	1
89760-24020	UZZ40	08/2005 - 08/2006	1
89760-24051	UZZ40..EUR,GCC	08/2007 - 12/2999	1
89760-24041	UZZ40..EUR HONG KONG OR TAIWAN SPEC	08/2007 - 12/2999	1
89765 - ANTENNA, TIRE PRESSURE, FRONT RH
89765-24010	UZZ40..LHD..EUR CHINA SPEC	08/2005 - 07/2006	1
89765-24020	UZZ40..EUR,GCC	05/2001 - 08/2005	1
89765-24020	UZZ40..EUR,GCC	08/2005 - 07/2006	1
89765-24011	UZZ40..LHD..EUR BEIJING OR CHINA SPEC	08/2006 - 12/2999	1
89765-24021	UZZ40..EUR,GCC	08/2006 - 12/2999	1
89766 - ANTENNA, TIRE PRESSURE, FRONT LH
89766-24020	UZZ40..EUR,GCC	05/2001 - 08/2005	1
89766-24010	UZZ40..LHD..EUR CHINA SPEC	08/2005 - 07/2006	1
89766-24011	UZZ40..LHD..EUR BEIJING OR CHINA SPEC	08/2006 - 12/2999	1
89766-24021	UZZ40..EUR,GCC	08/2006 - 12/2999	1
89766-24020	UZZ40..EUR,GCC	08/2005 - 07/2006	1
89767 - ANTENNA, TIRE PRESSURE, REAR RH
89767-24020	UZZ40..EUR,GCC	08/2005 - 07/2006	1
89767-24021	UZZ40..EUR,GCC	08/2006 - 12/2999	1
89767-24020	UZZ40..EUR,GCC	05/2001 - 08/2005	1
89767-24011	UZZ40..LHD..EUR TAIWAN SPEC	08/2007 - 12/2999	1
89768 - ANTENNA, TIRE PRESSURE, REAR LH
89768-24020	UZZ40..EUR,GCC	08/2005 - 07/2006	1
89768-24021	UZZ40..EUR,GCC	08/2006 - 12/2999	1
89768-24011	UZZ40..LHD..EUR TAIWAN SPEC	08/2007 - 12/2999	1
89768-24020	UZZ40..EUR,GCC	05/2001 - 08/2005	1
Common parts
90119-06390
90119-06601
90959-01568
Linked diagrams
4103

UZZ40L-DKTQKW (2005)

(0105- )LHD
