Toyota Lexus sc430 UZZ40 ABS & VSC

Part #	Description	Period	Qty
86652A - BUZZER ASSY, SKID CONTROL
86652-51010	UZZ40	08/2005 - 12/2999	1
86652-51010	UZZ40	05/2001 - 08/2005	1
88263M - RELAY, ABS SOLENOID
88263-24030	UZZ40	05/2001 - 08/2005	1
88263-24030	UZZ40	08/2005 - 12/2999	1
88263N - RELAY, ABS MOTOR
88263-24020	UZZ40	08/2005 - 12/2999	1
88263-24020	UZZ40	05/2001 - 08/2005	1
89183A - SENSOR, YAWRATE
89183-30060	UZZ40	08/2005 - 12/2999	1
89183-30060	UZZ40	05/2001 - 08/2005	1
89245A - SENSOR, STEERING
89245-50030	UZZ40..EUR,GCC	05/2001 - 08/2005	1
89245-50030	UZZ40..EUR,GCC	08/2005 - 12/2999	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-24190	UZZ40..LHD	08/2005 - 08/2006	1
89540-24170	UZZ40..LHD	05/2001 - 08/2005	1
89540-24210	UZZ40..LHD	08/2006 - 12/2999	1
89542 - SENSOR, SPEED, FRONT RH
89542-30160	UZZ40	08/2005 - 12/2999	1
89542-30160	UZZ40	05/2001 - 08/2005	1
89543 - SENSOR, SPEED, FRONT LH
89543-30160	UZZ40	05/2001 - 08/2005	1
89543-30160	UZZ40	08/2005 - 12/2999	1
89545 - SENSOR, SPEED, REAR RH
89545-24030	UZZ40	05/2001 - 08/2005	1
89545-24030	UZZ40	08/2005 - 12/2999	1
89546 - SENSOR, SPEED, REAR LH
89546-24020	UZZ40	05/2001 - 08/2005	1
89546-24020	UZZ40	08/2005 - 12/2999	1
89630 - COMPUTER ASSY, TRANSLATE
89630-24060	UZZ40..LHD	08/2005 - 12/2999	1
89633A - RELAY, TRACTION CONTROL OR VSC
89633-24010	UZZ40	08/2005 - 12/2999	1
89633-24010	UZZ40	05/2001 - 08/2005	1
Common parts
90119-06375
90179-06161
90179-06274
91615-60825
91621-J0612
91631-J0612
91651-B0616

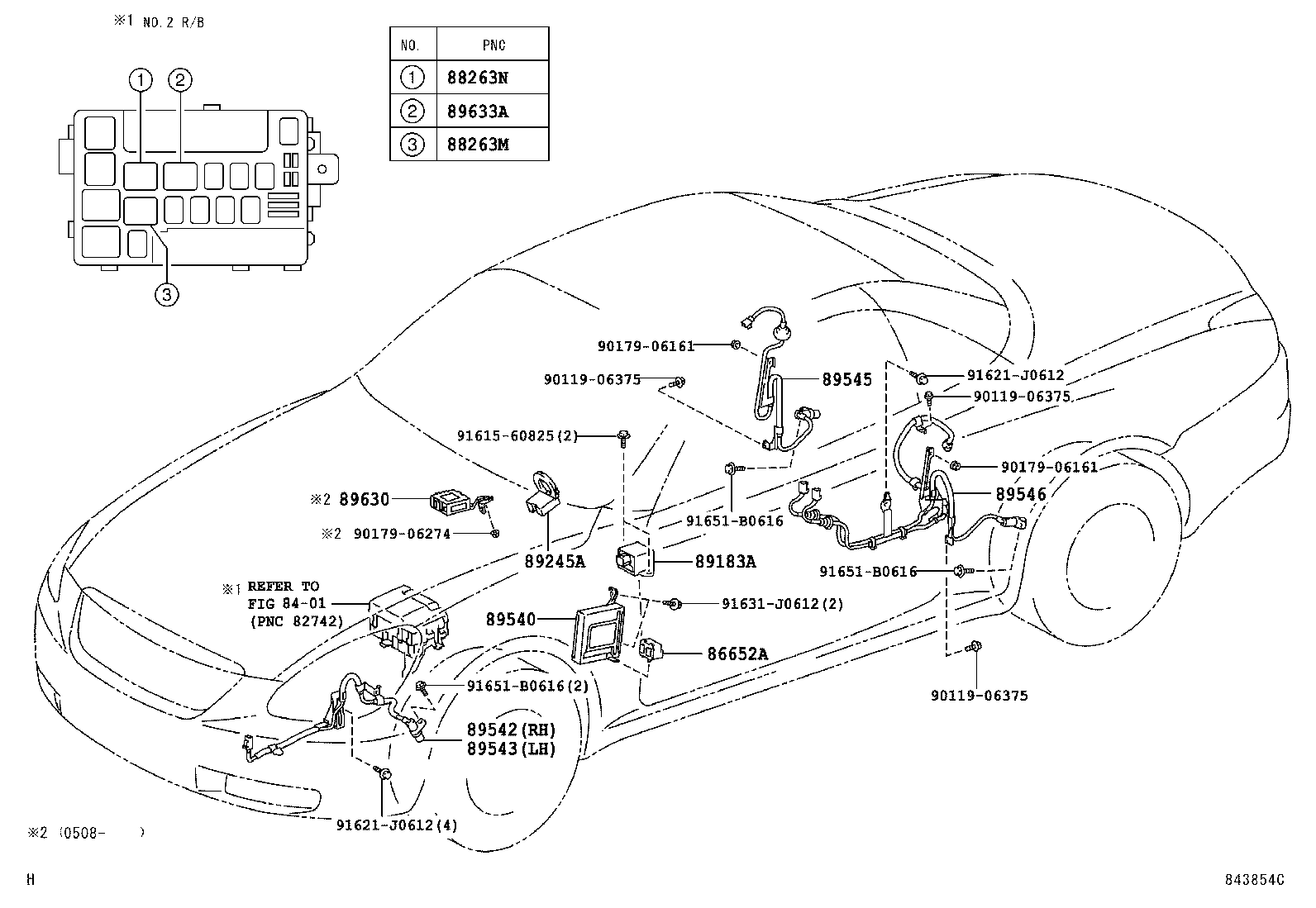

Linked diagrams
8401

UZZ40L-DKTQKW (2005)
