Toyota Lexus sc430 UZZ40 WIRING & CLAMP

UZZ40L-DKTQKW (2005)

Toyota Lexus Sc430

Production Aug 2005 - Jul 2010

Engine 3UZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 8(0105- )LHD

Click highlighted areas on diagram

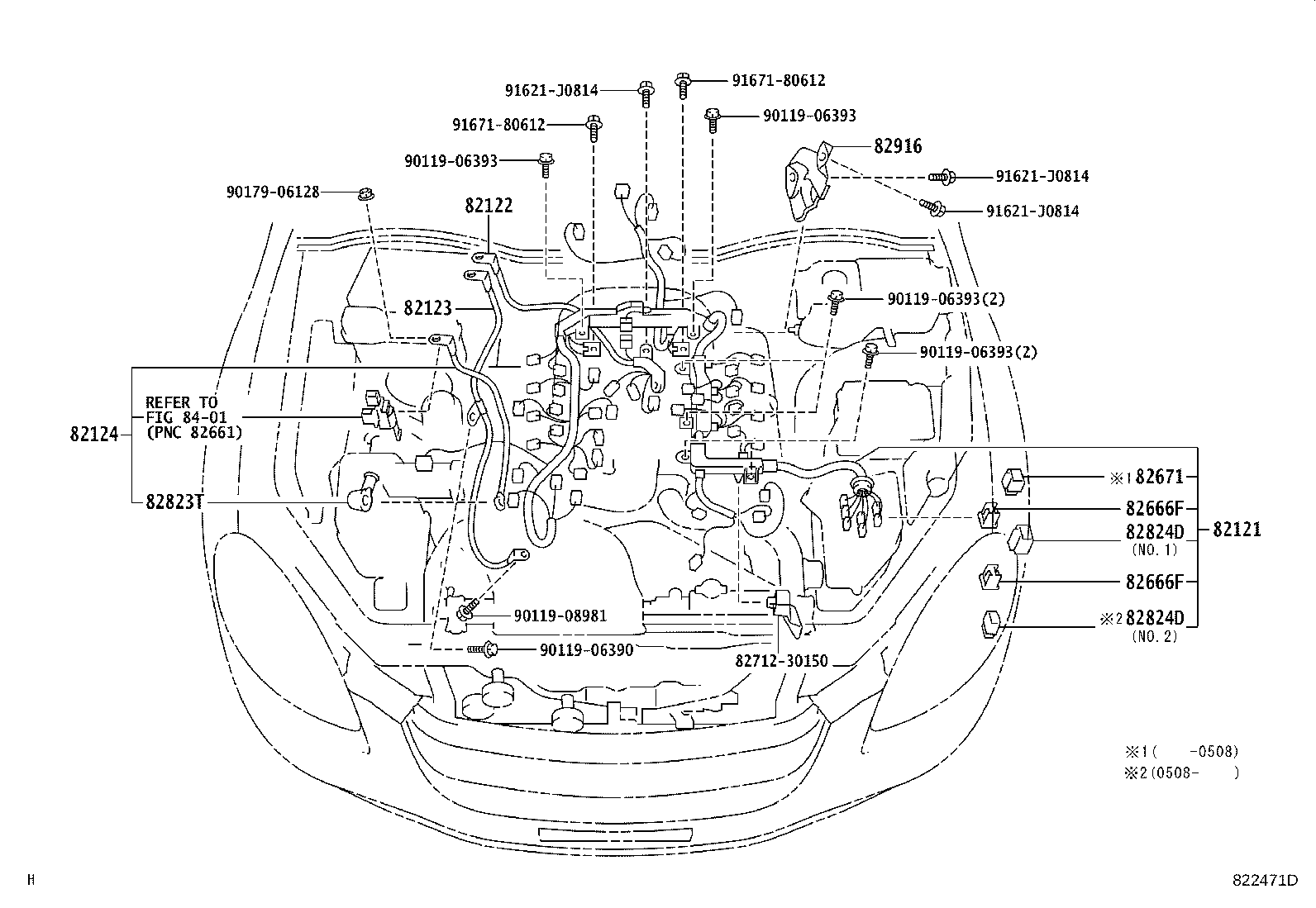

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-24800	UZZ40	08/2005 - 12/2999	1
82122 - WIRE, ENGINE, NO.2
82122-24341	UZZ40..LHD	08/2005 - 12/2999	1
82122-24340	UZZ40..LHD	05/2001 - 08/2005	1
82123 - WIRE, ENGINE, NO.3
82123-24040	UZZ40..LHD	08/2005 - 12/2999	1
82123-24040	UZZ40..LHD	05/2001 - 08/2005	1
82124 - WIRE, ENGINE, NO.4
82124-24011	UZZ40..LHD	08/2005 - 12/2999	1
82124-24011	UZZ40..LHD	05/2001 - 08/2005	1
82666F - HOLDER, CONNECTOR NO.7
82666-30670	UZZ40	08/2005 - 12/2999	2
82666-30670	UZZ40	05/2001 - 08/2005	2
82666F - HOLDER, CONNECTOR NO.7
82666-30670	UZZ40	08/2005 - 12/2999	2
82666-30670	UZZ40	05/2001 - 08/2005	2
82671 - BLOCK, JUNCTION
82671-30350	UZZ40	05/2001 - 08/2005	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22070	UZZ40	08/2005 - 07/2010	1
82823-22070	UZZ40	05/2001 - 08/2005	1
82824D - CONNECTOR, WIRING HARNESS
82824-22070	UZZ40 NO.1	08/2005 - 12/2999	1
82824-22070	UZZ40 NO.1	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.2	08/2005 - 12/2999	1
82824D - CONNECTOR, WIRING HARNESS
82824-22070	UZZ40 NO.1	08/2005 - 12/2999	1
82824-22070	UZZ40 NO.1	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.2	08/2005 - 12/2999	1
82916 - INSULATOR, WIRING HARNESS HEAT, NO.2
82916-50020	UZZ40	05/2001 - 08/2005	1
82916-50020	UZZ40	08/2005 - 12/2999	1
Common parts
82712-30150
90119-06390
90119-06393
90119-08981
90179-06128
91621-J0814
91671-80612
Linked diagrams
8401

ILLUST NO. 3 OF 8(0105- )LHD

Click highlighted areas on diagram

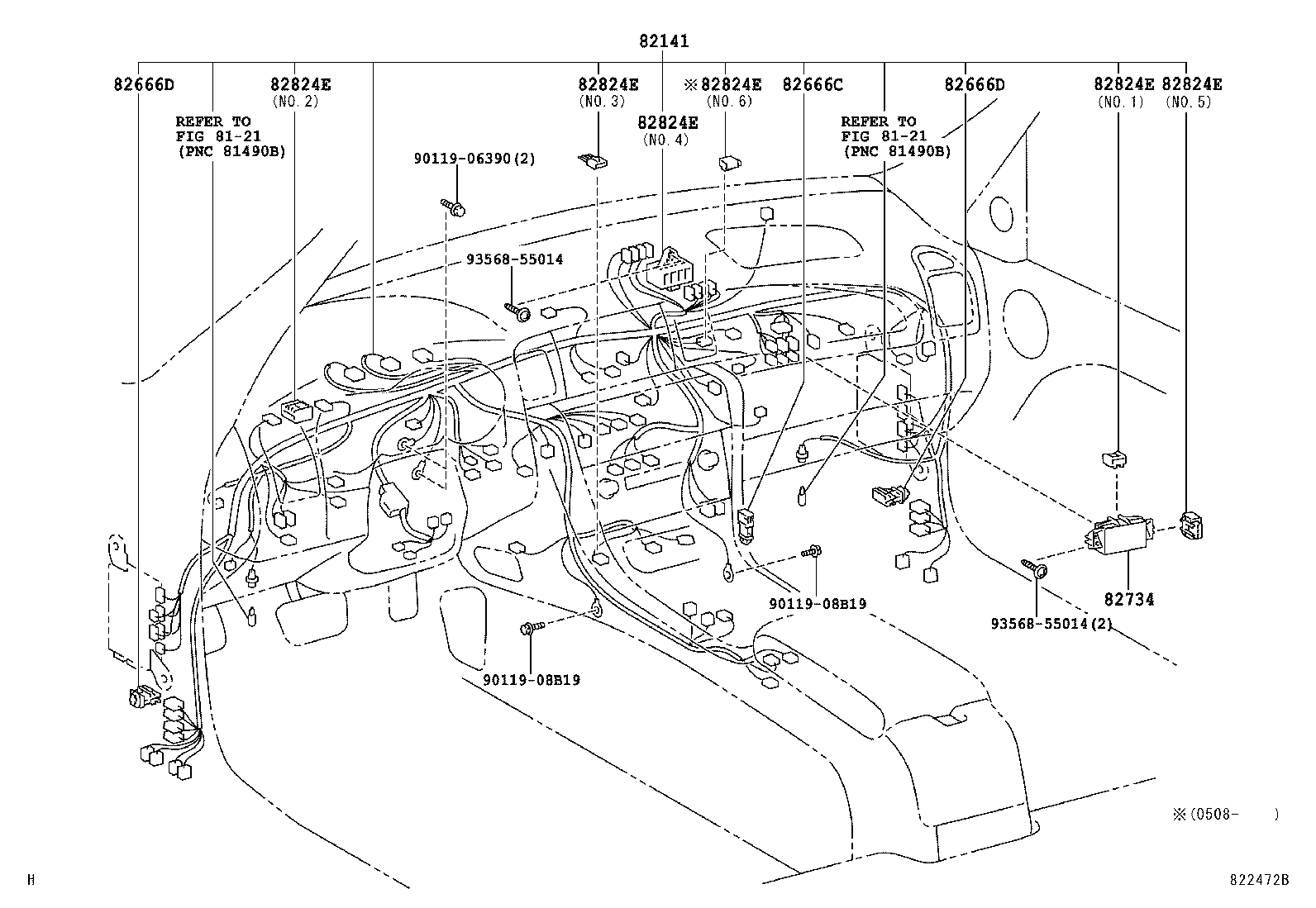

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-24691	UZZ40..LHD..EUR	08/2005 - 08/2006	1
82141-24692	UZZ40..LHD..EUR	08/2006 - 08/2007	1
82141-24693	UZZ40..LHD..EUR	08/2007 - 08/2008	1
82141-24694	UZZ40..LHD..EUR	08/2008 - 12/2999	1
82666C - HOLDER, CONNECTOR NO.4
82666-20270	UZZ40	05/2001 - 08/2005	1
82666-20270	UZZ40	08/2005 - 12/2999	1
82666D - HOLDER, CONNECTOR NO.5
82666-42020	UZZ40	05/2001 - 08/2005	2
82666-42020	UZZ40	08/2005 - 12/2999	2
82666D - HOLDER, CONNECTOR NO.5
82666-42020	UZZ40	05/2001 - 08/2005	2
82666-42020	UZZ40	08/2005 - 12/2999	2
82734 - BLOCK, CENTER JUNCTION
82734-24010	UZZ40	08/2005 - 12/2999	1
82734-24010	UZZ40	05/2001 - 08/2005	1
82824E - CONNECTOR, WIRING HARNESS
82824-28180	UZZ40 NO.2	08/2005 - 12/2999	1
82824-28180	UZZ40 NO.2	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.5	08/2005 - 12/2999	1
82824-30210	UZZ40 NO.4	05/2001 - 08/2005	1
82824-20110	UZZ40 NO.1	08/2005 - 12/2999	1
82824-30210	UZZ40 NO.4	08/2005 - 12/2999	1
82824-30130	UZZ40 NO.3	08/2005 - 12/2999	1
82824-30130	UZZ40 NO.3	05/2001 - 08/2005	1
82824-52080	UZZ40 NO.6	08/2005 - 12/2999	1
82824-20110	UZZ40 NO.1	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.5	05/2001 - 08/2005	1
82824E - CONNECTOR, WIRING HARNESS
82824-28180	UZZ40 NO.2	08/2005 - 12/2999	1
82824-28180	UZZ40 NO.2	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.5	08/2005 - 12/2999	1
82824-30210	UZZ40 NO.4	05/2001 - 08/2005	1
82824-20110	UZZ40 NO.1	08/2005 - 12/2999	1
82824-30210	UZZ40 NO.4	08/2005 - 12/2999	1
82824-30130	UZZ40 NO.3	08/2005 - 12/2999	1
82824-30130	UZZ40 NO.3	05/2001 - 08/2005	1
82824-52080	UZZ40 NO.6	08/2005 - 12/2999	1
82824-20110	UZZ40 NO.1	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.5	05/2001 - 08/2005	1
82824E - CONNECTOR, WIRING HARNESS
82824-28180	UZZ40 NO.2	08/2005 - 12/2999	1
82824-28180	UZZ40 NO.2	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.5	08/2005 - 12/2999	1
82824-30210	UZZ40 NO.4	05/2001 - 08/2005	1
82824-20110	UZZ40 NO.1	08/2005 - 12/2999	1
82824-30210	UZZ40 NO.4	08/2005 - 12/2999	1
82824-30130	UZZ40 NO.3	08/2005 - 12/2999	1
82824-30130	UZZ40 NO.3	05/2001 - 08/2005	1
82824-52080	UZZ40 NO.6	08/2005 - 12/2999	1
82824-20110	UZZ40 NO.1	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.5	05/2001 - 08/2005	1
82824E - CONNECTOR, WIRING HARNESS
82824-28180	UZZ40 NO.2	08/2005 - 12/2999	1
82824-28180	UZZ40 NO.2	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.5	08/2005 - 12/2999	1
82824-30210	UZZ40 NO.4	05/2001 - 08/2005	1
82824-20110	UZZ40 NO.1	08/2005 - 12/2999	1
82824-30210	UZZ40 NO.4	08/2005 - 12/2999	1
82824-30130	UZZ40 NO.3	08/2005 - 12/2999	1
82824-30130	UZZ40 NO.3	05/2001 - 08/2005	1
82824-52080	UZZ40 NO.6	08/2005 - 12/2999	1
82824-20110	UZZ40 NO.1	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.5	05/2001 - 08/2005	1
82824E - CONNECTOR, WIRING HARNESS
82824-28180	UZZ40 NO.2	08/2005 - 12/2999	1
82824-28180	UZZ40 NO.2	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.5	08/2005 - 12/2999	1
82824-30210	UZZ40 NO.4	05/2001 - 08/2005	1
82824-20110	UZZ40 NO.1	08/2005 - 12/2999	1
82824-30210	UZZ40 NO.4	08/2005 - 12/2999	1
82824-30130	UZZ40 NO.3	08/2005 - 12/2999	1
82824-30130	UZZ40 NO.3	05/2001 - 08/2005	1
82824-52080	UZZ40 NO.6	08/2005 - 12/2999	1
82824-20110	UZZ40 NO.1	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.5	05/2001 - 08/2005	1
82824E - CONNECTOR, WIRING HARNESS
82824-28180	UZZ40 NO.2	08/2005 - 12/2999	1
82824-28180	UZZ40 NO.2	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.5	08/2005 - 12/2999	1
82824-30210	UZZ40 NO.4	05/2001 - 08/2005	1
82824-20110	UZZ40 NO.1	08/2005 - 12/2999	1
82824-30210	UZZ40 NO.4	08/2005 - 12/2999	1
82824-30130	UZZ40 NO.3	08/2005 - 12/2999	1
82824-30130	UZZ40 NO.3	05/2001 - 08/2005	1
82824-52080	UZZ40 NO.6	08/2005 - 12/2999	1
82824-20110	UZZ40 NO.1	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.5	05/2001 - 08/2005	1
Common parts
90119-06390
90119-08B19
93568-55014
Linked diagrams
8121

ILLUST NO. 5 OF 8(0105- )

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty
82191 - WIRE, FRONT SEAT, RH
82191-24130	UZZ40..LHD	05/2001 - 08/2005	1
82191-24140	UZZ40..LHD W(SEAT HEATER)	05/2001 - 08/2005	1
82191-24140	UZZ40..LHD W(SEAT HEATER)	08/2005 - 08/2006	1
82191-24130	UZZ40..LHD	08/2005 - 08/2006	1
82191-24141	UZZ40	08/2006 - 12/2999	1
82192 - WIRE, FRONT SEAT, LH
82192-24030	UZZ40..LHD	05/2001 - 08/2005	1
82192-24030	UZZ40..LHD	08/2005 - 08/2006	1
82192-24140	UZZ40..LHD W(SEAT HEATER)	05/2001 - 08/2005	1
82192-24140	UZZ40..LHD W(SEAT HEATER)	08/2005 - 08/2006	1
82192-24141	UZZ40	08/2006 - 12/2999	1
82824H - CONNECTOR, WIRING HARNESS
82824-24040	UZZ40 NO.2	05/2001 - 08/2005	1
82824-22070	UZZ40 NO.1	08/2005 - 12/2999	2
82824-22070	UZZ40 NO.1	05/2001 - 08/2005	2
82824-24040	UZZ40 NO.2	08/2005 - 12/2999	1
82824H - CONNECTOR, WIRING HARNESS
82824-24040	UZZ40 NO.2	05/2001 - 08/2005	1
82824-22070	UZZ40 NO.1	08/2005 - 12/2999	2
82824-22070	UZZ40 NO.1	05/2001 - 08/2005	2
82824-24040	UZZ40 NO.2	08/2005 - 12/2999	1
82824H - CONNECTOR, WIRING HARNESS
82824-24040	UZZ40 NO.2	05/2001 - 08/2005	1
82824-22070	UZZ40 NO.1	08/2005 - 12/2999	2
82824-22070	UZZ40 NO.1	05/2001 - 08/2005	2
82824-24040	UZZ40 NO.2	08/2005 - 12/2999	1
82824J - CONNECTOR, WIRING HARNESS
82824-24040	UZZ40 NO.2	05/2001 - 08/2005	1
82824-24040	UZZ40 NO.2	08/2005 - 12/2999	1
82824-22070	UZZ40 NO.1	08/2005 - 12/2999	2
82824-22070	UZZ40 NO.1	05/2001 - 08/2005	2
82824J - CONNECTOR, WIRING HARNESS
82824-24040	UZZ40 NO.2	05/2001 - 08/2005	1
82824-24040	UZZ40 NO.2	08/2005 - 12/2999	1
82824-22070	UZZ40 NO.1	08/2005 - 12/2999	2
82824-22070	UZZ40 NO.1	05/2001 - 08/2005	2
82824J - CONNECTOR, WIRING HARNESS
82824-24040	UZZ40 NO.2	05/2001 - 08/2005	1
82824-24040	UZZ40 NO.2	08/2005 - 12/2999	1
82824-22070	UZZ40 NO.1	08/2005 - 12/2999	2
82824-22070	UZZ40 NO.1	05/2001 - 08/2005	2

ILLUST NO. 6 OF 8(0105- )

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07194	UZZ40	08/2005 - 12/2999	1
90980-07194	UZZ40	05/2001 - 08/2005	1
82001C - CABLE, BOND, NO.2
90980-07403	UZZ40	05/2001 - 08/2005	1
90980-07403	UZZ40	08/2005 - 12/2999	1
86214A - BRACKET, RADIO EARTH
82046-30050	UZZ40	05/2001 - 08/2005	1
82046-30050	UZZ40	08/2005 - 12/2999	1
Common parts
90119-06067
90179-06161
90989-01104
91621-J0814

ILLUST NO. 4 OF 8(0105- )

Click highlighted areas on diagram

DOOR,ROOF,FLOOR & LUGGAGE

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-24320	UZZ40..LHD..EUR W(DOUBLE-LOCK)	05/2001 - 08/2005	1
82151-24320	UZZ40..LHD..EUR W(DOUBLE-LOCK)	08/2005 - 08/2006	1
82151-24310	UZZ40..LHD	05/2001 - 08/2005	1
82151-24310	UZZ40..LHD	08/2005 - 08/2006	1
82151-24321	UZZ40..LHD..EUR W(DOUBLE-LOCK)	08/2006 - 07/2007	1
82151-24313	UZZ40..LHD	08/2008 - 08/2009	1
82151-24311	UZZ40..LHD	08/2006 - 07/2007	1
82151-24312	UZZ40..LHD	08/2007 - 08/2008	1
82151-24323	UZZ40..LHD..EUR W(DOUBLE-LOCK)	08/2008 - 08/2009	1
82151-24324	UZZ40..LHD..EUR W(DOUBLE-LOCK)	08/2009 - 12/2999	1
82151-24314	UZZ40..LHD	08/2009 - 12/2999	1
82151-24322	UZZ40..LHD..EUR W(DOUBLE-LOCK)	08/2007 - 08/2008	1
82152 - WIRE, FRONT DOOR, LH
82152-24220	UZZ40..LHD..EUR W(DOUBLE-LOCK)	08/2005 - 08/2006	1
82152-24210	UZZ40..LHD	08/2005 - 08/2006	1
82152-24220	UZZ40..LHD..EUR W(DOUBLE-LOCK)	05/2001 - 08/2005	1
82152-24222	UZZ40..LHD..EUR W(DOUBLE-LOCK)	08/2007 - 08/2008	1
82152-24212	UZZ40..LHD	08/2007 - 08/2008	1
82152-24211	UZZ40..LHD	08/2006 - 07/2007	1
82152-24210	UZZ40..LHD	05/2001 - 08/2005	1
82152-24214	UZZ40..LHD	08/2009 - 12/2999	1
82152-24221	UZZ40..LHD..EUR W(DOUBLE-LOCK)	08/2006 - 07/2007	1
82152-24223	UZZ40..LHD..EUR W(DOUBLE-LOCK)	08/2008 - 08/2009	1
82152-24213	UZZ40..LHD	08/2008 - 08/2009	1
82152-24224	UZZ40..LHD..EUR W(DOUBLE-LOCK)	08/2009 - 12/2999	1
82161 - WIRE, FLOOR
82161-24604	UZZ40..LHD	08/2005 - 08/2006	1
82161-24607	UZZ40..LHD	08/2008 - 08/2009	1
82161-24605	UZZ40..LHD	08/2006 - 07/2007	1
82161-24606	UZZ40..LHD	08/2007 - 08/2008	1
82161-24608	UZZ40..LHD	08/2009 - 12/2999	1
82162 - WIRE, FLOOR, NO.2
82162-24192	UZZ40..LHD	08/2005 - 08/2006	1
82162-24194	UZZ40..LHD	08/2007 - 08/2008	1
82162-24196	UZZ40..LHD	08/2009 - 12/2999	1
82162-24195	UZZ40..LHD	08/2008 - 08/2009	1
82162-24190	UZZ40..LHD	05/2001 - 05/2002	1
82162-24193	UZZ40..LHD	08/2006 - 07/2007	1
82163 - WIRE, FLOOR, NO.3
82163-24280	UZZ40..ARL,EUR	08/2005 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-24191	UZZ40..LHD	08/2005 - 12/2999	1
82172 - WIRE, ROOF, NO.2
82172-24100	UZZ40	08/2005 - 12/2999	1
82172-24100	UZZ40	05/2001 - 08/2005	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-24050	UZZ40	05/2001 - 08/2005	1
82181-24050	UZZ40	08/2005 - 12/2999	1
82666G - HOLDER, CONNECTOR NO.8
82666-26080	UZZ40	08/2005 - 12/2999	1
82666-26080	UZZ40	05/2001 - 08/2005	1
82666L - HOLDER, CONNECTOR NO.9
82666-42020	UZZ40	05/2001 - 08/2005	1
82666-42020	UZZ40	08/2005 - 12/2999	1
82666N - HOLDER, CONNECTOR NO.10
82666-21040	UZZ40	05/2001 - 08/2005	1
82666-21040	UZZ40	08/2005 - 12/2999	1
82666P - HOLDER, CONNECTOR NO.11
82666-26080	UZZ40	05/2001 - 08/2005	1
82666-26080	UZZ40	08/2005 - 12/2999	1
82666Q - HOLDER, CONNECTOR NO.12
82666-42020	UZZ40	08/2005 - 12/2999	1
82666-42020	UZZ40	05/2001 - 08/2005	1
82666S - HOLDER, CONNECTOR NO.13
82666-60030	UZZ40	05/2001 - 08/2005	2
82666-60030	UZZ40	08/2005 - 12/2999	2
82666S - HOLDER, CONNECTOR NO.13
82666-60030	UZZ40	05/2001 - 08/2005	2
82666-60030	UZZ40	08/2005 - 12/2999	2
82666T - HOLDER, CONNECTOR NO.14
82666-20270	UZZ40 NO.2	05/2001 - 08/2005	1
82666-20270	UZZ40 NO.2	08/2005 - 12/2999	1
82666T - HOLDER, CONNECTOR NO.14
82666-20270	UZZ40 NO.2	05/2001 - 08/2005	1
82666-20270	UZZ40 NO.2	08/2005 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
58168-24010	UZZ40	05/2001 - 08/2005	1
58168-24011	UZZ40	04/2008 - 12/2999	1
58168-24010	UZZ40	08/2005 - 03/2008	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-24760	UZZ40..ARL,EUR	08/2005 - 12/2999	1
82824F - CONNECTOR, WIRING HARNESS
82824-16040	UZZ40 NO.1	05/2001 - 08/2005	1
82824-22070	UZZ40 NO.2	08/2005 - 12/2999	1
82824-16040	UZZ40 NO.1	08/2005 - 12/2999	1
82824F - CONNECTOR, WIRING HARNESS
82824-16040	UZZ40 NO.1	05/2001 - 08/2005	1
82824-22070	UZZ40 NO.2	08/2005 - 12/2999	1
82824-16040	UZZ40 NO.1	08/2005 - 12/2999	1
82824F - CONNECTOR, WIRING HARNESS
82824-16040	UZZ40 NO.1	05/2001 - 08/2005	1
82824-22070	UZZ40 NO.2	08/2005 - 12/2999	1
82824-16040	UZZ40 NO.1	08/2005 - 12/2999	1
82824F - CONNECTOR, WIRING HARNESS
82824-16040	UZZ40 NO.1	05/2001 - 08/2005	1
82824-22070	UZZ40 NO.2	08/2005 - 12/2999	1
82824-16040	UZZ40 NO.1	08/2005 - 12/2999	1
82824G - CONNECTOR, WIRING HARNESS
82824-16040	UZZ40	08/2005 - 12/2999	1
82824-16040	UZZ40	05/2001 - 08/2005	1
Common parts
82666-50390
82666-50400
82811-24010
82811-24020
90119-06390
90119-06484
90179-06274
90467-06124
90467-06155

ILLUST NO. 7 OF 8(0105- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
78185-20080
82711-1E300
82711-24010
82711-51010
82712-30170
82715-24030
82715-24240
82715-30590
82715-30600
82715-3A030
82715-3A040
82715-3A050
82715-3A160
82715-3A270
82715-50030
82715-50350
82715-50440
82715-50510
82715-50540
82715-50550
82715-50560
90119-06375
90119-06390
90179-06274
90463-15003
91551-A0612
91621-J0612
91621-J0814

ILLUST NO. 8 OF 8(0105- )

Click highlighted areas on diagram

CONNECTOR

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10858
90980-10887
90980-10931
90980-11003
90980-11019
90980-11028
90980-11033
90980-11156
90980-11159
90980-11162
90980-11255
90980-11399
90980-11659
90980-11875
90980-11967

ILLUST NO. 1 OF 8(0105- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-2U021	UZZ40..LHD	05/2001 - 05/2002	1
82111-2U024	UZZ40..LHD	08/2006 - 07/2007	1
82111-2U023	UZZ40..LHD	08/2005 - 08/2006	1
82111-2U025	UZZ40..LHD	08/2007 - 08/2008	1
82111-2U026	UZZ40..LHD	08/2008 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-30610	UZZ40 NO.2	05/2001 - 08/2005	1
82666-30610	UZZ40 NO.2	08/2005 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-30610	UZZ40 NO.2	05/2001 - 08/2005	1
82666-30610	UZZ40 NO.2	08/2005 - 12/2999	1
82666E - HOLDER, CONNECTOR NO.6
82666-22140	UZZ40	05/2001 - 08/2005	2
82666-22140	UZZ40	08/2005 - 12/2999	2
82666E - HOLDER, CONNECTOR NO.6
82666-22140	UZZ40	05/2001 - 08/2005	2
82666-22140	UZZ40	08/2005 - 12/2999	2
82824 - CONNECTOR, WIRING HARNESS
82824-12210	UZZ40 NO.1	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.3	05/2001 - 08/2005	1
82824-50110	UZZ40 NO.5	05/2001 - 08/2005	1
82824-22070	UZZ40 NO.2	05/2001 - 08/2005	1
82824-30170	UZZ40 NO.1	08/2005 - 12/2999	1
82824-48010	UZZ40 NO.4	08/2005 - 12/2999	2
82824-30220	UZZ40 NO.3	08/2005 - 12/2999	1
82824-50110	UZZ40 NO.5	08/2005 - 12/2999	1
82824-48010	UZZ40 NO.4	05/2001 - 08/2005	2
82824-22070	UZZ40 NO.2	08/2005 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-12210	UZZ40 NO.1	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.3	05/2001 - 08/2005	1
82824-50110	UZZ40 NO.5	05/2001 - 08/2005	1
82824-22070	UZZ40 NO.2	05/2001 - 08/2005	1
82824-30170	UZZ40 NO.1	08/2005 - 12/2999	1
82824-48010	UZZ40 NO.4	08/2005 - 12/2999	2
82824-30220	UZZ40 NO.3	08/2005 - 12/2999	1
82824-50110	UZZ40 NO.5	08/2005 - 12/2999	1
82824-48010	UZZ40 NO.4	05/2001 - 08/2005	2
82824-22070	UZZ40 NO.2	08/2005 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-12210	UZZ40 NO.1	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.3	05/2001 - 08/2005	1
82824-50110	UZZ40 NO.5	05/2001 - 08/2005	1
82824-22070	UZZ40 NO.2	05/2001 - 08/2005	1
82824-30170	UZZ40 NO.1	08/2005 - 12/2999	1
82824-48010	UZZ40 NO.4	08/2005 - 12/2999	2
82824-30220	UZZ40 NO.3	08/2005 - 12/2999	1
82824-50110	UZZ40 NO.5	08/2005 - 12/2999	1
82824-48010	UZZ40 NO.4	05/2001 - 08/2005	2
82824-22070	UZZ40 NO.2	08/2005 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-12210	UZZ40 NO.1	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.3	05/2001 - 08/2005	1
82824-50110	UZZ40 NO.5	05/2001 - 08/2005	1
82824-22070	UZZ40 NO.2	05/2001 - 08/2005	1
82824-30170	UZZ40 NO.1	08/2005 - 12/2999	1
82824-48010	UZZ40 NO.4	08/2005 - 12/2999	2
82824-30220	UZZ40 NO.3	08/2005 - 12/2999	1
82824-50110	UZZ40 NO.5	08/2005 - 12/2999	1
82824-48010	UZZ40 NO.4	05/2001 - 08/2005	2
82824-22070	UZZ40 NO.2	08/2005 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-12210	UZZ40 NO.1	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.3	05/2001 - 08/2005	1
82824-50110	UZZ40 NO.5	05/2001 - 08/2005	1
82824-22070	UZZ40 NO.2	05/2001 - 08/2005	1
82824-30170	UZZ40 NO.1	08/2005 - 12/2999	1
82824-48010	UZZ40 NO.4	08/2005 - 12/2999	2
82824-30220	UZZ40 NO.3	08/2005 - 12/2999	1
82824-50110	UZZ40 NO.5	08/2005 - 12/2999	1
82824-48010	UZZ40 NO.4	05/2001 - 08/2005	2
82824-22070	UZZ40 NO.2	08/2005 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-12210	UZZ40 NO.1	05/2001 - 08/2005	1
82824-30220	UZZ40 NO.3	05/2001 - 08/2005	1
82824-50110	UZZ40 NO.5	05/2001 - 08/2005	1
82824-22070	UZZ40 NO.2	05/2001 - 08/2005	1
82824-30170	UZZ40 NO.1	08/2005 - 12/2999	1
82824-48010	UZZ40 NO.4	08/2005 - 12/2999	2
82824-30220	UZZ40 NO.3	08/2005 - 12/2999	1
82824-50110	UZZ40 NO.5	08/2005 - 12/2999	1
82824-48010	UZZ40 NO.4	05/2001 - 08/2005	2
82824-22070	UZZ40 NO.2	08/2005 - 12/2999	1
Common parts
90119-05021
90119-06390
90119-06651
Linked diagrams
8401

UZZ40L-DKTQKW (2005)

ILLUST NO. 3 OF 8(0105- )LHD

ILLUST NO. 3 OF 8(0105- )LHD

ILLUST NO. 5 OF 8(0105- )

ILLUST NO. 6 OF 8(0105- )

ILLUST NO. 4 OF 8(0105- )

ILLUST NO. 7 OF 8(0105- )

ILLUST NO. 8 OF 8(0105- )

ILLUST NO. 1 OF 8(0105- )

Part Price Details
