UZZ40L-DKTQKW (2005)
Toyota Lexus Sc430

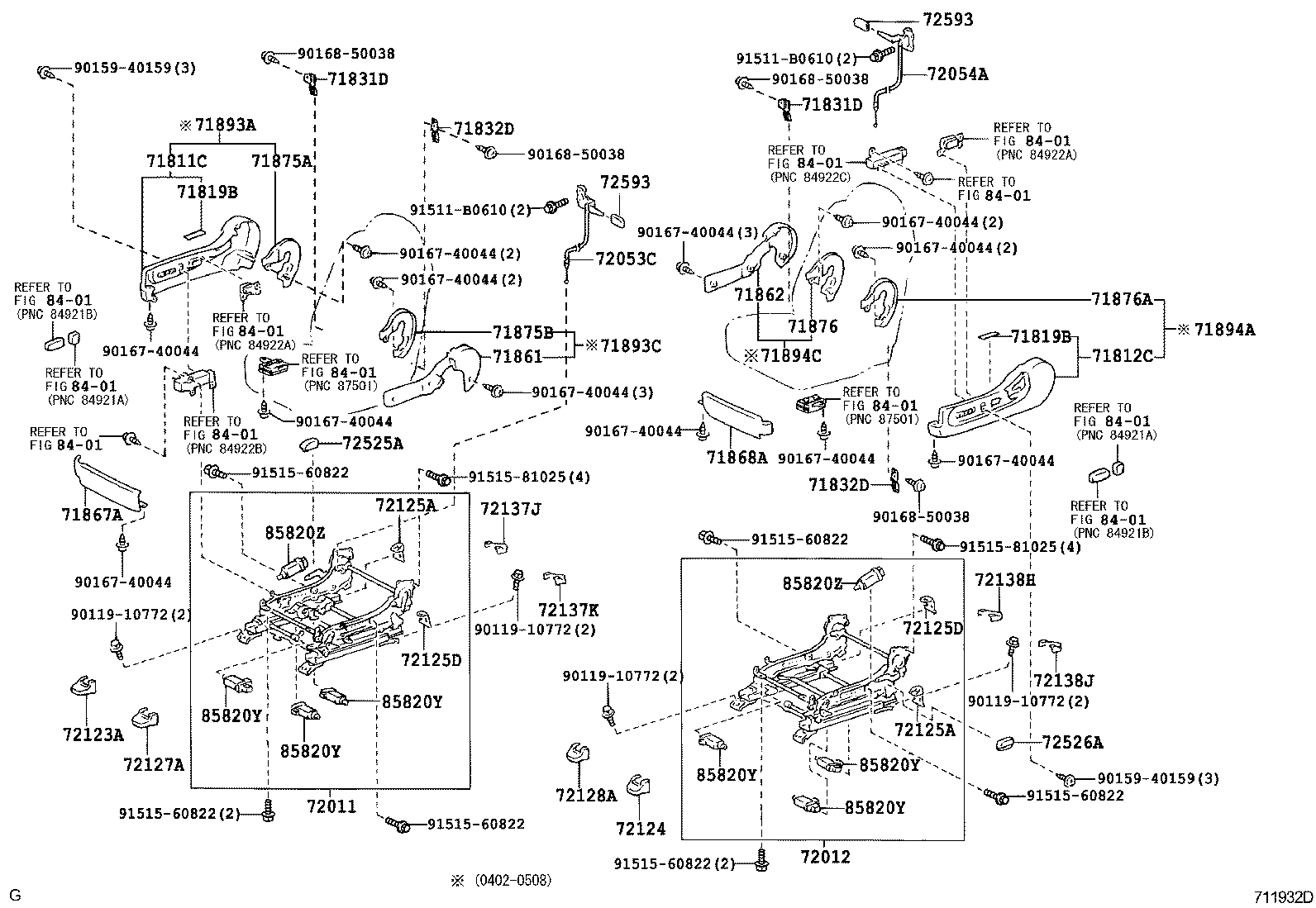

ILLUST NO. 2 OF 2(0105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-24140C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 71811-24141E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71811-24141C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71811-24160A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71811-24160C0 |
UZZ40 BLACK,TRIM2# |
1 | ||
| 71811-24160E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71811-24141A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71811-24140A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-24111A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71812-24110C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 71812-24110A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71812-24111C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71812-24111E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020C0 |
UZZ40 BLACK,TRIM20,21 |
2 | ||
| 71819-12020A2 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 71819-12020A2 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 71819-12020C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
2 | ||
| 71819-12020E7 |
UZZ40 CAMEL,TRIM4# |
2 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020C0 |
UZZ40 BLACK,TRIM20,21 |
2 | ||
| 71819-12020A2 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 71819-12020A2 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 71819-12020C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
2 | ||
| 71819-12020E7 |
UZZ40 CAMEL,TRIM4# |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-24040 |
UZZ40 |
2 | ||
| 71831-24040 |
UZZ40 |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-24040 |
UZZ40 |
2 | ||
| 71831-24040 |
UZZ40 |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-24030 |
UZZ40 |
2 | ||
| 71832-24030 |
UZZ40 |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-24030 |
UZZ40 |
2 | ||
| 71832-24030 |
UZZ40 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-24050A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71861-24051A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71861-24050C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 71861-24051E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71861-24051C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-24050A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71862-24051A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71862-24051C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71862-24051E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71862-24050C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-24040A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71867-24040E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71867-24040A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71867-24040C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71867-24040C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-24040C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71868-24040E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71868-24040A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71868-24040C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 71868-24040A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-24051E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71875-24051A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71875-24051C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-24061A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71875-24061C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71875-24061E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-24050C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 71875-24051E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71875-24051C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71875-24051A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71875-24050A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-24060C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 71875-24061A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71875-24060A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71875-24061E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71875-24061C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-24180 |
UZZ40..LHD |
1 | ||
| 72010-24190 |
UZZ40..LHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-24140 |
UZZ40..LHD |
1 | ||
| 72020-24170 |
UZZ40..LHD |
1 | ||
| 72020-24190 |
UZZ40..LHD |
1 | ||
| 72053C - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH | ||||
| 72053-24010 |
UZZ40 |
1 | ||
| 72053-24010 |
UZZ40 |
1 | ||
| 72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72054-24010 |
UZZ40 |
1 | ||
| 72054-24010 |
UZZ40 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-24030A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72123-24030A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72123-24030C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 72123-24030E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 72123-24030C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-24020A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72124-24020A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72124-24020E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 72124-24020C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 72124-24020C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-30030 |
UZZ40 |
2 | ||
| 72125-30030 |
UZZ40 |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-30030 |
UZZ40 |
2 | ||
| 72125-30030 |
UZZ40 |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-30040 |
UZZ40 |
2 | ||
| 72125-30040 |
UZZ40 |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-30040 |
UZZ40 |
2 | ||
| 72125-30040 |
UZZ40 |
2 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-51010A1 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72123-51010E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 72123-51010A1 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72123-51010C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 72123-51010C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-51010A1 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72123-51010C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 72123-51010A1 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72123-51010E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 72123-51010C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-24030C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 72137-24030A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72137-24030C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 72137-24030A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72137-24030E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72137-30110C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 72137-30110A1 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72137-30110E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 72137-30110C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 72137-30110A1 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72137-30110A1 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72137-30110C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 72137-30110C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 72137-30110A1 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72137-30110E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-24010A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72138-24010E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 72138-24010C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 72138-24010A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72138-24010C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-24040A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72525-24040C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 72525-24040A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72525-24040E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 72525-24040C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-24040A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72526-24040C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 72526-24040E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 72526-24040C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 72526-24040A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72593 - KNOB, RECLINING REMOTE CONTROL LEVER | ||||
| 72593-24020A0 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 72593-24020E0 |
UZZ40 CAMEL,TRIM4# |
2 | ||
| 72593-24020C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
2 | ||
| 72593-24020C0 |
UZZ40 BLACK,TRIM20,21 |
2 | ||
| 72593-24020A0 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 72593 - KNOB, RECLINING REMOTE CONTROL LEVER | ||||
| 72593-24020A0 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 72593-24020E0 |
UZZ40 CAMEL,TRIM4# |
2 | ||
| 72593-24020C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
2 | ||
| 72593-24020C0 |
UZZ40 BLACK,TRIM20,21 |
2 | ||
| 72593-24020A0 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-30710 |
UZZ40 |
6 | ||
| 85820-30710 |
UZZ40 |
6 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-30710 |
UZZ40 |
6 | ||
| 85820-30710 |
UZZ40 |
6 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-30710 |
UZZ40 |
6 | ||
| 85820-30710 |
UZZ40 |
6 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-30710 |
UZZ40 |
6 | ||
| 85820-30710 |
UZZ40 |
6 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-30710 |
UZZ40 |
6 | ||
| 85820-30710 |
UZZ40 |
6 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85820-30710 |
UZZ40 |
6 | ||
| 85820-30710 |
UZZ40 |
6 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85820-50320 |
UZZ40 |
2 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85820-50320 |
UZZ40 |
2 | ||
| Common parts | ||||
| 90119-10772 | ||||
| 90159-40159 | ||||
| 90167-40044 | ||||
| 90168-50038 | ||||
| 91511-B0610 | ||||
| 91515-60822 | ||||
| 91515-81025 | ||||
| Linked diagrams | ||||
| 8401 | ||||

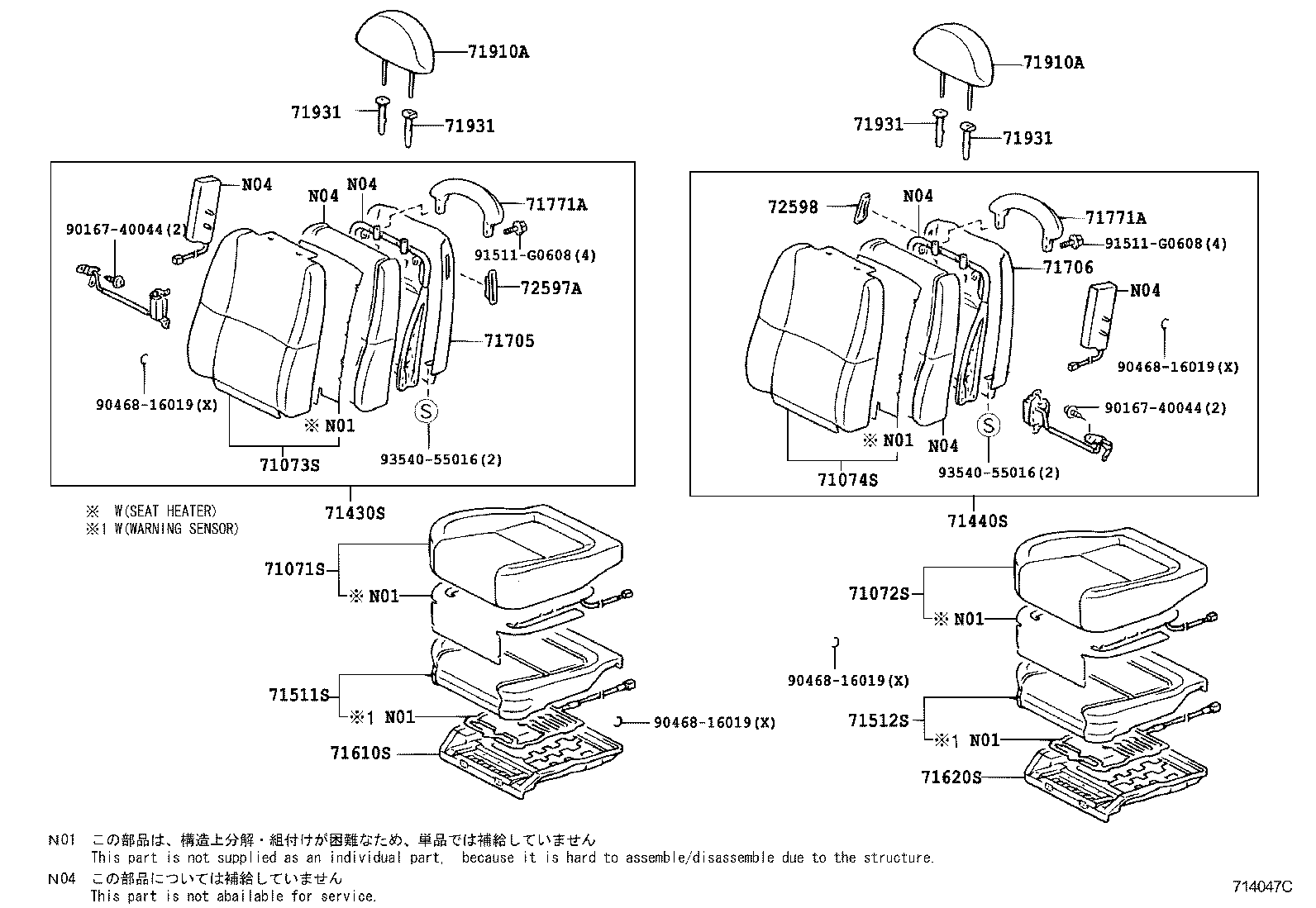

ILLUST NO. 1 OF 2(0105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-24400E0 |
UZZ40 SADDLE TAN,TRIM21 |
1 | ||
| 71071-24410C0 |
UZZ40 W(SEAT HEATER),BLACK,TRIM20 |
1 | ||
| 71071-24400C0 |
UZZ40 BLACK,TRIM20 |
1 | ||
| 71071-24450C0 |
UZZ40..LHD..EUR CHINA SPEC,BLACK,TRIM2# |
1 | ||
| 71071-24400A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71071-24410E0 |
UZZ40 W(SEAT HEATER),SADDLE TAN,TRIM21 |
1 | ||
| 71071-24460E0 |
UZZ40..LHD..EUR CAMEL,TRIM4# |
1 | ||
| 71071-24450E0 |
UZZ40..LHD..EUR CHINA SPEC,CAMEL,TRIM4# |
1 | ||
| 71071-24460A0 |
UZZ40 W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71071-24460C0 |
UZZ40..LHD..EUR BLACK,TRIM2# |
1 | ||
| 71071-24410A0 |
UZZ40 W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71071-24460A0 |
UZZ40..LHD..EUR ECRU,TRIM0# |
1 | ||
| 71071-24460C0 |
UZZ40 W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71071-24450A0 |
UZZ40..LHD..EUR CHINA SPEC,ECRU,TRIM0# |
1 | ||
| 71071-24520E2 |
UZZ40 W(SEAT HEATER),CAMEL,TRIM4# |
1 | ||
| 71071-24460E0 |
UZZ40 W(SEAT HEATER),CAMEL,TRIM4# |
1 | ||
| 71071-24520C1 |
UZZ40 W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71071-24530C1 |
UZZ40 BLACK,TRIM2# |
1 | ||
| 71071-24520A2 |
UZZ40 W(SEAT HEATER),ECRU/ECRU,TRIM0# |
1 | ||
| 71071-24530A1 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71071-24530E2 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-24400C0 |
UZZ40 BLACK,TRIM20 |
1 | ||
| 71072-24410C0 |
UZZ40 W(SEAT HEATER),BLACK,TRIM20 |
1 | ||
| 71072-24400E0 |
UZZ40 SADDLE TAN,TRIM21 |
1 | ||
| 71072-24410A0 |
UZZ40 W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71072-24400A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71072-24410E0 |
UZZ40 W(SEAT HEATER),SADDLE TAN,TRIM21 |
1 | ||
| 71072-24450C0 |
UZZ40..LHD..EUR CHINA SPEC,BLACK,TRIM2# |
1 | ||
| 71072-24460E0 |
UZZ40..LHD..EUR CHINA SPEC & W(SEAT HEATER),CAMEL,TRIM4# |
1 | ||
| 71072-24450A0 |
UZZ40..LHD..EUR CHINA SPEC,ECRU,TRIM0# |
1 | ||
| 71072-24450E0 |
UZZ40..LHD..EUR CHINA SPEC,CAMEL,TRIM4# |
1 | ||
| 71072-24460C0 |
UZZ40..LHD..EUR CHINA SPEC & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71072-24530A1 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71072-24520C1 |
UZZ40 W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71072-24520E2 |
UZZ40 W(SEAT HEATER),CAMEL,TRIM4# |
1 | ||
| 71072-24530C1 |
UZZ40 BLACK,TRIM2# |
1 | ||
| 71072-24530E2 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71072-24520A2 |
UZZ40 W(SEAT HEATER),ECRU/ECRU,TRIM0# |
1 | ||
| 71072-24460A0 |
UZZ40..LHD..EUR CHINA SPEC & W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-24360E0 |
UZZ40..EUR SADDLE TAN,TRIM21 |
1 | ||
| 71073-24360A0 |
UZZ40..EUR,GCC ECRU,TRIM0# |
1 | ||
| 71073-24360C0 |
UZZ40..EUR BLACK,TRIM20 |
1 | ||
| 71073-24370C0 |
UZZ40..EUR W(SEAT HEATER),BLACK,TRIM20 |
1 | ||
| 71073-24370E0 |
UZZ40..EUR W(SEAT HEATER),SADDLE TAN,TRIM21 |
1 | ||
| 71073-24370A0 |
UZZ40..EUR,GCC W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71073-24470C0 |
UZZ40..LHD..EUR CHINA SPEC,BLACK,TRIM2# |
1 | ||
| 71073-24470E0 |
UZZ40..LHD..EUR CHINA SPEC,CAMEL,TRIM4# |
1 | ||
| 71073-24470A0 |
UZZ40..LHD..EUR CHINA SPEC,ECRU,TRIM0# |
1 | ||
| 71073-24580A0 |
UZZ40..EUR,GCC ECRU,TRIM0# |
1 | ||
| 71073-24590A0 |
UZZ40..EUR,GCC W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71073-24580E0 |
UZZ40..EUR,GCC CAMEL,TRIM4# |
1 | ||
| 71073-24590C0 |
UZZ40..EUR,GCC W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71073-24480C0 |
UZZ40..LHD..EUR CHINA SPEC & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71073-24580C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71073-24480A0 |
UZZ40..LHD..EUR CHINA SPEC & W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71073-24480E0 |
UZZ40..LHD..EUR CHINA SPEC & W(SEAT HEATER),CAMEL,TRIM4# |
1 | ||
| 71073-24590E0 |
UZZ40..EUR,GCC W(SEAT HEATER),CAMEL,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-24300C0 |
UZZ40..EUR W(SEAT HEATER),BLACK,TRIM20 |
1 | ||
| 71074-24300A0 |
UZZ40..EUR,GCC W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71074-24290A0 |
UZZ40..EUR,GCC ECRU,TRIM0# |
1 | ||
| 71074-24300E0 |
UZZ40..EUR W(SEAT HEATER),SADDLE TAN,TRIM21 |
1 | ||
| 71074-24290C0 |
UZZ40..EUR BLACK,TRIM20 |
1 | ||
| 71074-24290E0 |
UZZ40..EUR SADDLE TAN,TRIM21 |
1 | ||
| 71074-24400A0 |
UZZ40..LHD..EUR CHINA SPEC & W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71074-24210C0 |
UZZ40..LHD..EUR CHINA SPEC,BLACK,TRIM2# |
1 | ||
| 71074-24210E0 |
UZZ40..LHD..EUR CHINA SPEC,CAMEL,TRIM4# |
1 | ||
| 71074-24510A0 |
UZZ40..EUR,GCC W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71074-24400E0 |
UZZ40..LHD..EUR CHINA SPEC & W(SEAT HEATER),CAMEL,TRIM4# |
1 | ||
| 71074-24500A0 |
UZZ40..EUR,GCC ECRU,TRIM0# |
1 | ||
| 71074-24500C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71074-24500E0 |
UZZ40..EUR,GCC CAMEL,TRIM4# |
1 | ||
| 71074-24210A0 |
UZZ40..LHD..EUR CHINA SPEC,ECRU,TRIM0# |
1 | ||
| 71074-24510C0 |
UZZ40..EUR,GCC W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71074-24510E0 |
UZZ40..EUR,GCC W(SEAT HEATER),CAMEL,TRIM4# |
1 | ||
| 71074-24400C0 |
UZZ40..LHD..EUR CHINA SPEC & W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-24410C1 |
UZZ40..EUR W(SEAT HEATER),SADDLE TAN,TRIM21 |
1 | ||
| 71430-24400C0 |
UZZ40..EUR BLACK,TRIM20 |
1 | ||
| 71430-24400A0 |
UZZ40..EUR,GCC ECRU,TRIM0# |
1 | ||
| 71430-24410C0 |
UZZ40..EUR W(SEAT HEATER),BLACK,TRIM20 |
1 | ||
| 71430-24410A0 |
UZZ40..EUR,GCC W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71430-24400C1 |
UZZ40..EUR SADDLE TAN,TRIM21 |
1 | ||
| 71430-24540C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71430-24550E0 |
UZZ40..EUR,GCC W(SEAT HEATER),CAMEL,TRIM4# |
1 | ||
| 71430-24540E0 |
UZZ40..EUR,GCC CAMEL,TRIM4# |
1 | ||
| 71430-24540A0 |
UZZ40..EUR,GCC ECRU,TRIM0# |
1 | ||
| 71430-24550C0 |
UZZ40..EUR,GCC W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71430-24540A1 |
UZZ40..EUR,GCC ECRU,TRIM0# |
1 | ||
| 71430-24550E2 |
UZZ40..EUR,GCC W(SEAT HEATER),CAMEL,TRIM4# |
1 | ||
| 71430-24550A0 |
UZZ40..EUR,GCC W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71430-24540E2 |
UZZ40..EUR,GCC CAMEL,TRIM4# |
1 | ||
| 71430-24540C1 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71430-24550C2 |
UZZ40..EUR,GCC W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71430-24620C1 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71430-24550A1 |
UZZ40..EUR,GCC W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71430-24620A1 |
UZZ40..EUR,GCC ECRU,TRIM0# |
1 | ||
| 71430-24610E1 |
UZZ40..EUR,GCC W(SEAT HEATER),CAMEL,TRIM4# |
1 | ||
| 71430-24610C2 |
UZZ40..EUR,GCC W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71430-24620E1 |
UZZ40..EUR,GCC CAMEL,TRIM4# |
1 | ||
| 71430-24610A1 |
UZZ40..EUR,GCC W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-24390C0 |
UZZ40..EUR BLACK,TRIM20 |
1 | ||
| 71440-24390C1 |
UZZ40..EUR SADDLE TAN,TRIM21 |
1 | ||
| 71440-24400C0 |
UZZ40..EUR,GCC W(SEAT HEATER),BLACK,TRIM20 |
1 | ||
| 71440-24390A0 |
UZZ40..EUR,GCC ECRU,TRIM0# |
1 | ||
| 71440-24400C1 |
UZZ40..EUR,GCC W(SEAT HEATER),SADDLE TAN,TRIM21 |
1 | ||
| 71440-24400A0 |
UZZ40..EUR,GCC W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71440-24530E0 |
UZZ40..EUR,GCC CAMEL,TRIM4# |
1 | ||
| 71440-24540A0 |
UZZ40..EUR,GCC W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71440-24540E0 |
UZZ40..EUR,GCC W(SEAT HEATER),CAMEL,TRIM4# |
1 | ||
| 71440-24530C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71440-24540C0 |
UZZ40..EUR,GCC W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71440-24530A0 |
UZZ40..EUR,GCC ECRU,TRIM0# |
1 | ||
| 71440-24530C1 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71440-24540A1 |
UZZ40..EUR,GCC W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71440-24530E2 |
UZZ40..EUR,GCC CAMEL,TRIM4# |
1 | ||
| 71440-24530A1 |
UZZ40..EUR,GCC ECRU,TRIM0# |
1 | ||
| 71440-24540E2 |
UZZ40..EUR,GCC W(SEAT HEATER),CAMEL,TRIM4# |
1 | ||
| 71440-24540C2 |
UZZ40..EUR,GCC W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71440-24600A1 |
UZZ40..EUR,GCC W(SEAT HEATER),ECRU,TRIM0# |
1 | ||
| 71440-24600E1 |
UZZ40..EUR,GCC W(SEAT HEATER),CAMEL,TRIM4# |
1 | ||
| 71440-24610E1 |
UZZ40..EUR,GCC CAMEL,TRIM4# |
1 | ||
| 71440-24600C2 |
UZZ40..EUR,GCC W(SEAT HEATER),BLACK,TRIM2# |
1 | ||
| 71440-24610A1 |
UZZ40..EUR,GCC ECRU,TRIM0# |
1 | ||
| 71440-24610C1 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-24011 |
UZZ40..LHD |
1 | ||
| 71051-24010 |
UZZ40..LHD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-24050 |
UZZ40..LHD |
1 | ||
| 71512-24050 |
UZZ40..LHD |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-24100 |
UZZ40 |
1 | ||
| 71610-24100 |
UZZ40 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-24040 |
UZZ40 |
1 | ||
| 71620-24040 |
UZZ40 |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-24180C0 |
UZZ40 BLACK,TRIM2# |
1 | ||
| 71705-24180E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71705-24140C0 |
UZZ40 BLACK,TRIM20 |
1 | ||
| 71705-24180A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71705-24140E0 |
UZZ40 SADDLE TAN,TRIM21 |
1 | ||
| 71705-24181E3 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71705-24140A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71705-24181A2 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71705-24181C1 |
UZZ40 BLACK,TRIM2# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-24091C1 |
UZZ40 BLACK,TRIM2# |
1 | ||
| 71706-24050C0 |
UZZ40 BLACK,TRIM20 |
1 | ||
| 71706-24050A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71706-24090E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71706-24090C0 |
UZZ40 BLACK,TRIM2# |
1 | ||
| 71706-24050E0 |
UZZ40 SADDLE TAN,TRIM21 |
1 | ||
| 71706-24091A2 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71706-24091E3 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 71706-24090A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 71771A - BOARD, FRONT SEAT BACK | ||||
| 71772-24030C0 |
UZZ40 BLACK,TRIM20 |
2 | ||
| 71772-24030A0 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 71772-24030A0 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 71772-24030C0 |
UZZ40 BLACK,TRIM2# |
2 | ||
| 71772-24030E1 |
UZZ40 CAMEL,TRIM4# |
2 | ||
| 71772-24030E0 |
UZZ40 SADDLE TAN,TRIM21 |
2 | ||
| 71771A - BOARD, FRONT SEAT BACK | ||||
| 71772-24030C0 |
UZZ40 BLACK,TRIM20 |
2 | ||
| 71772-24030A0 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 71772-24030A0 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 71772-24030C0 |
UZZ40 BLACK,TRIM2# |
2 | ||
| 71772-24030E1 |
UZZ40 CAMEL,TRIM4# |
2 | ||
| 71772-24030E0 |
UZZ40 SADDLE TAN,TRIM21 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-24260A0 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 71910-24260E0 |
UZZ40 SADDLE TAN,TRIM21 |
2 | ||
| 71910-24290E0 |
UZZ40 CAMEL,TRIM4# |
2 | ||
| 71910-24290A0 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 71910-24320A1 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 71910-24290C0 |
UZZ40 BLACK,TRIM2# |
2 | ||
| 71910-24320C1 |
UZZ40 BLACK,TRIM2# |
2 | ||
| 71910-24260C0 |
UZZ40 BLACK,TRIM20 |
2 | ||
| 71910-24320E2 |
UZZ40 CAMEL,TRIM4# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-24260A0 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 71910-24260E0 |
UZZ40 SADDLE TAN,TRIM21 |
2 | ||
| 71910-24290E0 |
UZZ40 CAMEL,TRIM4# |
2 | ||
| 71910-24290A0 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 71910-24320A1 |
UZZ40 ECRU,TRIM0# |
2 | ||
| 71910-24290C0 |
UZZ40 BLACK,TRIM2# |
2 | ||
| 71910-24320C1 |
UZZ40 BLACK,TRIM2# |
2 | ||
| 71910-24260C0 |
UZZ40 BLACK,TRIM20 |
2 | ||
| 71910-24320E2 |
UZZ40 CAMEL,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010C0 |
UZZ40 W/O(LOCK),BLACK,TRIM20,21 |
2 | ||
| 71931-47010A1 |
UZZ40 W/O(LOCK),ECRU,TRIM0# |
2 | ||
| 71930-47010A1 |
UZZ40 W(LOCK),ECRU,TRIM0# |
2 | ||
| 71930-47010A1 |
UZZ40 W(LOCK),ECRU,TRIM0# |
2 | ||
| 71930-47010C0 |
UZZ40..EUR,GCC W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47010A1 |
UZZ40 W/O(LOCK),ECRU,TRIM0# |
2 | ||
| 71930-47010C0 |
UZZ40 W(LOCK),BLACK,TRIM20,21 |
2 | ||
| 71931-47010E5 |
UZZ40 W/O(LOCK),CAMEL,TRIM4# |
2 | ||
| 71931-47010C0 |
UZZ40..EUR,GCC W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47010E4 |
UZZ40 W(LOCK),CAMEL,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010C0 |
UZZ40 W/O(LOCK),BLACK,TRIM20,21 |
2 | ||
| 71931-47010A1 |
UZZ40 W/O(LOCK),ECRU,TRIM0# |
2 | ||
| 71930-47010A1 |
UZZ40 W(LOCK),ECRU,TRIM0# |
2 | ||
| 71930-47010A1 |
UZZ40 W(LOCK),ECRU,TRIM0# |
2 | ||
| 71930-47010C0 |
UZZ40..EUR,GCC W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47010A1 |
UZZ40 W/O(LOCK),ECRU,TRIM0# |
2 | ||
| 71930-47010C0 |
UZZ40 W(LOCK),BLACK,TRIM20,21 |
2 | ||
| 71931-47010E5 |
UZZ40 W/O(LOCK),CAMEL,TRIM4# |
2 | ||
| 71931-47010C0 |
UZZ40..EUR,GCC W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47010E4 |
UZZ40 W(LOCK),CAMEL,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010C0 |
UZZ40 W/O(LOCK),BLACK,TRIM20,21 |
2 | ||
| 71931-47010A1 |
UZZ40 W/O(LOCK),ECRU,TRIM0# |
2 | ||
| 71930-47010A1 |
UZZ40 W(LOCK),ECRU,TRIM0# |
2 | ||
| 71930-47010A1 |
UZZ40 W(LOCK),ECRU,TRIM0# |
2 | ||
| 71930-47010C0 |
UZZ40..EUR,GCC W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47010A1 |
UZZ40 W/O(LOCK),ECRU,TRIM0# |
2 | ||
| 71930-47010C0 |
UZZ40 W(LOCK),BLACK,TRIM20,21 |
2 | ||
| 71931-47010E5 |
UZZ40 W/O(LOCK),CAMEL,TRIM4# |
2 | ||
| 71931-47010C0 |
UZZ40..EUR,GCC W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47010E4 |
UZZ40 W(LOCK),CAMEL,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47010C0 |
UZZ40 W/O(LOCK),BLACK,TRIM20,21 |
2 | ||
| 71931-47010A1 |
UZZ40 W/O(LOCK),ECRU,TRIM0# |
2 | ||
| 71930-47010A1 |
UZZ40 W(LOCK),ECRU,TRIM0# |
2 | ||
| 71930-47010A1 |
UZZ40 W(LOCK),ECRU,TRIM0# |
2 | ||
| 71930-47010C0 |
UZZ40..EUR,GCC W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47010A1 |
UZZ40 W/O(LOCK),ECRU,TRIM0# |
2 | ||
| 71930-47010C0 |
UZZ40 W(LOCK),BLACK,TRIM20,21 |
2 | ||
| 71931-47010E5 |
UZZ40 W/O(LOCK),CAMEL,TRIM4# |
2 | ||
| 71931-47010C0 |
UZZ40..EUR,GCC W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47010E4 |
UZZ40 W(LOCK),CAMEL,TRIM4# |
2 | ||
| 72597A - BEZEL, RECLINING REMOTE CONTROL LEVER, RH | ||||
| 72597-24010C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 72597-24010A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72597-24010E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 72597-24010C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 72597-24010A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72598 - BEZEL, RECLINING REMOTE CONTROL LEVER, LH | ||||
| 72598-24010C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 72598-24010A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72598-24010A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 72598-24010E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 72598-24010C0 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90468-16019 | ||||
| 91511-G0608 | ||||
| 93540-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
