UZZ40L-DKTQKW (2005)
Toyota Lexus Sc430

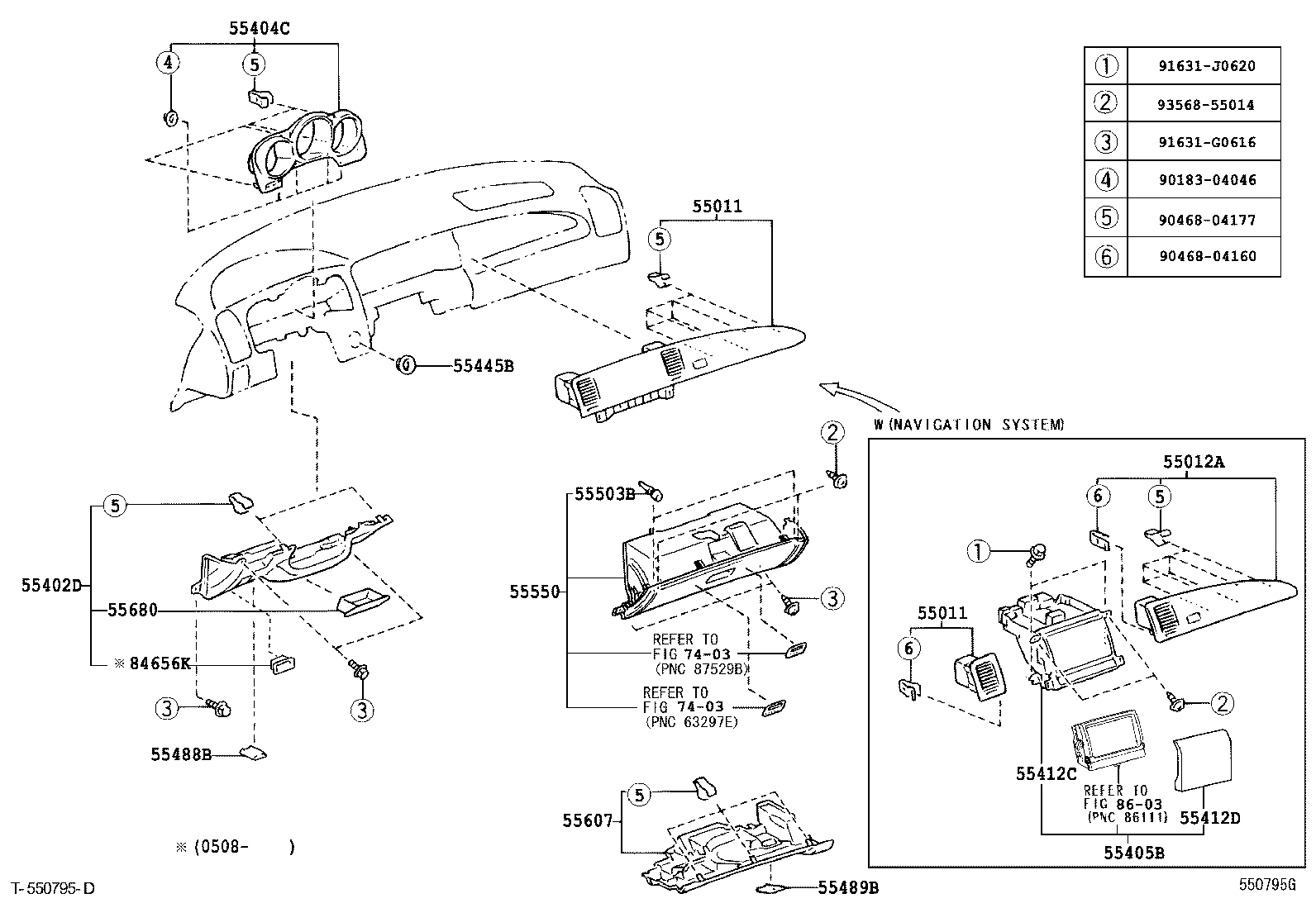

ILLUST NO. 2 OF 2(0105-0608)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011 - GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD | ||||
| 55011-24090E0 |
UZZ40..LHD..EUR MD.BROWN,TRIM20,21 |
1 | ||
| 55011-24070B0 |
UZZ40..LHD..EUR W(NAVIGATION SYSTEM),ECRU BROWN,TRIM0# |
1 | ||
| 55011-24070E0 |
UZZ40..LHD..EUR W(NAVIGATION SYSTEM),MD.BROWN,TRIM20,21 |
1 | ||
| 55011-24090B0 |
UZZ40..LHD..EUR ECRU BROWN,TRIM0# |
1 | ||
| 55011-24070E3 |
UZZ40..LHD W(NAVIGATION SYSTEM),DK.BROWN,TRIM4# |
1 | ||
| 55011-24090E2 |
UZZ40..LHD..EUR MD.BROWN,TRIM0#,2# |
1 | ||
| 55011-24090E3 |
UZZ40..LHD..EUR DK.BROWN,TRIM4# |
1 | ||
| 55011-24070E2 |
UZZ40..LHD W(NAVIGATION SYSTEM),MD.BROWN,TRIM0#,2# |
1 | ||
| 55011 - GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD | ||||
| 55011-24090E0 |
UZZ40..LHD..EUR MD.BROWN,TRIM20,21 |
1 | ||
| 55011-24070B0 |
UZZ40..LHD..EUR W(NAVIGATION SYSTEM),ECRU BROWN,TRIM0# |
1 | ||
| 55011-24070E0 |
UZZ40..LHD..EUR W(NAVIGATION SYSTEM),MD.BROWN,TRIM20,21 |
1 | ||
| 55011-24090B0 |
UZZ40..LHD..EUR ECRU BROWN,TRIM0# |
1 | ||
| 55011-24070E3 |
UZZ40..LHD W(NAVIGATION SYSTEM),DK.BROWN,TRIM4# |
1 | ||
| 55011-24090E2 |
UZZ40..LHD..EUR MD.BROWN,TRIM0#,2# |
1 | ||
| 55011-24090E3 |
UZZ40..LHD..EUR DK.BROWN,TRIM4# |
1 | ||
| 55011-24070E2 |
UZZ40..LHD W(NAVIGATION SYSTEM),MD.BROWN,TRIM0#,2# |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-24040B0 |
UZZ40..LHD..EUR ECRU BROWN,TRIM0# |
1 | ||
| 55012-24040E0 |
UZZ40..LHD..EUR MD.BROWN,TRIM20,21 |
1 | ||
| 55012-24020E3 |
UZZ40..LHD..EUR TAIWAN SPEC,DK.BROWN,TRIM4# |
1 | ||
| 55012-24040E2 |
UZZ40..LHD..EUR MD.BROWN,TRIM0#,2# |
1 | ||
| 55012-24040E3 |
UZZ40..LHD..EUR DK.BROWN,TRIM4# |
1 | ||
| 55012-24020E2 |
UZZ40..LHD..EUR TAIWAN SPEC,MD.BROWN,TRIM0#,2# |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-24010C0 |
UZZ40..LHD BLACK,TRIM20,21 |
1 | ||
| 55402-24010A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55402-24040A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55402-24060A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55402-24060C0 |
UZZ40..LHD BLACK,TRIM2# |
1 | ||
| 55402-24060E0 |
UZZ40..LHD CAMEL,TRIM4# |
1 | ||
| 55402-24040C0 |
UZZ40..LHD BLACK,TRIM2# |
1 | ||
| 55402-24040E0 |
UZZ40..LHD CAMEL,TRIM4# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-24060 |
UZZ40 |
1 | ||
| 55404-24060 |
UZZ40 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-24040E0 |
UZZ40..ARL,EUR W(NAVIGATION SYSTEM),MD.BROWN,TRIM20,21 |
1 | ||
| 55405-24042E0 |
UZZ40..EUR W(NAVIGATION SYSTEM),MD.BROWN,TRIM0#,2# |
1 | ||
| 55405-24120E0 |
UZZ40..EUR W(NAVIGATION SYSTEM),MD.BROWN,TRIM0#,2# |
1 | ||
| 55405-24120E1 |
UZZ40..EUR W(NAVIGATION SYSTEM),DK.BROWN,TRIM4# |
1 | ||
| 55405-24110E1 |
UZZ40..LHD..EUR CHINA SPEC & W(NAVIGATION SYSTEM),DK.BROWN,TRIM4# |
1 | ||
| 55405-24110E0 |
UZZ40..LHD..EUR CHINA SPEC & W(NAVIGATION SYSTEM),MD.BROWN,TRIM0#,2# |
1 | ||
| 55405-24060E1 |
UZZ40..LHD..EUR TAIWAN SPEC & W(NAVIGATION SYSTEM),DK.BROWN,TRIM4# |
1 | ||
| 55405-24042E1 |
UZZ40..EUR W(NAVIGATION SYSTEM),DK.BROWN,TRIM4# |
1 | ||
| 55405-24060E0 |
UZZ40..LHD..EUR TAIWAN SPEC & W(NAVIGATION SYSTEM),MD.BROWN,TRIM0#,2# |
1 | ||
| 55405-24040B0 |
UZZ40..ARL,EUR W(NAVIGATION SYSTEM),ECRU BROWN,TRIM0# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55405-24090 |
UZZ40 |
1 | ||
| 55405-24080 |
UZZ40 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-24050E0 |
UZZ40 MD.BROWN,TRIM20,21 |
1 | ||
| 55412-24050E0 |
UZZ40..EUR,GCC MD.BROWN,TRIM0#,2# |
1 | ||
| 55412-24050E1 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55412-24050B0 |
UZZ40 ECRU BROWN,TRIM0# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-30160E4 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55445-30160C0 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 55445-30160C0 |
UZZ40..EUR,GCC BLACK,TRIM0#,2# |
1 | ||
| 55488B - LENS, FRONT FOOT LAMP, NO.1 | ||||
| 55489-50010 |
UZZ40 |
1 | ||
| 55489-50010 |
UZZ40 |
1 | ||
| 55489B - LENS, FRONT FOOT LAMP, NO.2 | ||||
| 55489-50010 |
UZZ40 |
1 | ||
| 55489-50010 |
UZZ40 |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-05020 |
UZZ40 |
2 | ||
| 90541-05020 |
UZZ40 |
2 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-24070A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55550-24070C0 |
UZZ40..LHD BLACK,TRIM2# |
1 | ||
| 55550-24070C0 |
UZZ40..LHD BLACK,TRIM20,21 |
1 | ||
| 55550-24070E0 |
UZZ40..LHD CAMEL,TRIM4# |
1 | ||
| 55550-24150A0 |
UZZ40..LHD..EUR BEIJING OR CHINA SPEC,ECRU,TRIM0# |
1 | ||
| 55550-24120C0 |
UZZ40..LHD BLACK,TRIM2# |
1 | ||
| 55550-24150C0 |
UZZ40..LHD..EUR BEIJING OR CHINA SPEC,BLACK,TRIM2# |
1 | ||
| 55550-24120A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55550-24150E0 |
UZZ40..LHD..EUR BEIJING OR CHINA SPEC,CAMEL,TRIM4# |
1 | ||
| 55550-24120E0 |
UZZ40..LHD CAMEL,TRIM4# |
1 | ||
| 55550-24070A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-24070C0 |
UZZ40..LHD BLACK,TRIM20,21 |
1 | ||
| 55607-24070E0 |
UZZ40..LHD CAMEL,TRIM4# |
1 | ||
| 55607-24070A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55607-24070A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55607-24070C0 |
UZZ40..LHD BLACK,TRIM2# |
1 | ||
| 55607-24110A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55607-24110E0 |
UZZ40..LHD CAMEL,TRIM4# |
1 | ||
| 55607-24110C0 |
UZZ40..LHD BLACK,TRIM2# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-1705022 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 55680-1705022 |
UZZ40..EUR,GCC BLACK,TRIM2# |
1 | ||
| 55680-17050A1 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 55680-17050E4 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| 55680-17050A1 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 84656K - BEZEL, SWITCH | ||||
| 84656-24010A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 84656-24010C0 |
UZZ40 BLACK,TRIM2# |
1 | ||
| 84656-24010E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| Common parts | ||||
| 90183-04046 | ||||
| 90468-04160 | ||||
| 90468-04177 | ||||
| 91631-G0616 | ||||
| 91631-J0620 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8603 | ||||

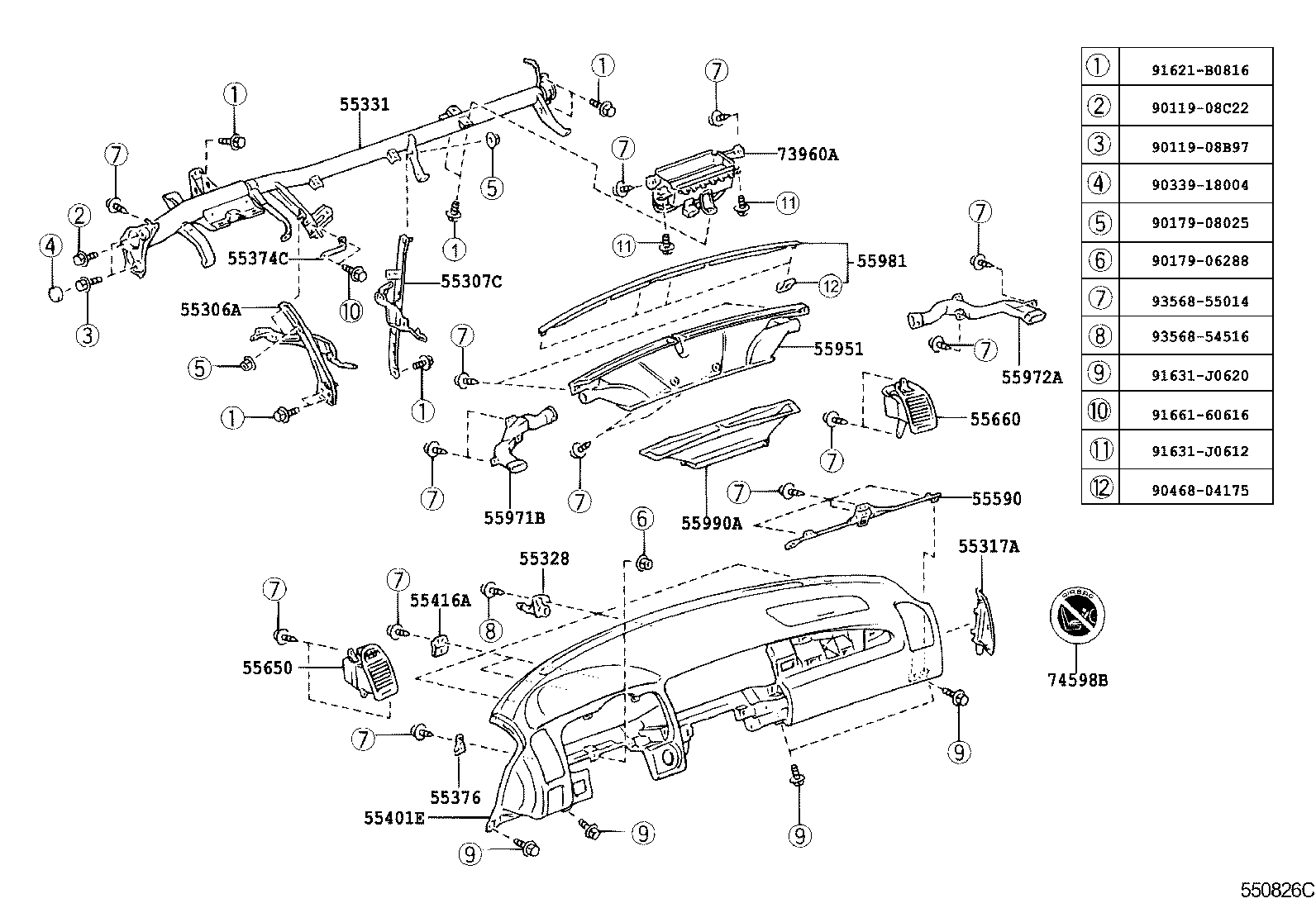

ILLUST NO. 1 OF 2(0105-0608)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-24070 |
UZZ40..LHD |
1 | ||
| 55306-24050 |
UZZ40..LHD |
1 | ||
| 55306-24050 |
UZZ40..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-24030 |
UZZ40..LHD |
1 | ||
| 55307-24030 |
UZZ40..LHD |
1 | ||
| 55307-24050 |
UZZ40..LHD |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-24020E0 |
UZZ40..LHD DK.BROWN,TRIM4# |
1 | ||
| 55317-24020C0 |
UZZ40..LHD BLACK,TRIM0#,20,21 |
1 | ||
| 55317-24020C0 |
UZZ40..LHD BLACK,TRIM0#,2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-48010 |
UZZ40 |
3 | ||
| 55328-48040 |
UZZ40 |
3 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-24090 |
UZZ40..LHD |
1 | ||
| 55330-24090 |
UZZ40..LHD |
1 | ||
| 55330-24110 |
UZZ40..LHD |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55349-24020 |
UZZ40..LHD |
1 | ||
| 55349-24020 |
UZZ40..LHD |
1 | ||
| 55349-24030 |
UZZ40..LHD |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-24030 |
UZZ40..LHD |
1 | ||
| 55376-24030 |
UZZ40..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-24100E0 |
UZZ40..LHD DK.BROWN,TRIM4# |
1 | ||
| 55401-24100C0 |
UZZ40..LHD BLACK,TRIM0#,2# |
1 | ||
| 55401-24100C0 |
UZZ40..LHD BLACK,TRIM0#,2# |
1 | ||
| 55401-24130E0 |
UZZ40..LHD DK.BROWN,TRIM4# |
1 | ||
| 55401-24100C0 |
UZZ40..LHD BLACK,TRIM0#,20,21 |
1 | ||
| 55401-24100E0 |
UZZ40..LHD DK.BROWN,TRIM4# |
1 | ||
| 55401-24130C0 |
UZZ40..LHD BLACK,TRIM0#,2# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30140 |
UZZ40 |
2 | ||
| 55416-30140 |
UZZ40 |
2 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-24040 |
UZZ40..LHD |
1 | ||
| 55590-24020 |
UZZ40..LHD |
1 | ||
| 55590-24020 |
UZZ40..LHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-24050C0 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 55650-24050E0 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55650-24050C0 |
UZZ40..EUR,GCC BLACK,TRIM0#,2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-24090C0 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 55660-24090C0 |
UZZ40..EUR,GCC BLACK,TRIM0#,2# |
1 | ||
| 55660-24090E0 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55951 - NOZZLE, DEFROSTER, FRONT | ||||
| 55951-24040 |
UZZ40 |
1 | ||
| 55951-24040 |
UZZ40 |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-24060 |
UZZ40 |
1 | ||
| 55971-24060 |
UZZ40 |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-24050 |
UZZ40 |
1 | ||
| 55972-24050 |
UZZ40 |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-24060C0 |
UZZ40..EUR,GCC BLACK,TRIM0#,2# |
1 | ||
| 55981-24060C0 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 55981-24060E0 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55990A - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-24010 |
UZZ40..LHD |
1 | ||
| 55990-24010 |
UZZ40..LHD |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-24030 |
UZZ40..LHD |
1 | ||
| 73960-24010 |
UZZ40..LHD |
1 | ||
| 73960-24010 |
UZZ40..LHD |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
UZZ40 |
1 | ||
| 74598-20010 |
UZZ40 |
1 | ||
| Common parts | ||||
| 90119-08B97 | ||||
| 90119-08C22 | ||||
| 90179-06288 | ||||
| 90179-08025 | ||||
| 90339-18004 | ||||
| 90468-04175 | ||||
| 91621-B0816 | ||||
| 91631-J0612 | ||||
| 91631-J0620 | ||||
| 91661-60616 | ||||
| 93568-54516 | ||||
| 93568-55014 | ||||

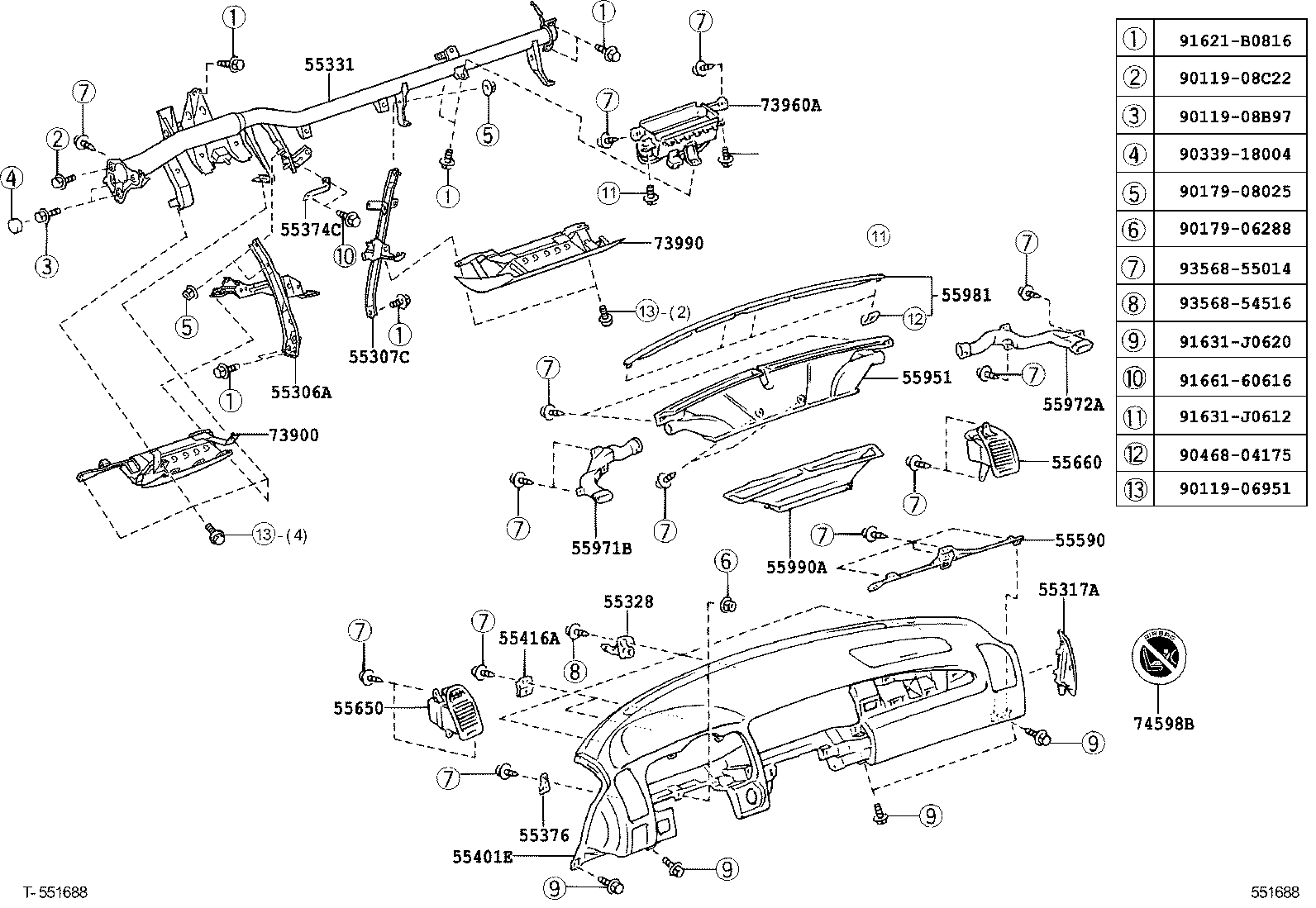

ILLUST NO. 1 OF 2(0608- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-24070 |
UZZ40..LHD |
1 | ||
| 55306-24050 |
UZZ40..LHD |
1 | ||
| 55306-24050 |
UZZ40..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-24030 |
UZZ40..LHD |
1 | ||
| 55307-24030 |
UZZ40..LHD |
1 | ||
| 55307-24050 |
UZZ40..LHD |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-24020E0 |
UZZ40..LHD DK.BROWN,TRIM4# |
1 | ||
| 55317-24020C0 |
UZZ40..LHD BLACK,TRIM0#,20,21 |
1 | ||
| 55317-24020C0 |
UZZ40..LHD BLACK,TRIM0#,2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-48010 |
UZZ40 |
3 | ||
| 55328-48040 |
UZZ40 |
3 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-24090 |
UZZ40..LHD |
1 | ||
| 55330-24090 |
UZZ40..LHD |
1 | ||
| 55330-24110 |
UZZ40..LHD |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55349-24020 |
UZZ40..LHD |
1 | ||
| 55349-24020 |
UZZ40..LHD |
1 | ||
| 55349-24030 |
UZZ40..LHD |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-24030 |
UZZ40..LHD |
1 | ||
| 55376-24030 |
UZZ40..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-24100E0 |
UZZ40..LHD DK.BROWN,TRIM4# |
1 | ||
| 55401-24100C0 |
UZZ40..LHD BLACK,TRIM0#,2# |
1 | ||
| 55401-24100C0 |
UZZ40..LHD BLACK,TRIM0#,2# |
1 | ||
| 55401-24130E0 |
UZZ40..LHD DK.BROWN,TRIM4# |
1 | ||
| 55401-24100C0 |
UZZ40..LHD BLACK,TRIM0#,20,21 |
1 | ||
| 55401-24100E0 |
UZZ40..LHD DK.BROWN,TRIM4# |
1 | ||
| 55401-24130C0 |
UZZ40..LHD BLACK,TRIM0#,2# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30140 |
UZZ40 |
2 | ||
| 55416-30140 |
UZZ40 |
2 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-24040 |
UZZ40..LHD |
1 | ||
| 55590-24020 |
UZZ40..LHD |
1 | ||
| 55590-24020 |
UZZ40..LHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-24050C0 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 55650-24050E0 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55650-24050C0 |
UZZ40..EUR,GCC BLACK,TRIM0#,2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-24090C0 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 55660-24090C0 |
UZZ40..EUR,GCC BLACK,TRIM0#,2# |
1 | ||
| 55660-24090E0 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55951 - NOZZLE, DEFROSTER, FRONT | ||||
| 55951-24040 |
UZZ40 |
1 | ||
| 55951-24040 |
UZZ40 |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-24060 |
UZZ40 |
1 | ||
| 55971-24060 |
UZZ40 |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-24050 |
UZZ40 |
1 | ||
| 55972-24050 |
UZZ40 |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-24060C0 |
UZZ40..EUR,GCC BLACK,TRIM0#,2# |
1 | ||
| 55981-24060C0 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 55981-24060E0 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55990A - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-24010 |
UZZ40..LHD |
1 | ||
| 55990-24010 |
UZZ40..LHD |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-24010C0 |
UZZ40..LHD BLACK,TRIM2# |
1 | ||
| 73900-24010E0 |
UZZ40..LHD CAMEL,TRIM4# |
1 | ||
| 73900-24010A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-24030 |
UZZ40..LHD |
1 | ||
| 73960-24010 |
UZZ40..LHD |
1 | ||
| 73960-24010 |
UZZ40..LHD |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-24010E0 |
UZZ40..LHD CAMEL,TRIM4# |
1 | ||
| 73990-24010C0 |
UZZ40..LHD BLACK,TRIM2# |
1 | ||
| 73990-24010A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
UZZ40 |
1 | ||
| 74598-20010 |
UZZ40 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-08B97 | ||||
| 90119-08C22 | ||||
| 90179-06288 | ||||
| 90179-08025 | ||||
| 90339-18004 | ||||
| 90468-04175 | ||||
| 91621-B0816 | ||||
| 91631-J0612 | ||||
| 91631-J0620 | ||||
| 91661-60616 | ||||
| 93568-54516 | ||||
| 93568-55014 | ||||

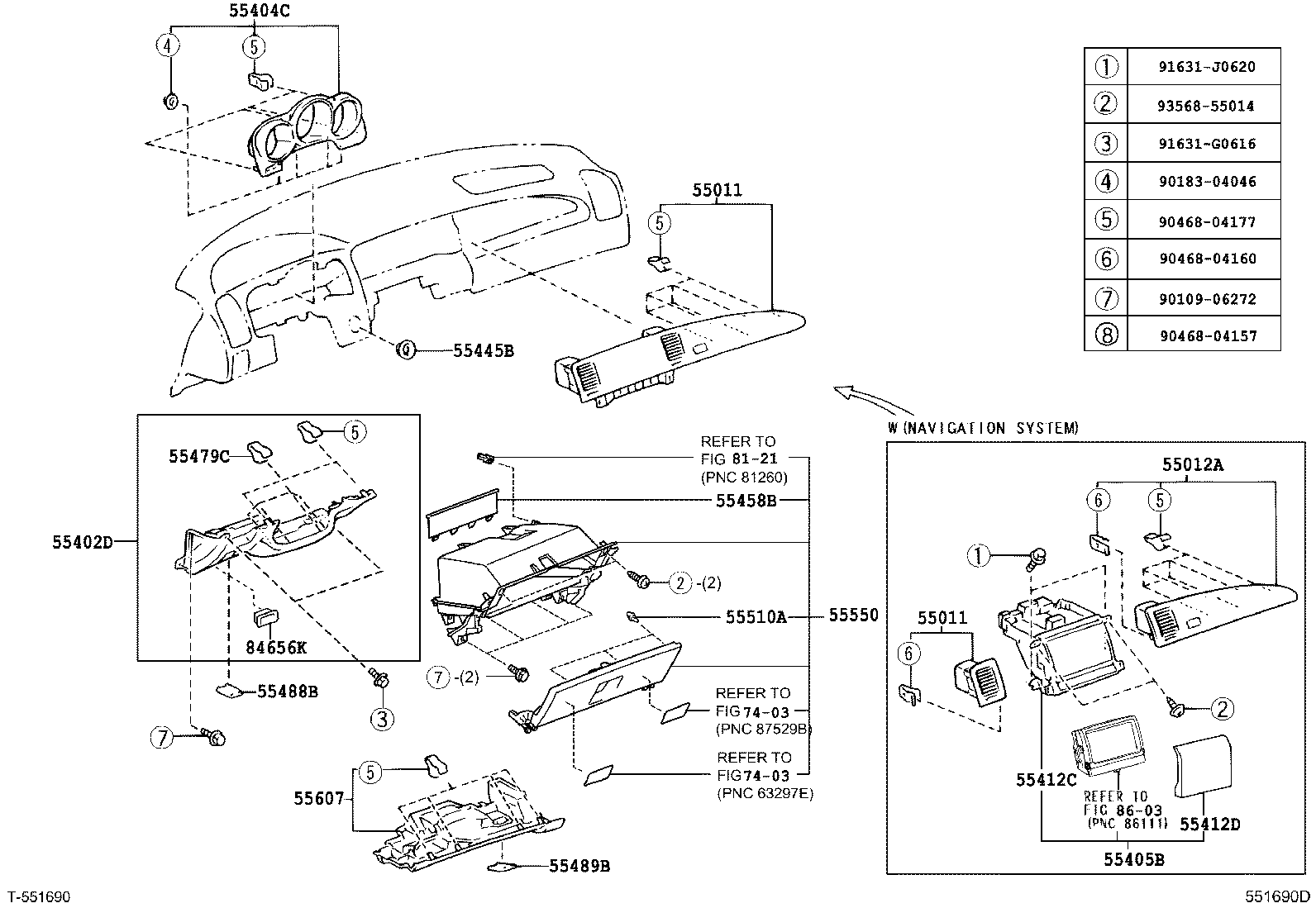

ILLUST NO. 2 OF 2(0608- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011 - GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD | ||||
| 55011-24090E0 |
UZZ40..LHD..EUR MD.BROWN,TRIM20,21 |
1 | ||
| 55011-24070B0 |
UZZ40..LHD..EUR W(NAVIGATION SYSTEM),ECRU BROWN,TRIM0# |
1 | ||
| 55011-24070E0 |
UZZ40..LHD..EUR W(NAVIGATION SYSTEM),MD.BROWN,TRIM20,21 |
1 | ||
| 55011-24090B0 |
UZZ40..LHD..EUR ECRU BROWN,TRIM0# |
1 | ||
| 55011-24070E3 |
UZZ40..LHD W(NAVIGATION SYSTEM),DK.BROWN,TRIM4# |
1 | ||
| 55011-24090E2 |
UZZ40..LHD..EUR MD.BROWN,TRIM0#,2# |
1 | ||
| 55011-24090E3 |
UZZ40..LHD..EUR DK.BROWN,TRIM4# |
1 | ||
| 55011-24070E2 |
UZZ40..LHD W(NAVIGATION SYSTEM),MD.BROWN,TRIM0#,2# |
1 | ||
| 55011 - GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD | ||||
| 55011-24090E0 |
UZZ40..LHD..EUR MD.BROWN,TRIM20,21 |
1 | ||
| 55011-24070B0 |
UZZ40..LHD..EUR W(NAVIGATION SYSTEM),ECRU BROWN,TRIM0# |
1 | ||
| 55011-24070E0 |
UZZ40..LHD..EUR W(NAVIGATION SYSTEM),MD.BROWN,TRIM20,21 |
1 | ||
| 55011-24090B0 |
UZZ40..LHD..EUR ECRU BROWN,TRIM0# |
1 | ||
| 55011-24070E3 |
UZZ40..LHD W(NAVIGATION SYSTEM),DK.BROWN,TRIM4# |
1 | ||
| 55011-24090E2 |
UZZ40..LHD..EUR MD.BROWN,TRIM0#,2# |
1 | ||
| 55011-24090E3 |
UZZ40..LHD..EUR DK.BROWN,TRIM4# |
1 | ||
| 55011-24070E2 |
UZZ40..LHD W(NAVIGATION SYSTEM),MD.BROWN,TRIM0#,2# |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-24040B0 |
UZZ40..LHD..EUR ECRU BROWN,TRIM0# |
1 | ||
| 55012-24040E0 |
UZZ40..LHD..EUR MD.BROWN,TRIM20,21 |
1 | ||
| 55012-24020E3 |
UZZ40..LHD..EUR TAIWAN SPEC,DK.BROWN,TRIM4# |
1 | ||
| 55012-24040E2 |
UZZ40..LHD..EUR MD.BROWN,TRIM0#,2# |
1 | ||
| 55012-24040E3 |
UZZ40..LHD..EUR DK.BROWN,TRIM4# |
1 | ||
| 55012-24020E2 |
UZZ40..LHD..EUR TAIWAN SPEC,MD.BROWN,TRIM0#,2# |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-24010C0 |
UZZ40..LHD BLACK,TRIM20,21 |
1 | ||
| 55402-24010A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55402-24040A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55402-24060A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55402-24060C0 |
UZZ40..LHD BLACK,TRIM2# |
1 | ||
| 55402-24060E0 |
UZZ40..LHD CAMEL,TRIM4# |
1 | ||
| 55402-24040C0 |
UZZ40..LHD BLACK,TRIM2# |
1 | ||
| 55402-24040E0 |
UZZ40..LHD CAMEL,TRIM4# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-24060 |
UZZ40 |
1 | ||
| 55404-24060 |
UZZ40 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-24040E0 |
UZZ40..ARL,EUR W(NAVIGATION SYSTEM),MD.BROWN,TRIM20,21 |
1 | ||
| 55405-24042E0 |
UZZ40..EUR W(NAVIGATION SYSTEM),MD.BROWN,TRIM0#,2# |
1 | ||
| 55405-24120E0 |
UZZ40..EUR W(NAVIGATION SYSTEM),MD.BROWN,TRIM0#,2# |
1 | ||
| 55405-24120E1 |
UZZ40..EUR W(NAVIGATION SYSTEM),DK.BROWN,TRIM4# |
1 | ||
| 55405-24110E1 |
UZZ40..LHD..EUR CHINA SPEC & W(NAVIGATION SYSTEM),DK.BROWN,TRIM4# |
1 | ||
| 55405-24110E0 |
UZZ40..LHD..EUR CHINA SPEC & W(NAVIGATION SYSTEM),MD.BROWN,TRIM0#,2# |
1 | ||
| 55405-24060E1 |
UZZ40..LHD..EUR TAIWAN SPEC & W(NAVIGATION SYSTEM),DK.BROWN,TRIM4# |
1 | ||
| 55405-24042E1 |
UZZ40..EUR W(NAVIGATION SYSTEM),DK.BROWN,TRIM4# |
1 | ||
| 55405-24060E0 |
UZZ40..LHD..EUR TAIWAN SPEC & W(NAVIGATION SYSTEM),MD.BROWN,TRIM0#,2# |
1 | ||
| 55405-24040B0 |
UZZ40..ARL,EUR W(NAVIGATION SYSTEM),ECRU BROWN,TRIM0# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55405-24090 |
UZZ40 |
1 | ||
| 55405-24080 |
UZZ40 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-24050E0 |
UZZ40 MD.BROWN,TRIM20,21 |
1 | ||
| 55412-24050E0 |
UZZ40..EUR,GCC MD.BROWN,TRIM0#,2# |
1 | ||
| 55412-24050E1 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55412-24050B0 |
UZZ40 ECRU BROWN,TRIM0# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-30160E4 |
UZZ40 DK.BROWN,TRIM4# |
1 | ||
| 55445-30160C0 |
UZZ40 BLACK,TRIM0#,20,21 |
1 | ||
| 55445-30160C0 |
UZZ40..EUR,GCC BLACK,TRIM0#,2# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-48010 |
UZZ40 |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
UZZ40 YELLOW |
2 | ||
| 90467-10201 |
UZZ40 NATURAL |
2 | ||
| 55488B - LENS, FRONT FOOT LAMP, NO.1 | ||||
| 55489-50010 |
UZZ40 |
1 | ||
| 55489-50010 |
UZZ40 |
1 | ||
| 55489B - LENS, FRONT FOOT LAMP, NO.2 | ||||
| 55489-50010 |
UZZ40 |
1 | ||
| 55489-50010 |
UZZ40 |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05026 |
UZZ40 |
3 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-24070A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55550-24070C0 |
UZZ40..LHD BLACK,TRIM2# |
1 | ||
| 55550-24070C0 |
UZZ40..LHD BLACK,TRIM20,21 |
1 | ||
| 55550-24070E0 |
UZZ40..LHD CAMEL,TRIM4# |
1 | ||
| 55550-24150A0 |
UZZ40..LHD..EUR BEIJING OR CHINA SPEC,ECRU,TRIM0# |
1 | ||
| 55550-24120C0 |
UZZ40..LHD BLACK,TRIM2# |
1 | ||
| 55550-24150C0 |
UZZ40..LHD..EUR BEIJING OR CHINA SPEC,BLACK,TRIM2# |
1 | ||
| 55550-24120A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55550-24150E0 |
UZZ40..LHD..EUR BEIJING OR CHINA SPEC,CAMEL,TRIM4# |
1 | ||
| 55550-24120E0 |
UZZ40..LHD CAMEL,TRIM4# |
1 | ||
| 55550-24070A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-24070C0 |
UZZ40..LHD BLACK,TRIM20,21 |
1 | ||
| 55607-24070E0 |
UZZ40..LHD CAMEL,TRIM4# |
1 | ||
| 55607-24070A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55607-24070A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55607-24070C0 |
UZZ40..LHD BLACK,TRIM2# |
1 | ||
| 55607-24110A0 |
UZZ40..LHD ECRU,TRIM0# |
1 | ||
| 55607-24110E0 |
UZZ40..LHD CAMEL,TRIM4# |
1 | ||
| 55607-24110C0 |
UZZ40..LHD BLACK,TRIM2# |
1 | ||
| 84656K - BEZEL, SWITCH | ||||
| 84656-24010A0 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 84656-24010C0 |
UZZ40 BLACK,TRIM2# |
1 | ||
| 84656-24010E0 |
UZZ40 CAMEL,TRIM4# |
1 | ||
| Common parts | ||||
| 90109-06272 | ||||
| 90183-04046 | ||||
| 90468-04157 | ||||
| 90468-04160 | ||||
| 90468-04177 | ||||
| 91631-G0616 | ||||
| 91631-J0620 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8121 | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
