UZZ40L-DKTQKW (2005)
Toyota Lexus Sc430
Production
Aug 2005
-
Jul 2010
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )LHD

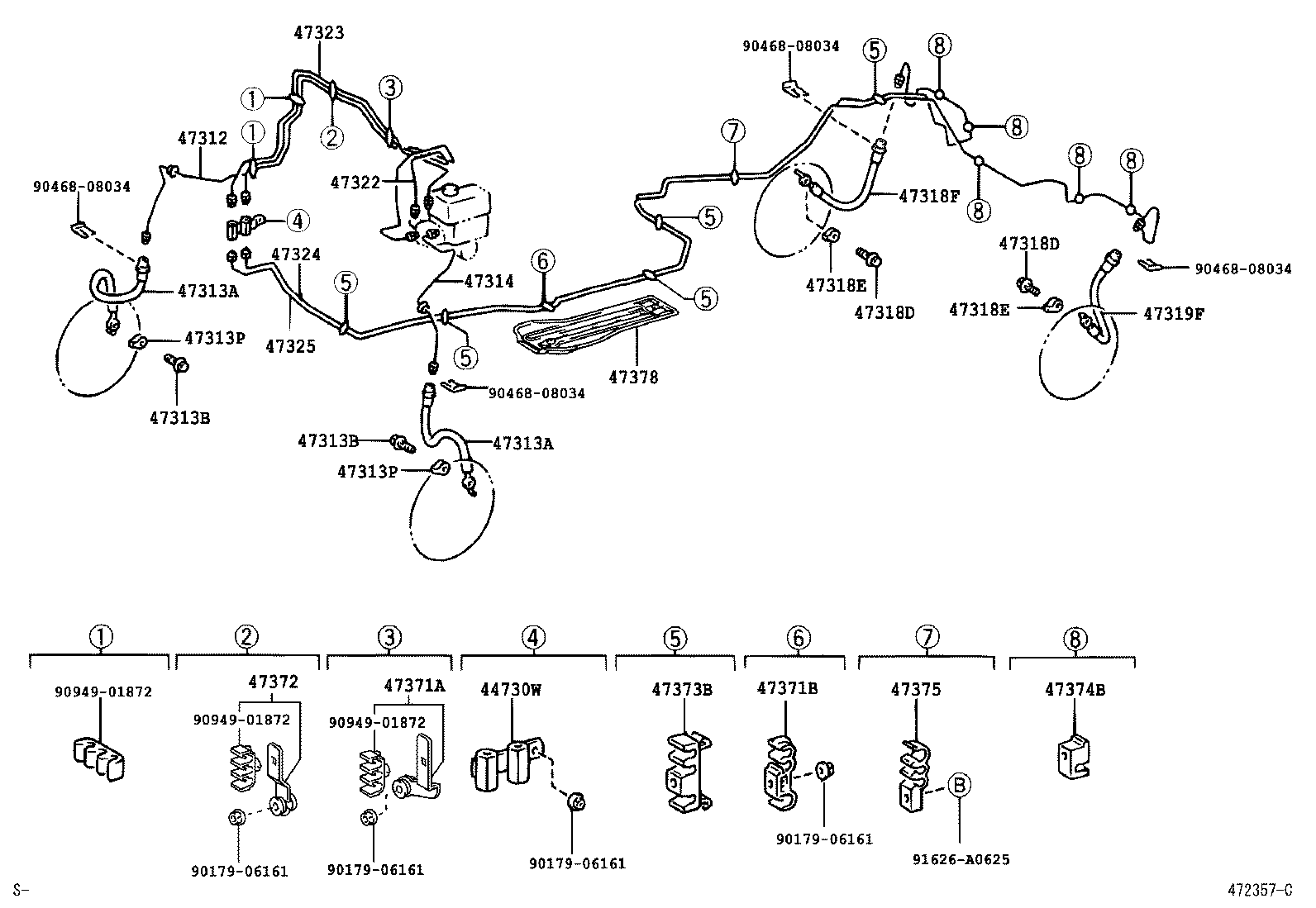

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730W - WAY, 2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10158 |
UZZ40 |
1 | ||
| 90412-10158 |
UZZ40 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-24130 |
UZZ40..LHD |
1 | ||
| 47312-24130 |
UZZ40..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F68 |
UZZ40..LHD..EUR |
2 | ||
| 90947-02972 |
UZZ40 |
2 | ||
| 90947-02972 |
UZZ40 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F68 |
UZZ40..LHD..EUR |
2 | ||
| 90947-02972 |
UZZ40 |
2 | ||
| 90947-02972 |
UZZ40 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
UZZ40 |
2 | ||
| 90401-10058 |
UZZ40 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
UZZ40 |
2 | ||
| 90401-10058 |
UZZ40 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
UZZ40 |
2 | ||
| 47389-50020 |
UZZ40 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
UZZ40 |
2 | ||
| 47389-50020 |
UZZ40 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47313-30420 |
UZZ40..LHD |
1 | ||
| 47313-30420 |
UZZ40..LHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
UZZ40 |
2 | ||
| 90401-10058 |
UZZ40 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
UZZ40 |
2 | ||
| 90401-10058 |
UZZ40 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
UZZ40 |
2 | ||
| 47389-50020 |
UZZ40 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
UZZ40 |
2 | ||
| 47389-50020 |
UZZ40 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02F69 |
UZZ40..LHD..EUR |
1 | ||
| 90947-02973 |
UZZ40 |
1 | ||
| 90947-02973 |
UZZ40 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02973 |
UZZ40 |
1 | ||
| 90947-02973 |
UZZ40 |
1 | ||
| 90947-02F69 |
UZZ40..LHD..EUR |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-24140 |
UZZ40..LHD |
1 | ||
| 47322-24140 |
UZZ40..LHD |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-24050 |
UZZ40..LHD |
1 | ||
| 47323-24050 |
UZZ40..LHD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-24040 |
UZZ40 |
1 | ||
| 47324-24040 |
UZZ40 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-24020 |
UZZ40 |
1 | ||
| 47325-24020 |
UZZ40 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30490 |
UZZ40..LHD |
1 | ||
| 47371-30490 |
UZZ40..LHD |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-30520 |
UZZ40 |
1 | ||
| 47371-30520 |
UZZ40 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-30500 |
UZZ40..LHD |
1 | ||
| 47371-30500 |
UZZ40..LHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-30460 |
UZZ40 |
5 | ||
| 47371-30460 |
UZZ40 |
5 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-30470 |
UZZ40 |
5 | ||
| 47371-30470 |
UZZ40 |
5 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-30510 |
UZZ40 |
1 | ||
| 47371-30510 |
UZZ40 |
1 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 77266-24030 |
UZZ40 |
1 | ||
| 77266-24030 |
UZZ40 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90468-08034 | ||||
| 90949-01872 | ||||
| 91626-A0625 | ||||
