UZZ40L-DKTQKW (2005)
Toyota Lexus Sc430
Production
Aug 2005
-
Jul 2010
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )3UZFE..EUR,GCC

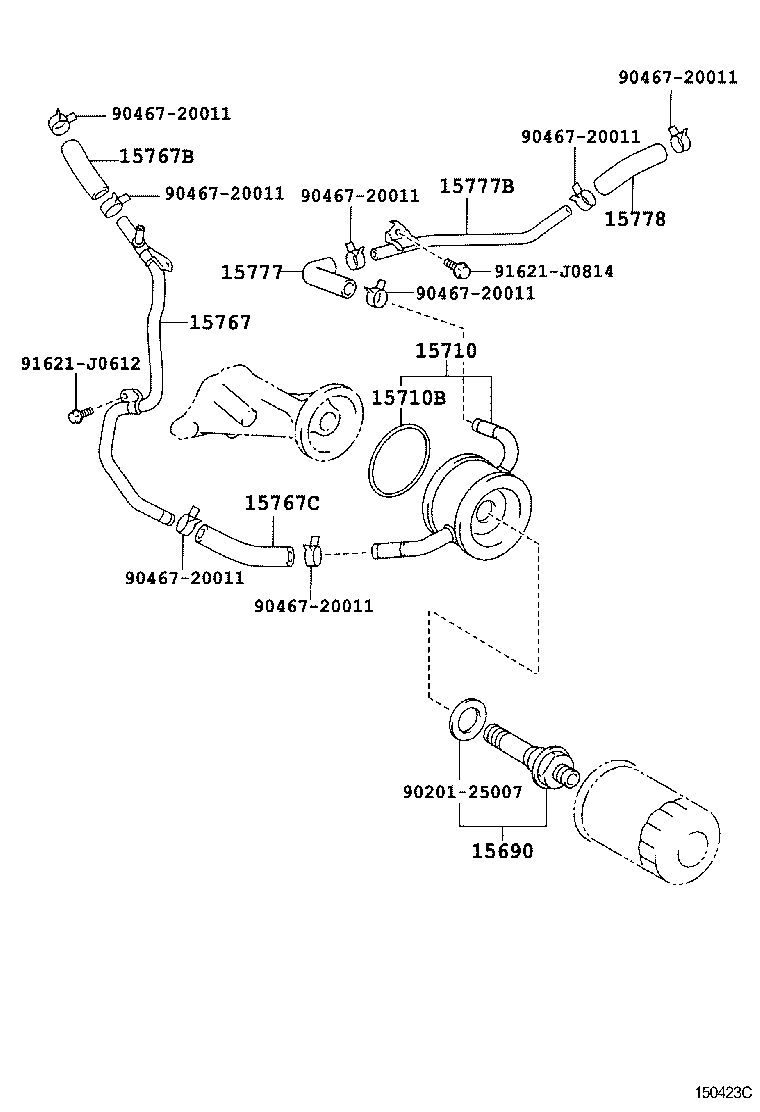

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15690 - VALVE ASSY, OIL COOLER RELIEF | ||||
| 15695-88411 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 15695-88410 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-50011 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 15710-50011 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-67004 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 90301-67004 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 15767 - PIPE, OIL COOLER | ||||
| 15767-50090 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 15767-50090 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 15767B - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-50030 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 16281-50030 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 15767C - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-50020 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 16282-50020 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 15777-50080 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 15777-50080 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15769-50020 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 15769-50020 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 15778 - HOSE, OIL COOLER, NO.2 | ||||
| 15778-50020 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| 15778-50020 |
3UZFE..UZZ40..EUR,GCC |
1 | ||
| Common parts | ||||
| 90201-25007 | ||||
| 90467-20011 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
