UZZ40L-DKTQKW (2005)

Toyota Lexus Sc430

Production Aug 2005 - Jul 2010
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )3UZFE..EUR,GCC

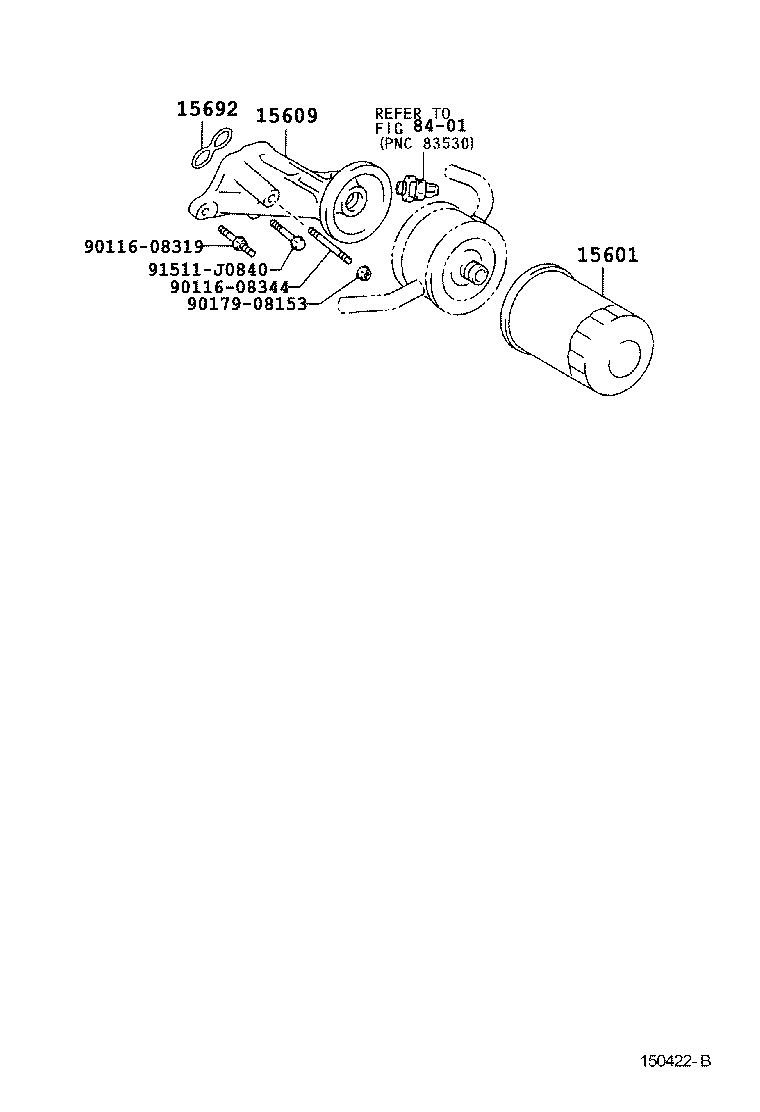

Click highlighted areas on diagram

diagram 15601 15609 15692 8401 9011608319 9011608344 9017908153 91511J0840
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-20004

3UZFE..UZZ40

 1
90915-20004

3UZFE..UZZ40

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-50032

3UZFE..UZZ40..EUR,GCC

 1
15609-50032

3UZFE..UZZ40..EUR,GCC

 1
15692 - GASKET, OIL FILTER BRACKET
15692-50020

3UZFE..UZZ40

 1
15692-50020

3UZFE..UZZ40

 1
Common parts
90116-08319
90116-08344
90179-08153
91511-J0840
Linked diagrams
8401
