GYL25R-AWXGBW (2019)

Toyota Lexus Rx Series

Production Aug 2019 - Sep 9999
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

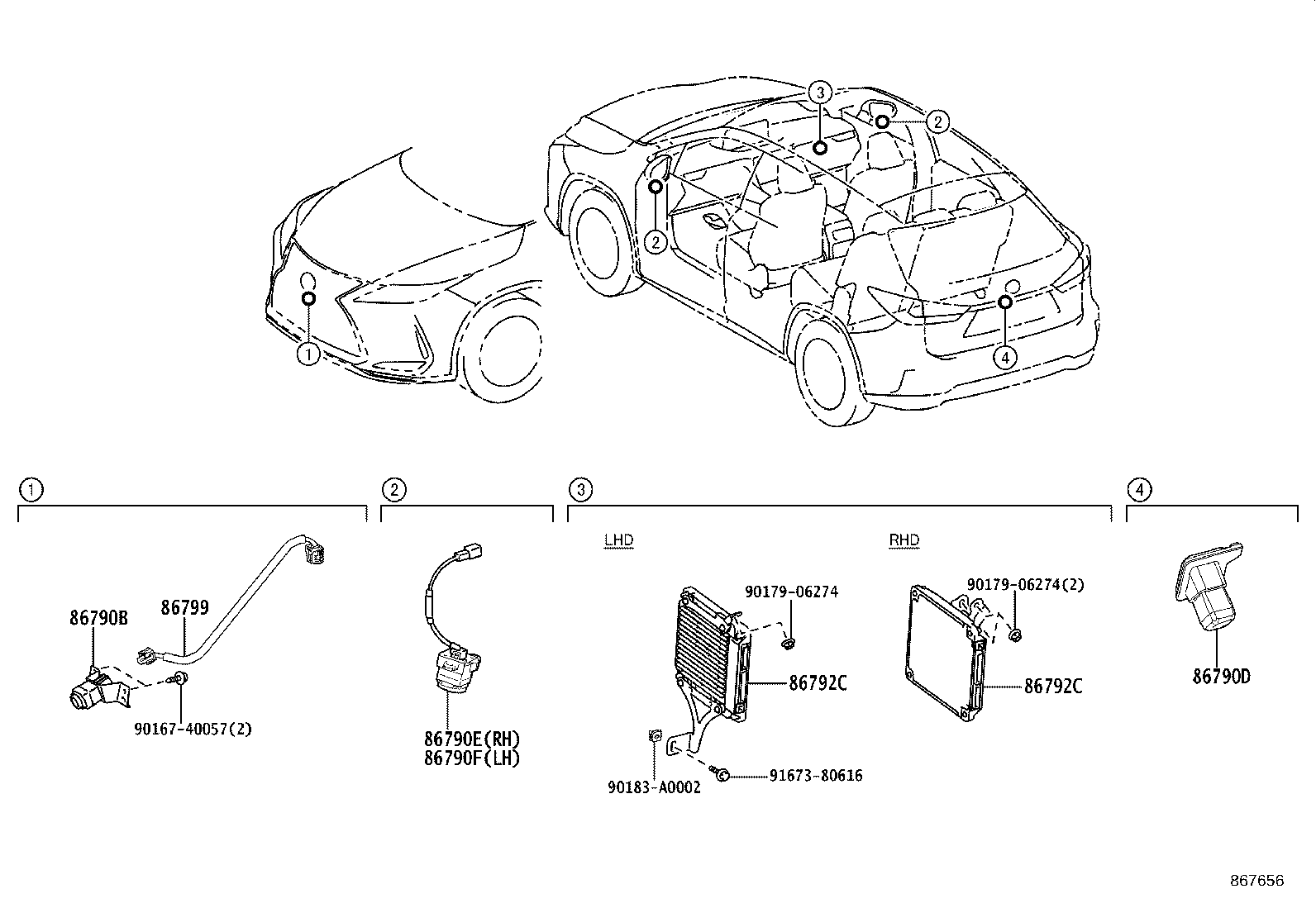

Click highlighted areas on diagram

diagram 86790B 86790D 86790E 86790F 86792C 86792C 86799 9016740057 9017906274 9017906274 90183A0002 9167380616
Part # Description Qty Price
86790B - CAMERA ASSY, TELEVISION, FR
867B0-48090

AGL2#,GGL25,GYL25..STD

"F-SPORT"*(F)&BACK MONITOR-WITH(*PVM)

 1
867B0-48100

AGL2#,GGL25,GYL25..STD

"VERSION L"*(L)&BACK MONITOR-WITH(*PVM)

 1
86790D - CAMERA ASSY, TELEVISION, RR
867B0-48110

GYL25..RHD..STD

PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)&BACK MONITOR-WITH(*PVM)

 1
867B0-48110

AGL2#,GGL25,GYL25

 1
867D0-48010

GYL25..RHD

PARKING SUPPORT ALART/BRAKE-WITH(*ICS & *RCTB)

 1
867D0-48010

GYL25..RHD

PARKING SUPPORT ALART/BRAKE-WITH(INTELLIGENT CLEARANCE SONAR)

 1
86790E - CAMERA ASSY, TELEVISION, SIDE RH
867B0-78050

AGL2#,GGL25,GYL25..STD

BACK MONITOR-WITH(*PVM)

 1
86790F - CAMERA ASSY, TELEVISION, SIDE LH
867B0-78040

AGL2#,GGL25,GYL25..STD

BACK MONITOR-WITH(*PVM)

 1
86792C - COMPUTER, PARKING ASSIST
86792-48530

GYL25..RHD..STD

BACK MONITOR-WITH(*PVM)

 1
86792C - COMPUTER, PARKING ASSIST
86792-48530

GYL25..RHD..STD

BACK MONITOR-WITH(*PVM)

 1
86799 - WIRE, TELEVISION CAMERA
86799-48050

AGL2#,GGL25,GYL25..STD

"VERSION L"*(L)&BACK MONITOR-WITH(*PVM)

 1
86799-48050

AGL2#,GGL25,GYL25..STD

"F-SPORT"*(F)&BACK MONITOR-WITH(*PVM)

 1
Common parts
90167-40057
90179-06274
90183-A0002
91673-80616
