GYL25R-AWXGBW (2019)

Toyota Lexus Rx Series

Production Aug 2019 - Sep 9999
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )

Click highlighted areas on diagram

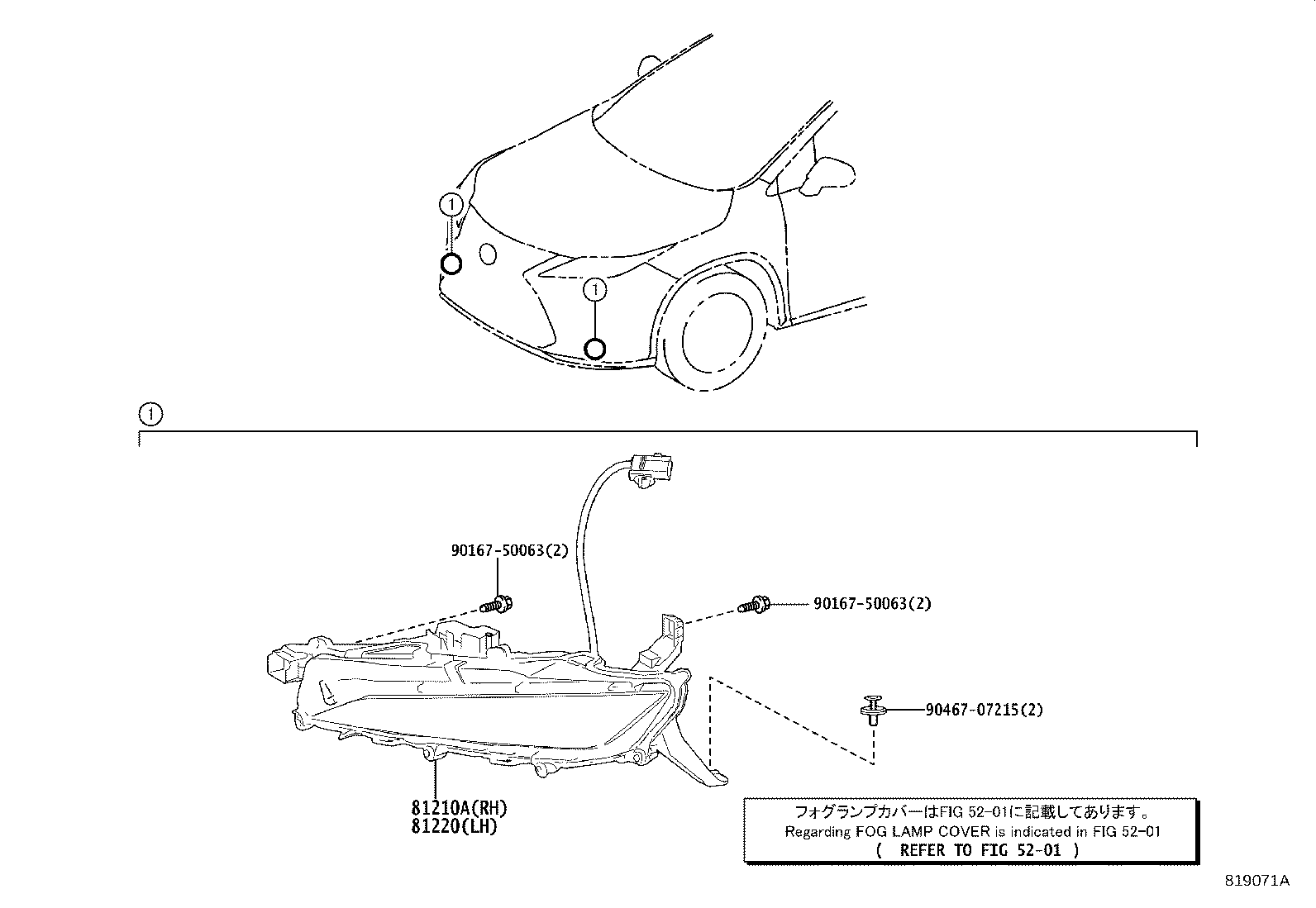

diagram 5201 81210A 81220 9016750063 9016750063 9046707215
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-48060

AGL2#,GGL25,GYL25

 1
81220 - LAMP ASSY, FOG, LH
81220-48060

AGL2#,GGL25,GYL25

 1
Common parts
90167-50063
90467-07215
Linked diagrams
5201
