GYL25R-AWXGBW (2015)
Toyota Lexus Rx Series
Production
Oct 2015
-
Aug 2019
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1509-1908)

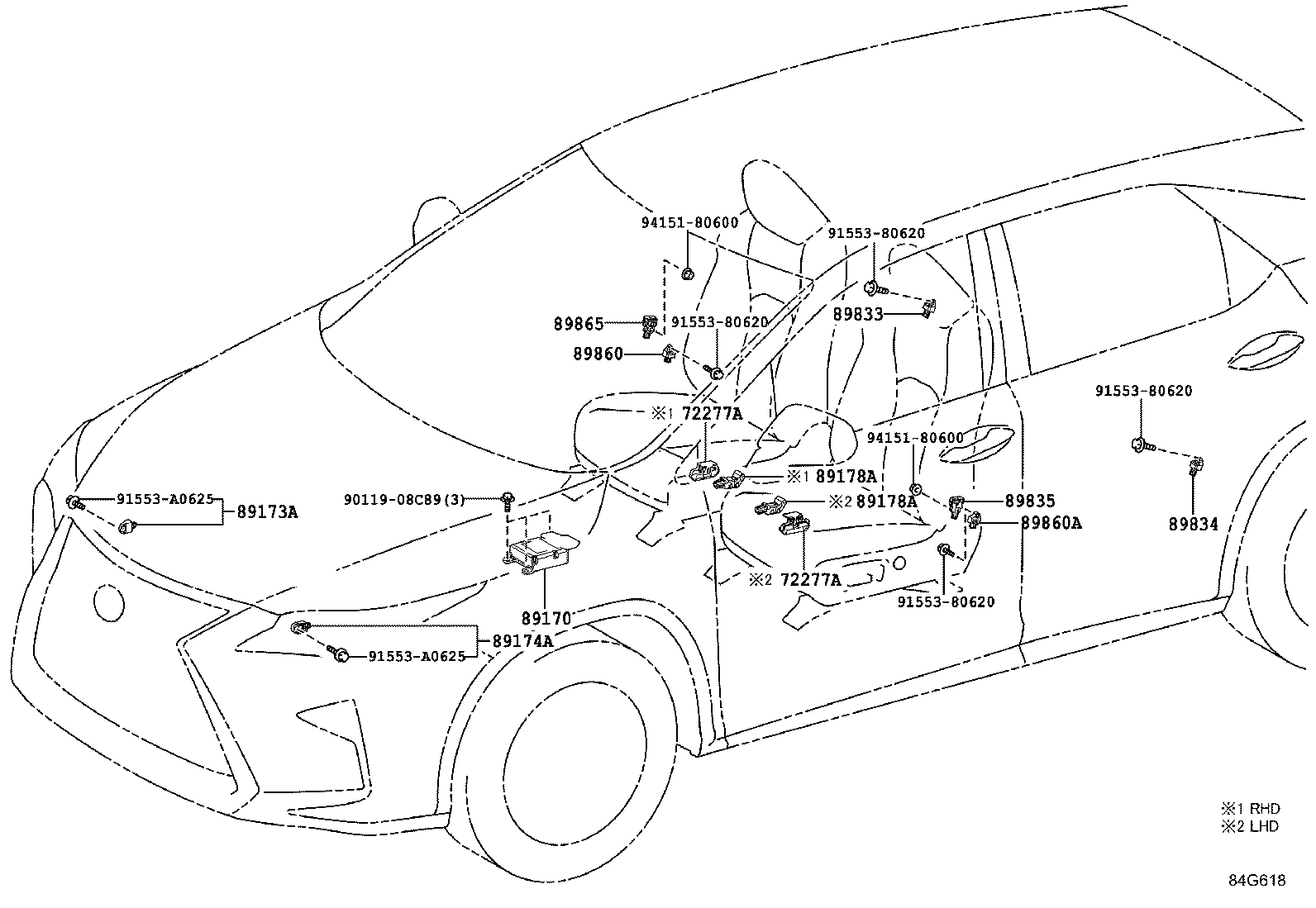

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR | ||||
| 72277-47010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR | ||||
| 72277-47010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-48A20 |
GYL25..RHD |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-79095 |
AGL2#,GGL25,GYL25 |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89173-79095 |
AGL2#,GGL25,GYL25 |
1 | ||
| 89178A - SENSOR, SEAT POSITION AIR BAG | ||||
| 89178-33050 |
AGL2#,GGL25,GYL25 |
1 | ||
| 89178A - SENSOR, SEAT POSITION AIR BAG | ||||
| 89178-33050 |
AGL2#,GGL25,GYL25 |
1 | ||
| 89833 - SENSOR, AIR BAG, REAR RH | ||||
| 89831-28040 |
AGL2#,GGL25,GYL25 |
1 | ||
| 89834 - SENSOR, AIR BAG, REAR LH | ||||
| 89831-28040 |
AGL2#,GGL25,GYL25 |
1 | ||
| 89835 - SENSOR, DOOR SIDE AIR BAG, LH | ||||
| 8983A-47010 |
AGL2#,GGL25,GYL25 |
1 | ||
| 89860 - SENSOR ASSY, SIDE AIR BAG, RH | ||||
| 89831-47050 |
AGL2#,GGL25,GYL25 |
1 | ||
| 89860A - SENSOR ASSY, SIDE AIR BAG, LH | ||||
| 89831-47050 |
AGL2#,GGL25,GYL25 |
1 | ||
| 89865 - SENSOR, DOOR SIDE AIR BAG, RH | ||||
| 8983A-47010 |
AGL2#,GGL25,GYL25 |
1 | ||
| Common parts | ||||
| 90119-08C89 | ||||
| 91553-80620 | ||||
| 91553-A0625 | ||||
| 94151-80600 | ||||
